Integrated Circuits

'--

'--

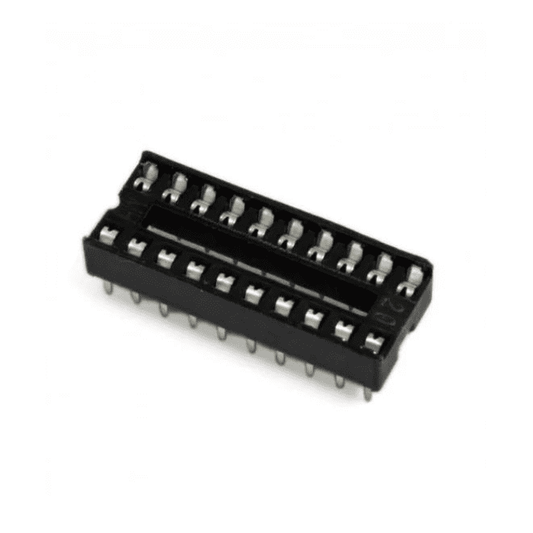

20 Pin Narrow IC Base 20 Pin Narrow IC Base is a 20-pin IC holder, which can be soldered directly onto the PCB. The Integrated Circuits can be removed from this socket when required. The IC is placed on the socket at the time...

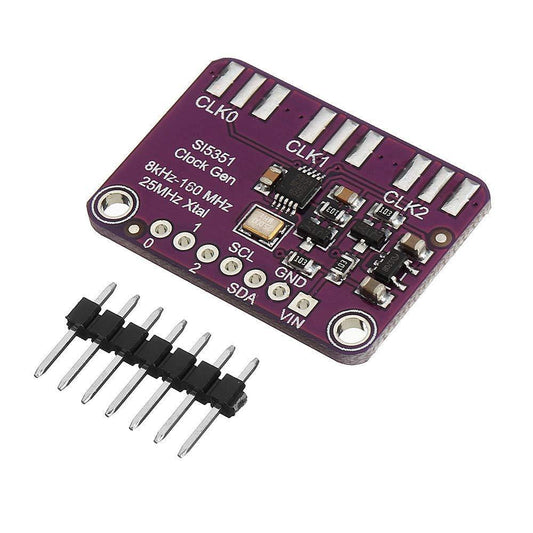

Si5351A Clock Signal Generator Module The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLLs and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary...

'--

CD4053 - Triple 2-channel Multiplexer/Demultiplexer IC The CD4053 IC analog multiplexers demultiplexers are digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3?15V. For...

Dual 1-of-4 Line Data Selector/Multiplexer IC - 74HC153 The 74HC Series 74HC153 IC's data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections.  The...

CD4047 - Astable/Monostable Multivibrator IC CD4047 IC consists of a gateable astable multivibrator with logic techniques incorporated to permit positive or negative edge-triggered monostable multivibrator action with retriggering and external counting options. Inputs include +TRIGGER, -TRIGGER, ASTABLE, ASTABLE\, RETRIGGER, and EXTERNAL RESET. Buffered outputs...

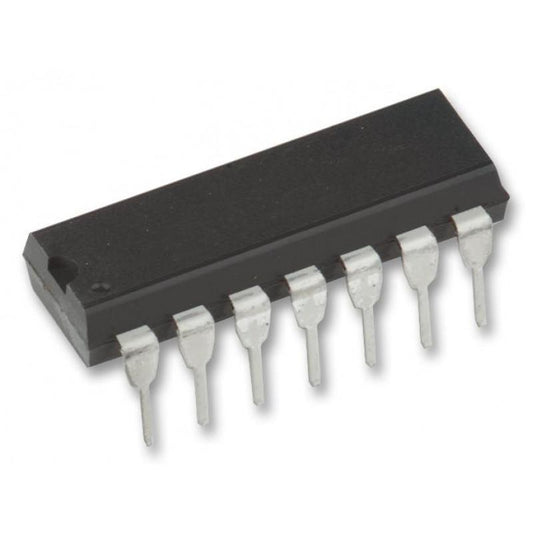

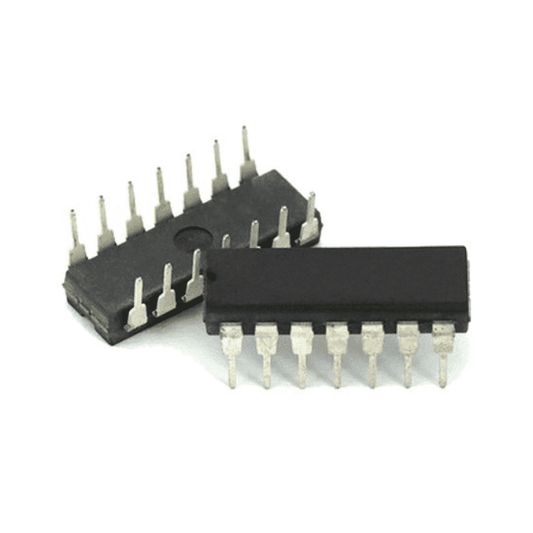

74HC11 - Triple 3-Input AND Gate IC The 74HC11 is a digital integrated circuit (IC) with three separate 3-input AND gates. It belongs to the 74HC family of integrated circuits, which are high-speed CMOS (Complementary Metal-Oxide-Semiconductor) devices with quick switching rates and low power...

Dual 2-to-4 line Decoder/Demultiplexer IC - 74HC139 The 74HC Series 74HC139 comprises two separate two-line-to-four-line decoders in a single package. The active-low enable input can be used as a data line in demultiplexing applications. All of these decoders/demultiplexers feature fully buffered inputs, presenting only one...

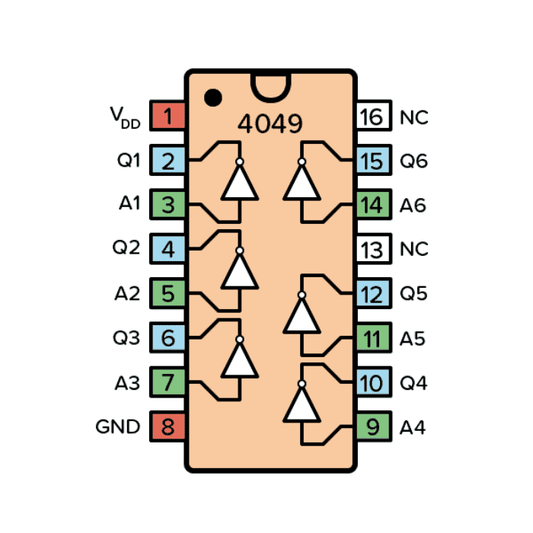

CD4049 - Hex Inverting Buffer/Converter IC The CD4x Series CD4049 hex buffers are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. These devices feature logic-level conversion using only one supply voltage (VDD). The input signal level can exceed the VDD...

Binary Up/Down Counter with Clear IC - 74HC193 The 74HC Series 74HC193 is a UP/DOWN DIP-16 Binary Counter. Separate Count Up and Count Down Clocks are used and in either counting mode, the circuits operate synchronously. The outputs change state synchronously with the LOW-to-HIGH transitions...

CD4030 - Quad 2-Input Exclusive OR (EXOR) Gate IC The CD4030 IC types consist of four independent Exclusive-OR gates. The CD4030 provides the system designer with a means for direct implementation of the Exclusive-OR function. The CD4030 types are supplied in 14-lead hermetic dual-in-line...

Dual 4 Input NAND Gate IC - CD4012 The CD4x Series CD4012 belongs to the CD4000 IC series. This CD4012 was designed as a monolithic 4-input NAND gate IC designed by implementing the complementary MOS technology, integrated with P and N-type enhancement mode transistors....

Decade Up/Down Counter with Clear IC - 74HC192 The 74HC Series 74HC192 IC is an asynchronously presettable BCD Decade and Binary Up/Down synchronous counters, respectively. Presetting the counter to the number on the preset data inputs (P0-P3) is accomplished by a LOW asynchronous parallel load...

CD4013 - Dual D Type Flip-Flop IC The CD4013 designed as a CMOS logic chip IC belongs to the CD4XXX IC series. The CD4013 device comprises two identical, independent data-type flip-flops. Each flip-flop comes with independent data, set, reset, and clock inputs, and Q...

4 Bit Bi-Stable Latch IC - 74HC75  The 74HC Series 74HC75 is a 4 Bit Bi-Stable Latch 16 Pin IC. It contains 4 transparent D latches with a common enable (gate) on latches 0 and 1 and another common enable on latches 2 and 3. When...

4-Line to 16-Line Decoder/Demultiplexer IC - 74HC154 This is the 74HC Series 74HC154 IC, Each of these 4-line-to-16-line decoders IC utilizes TTL circuitry to decode four binary-coded inputs into one of sixteen mutually exclusive outputs when both the strobe inputs, G1 and G2, are...

Triple 3-Input NAND Gate IC - 74HC10 The 74HC10 Triple 3-Input NAND Gate IC belongs to the 74HC series. This IC package comes with three independent positive logic 3-input NAND Gates fabricated in low-power hotkey technology. The 74HC10 IC operates at a wide range...

CD4518 - Dual BCD Up Counter IC The CD4x Series CD4518 consists of two identical, internally synchronous 4-stage counters. The counter stages are D-type flip-flops having interchangeable CLOCK and ENABLE lines for incrementing on either the positive-going or negative-going transition. For single-unit operation, the...
