4-Line to 16-Line Decoder/Demultiplexer IC - 74HC154

4-Line to 16-Line Decoder/Demultiplexer IC - 74HC154

Regular price Rs. 125
Regular price Rs. 144 Sale price Rs. 125
Sale Sold out 13% off Best Price Guaranteed
You save Rs. 19
Incl. GST (No Hidden Charges)
Size
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Decodes 4 binary-coded inputs into one of 16 mutually exclusive outputs
  • Performs the demultiplexing function by distributing data from one input line to any one of 16 outputs
  • Input clamping diodes simplify system design
  • High fan-out, low-impedance, totem-pole outputs
  • Typical propagation delay 3 levels of logic 23 ns Strobe 19 ns
  • Typical power dissipation 45 mW

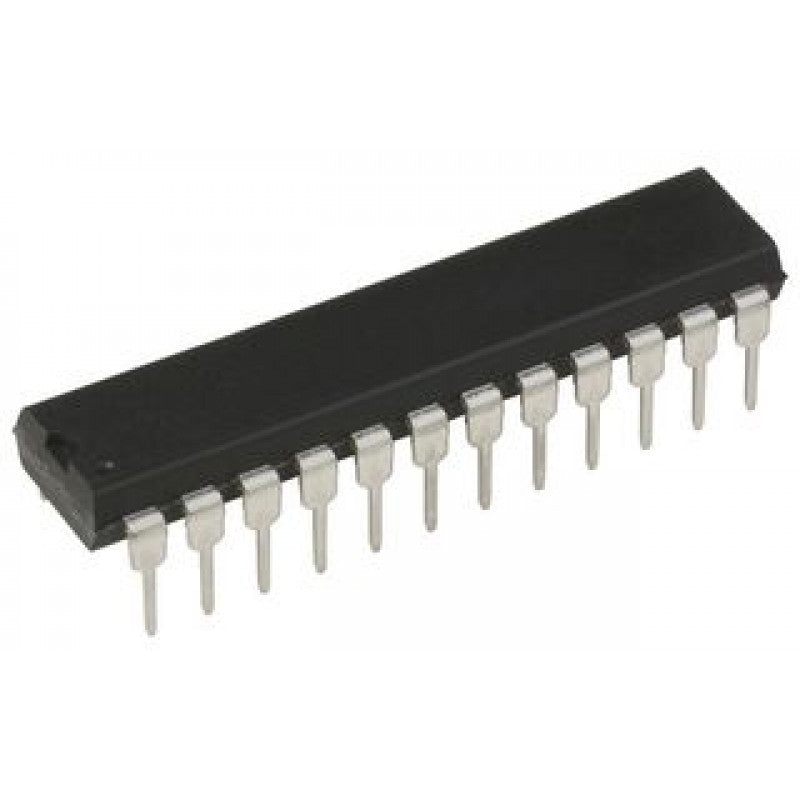

4-Line to 16-Line Decoder/Demultiplexer IC - 74HC154

This is the 74HC Series 74HC154 IC, Each of these 4-line-to-16-line decoders IC utilizes TTL circuitry to decode four binary-coded inputs into one of sixteen mutually exclusive outputs when both the strobe inputs, G1 and G2, are LOW. The demultiplexing function is performed by using the 4 input lines to address the output line, passing data from one of the strobe inputs with the other strobe input LOW.

When either strobe input is HIGH, all outputs are HIGH. These demultiplexers are ideally suited for implementing high-performance memory decoders. All inputs are buffered and input clamping diodes are provided to minimize transmission-line effects and thereby simplify system design.

check out : 74238 IC

Pinout:

Pinout Of 74HC154 IC

Package Includes:

Selected qty of IC - 74HC154

Specifications:

Supply Voltage (VCC) 7 V
Input Voltage (VI) 7 V
Operating free-air temperature range 0°C to +70°C
Storage temperature range –65°C to +150°C
