A motor driver IC is an integrated circuit that is specially developed to control the movement of motors in many sorts of electronic devices. These are used to amplify control signals from a microcontroller or other control device, allowing them to operate high current and voltage motors.
A motor driver IC (Integrated Circuit) is a device that is used to control the operation of a motor. It is a type of semiconductor chip that contains the circuitry necessary to drive one or more motors. Motor driver ICs are commonly used in a variety of applications, such as robotics, industrial automation, automotive, and consumer electronics.
There are different types of motor driver ICs available in the market, each designed to control specific types of motors, such as DC motors, stepper motors, and servo motors. The most common types of motor driver ICs are H-bridge, brushed DC motor driver, and brushless DC motor driver.
H-bridge motor driver ICs are commonly used to control the direction and speed of a DC motor. They consist of four switches that are arranged in an H-shaped configuration. By turning on and off the switches in a specific pattern, the motor can be made to rotate in either direction and at different speeds.
Brushed DC motor driver ICs are designed to control the speed of a DC motor by varying the voltage that is applied to it. They can also control the direction of the motor by using a separate control signal.
Motor driver ICs are used to control the speed and direction of brushless DC motors. They use a technique called pulse-width modulation (PWM) to control the speed of the motor, and they require a separate control signal to determine the direction of rotation.
Motor driver ICs offer several advantages over traditional motor driver circuits. They are smaller, more efficient, and can be easily integrated into a wider range of electronic devices. They also offer more precise control over motor operation and can protect the motor from damage by detecting faults or overloading conditions.
1.How does an H-bridge motor driver IC work?
An H-bridge motor driver IC consists of four switches arranged in an H-shaped configuration. The switches are typically transistors or MOSFETs. By turning on and off the switches in a specific pattern, the motor can be made to rotate in either direction and at different speeds. The H-bridge configuration allows the motor to be reversed by simply reversing the direction of current flow through it.
2.What is motor driver IC?

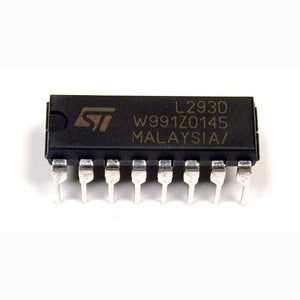

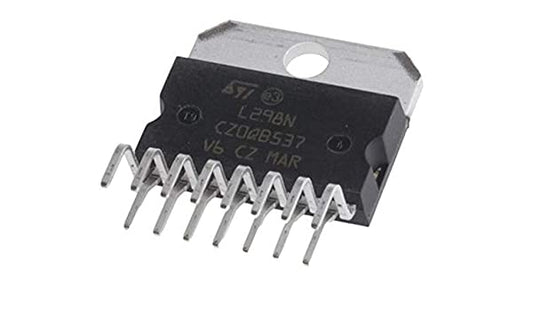

A motor driver IC is an integrated circuit chip that controls motors in autonomous robots and embedded circuits. L293D and ULN2003 are the most commonly used motor Driver IC that is used in simple robots and RC cars.
3.What is the difference between a unipolar and bipolar motor driver IC?
A unipolar motor driver IC is intended to control unipolar stepper motors with two windings per phase and a centre tap, whereas a bipolar motor driver IC is intended to handle bipolar stepper motors without a centre tap. The fundamental distinction between the two types of motors is their wiring and driving mechanisms, which require different driver integrated circuits to function.
4.What are the benefits of using a Motor Driver IC in a robotic application?
Using a Motor Driver IC in a robotic application has various advantages, including precise control over the motor's speed and direction, lower power consumption, and enhanced safety. Motor Driver ICs can also be programmed, allowing for more customizable control and integration with other electrical components in the system.
