CD4X IC Series

CD4511 - BCD To 7 Segment Latch Decoder Driver IC The CD4511 IC types are BCD-to-7-segment latch decoder drivers constructed with CMOS logic and n-p-n bipolar transistor output devices on a single monolithic structure. These devices combine the low quiescent power dissipation and high...

Quad 2 Input NOR Gate IC - CD4001 The CD4x Series CD4001 IC is a quad, 2-input NOR gate IC. It is a monolithic CMOS transistor-based IC having efficient source and sink capabilities. Circuits that use this IC can be easily operated using the battery...

Dual JK Flip Flop IC - CD4027 CD4027 is a single monolithic chip integrated circuit containing two identical complementary-symmetry J-K master-slave flip-flops. Each flip-flop has provisions for individual J, K, Set, Reset, and Clock input signals. Buffered Q and Q\ signals are provided as...

CD4081 - Quad 2 Input AND Gate IC CD4081 Quad 2 Input AND gates IC provides the system designer with direct implementation of the AND function and supplements the existing family of CMOS gates. The CD4081 types are supplied in 14-lead hermetic dual-in-line ceramic...

CD4047 - Astable/Monostable Multivibrator IC CD4047 IC consists of a gateable astable multivibrator with logic techniques incorporated to permit positive or negative edge-triggered monostable multivibrator action with retriggering and external counting options. Inputs include +TRIGGER, -TRIGGER, ASTABLE, ASTABLE\, RETRIGGER, and EXTERNAL RESET. Buffered outputs...

CD4013 - Dual D Type Flip-Flop IC The CD4013 designed as a CMOS logic chip IC belongs to the CD4XXX IC series. The CD4013 device comprises two identical, independent data-type flip-flops. Each flip-flop comes with independent data, set, reset, and clock inputs, and Q...

CD4052 - Differential 4-channel Multiplexer/Demultiplexer IC The CD4052 analog multiplexers/demultiplexers IC are digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3?15V. For example,...

CD4543 - BCD to 7 Segment Decoder IC The CD4543 IC is a BCD-to-seven segment latch/decoder/driver IC designed primarily for liquid-crystal display (LCD) applications. It is also capable of driving light-emitting diode (LED), incandescent, gas-discharge, and fluorescent displays. This device is functionally similar and...

CD40106 - Hex Schmitt Trigger Inverter IC  The CD40106 IC consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN)...

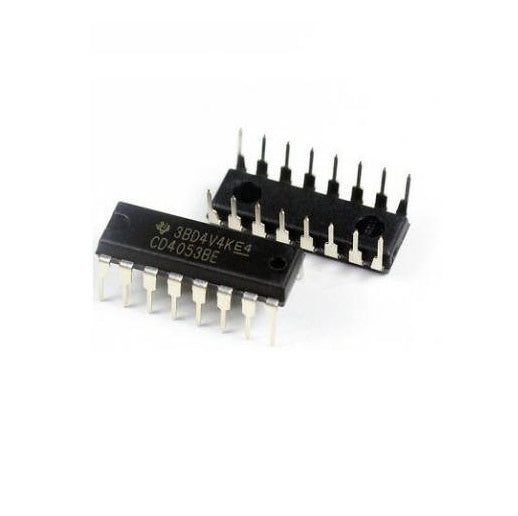

CD4053 - Triple 2-channel Multiplexer/Demultiplexer IC The CD4053 IC analog multiplexers demultiplexers are digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3?15V. For...

CD4011 - Quad 2-Input NAND Gate IC The CD4011 is a quad package 2-Input NAND gate IC(Integrated Circuits). That is, it has four NAND gates inside a single package and each gate has two input lines and one output line. All the inputs and outputs are buffered...

CD4093 - Quad 2-Input NAND Schmitt Trigger IC CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive...

Quad 2-input OR gate IC - CD4071 The CD4071 2-input quad gates IC are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. The CD4x Series CD4071 have equal source and sink current capabilities and conforms to the standard B series output...

Dual 4-Input OR Gate IC - CD4072 The CD4072 Dual 4-Input OR gates IC provides the system designer with direct implementation of the positive-logic OR function and supplements the existing family of CMOS gates. The CD4x Series CD4072 types are supplied in 14-lead hermetic...

CD4046 - Micropower Phase Locked Loop IC CD4046 CMOS Micropower Phase-Locked Loop (PLL) IC consists of a low-power, linear voltage-controlled oscillator (VCO) and two different phase comparators having a common signal-input amplifier and a common comparator input. A 5.2-V Zener diode is provided for...

CD4049 - Hex Inverting Buffer/Converter IC The CD4x Series CD4049 hex buffers are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. These devices feature logic-level conversion using only one supply voltage (VDD). The input signal level can exceed the VDD...

CD4030 - Quad 2-Input Exclusive OR (EXOR) Gate IC The CD4030 IC types consist of four independent Exclusive-OR gates. The CD4030 provides the system designer with a means for direct implementation of the Exclusive-OR function. The CD4030 types are supplied in 14-lead hermetic dual-in-line...

CD4015 - Dual 4-Stage Shift Register IC The CD4015 IC consists of two identical, independent, 4-stage serial-input/parallel-output registers. Each register has independent CLOCK and RESET inputs as well as a single serial DATA input. “Q” outputs are available from each of the four stages...

CD4538 - Dual Precision Monostable Multivibrator IC The CD4538 IC is a dual, precision monostable multivibrator with independent trigger and reset controls. The device is re-triggerable and resettable, and the control inputs are internally latched. Two trigger inputs are provided to allow either rising...

CD4504 - Hex Voltage-Level Shifter IC The CD4504 hex voltage level shifter IC consists of six circuits that shift input signals from the VCC logic level to the VDD logic level. To shift TTL signals to CMOS logic levels, the SELECT input is at the VCC HIGH...
