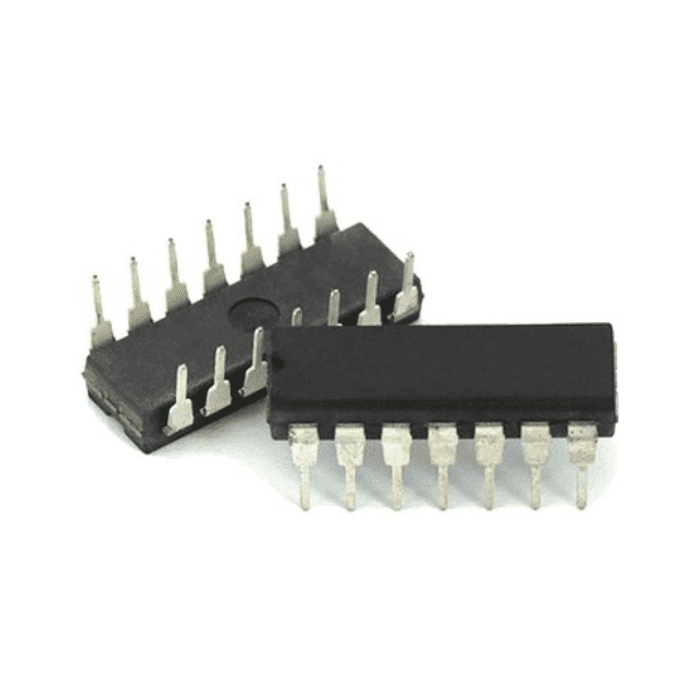

74HC11 - Triple 3-Input AND Gate IC
74HC11 - Triple 3-Input AND Gate IC
Regular price
Rs. 23
Regular price
Rs. 26
Sale price
Rs. 23
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Three Independent AND Gates
- It features Standard Pin Configuration
- This IC has features of fast switching.
- Standard TTL Switching Voltages
- Standardized, symmetrical output characteristics
74HC11 - Triple 3-Input AND Gate IC
The 74HC11 is a digital integrated circuit (IC) with three separate 3-input AND gates. It belongs to the 74HC family of integrated circuits, which are high-speed CMOS (Complementary Metal-Oxide-Semiconductor) devices with quick switching rates and low power consumption.
The 74HC Series 74HC11 has three inputs and one output for each AND gate. Only if all of the inputs are high is the output (logic 1) high (logic 1). The output is low if any of the inputs is low (logic 0). (logic 0). As a result, the 74HC11 can be used to create logic functions that require the combination of many signals.
The 74HC11 comes in a typical DIP (Dual In-line Package) form factor and is easily incorporated into circuits utilising through-hole technology. It can handle input and output voltages ranging from 0V to Vcc and operates across a wide voltage range of 2V to 6V.
Pinout:
Pinout Of 74HC11 IC
Package Includes:
- 1 x 74HC11 - Triple 3-Input AND Gate IC
Specifications:
| Supply Voltage | 2v - 6v |
| Input and Output Voltage | 0V to Vcc |
| Operating free-air temperature range | -40°C to +85°C. |
| Storage temperature range | –65°C to +150°C |
