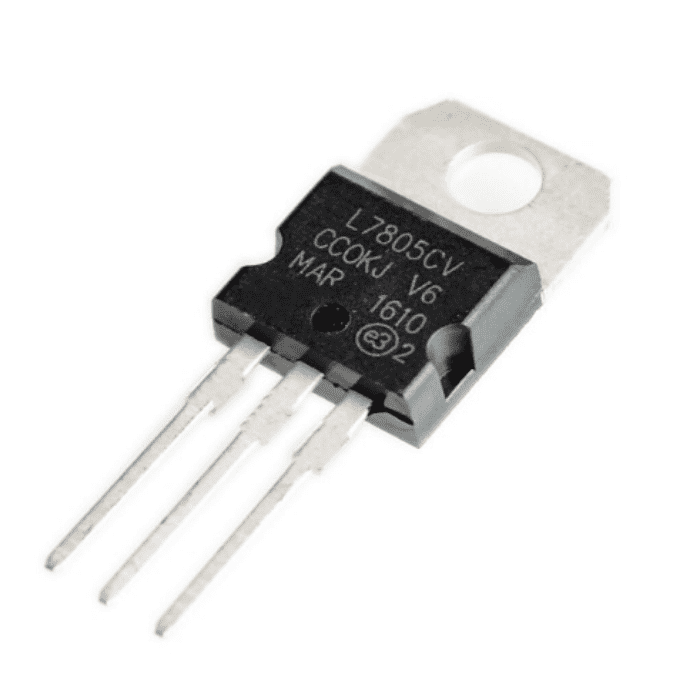

LM7805 IC - 5V Positive Voltage Regulator IC
LM7805 IC - 5V Positive Voltage Regulator IC
Regular price
Rs. 10
Regular price
Rs. 13
Sale price
Rs. 10
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 4 hours and 39 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 7805 Voltage Regulator IC
- Built-in current limiting, thermal shutdown, and safe operating area protection for immunity to damage from output overloads
- Designed primarily as a fixed voltage regulator but can also be used for adjustable voltages and currents with external components
- Can deliver over 0.5A output current with adequate heatsinking
- Ideal for local (on-card) regulators and IoT applications
- Widely available in various packages, with TO-220 being the most commonly used.
7805 Voltage Regulator IC
The 7805 voltage regulator IC is a three-terminal voltage regulator IC. In various applications, a 7805 voltage regulator with a fixed output voltage is used. The availability of this is through various packages like SOT-223, TO-263, TO-220, and TO-3. Among these, TO-220 is the most used one. There are many important features in the IC regulator 7805.
The ic 7805 is a three-terminal positive regulator available in the TO220 package. It employs built-in current limiting, thermal shutdown, and safe operating area protection which makes them virtually immune to damage from output overloads.
7805 voltage regulator, although designed primarily as a fixed voltage regulator and can also be used with external components for adjustable voltages and currents. With adequate heatsinking, they can deliver in excess of 0.5A output current.
read more : What is 7805 Voltage Regulator & Its Working
Features:
- Three-terminal positive voltage regulator IC
- Available in TO220 package
- Built-in current limiting, thermal shutdown, and safe operating area protection
- Primarily designed as a fixed voltage regulator
- Can be used for adjustable voltages and currents with external components
- Can deliver over 0.5A output current with adequate heatsinking
Pinout:

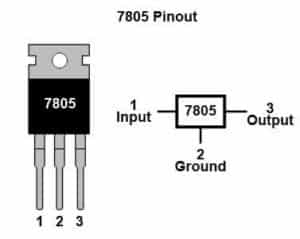

Voltage regulator IC 7805 Pin Diagram
Applications:
- Local (on-card) regulators
- IoT
Also check 7812 Voltage Regulator IC available on Robocraze. It is a commonly used linear regulator with an operating output voltage of 12V.
Also check the 7809 Voltage Regulator (Pack of 5) available on the Robocraze website. It is a monolithic 3-terminal positive voltage regulator, specifically the LM7809 model.
Also check 7812 voltage regulator, which operates with an input voltage range of 12 – 35VDC and outputs a fixed 12V
Package Includes:
- 1 x 7805 IC
Specifications:
| Input voltage | 7v to 25v |
| Output voltage range | 4.8 v to 5.2v |
| Typical output voltage | 5v |
| Maximum output current | 1.5A |
| Dimensions | 30 x 10 x 5 mm |
| Weight | 2g |
