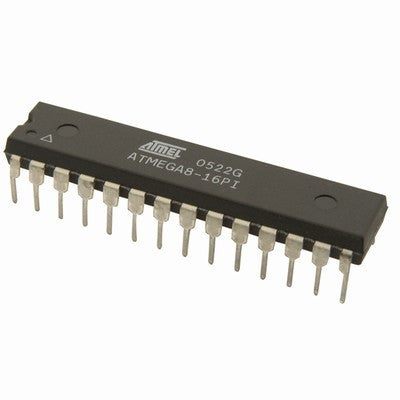

ATmega8

The ATmega8A is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8A achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed. ATmega8 has 16 KB programmable flash memory, static RAM of 1 KB and EEPROM of 512 Bytes. The endurance cycle of flash memory and EEPROM is 10,000 and 100,000, respectively.

Features

• High-performance, Low-power AVR® 8-bit Microcontroller
• Advanced RISC Architecture
• 130 Powerful Instructions - Most Single-clock Cycle Execution
• 32 x 8 General Purpose Working Registers
• Fully Static Operation
• Up to 16 MIPS Throughput at 16 MHz
• On-chip 2-cycle Multiplier
• Peripheral Features
• Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
• One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
• Real Time Counter with Separate Oscillator
• Three PWM Channels
• 8-channel ADC in TQFP and QFN/MLF package
• Eight Channels 10-bit Accuracy
• 6-channel ADC in PDIP package
• Six Channels 10-bit Accuracy
• Byte-oriented Two-wire Serial Interface
• Programmable Serial USART
• Master/Slave SPI Serial Interface
• Programmable Watchdog Timer with Separate On-chip Oscillator
• On-chip Analog Comparator
• Special Microcontroller Features
• Power-on Reset and Programmable Brown-out Detection
• Internal Calibrated RC Oscillator
• External and Internal Interrupt Sources
• Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• Flash:8 KBytes
• EEPROM:512 Bytes
• SRAM:1024 Bytes
• Max I/O Pins:23
• Frequency Max:16 MHz
• VCC:2.7-5.5
• 10-bit A/D Channels:6
• Analog Comparator:Yes
• 16-bit Timers:1
• 8-bit Timer:2
• Brown Out Detector:Yes
• Ext Interrupts:2
• Hardware Multiplier:Yes
• Interrupts:18
• ISP:Yes
• On Chip Oscillator:Yes
• PWM Channels:3
• RTC:Yes
• Self Program Memory:Yes
• SPI:1
• TWI:Yes
• UART:1
• Watchdog:Yes
• Package:Lead Free PDIP 28
