1. How does the Raspberry Pi camera work?

The amazing Raspberry Pi camera module opens into a whole new world of useful projects. The Raspberry Pi Camera Board is a custom designed add-on module for Raspberry Pi hardware.

2. Which is the best Raspberry Pi camera?

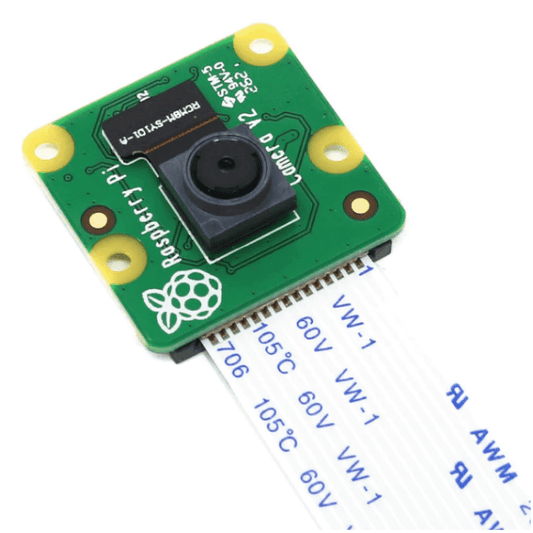

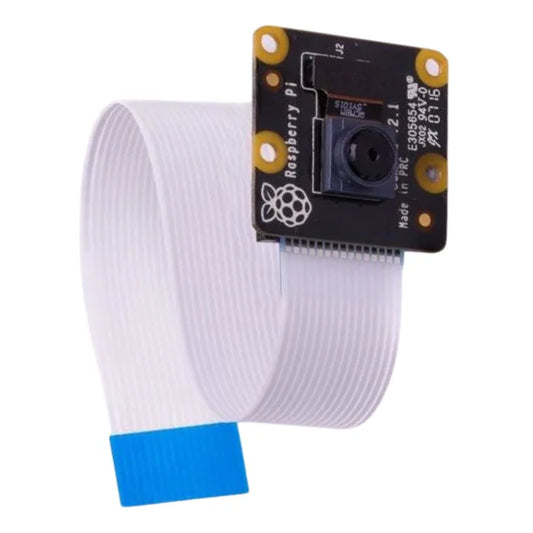

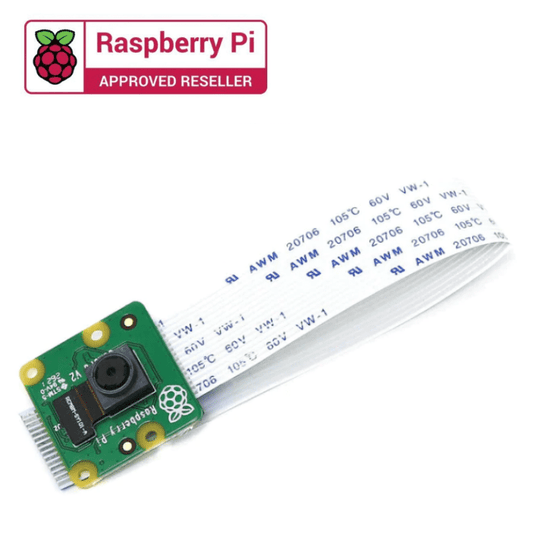

The Raspberry Pi Camera Module v2 is a high quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSI interface, designed especially for interfacing to cameras. The board itself is tiny, at around 25mm x 23mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. It connects to Raspberry Pi by way of a short ribbon cable.

3. Can I use a webcam with Raspberry Pi?

If you're not interested in using a Raspberry Pi camera module, then you can use a standard USB webcam for taking pictures and recording videos. You can get started with the webcam by installing the fswebcam package.

4. How to install the Raspberry Pi camera?

It is best to install the camera to the Raspberry Pi without the extra boards. In other words, remove the Pi from the GoPiGo, or the GrovePi board, in order to have just the Pi. The Raspberry Pi Camera Board is a custom designed add-on module for Raspberry Pi hardware. The camera board is connected to the Raspberry Pi via a 15 way ribbon cable. The flex cable of the ribbon inserts into the connector situated between the Ethernet and HDMI ports, with the silver connectors facing the HDMI port. The flex cable connector should be opened by pulling the tabs on the top of the connector upwards then towards the Ethernet port. The flex cable should be inserted firmly into the connector, with care taken not to bend the flex at too acute an angle. The top part of the connector should then be pushed towards the HDMI connector and down, while the flex cable is held in place. On the camera PCB, you need to make sure that the blue backing faces away from the PCB and the raspberry side should be facing towards the ethernet connection.

5. How many cameras can be attached to a Raspberry Pi?

You can use multiple cameras with a single PI board. Raspberry Pi multi-camera adapter module is designed for connecting more than one camera to a single CSI camera port on the Raspberry Pi board.

Raspberry Pi Camera Modules – Capture Every Detail

Camera Module Comparison: 5 MP vs 8 MP

Specification	5 MP Camera Module	8 MP Camera Module
Resolution	2592 × 1944 px	3280 × 2464 px
Sensor Type	OmniVision OV5647 (typical)	Sony IMX219 / IMX179 (depending on version)
Max Video Mode	1080p @ 30 fps	1080p @ 30 fps – 720p @ 60 fps (depending on module)
Field of View (FOV)	~ 62.2°	~ 62–70° (varies by lens)
Low-Light Performance	Good for basic use; visible noise in low light	Better sensor sensitivity; slightly improved low-light capture
Best Use Cases	Webcam, simple video, low-res photos, learning projects	High-res photos, time-lapses, vision projects, edge AI

How to Set Up Pi Camera for Projects

Prepare your Raspberry Pi: Use a compatible board (Pi 3, Pi 4, Pi Zero 2 W etc.). Power off the Pi before attaching the camera.

Connect the Camera:
Gently lift the plastic clip on the CSI port, insert the ribbon cable with the metal contacts facing the HDMI port (for most boards), then close the clip firmly.

Enable Camera Interface:
Boot the Pi, open a terminal or go to Raspberry Pi Configuration → Interfaces and enable “Camera”. Reboot if necessary.

Test the Camera:
Run `raspistill -o test.jpg` (for still image) or `raspivid -o test.h264 -t 5000` (for 5 sec video) to verify functionality.

Use in Projects:
Integrate with Python, OpenCV, or any camera library depending on your project’s needs.

Mount & Secure:
Use a proper case or camera mount; avoid flexing the ribbon cable.

Tips for Optimal Image Capture

Use proper lighting: Good ambient light improves image clarity and reduces noise. For low-light, consider an external light source.

Avoid reflections & glare: When capturing through glass or shiny surfaces, adjust angle or use polarizing filters.

Use tripod or stable mount: Prevent blur from shaky hands — especially for long exposures or video.

Clean the lens ribbon carefully: Dust or fingerprints degrade image quality. Use a soft, lint-free cloth or blower.

Match resolution to use: For video streaming or web use, lower resolution saves storage and bandwidth; for photography or AI, use full resolution.

Keep firmware updated: OS updates often bring camera driver improvements that enhance performance and compatibility.
