Buy Integrated Circuits Online for Electronics Projects

Tutorials: Using ICs with Arduino for Beginners

Help new users understand how to interface ICs with microcontrollers like Arduino, ESP32, or Raspberry Pi.

Digital Logic IC Tutorial: Example: Use a 74HC595 shift register to drive 8 LEDs with only 3 Arduino pins. Show a simple wiring diagram and Arduino code snippet using shiftOut().

Op-Amp IC Tutorial: Example: Use an LM358 as a sensor signal amplifier or voltage follower before feeding analog input into Arduino.

Timer IC (NE555) Tutorial: Build an LED flasher or PWM dimmer using NE555, then show how Arduino can read the signal or replace the timing.

Driver / ULN2003 Tutorial: Demonstrate using ULN2003 to drive relays, steppers, or high-current loads safely from logic-level pins.

Suggested IC Starter Kits for Hobbyists

Logic IC Starter Kit: A mix of 74HCxx gates (AND, OR, NOT, XOR), flip-flops, and shift registers.

Analog IC Starter Kit: Op-amps (LM358, LM324), comparators, simple audio amps, and voltage references.

Driver & Interface Kit: ULN2003/ULN2803, MOSFET drivers, line drivers, and level shifter ICs.

Timer & Utility Kit: NE555 timers, voltage regulators (7805/1117), and small power-management ICs.

Include Voltage & Current Requirements in Product Descriptions

Supply Voltage (VCC): e.g., 2 V–5.5 V or 4.5 V–15 V.

Max Output Current: per pin and total package (important for drivers and logic ICs).

Input Logic Levels: TTL/CMOS thresholds (so users know if it works at 3.3 V or only 5 V).

Power Dissipation / Thermal Limits: brief note if heatsinking or derating is needed..

IC Pinout & Datasheet Resources

Integrated circuits (ICs) in this collection include logic gates, op-amps, drivers, timers, regulators, and other essential building blocks used in electronics. Because each IC has a unique configuration, always refer to the correct pinout diagram and datasheet before wiring it into your circuit.

IC Pinout Diagram: You can find the pinout for each individual IC under the “Description” section of its product page. Pinouts vary from one IC to another (e.g., 555 timers, ULN2003 drivers, 7805 regulators, 74HC logic ICs), so always check the correct diagram for your part.

Datasheet Link: For detailed electrical characteristics, recommended operating conditions, and example circuits, download the official datasheet located under the “Attachments” or “Downloads” area on each product page. Datasheets differ from one IC to another and provide voltage limits, current ratings, timing diagrams, truth tables, and application examples.

Buy Other IC Online In India

Integrated circuits (ICs), also known as microchips or chips, are an assembly of electronic components that are fabricated as a single unit on a semiconductor substrate such as silicon. These components include active devices such as transistors and diodes, as well as passive devices like capacitors and resistors, which are interconnected to achieve a common goal.

ICs have revolutionized electronics and computing since their inception in the 1960s and 1970s, as engineers have been able to put dozens, hundreds, and even thousands of components on a single chip, depending on the scale of integration. There are two main types of ICs: digital ICs, which operate on binary signals and are used in digital electronics, and analog ICs, which process continuous signals and are used in analog circuits

Item Name	Price

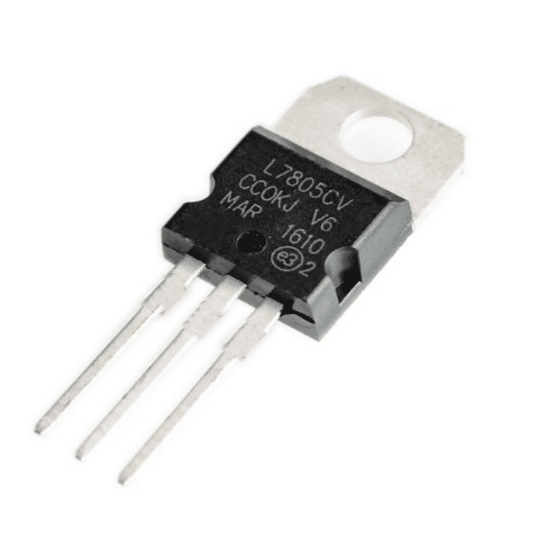

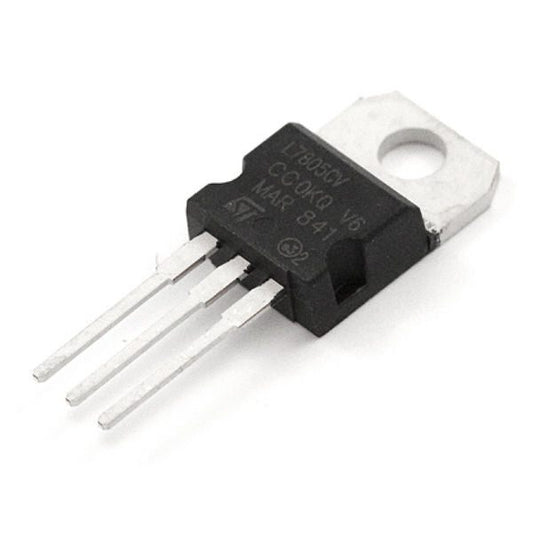

7805 Voltage Regulator IC	Rs.10/-

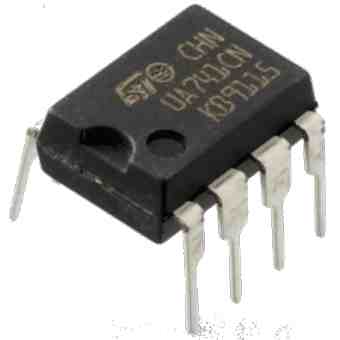

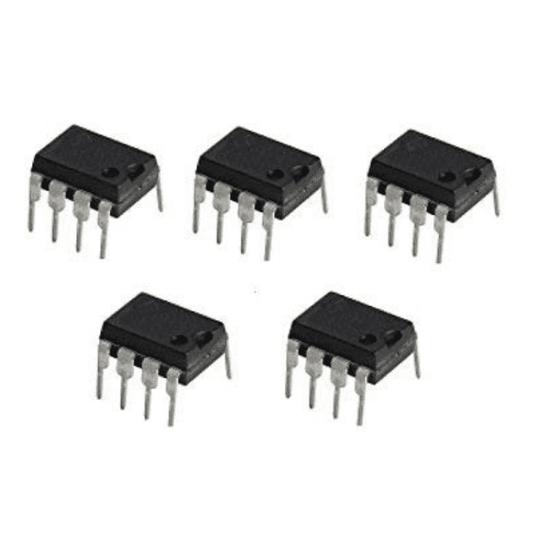

LM 741 Op-Amp IC( Pack of 5)	Rs.49/-

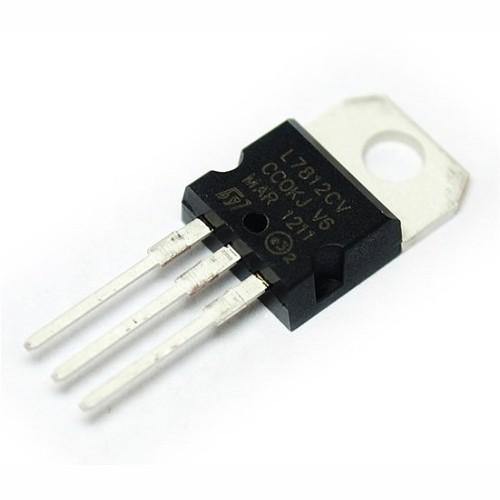

7812 Voltage Regulator IC	Rs.18/-

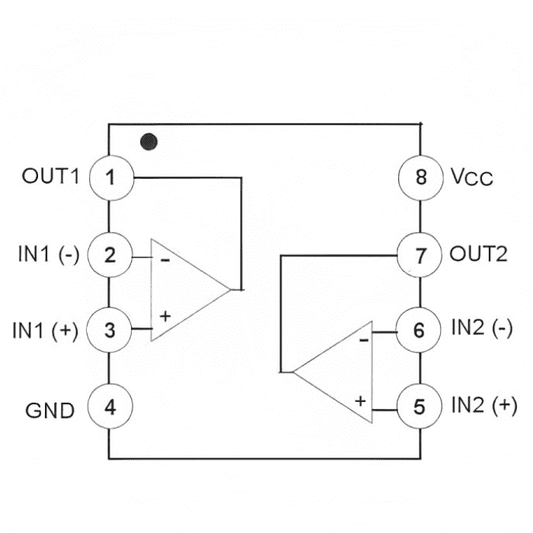

LM358	Rs.10/-
HT12E Encoder IC	Rs.54/-

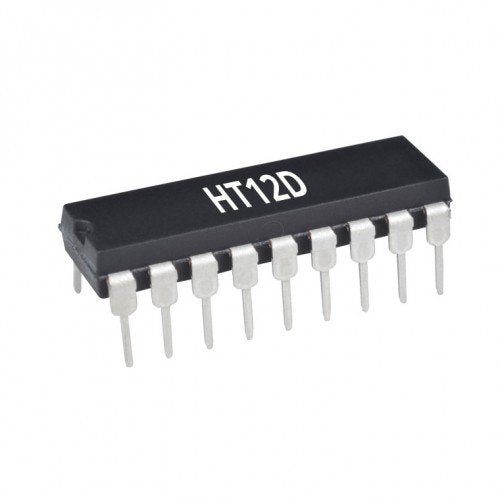

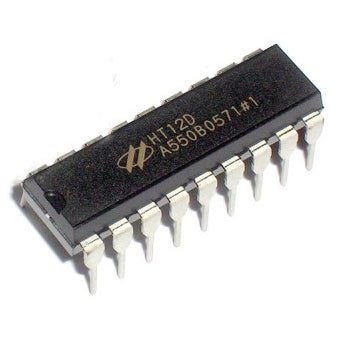

HT12D Decoder IC	Rs.54/-

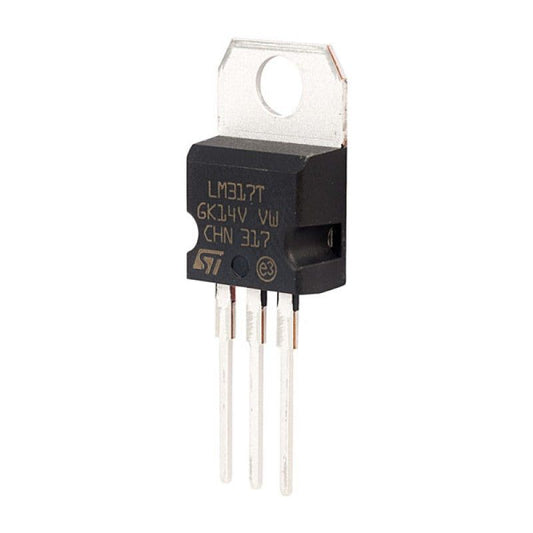

LM317 Adjustable Voltage Regulator IC	Rs.10/-

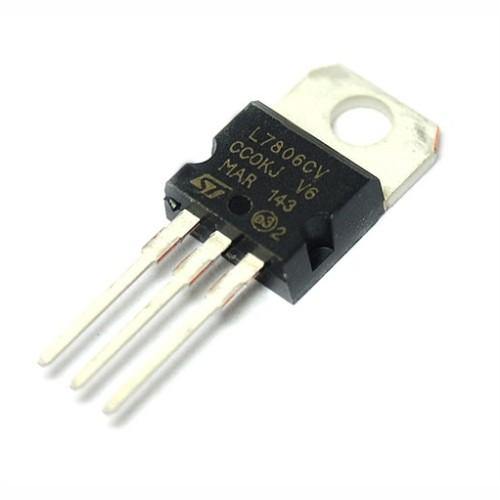

7806 Voltage Regulator IC	Rs.18/-

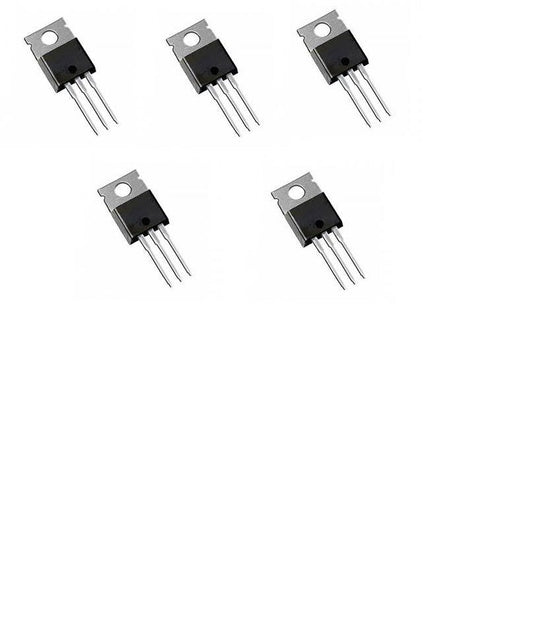

7809 Voltage Regulator (Pack of 5)	Rs.62/-

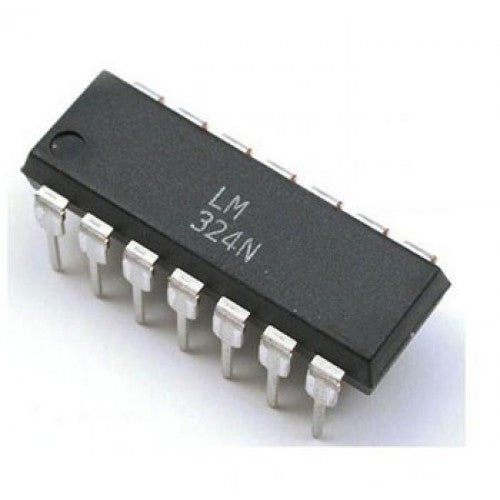

LM324	Rs.13/-

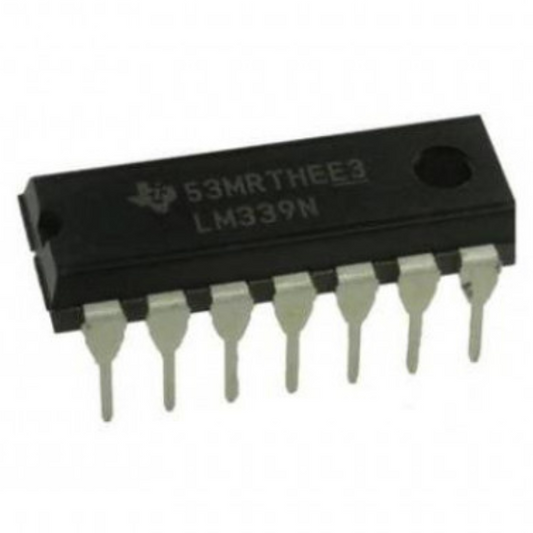

LM339	Rs.6/-
LM 350 Adjustable Voltage Regulator IC (Pack of 5)	Rs.426/-

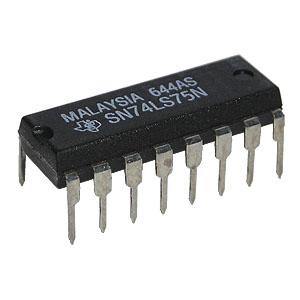

4 Bit D-Latch 74LS75 IC	Rs.32/-
HT12A Encoder	Rs.159/-

Item Name

Price

7805 Voltage Regulator IC

Rs.10/-

LM 741 Op-Amp IC( Pack of 5)

Rs.49/-

7812 Voltage Regulator IC

Rs.18/-

LM358

Rs.10/-

HT12E Encoder IC

Rs.54/-
