1. How does a 7-segment display work?

Light Emitting Diodes (LEDs) are used in seven-segment displays to emit light energy in the form of photons. The production emits light in all seven segments to display digits, with the eighth segment serving as a decimal point.

2. Why it is called as 7-segment?

The 7-segment display, also known as the "seven-segment display," is made up of seven LEDs (hence the name) arranged in a rectangular pattern, Each of the seven LEDs is referred to as a segment because, when illuminated, it forms part of a numerical digit (both Decimal and Hex) to be displayed.

3. What are the advantages of a 7-segment display?

It only contains LEDs, The entire 7-segment display module is very inexpensive. 7 segment displays in general, are extremely efficient. The heat dissipated by these displays is very low, which extends the life of the devices.

4. What is a common cathode?

The term "common cathode" refers to the fact that the cathodes of all LEDs are connected to a single pin. Each LED's anode has its own pin. So driving one of these entails sending a current from the desired segment's anode (positive) pin to the common cathode pin.

5. How many pins are in a 7-segment display?

A seven-segment display is a ten-pin electronic circuit. Eight of the ten pins are LED pins, which are left unconnected. Two pins in the middle are common pins that are internally shorted. Seven segment displays can be classified as a common cathode or common anode depending on whether the common pin is a cathode or anode.

6. What is common anode?

The term "common anode" refers to the fact that the anode (positive) side of all LEDs is electrically connected at one pin, while each LED cathode has its own pin. To turn on any particular segment, a current must be run from the common anode (positive) pin to the cathode (negative) pin for the desired segment.

7. What digit options are available for 7-segment displays?

You’ll find single-digit modules (just one 7-segment unit), as well as multi-digit versions like 4-digit displays. For example, there’s a 4-digit module that uses the driver chip TM1637 4‑Digit 7‑Segment LED Display. So whether you need to show one number or up to several digits (hours/minutes, counter, etc.), the collection covers both.

8. Are these modules common-cathode or common-anode?

Both types are offered. There are versions labelled “common cathode” (where all cathode pins are tied together) and “common anode” (where all anode pins are common). For example, the product “7 Segment LED Display (Common Cathode)” is listed. It’s important to pick the correct type depending on your driver / microcontroller wiring and logic.

9. Are these displays compatible with Arduino or Raspberry Pi?

Yes. The listings mention that these displays are simple to interface with microcontrollers like Arduino, and modules like the TM1637 module are designed for use with Arduino and other platforms. So you can definitely use them with Arduino or a Raspberry Pi (via its GPIO / driver board) to display numbers, counters, clocks, etc.

10. Can I use these modules for clocks or counters?

Absolutely. The 4-digit display module is explicitly marketed for clock display and counter projects. Also the general 7-segment modules are described as suitable for digital clocks, timers, meters, etc. So they are well-suited for clocks, counters, numerical indicators in your projects.

11. How do I wire multiple 7-segment displays together?

For multiple digits: you typically share the segment lines (a-g, maybe decimal point) across all digits, and then you multiplex by selecting one digit at a time (via common anode/cathode) to light it up while the others are off. Refreshing quickly creates the illusion all digits are on simultaneously. Drivers or modules like the TM1637 simplify this by handling the multiplexing internally and exposing fewer control pins. For basic independently-wired modules you’d: connect common pins (cathodes or anodes) for each digit to the driver or microcontroller lines (often via transistors), connect each segment line via resistors, and then set the correct pattern for each digit during its active period. For beginner friendly wiring, using a module with integrated driver helps reduce wiring complexity.

7-Segment LED Displays - Common Cathode & Anode Modules

Compare

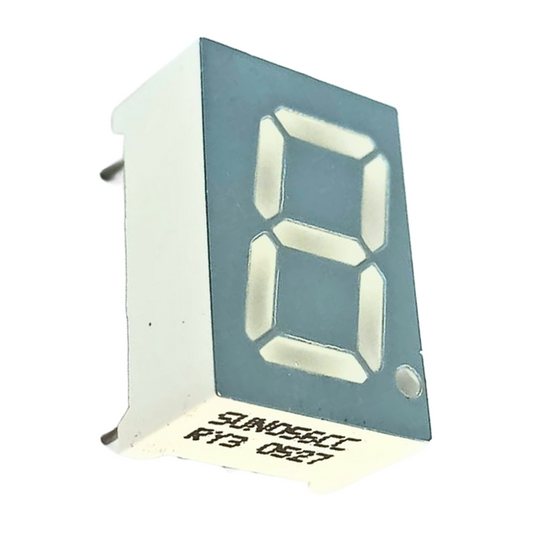

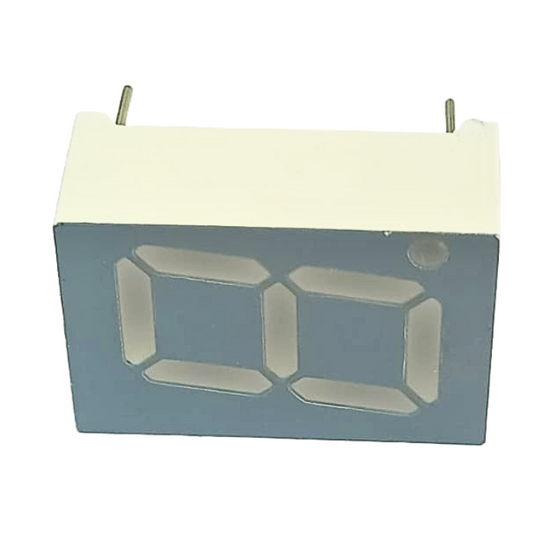

7 Segment Led Display (Common Cathode)
7 Segment Led Display (Common Cathode) 7 Segment Led Display (Common Cathode), is a form of an electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays. In a common cathode display, all of the LED...

Rs. 7

~~Rs. 11~~
Rs. 7
Save Rs. 4

Unit price

per
Compare
Key Display For AVR Arduino New 8-Bit Digital LED Tube 8-Bit TM1638 Module
Key Display For AVR Arduino The TM1638 Button Digital LED Display Module is used in chip TM1638, a collection of these three common MCU peripheral circuit, the biggest feature just takes three microcontroller like Arduino IO port to drive, do not need to scan...

Rs. 279

~~Rs. 376~~
Rs. 279
Save Rs. 97

Unit price

per
Compare
51 MCU LED Digital Clock DIY Kit (Green) – 1-Inch Light-Control Display with Housing for STEM Learning
51 MCU LED Digital Clock DIY Kit (Green) – 1-Inch Light-Control Display with Housing for STEM Learning This 51 MCU Digital Clock DIY Kit is a hands-on educational project designed to help learners understand the basics of microcontrollers, electronics, and digital circuits. With a...

Rs. 699

~~Rs. 849~~
Rs. 699
Save Rs. 150

Unit price

per
Compare
DIY 1-Inch LED Electronic Clock Kit (White) – Light-Control MCU Display Set with Enclosure
DIY 1-Inch LED Electronic Clock Kit (White) – Light-Control MCU Display Set with Enclosure This DIY Electronic Clock Kit offers a fun and educational way to explore basic electronics and microcontroller programming. Equipped with a bright 1-inch LED tube display and powered by a...

Rs. 699

~~Rs. 849~~
Rs. 699
Save Rs. 150

Unit price

per
Compare
1-Inch LED Digital Display DIY Clock Kit (Blue) – Light-Control MCU Project Set with Casing
1-Inch LED Digital Display DIY Clock Kit (Blue) – Light-Control MCU Project Set with Casing This DIY LED Digital Clock Kit is an excellent hands-on project for anyone interested in learning how microcontroller-based circuits work. Built around a 51-series MCU, it features a bright...

Rs. 699

~~Rs. 849~~
Rs. 699
Save Rs. 150

Unit price

per
Compare
DIY 51 MCU Electronic Clock Kit (Red) – 1" Light-Control LED Display with Assembly Case for STEM Projects
DIY 51 MCU Electronic Clock Kit (Red) – 1" Light-Control LED Display with Assembly Case for STEM Projects This DIY 51 MCU Electronic Clock Kit offers an engaging way to learn core electronics and microcontroller concepts. It features a clear 1-inch LED digital display...

Rs. 699

~~Rs. 849~~
Rs. 699
Save Rs. 150

Unit price

per
Compare

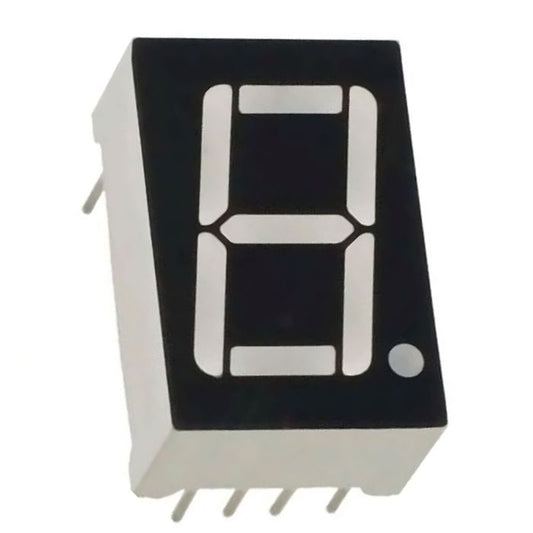

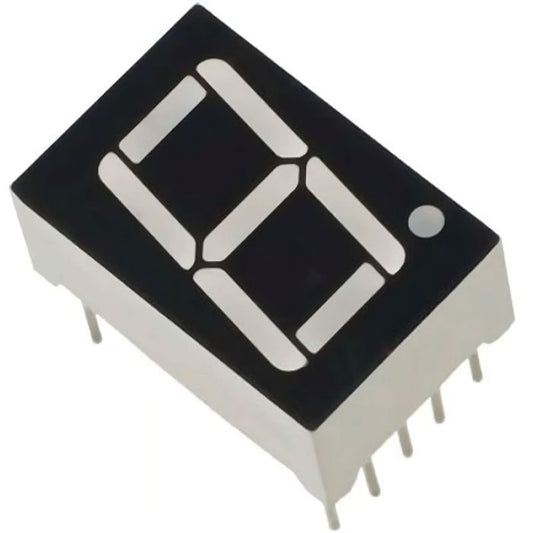

7 Segment Led Display (Common Anode)
7 Segment Led Display (Common Anode) 7 Segment Led Display (Common Anode), is a form of an electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays. The Common Anode (CA) - In the common anode display,...

Rs. 8

~~Rs. 19~~
Rs. 8
Save Rs. 11

Unit price

per
Compare

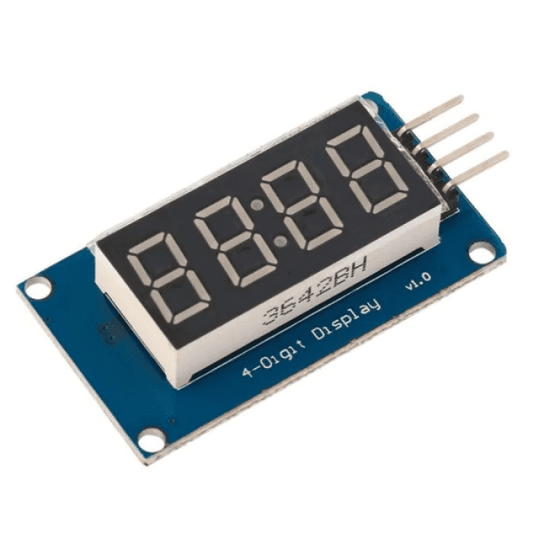

TM1637 4 Digit 7 Segment LED Display
TM1637 4 Digit 7 Segment LED Display The TM1637 4 digit 7 Segment LED Display is a low-cost solution for displaying Arduino project output data. Though the data displayed is limited to numbers, users can also display characters such as A, B, C, and...

Rs. 44

~~Rs. 59~~
Rs. 44
Save Rs. 15

Unit price

per
Compare

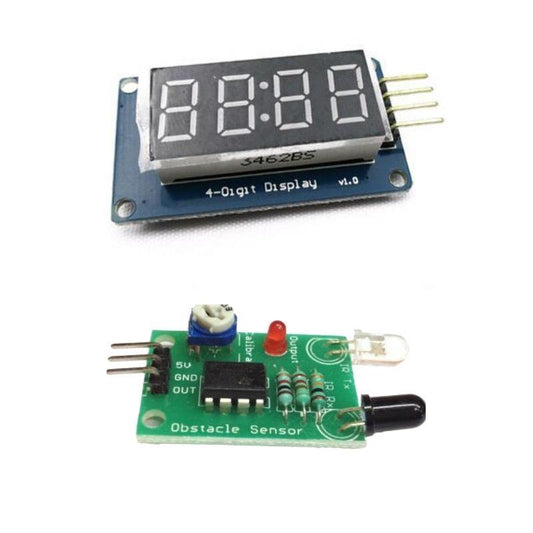

TM1637 4-Digit Display + IR Proximity Sensor
