SKU: TIFC00150

Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).
Power via USB or External Source or 7-16 v to 5 v (automatic selection).
The Onboard, 150 ma 5 v Regulator.
Built-in USB and serial were debugging).
6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
The Power LED and the Test/Status LEDs.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

ATTINY85 USB Development Board

~~Rs 368/-~~ Rs 218/-

Quantity:

ATTINY85 USB Development Board

~~Rs 368/-~~ Rs 218/-

Description
Specifications
Additional Resources
FAQ
Shipping & Return

Description

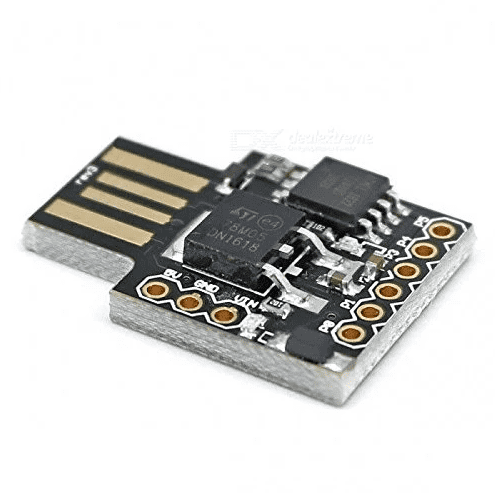

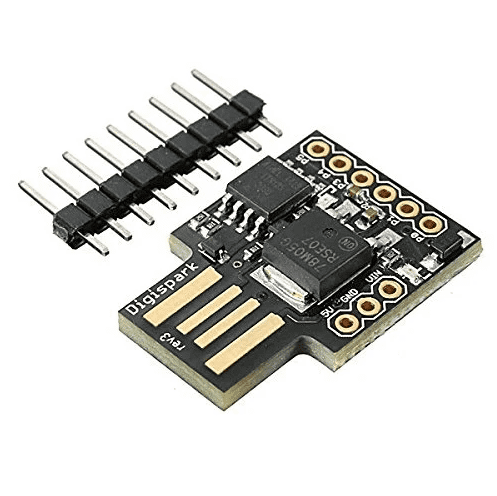

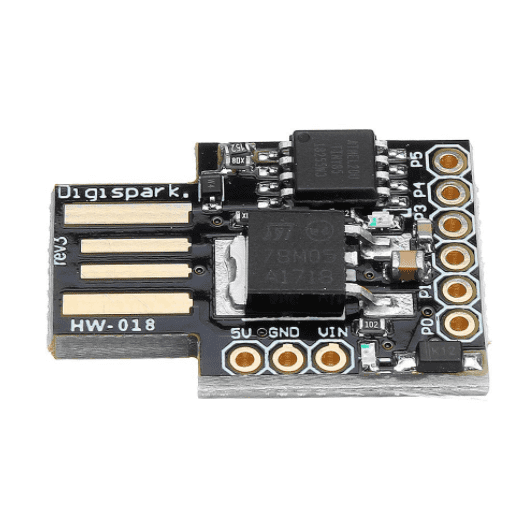

ATTINY85 USB Development Board

The ATTINY85 based mini development board is similar to the Arduino, but cheaper and smaller (of course, a bit less powerful).

With a whole host of shields to extend its functionality. This ATTINY85 USB Development Board is a great way to jump into microcontroller electronics.

ATTINY85 microcontroller development board comes with a USB interface. Coding is similar to Arduino, and it uses the familiar Arduino IDE for development.

It has 6 ports with several functions. Depending on the programming (with Arduino IDE), it can have 6 digital I/O, 4 analog inputs, or 3 PWM outputs.

The ATTINY85 programmer can be powered by a USB port or an external power supply of 6-35V DC.

Also check PCI Port Cord Motherboard IC Analyser available on Robocraze.

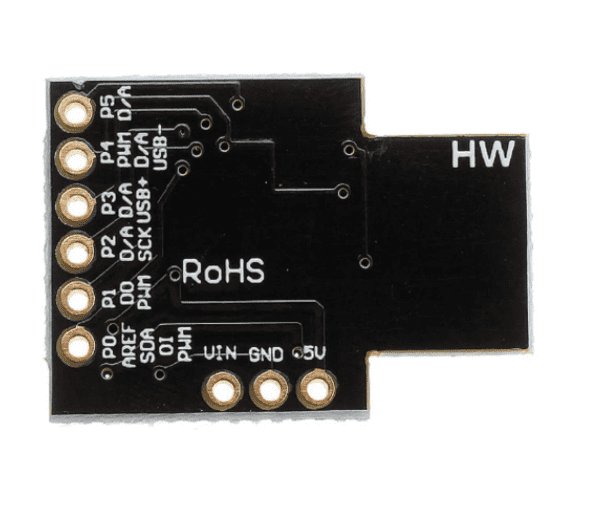

ATTINY85 Pinout

Specifications

Package Includes:

1 x ATTINY85 USB Development Board

Specifications:

No.of I/O Pins	6
Memory	8 k Flash Memory (about 6 k after bootloader)
Dimensions(LxWxH)	26x18x5mm
Weight	10gm

Additional Resources

Datasheet

Useful Link:

https://github.com/Jasdoge/Attiny85-Bootloader-Tutorial

Bootloader link:

https://drive.google.com/file/d/1Fl7ZYjywNoSfGO2vJgWwOkZ_X5EnJ-RG/view

FAQ

1. Does ATtiny85 have a USB interface?

The ATtiny85 is a microcontroller development board that comes with a USB interface. Coding is similar to Arduino, and it uses the familiar Arduino IDE for development.

2. What is ATtiny85 development board?

The ATtiny85 development board is similar to the Arduino UNO but cheaper and smaller (a bit less powerful). This ATTINY85 USB Development Board is an excellent entry point into microcontroller electronics, with a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE.

3. How do I connect ATtiny85 to a computer?

Below are the steps for connecting Digispark Attiny85 with Arduino IDE to a computer:

Install the Arduino IDE.
Install Digispark Attiny85 Windows Drivers.
Set up Digistump for the IDE.
Select a Digispark Board or Mode.
Select a Digispark Attiny85 Example.
Compile and Upload a program.
LED Flash Test program.

4. What can ATtiny85 be used for?

ATtiny85 comes with a serial peripheral interface (SPI) that is mainly used for communication between the microcontroller and other peripheral devices such as SD cards, sensors, and shift registers.
