  • 8-bit AVR RISC-based microcontroller
  • 32 x 8 General Purpose Working registers
  • 1K Bytes Internal SRAM
  • 16-bit word format
  • 512 Bytes EEPROM
  • Erase cycles: 10,000 Flash/100,000 EEPROM

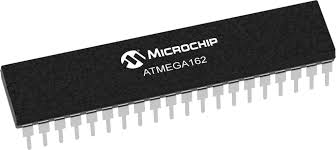

  • ATmega162

    The ATmega162 is a low-power CMOS 8-bit microcontroller based on the AVR-enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
    The AVR core combines a rich instruction set with 32 general-purpose working registers. All 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
    In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. While one instruction is being executed, the next instruction is pre-fetched from the program memory. Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format. Every program memory address contains a 16- or 32-bit instruction.

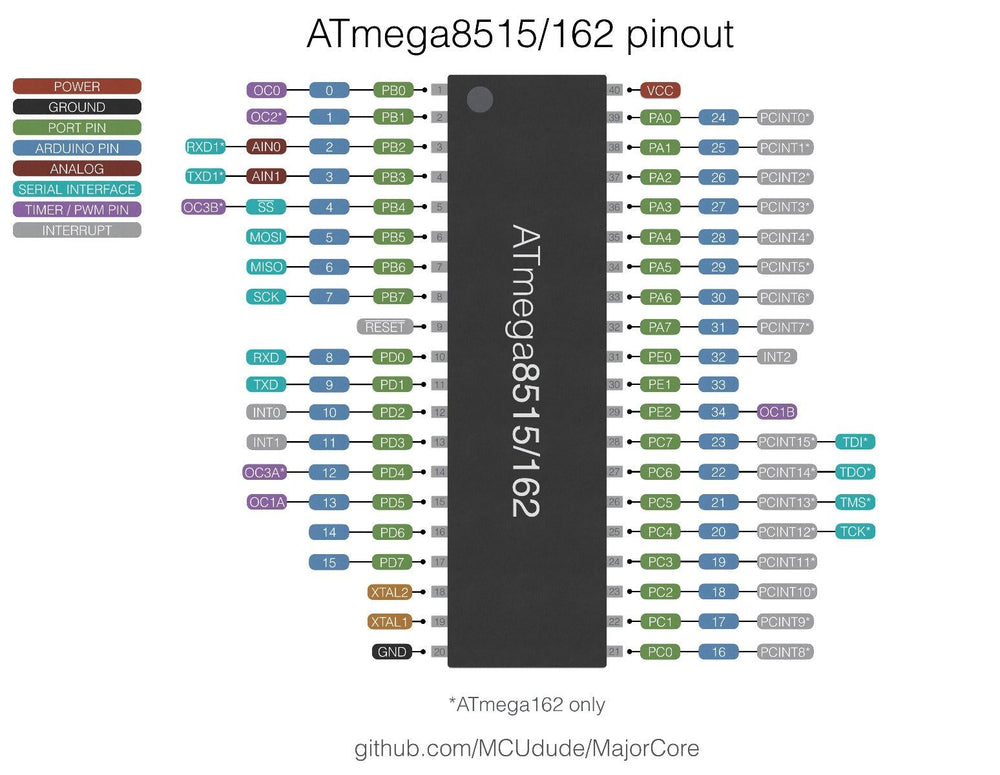

    ATmega162 Pinout
    Pinout Of ATmega162


    • Industrial Automation
    • Automotive Applications
    • Medical Devices
    • Consumer Electronics
    • Internet of Things (IoT)

    Package Includes:

    • 1 x ATmega162 IC


    Type of integrated circuit
    AVR microcontroller
    EEPROM memory capacity
    SRAM memory capacity
    Flash memory capacity
    Clock frequency
    Number of inputs/outputs
    Number of PWM channels

    Shipping & Returns

    • All orders confirmed before 3 pm IST are shipped on the
      same day, barring rare pickup delays on holidays or disturbances
    • Delivery time in Metro cities is 1-3 days, Others it is
      3-7 days. It varies based on location, reliant on courier services
    • Return window: 7 days from receipt unless stated
      otherwise. No refunds/replacements after
    • Returns only for non-working/damaged products are accepted
    • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
    • Refunds are processed within 3-4 working days post inspection and approval.

    For more details, please check our Shipping and Return Policy

    View full details

    Found a better price?

    Let us know!
    We'll try to match the price for you

    • ⚡ Dispatched within 24 hours

    • 💰 Earn RC Coins on every purchase

    • 🚚 Free shipping on orders above Rs 500/-

    • 🛠️ Dedicated Technical Support Team

    1 of 4

    1.What is atmega 162?

    • The ATmega162 is an 8-bit microcontroller integrated circuit (IC) based on the AVR RISC architecture. It features 16KB of programmable flash memory, 1KB SRAM, and 512B EEPROM. It operates between 2.7-5.5 volts and supports a throughput of 16 MIPS at 16 MHz. The ATmega162 has 40 pins in a DIP package or 44 pins in a TQFP package. It also includes a JTAG interface for on-chip debugging.

    2.What does the ATMega 162 IC chip do?

    • The ATMega162 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. It is a type of microcontroller that is commonly used in embedded systems and electronic devices to perform various tasks such as processing inputs, controlling outputs, and managing communication protocols. The ATMega162 has a program memory of 16 KB, 1 KB of SRAM, and 512B of EEPROM, and supports a throughput of 1 MIPS per MHz
