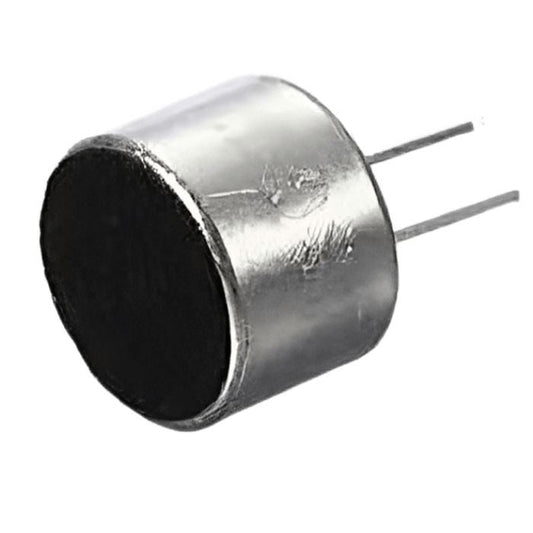

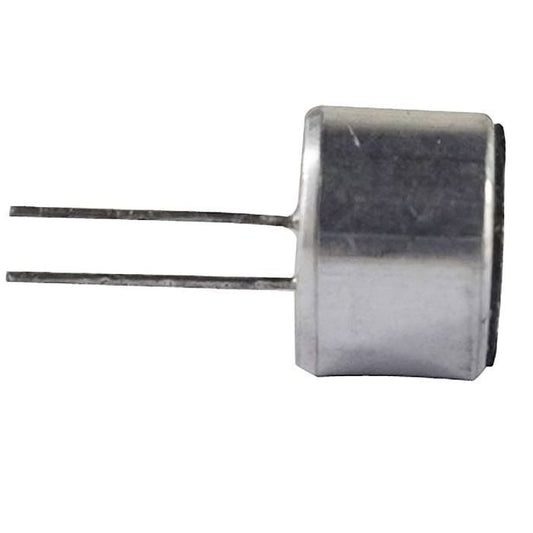

Condenser MicrophoneCondenser Microphone Capture voice, sound, and subtle air vibrations with this compact condenser microphone designed for electronics, DIY, robotics, and embedded projects. Its sensitive electret construction converts changes in air pressure caused by sound into electrical signals, making it useful for applications where reliable...
- Rs 19/-
- Rs 19/-
-
Rs 24/-
Save Rs 5/- -

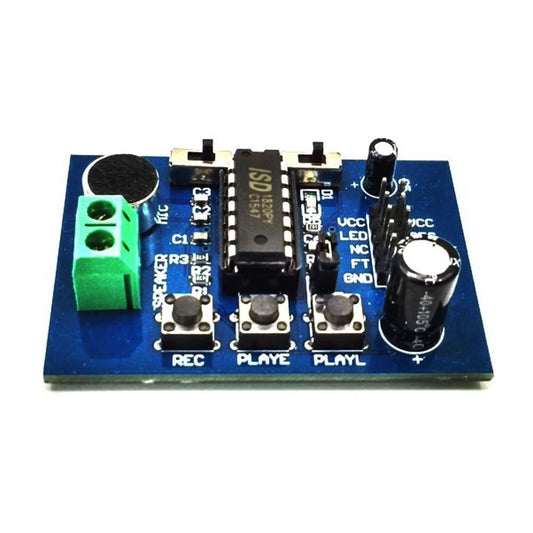

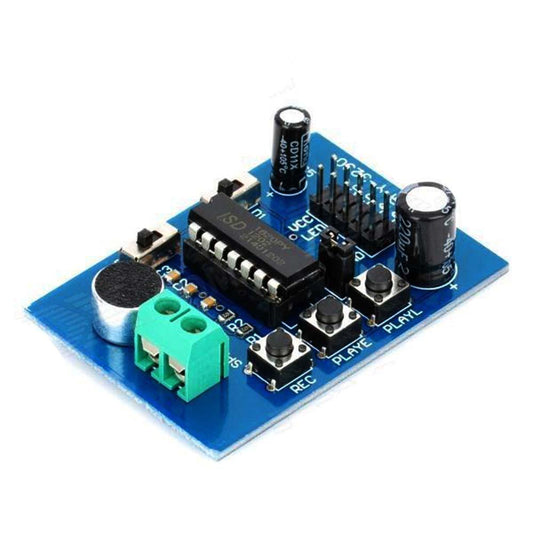

ISD1820 Sound Voice Board Recording ModuleISD1820 Sound Voice Board Recording Module The ISD1820 Sound/Voice Board Recording is 100% Brand new and high-quality Board ISD1820 chip with an Onboard microphone, you can direct recording of About 10 seconds voice recording. This voice record/playback device is based on the ISD1820 chip, which...
- Rs 161/-
- Rs 161/-
-
Rs 180/-
Save Rs 19/-
Microphones
Microphones
Featured Products
2WD Two Wheel Drive DIY Kit - A Smart Robot Car with Chassis
2WD Two Wheel Drive DIY Kit - A Smart Robot Car with Chassis 2WD Two Wheel Drive DIY Kit - A Smart Robot Car with Chassis! This innovative DIY robot car kit allows you to build your very own smart robot car with ease....
- Rs 309/-
- Rs 309/-
-
Rs 450/-
Save Rs 141/-
6 in 1 Rechargeable Solar Power DIY Robots Kit
6 in 1 Rechargeable DIY Solar System Kit This DIY solar kit will teach your child the benefits of solar energy while they build a toy that is fun to play with and does not require batteries! This excellent beginner DIY solar system kit...
- Rs 439/-
- Rs 439/-
-
Rs 574/-
Save Rs 135/-
DIY D2-5 Intelligent Tracking Line Car Kit
DIY D2-5 Intelligent Tracking Line Car Kit LM393 at any time compared the size of two photosensitive resistors when there is an imbalance (such as one side of the black runway) immediately control the side of the motor stop, the other side of the...
- Rs 289/-
- Rs 289/-
-
Rs 399/-
Save Rs 110/-
Microphones for Sound Detection, Recording, IoT & DIY Electronics
Explore condenser microphones, dynamic microphones, and electret microphone modules designed for audio recording, sound detection, voice activation, and IoT-based acoustic projects. Compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.
Microphone Categories
- Condenser Microphones – High-sensitivity microphones used for voice recording, acoustic measurement, and IoT audio analysis.
- Dynamic Microphones – Durable microphones suitable for loud environments, live audio, and rugged DIY setups.
- Electret Microphone Modules – Compact microphones with built-in preamps for Arduino, Raspberry Pi, IoT sound detection, and electronics projects.
Applications
- Sound detection and audio-trigger automation
- Voice recording and speech recognition
- IoT audio monitoring and smart home sensors
- DIY electronics and STEM projects
- Noise level monitoring and environmental sound logging
- Alarm and security systems
Arduino & Raspberry Pi Wiring Examples
Arduino – Electret Microphone Module (Analog Output)
Mic Module Pin → Arduino ------------------------------- VCC → 5V GND → GND OUT (Analog) → A0
Arduino – Condenser Mic with Preamp
Preamp VCC → 5V Preamp GND → GND Preamp OUT → A1
Raspberry Pi – Electret Mic via MCP3008 (ADC)
Mic OUT → MCP3008 CH0 VDD/VREF → 3.3V AGND/DGND → GND CLK → Pi SCLK DOUT → Pi MISO DIN → Pi MOSI CS → Pi CE0
Raspberry Pi – USB Condenser / Dynamic Microphone
Connect USB mic → Raspberry Pi USB port Check devices: arecord -l Record audio: arecord -D plughw:1,0 -f cd test.wav
Sensitivity & Frequency Response Specifications
| Microphone Type | Typical Sensitivity | Frequency Response | Best Use Cases |
|---|---|---|---|
| Condenser Microphone | -35 dB to -45 dB | 20 Hz – 20 kHz | Recording, speech capture, acoustic sensing |
| Dynamic Microphone | -52 dB to -60 dB | 50 Hz – 15 kHz | Live audio, noise-heavy environments |
| Electret Microphone Module | -44 dB to -52 dB | 100 Hz – 10 kHz | Arduino/RPi sound detection, IoT monitoring |
Installation Tips
- Point the microphone toward the sound source for optimal sensitivity.
- Use foam covers or enclosures to reduce wind and vibration noise.
- Use shielded cables for long wire runs to prevent interference.
- Keep microphones away from motors, relays, and high-EMI components.
- Ensure stable power supply for low-noise performance.
Usage Tips
- Use a preamp or amplifier for low-volume audio signals.
- Apply low-pass/high-pass filters to clean noisy audio signals.
- Use RMS averaging for stable sound level measurement.
- For digital clarity, use I2S microphones with ESP32 or Raspberry Pi.
Troubleshooting
- Weak or no signal: Increase preamp gain or check wiring polarity.
- Static or hum: Improve grounding and use shielded wires.
- Distortion: Reduce gain or increase distance from the sound source.
- Raspberry Pi static noise: Lower SPI clock speed or check ADC wiring.
- Unstable readings: Add smoothing or averaging in code.
1. Are these microphones compatible with Arduino and Raspberry Pi?
Yes, many of the microphone modules in the collection are compatible with Arduino boards and Raspberry Pi computers. They can be used for sound input tasks and work well with standard microcontroller or SBC setups.
2. Can these microphones be used for recording and DIY projects?
Absolutely. Whether you’re building a voice-recording gadget, a sound-reactive art piece, or a DIY project that needs audio input, these microphones are suitable. Some are basic analog electret or MEMS mics; others are USB plug-in types ready for recording.
3. Do these microphones require external power or preamps?
It depends on the type. Basic electret or MEMS microphones typically need a bias voltage (often a few volts) and may need a simple amplifier stage if you want higher fidelity or analog output. USB microphone modules, on the other hand, often include their own electronics and just need USB power. So for many DIY builds you’ll find modules that are ready to go without separate preamps, but if you want professional-level sound you might add amplification.
4. Are these microphones suitable for IoT sound detection projects?
Yes, they work well for IoT applications such as voice commands, sound triggers, environment monitoring, or smart devices that respond to noise. Their sensitivity and ease of integration make them a good fit for sound-based logic or audio-driven automation systems.
