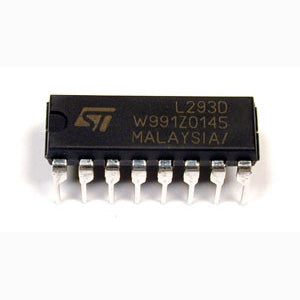

L293D Motor Driver IC

L293D Motor Driver IC

Regular price Rs. 26
Regular price Rs. 34 Sale price Rs. 26
Sale Sold out 24% off Best Price Guaranteed
You save Rs. 8
Incl. GST (No Hidden Charges)
  • Can be used to run Two DC motors with the same IC.
  • 4 microcontroller pins
  • Speed and Direction control is possible
  • Motor voltage Vcc2 (Vs): 4.5V to 36V
  • Maximum Peak motor current: 1.2A
  • Maximum Continuous Motor Current: 600mA
  • Supply Voltage to Vcc1(vss): 4.5V to 7V
  • L293D Motor Driver IC

    L293D IC generally comes as a standard 16-pin DIP (dual-in-line package). This motor driver IC can simultaneously control two small motors in either direction; forward and reverse with just 4 microcontroller pins (if you do not use enable pins).
    Each chip contains two full H-bridges (four half H-bridges). That means you can drive four solenoids, two DC motors bi-directionally, or one stepper motor.

    A motor driver is basically a current amplifier that takes a low-current signal from the microcontroller and gives out a proportionally higher current signal which can control and drive a motor. In most cases, a transistor can act as a switch and perform this task which drives the motor in a single direction.
    Turning a motor ON and OFF requires only one switch to control a single motor in a single direction.
    L293D IC generally comes as a standard 16-pin DIP (dual-in-line package). This motor driver IC can simultaneously control two small motors in either direction; forward and reverse with just 4 microcontroller pins (if you do not use enable pins).
    Each chip contains two full H-bridges (four half H-bridges). That means you can drive four solenoids, two DC motors bi-directionally, or one stepper motor.

    Pinout:

    Pinout of  L293D Motor Driver IC
    Pinout of  L293D Motor Driver IC

    Applications:

    • High Current Motor Driver IC.
    • Dual H-bridge for controlling up to two motors at a time.
    • Ideal for Inductive load decoupling from the main/control unit.
    • A wide voltage range allows for an adaptive voltage range control.

    Package Includes:

    • 1 x L293D Motor Driver IC

    Specifications:

    Maximum Supply Voltage (V) 36
    Minimum Supply Voltage (V) 4.5
    Max. Operating Current (mA) 2
    Dimensions in mm (LxWxH) 19.20 x 7.97 x 3.26

    Shipping & Returns

    • All orders confirmed before 3 pm IST are shipped on the
      same day, barring rare pickup delays on holidays or disturbances
    • Delivery time in Metro cities is 1-3 days, Others it is
      3-7 days. It varies based on location, reliant on courier services
    • Return window: 7 days from receipt unless stated
      otherwise. No refunds/replacements after
    • Returns only for non-working/damaged products are accepted
    • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
    • Refunds are processed within 3-4 working days post inspection and approval.

    For more details, please check our Shipping and Return Policy

    View full details

    Found a better price?

    Let us know!
    We'll try to match the price for you

    • ⚡ Dispatched within 24 hours

    • 💰 Earn RC Coins on every purchase

    • 🚚 Free shipping on orders above Rs 500/-

    • 🛠️ Dedicated Technical Support Team

    1 of 4

    1. What is the L293D motor driver IC?

    • L293D IC is typically available as a standard 16-pin DIP package (dual-in-line package). With just four microcontroller pins, this motor driver IC can control two small motors in either direction; forward or reverse (if you do not use enable pins).

    2. Why L293D IC is used?

    • The L293D is a 16-pin Motor Driver IC that can control two DC motors in any direction at the same time. The L293D is capable of bidirectional drive currents of up to 600 mA (per channel) at voltages ranging from 4.5 V to 36 V. It can be used to control small dc motors, such as toy motors.

    3. Which driver IC is used to drive DC motors?

    • The L293D is a dual-channel H-Bridge motor driver that can power two DC motors or one stepper motor. This is an integrated circuit chip that regulates motors in self-driving robots.
