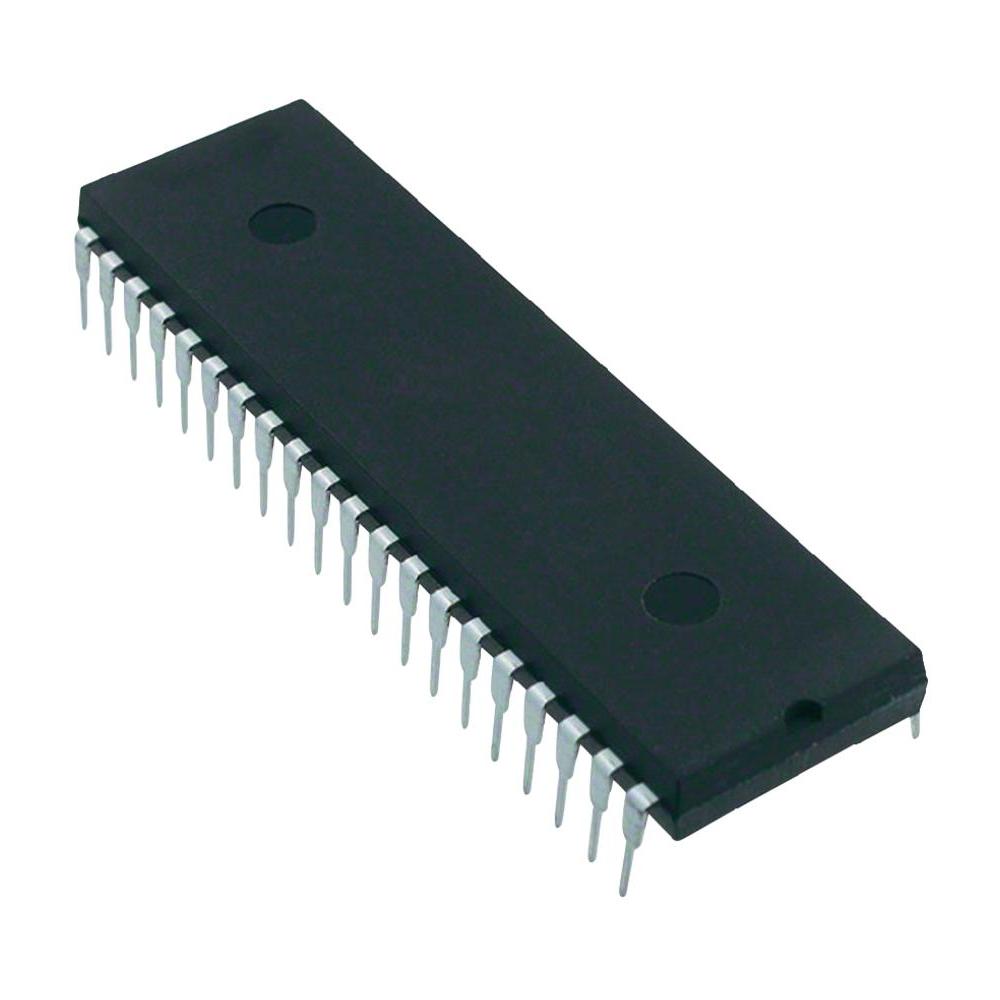

ATmega16

ATmega16

Regular price Rs. 219
Regular price Rs. 350 Sale price Rs. 219
Sale Sold out 37% off Best Price Guaranteed
You save Rs. 131
Incl. GST (No Hidden Charges)
  • High-performance, Low-power Atmel® AVR® 8-bit Microcontroller
  • Advanced RISC Architecture
  • High Endurance Non-volatile Memory segments
  • JTAG (IEEE std. 1149.1 Compliant) Interface
  • Operating Voltages:
    •  2.7V - 5.5V for ATmega16L
    •  4.5V - 5.5V for ATmega16
  • Speed Grades:
    • 0 - 8 MHz for ATmega16L
    • 0 - 16 MHz for ATmega16
  • Power Consumption @ 1 MHz, 3V, and 25°C for ATmega16L
    • Active: 1.1 mA
    • Idle Mode: 0.35 mA
    • Power-down Mode: < 1 µA

ATmega16

The ATmega ATmega16 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega16 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Pinout:

Pinout of ATmega16
Pinout of ATmega16

1

PB0(XCK/T0)

Pin 0 of  PORTB

T0( Timer0 External Counter Input)

XCK ( USART External Clock I/O)

2

PB1(T1)

Pin 1 of  PORTB

T1(Timer1 External Counter Input)

3

PB2(INT2/AIN0)

Pin 2 of  PORTB

AIN0(Internal Analog Comparator Positive Input)

INT2( External Interrupt 2 Input)

4

PB3(OC0/AIN1)

Pin 3 of  PORTB

AIN1(Internal Analog Comparator Negative Input)

 OC0 (Timer0 Output Compare Match Output) or  PWM output

5

PB4(SS )

Pin 4 of  PORTB

SS (SPI Slave Select Input).  This pin is low when controller acts as slave.

[Serial Peripheral Interface (SPI) for programming]

6

PB5(MOSI)

Pin 5 of  PORTB

MOSI (Master Output Slave Input). When controller acts as slave, the data is received by this pin.

[Serial Peripheral Interface (SPI) for programming]

7

PB6(MISO)

Pin 6 of  PORTB

MISO (Master Input Slave Output). When controller acts as slave, the data is sent to master through this pin.

 [Serial Peripheral Interface (SPI) for programming]

8

PB7(SCK)

Pin 7 of  PORTB

SCK (SPI Bus Serial Clock). This is the clock shared between this controller and other system for accurate data transfer.

[Serial Peripheral Interface (SPI) for programming]

9

RESET

Reset Pin (Active Low Reset)



10

VCC

Connected to +5V



11

GND

Connected to GROUND



12

XTAL2

Connected to Crystal Oscillator



13

XTAL1

Connected to Crystal Oscillator



14

PD0(RXD)

Pin 0 of  PORTD

RXD (USART Input Pin)

[USART Serial Communication Interface

can be used for programming]

15

PD1(TXD)

Pin 1 of  PORTD

TXD (USART Output Pin)

[USART Serial Communication Interface

can be used for programming]

16

PD2(INT0)

Pin 2 of  PORTD

External Interrupt INT0

17

PD3(INT1)

Pin 3 of  PORTD

External Interrupt INT1

18

PD4(OC1B)

Pin 4 of  PORTD

OC1B (Timer Output Compare Match Output) or  PWM output

19

PD5(OC1A)

Pin 5 of  PORTD

OC1A (Timer Output Compare Match Output) or  PWM output

20

PD6(ICP)

Pin 6 of  PORTD

Timer/Counter1 Input Capture Pin

21

PD7 (OC2)

Pin 7 of  PORTD

Timer/Counter2 Output Compare Match Output

22

PC0 (SCL)

Pin 0 of  PORTC

TWI Interface

23

PC1 (SDA)

Pin 1 of  PORTC

TWI Interface

24

PC2 (TCK)

Pin 2 of  PORTC

JTAG Interface

25

PC3 (TMS)

Pin 3 of  PORTC

JTAG Interface

26

PC4 (TDO)

Pin 4 of  PORTC

JTAG Interface

27

PC5 (TDI)

Pin 5 of  PORTC

JTAG Interface

28

PC6 (TOSC1)

Pin 6 of  PORTC

Timer Oscillator Pin 1

29

PC7 (TOSC2)

Pin 7 of  PORTC

Timer Oscillator Pin 2

30

AVcc

Vcc for Internal ADC  Converter



31

GND

GROUND



32

AREF

Analog Reference Pin for ADC



33

PA7 (ADC7)

Pin 7 of  PORTA

ADC (Analog to Digital Converter) Channel 7

34

PA6 (ADC6)

Pin 6 of  PORTA

ADC (Analog to Digital Converter) Channel 6

35

PA5 (ADC5)

Pin 5 of  PORTA

ADC (Analog to Digital Converter) Channel 5

36

PA4 (ADC4)

Pin 4 of  PORTA

ADC (Analog to Digital Converter) Channel 4

37

PA3 (ADC3)

Pin 3 of  PORTA

ADC (Analog to Digital Converter) Channel 3

38

PA2 (ADC2)

Pin 2 of  PORTA

ADC (Analog to Digital Converter) Channel 2

39

PA1 (ADC1)

Pin 1 of  PORTA

ADC (Analog to Digital Converter) Channel 1

40

PA0 (ADC0)

Pin 0 of  PORTA

ADC (Analog to Digital Converter) Channel 0

Applications:

  • Hobbyists applications
  • Engineers design
  • Temperature control systems
  • Analog signal measuring and manipulations.
  • Embedded systems like coffee machine, vending machine.
  • Motor control systems.
  • Digital signal processing.
  • Peripheral Interface system.

Package Includes:

  • 1 x ATmega16 IC

Specifications:

CPU

8-bit AVR

Number of Pins

40

Operating Voltage

For ATMEGA16:+4.5 to +5.5 V (+5.5V being absolute maximum)

For ATMEGA16L:+2.7 to 5.5V(+5.5V being absolute maximum)

Number of Input/output pins

32

Communication Interface

JTAG Interface(24,25,26,27 PINS)[Can be used for programming this controller]

SPI Serial Interface(5,6,7,8 PINS) [Can be used for programming this controller]

Programmable Serial USART(14,15 PINS) [Can be used for programming this controller]

Two-wire Serial Interface(22,23 PINS)[Can be used to connect peripheral devices like sensors and servos]

ADC Module

8 channels , 10-bit resolution ADC

Timer Module

Two 8-bit counters, One 16-bit counter [Total three]

Analog Comparators

1

DAC Module

Nil

PWM channels

4

External Oscillator

0-8MHz for ATMEGA16L

0-16MHz for ATMEGA16

Internal Oscillator

0-8MHz  Calibrated Internal Oscillator

Program Memory Type

Flash

Program Memory

16Kbytes[10000 write/erase cycles]

CPU Speed

16 MIPS

RAM Bytes

1KBytes

Data EEPROM

512 Bytes

Operating Temperature -55°C to +125°C(+125 being absolute maximum, -55 being absolute minimum)
Dimensions 34x7x4mm

Weight

2g

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1.What is ATmega16 microcontroller?

  • The ATmega16 is an 8-bit CMOS low-power microcontroller based on the AVR enhanced RISC architecture. The ATmega16 achieves throughputs approaching 1 MIPS per MHz by executing powerful instructions in a single clock cycle, allowing the system designer to optimise power consumption versus processing speed.

2.What is the function of ATmega16?

  • ATmega16 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. Its functions include processing 8-bit data at a time, using a single clock per instruction, allowing the system designer to optimize power consumption versus processing speed. ATmega16 can be used in various applications such as robotics, controlling servo motors, and interfacing with LCD displays. It can also be programmed to act as a MIDI device over USB or HID.
