2. What is SMD in LED lights?

In LEDs, SMD means that the LED chip is mounted on a small PCB. The SMD LED is mounted on an aluminum substrate and sealed with epoxy resin.

3. Which is better SMD or LED?

SMD and LED are used in different applications based on requirements. While regular LEDs are commonly used in device indicators, SMD LEDs are widely used in monitor displays, home lighting, and electronic devices. SMD LEDs are gradually replacing pin-type LEDs in most applications due to their compact size, efficiency, and reliability, although they are more expensive.

4. What is a SMD light?

An SMD light is a collection of multiple SMD LEDs. These LEDs together produce high brightness, making SMD lights a good alternative for regular home LED bulbs or lighting fixtures.

5. What is the best SMD LED chip?

The 5050 SMD LED is one of the most popular and powerful options in the strip light market. It offers high brightness, excellent color consistency, and long-term reliability with around 70% performance retention at 50,000 hours. Cheaper alternatives may produce weak or inconsistent light output.

6. What is SMD LED chip?

LED strip lights use different SMD LED chips that are identified by four-digit codes. These numbers simply indicate the dimensions of the LED chip. For example, a 5050 SMD LED measures 5.0mm × 5.0mm.

7. How many types of SMD LED are there?

SMD LED modules are categorized based on chip size. Common types include 5050 SMD LED, 3528 SMD LED, and 2835 SMD LED.

8. Are these SMD parts suitable for Arduino and Raspberry Pi projects?

Yes, our SMD (surface-mount device) components are absolutely suitable for Arduino and Raspberry Pi projects. While many SMD parts require careful soldering, once properly mounted they integrate just like through-hole parts in your development boards or breakout modules. For example, you’ll find SMD LED strips and modules listed in our SMD collection that explicitly mention compatibility with Arduino and Raspberry Pi. That said, compatibility depends on the specific part: ensuring correct voltage, footprint, signal compatibility and how you mount it matters. So we recommend checking the datasheet or product description for each component.

9. Can beginners use these SMD components for DIY projects?

Yes, beginners can use SMD components with proper tools: fine-tip soldering iron, tweezers, and magnification. Start with breakout boards featuring pre-soldered SMD parts, then progress to bare components as skills improve. Project logic remains identical to through-hole projects—same wiring, programming, and debugging methods. Practice and patience are essential for mastering SMD soldering.

10. Do you provide packs or individual SMD components?

We offer a range of purchase formats. Some of the SMD components in our SMD collection are sold as individual units (for single use) and some as multi-packs (for multiple uses or bulk projects). For instance, you’ll find both single LED modules and packs of LEDs listed. If you need a large quantity (for teaching, prototyping or bulk manufacturing) we also support bulk orders. If you have a specific component in mind, you can check the product listing for whether it’s individual or pack, and you can also contact us for custom pack sizes.

SMD Components for Electronics

SMD Component Identification Guide

Know the main categories: Resistors, capacitors, inductors, diodes, transistors, and SMD ICs.

Package size codes: Common sizes include 0402, 0603, 0805, 1206, which refer to the dimensions of the component.

Reading resistor codes:

Example: “103” = 10 kΩ (10 × 10³).
Example: “472” = 4.7 kΩ (47 × 10²).

Capacitor markings: Some capacitors use codes like “104” = 0.1 µF. Many, however, have no printed markings.

Diodes & transistors: These often have 2–3 character codes printed on top. Look them up using an SMD code chart.

IC packages: Common forms include SOT-23, SOP-8, QFN, QFP, etc. These require careful pin-orientation and handling.

General rule: Always handle SMD parts with tweezers, avoid static discharge, and store them in labeled bags or reels.

SMD LEDs

SMD LED is an acronym for Surface Mount Device, Light Emitting Diode. SMD LED modules are widely used to produce LED lights and LED strips for different applications in different industries. This technology is used where high efficiency and precise control of light distribution is required. SMD LEDs are characterized by long life, low power consumption, and high levels of reliability and safety. SMD LED chips are self-contained LED components that are surface-mounted onto a printed circuit board (PCB) by soldering using SMT technology. This allows SMD LEDs to be soldered to both sides of the PCB without cutting or drilling the PCB.

Tips for Soldering SMD Components

Use a fine-tipped soldering iron, flux, tweezers, and thin solder wire.

For small components (0603/0805):

Apply a small amount of solder to one pad.
Hold the component with tweezers.
Reheat the tinned pad to anchor one side.
Solder the opposite pad.

For ICs:

Apply flux generously.
Align and tack one corner first.
Solder the remaining pins with drag-soldering.
Remove any solder bridges using solder wick.

Avoid prolonged heating - SMD pads can lift if overheated.

Clean the board with isopropyl alcohol after soldering.

Item Name	Approx. Price in INR
WS2812 8 Bit RGB LED (round)	83/-
WS2812 16 Bit RGB LED (round)	332/-

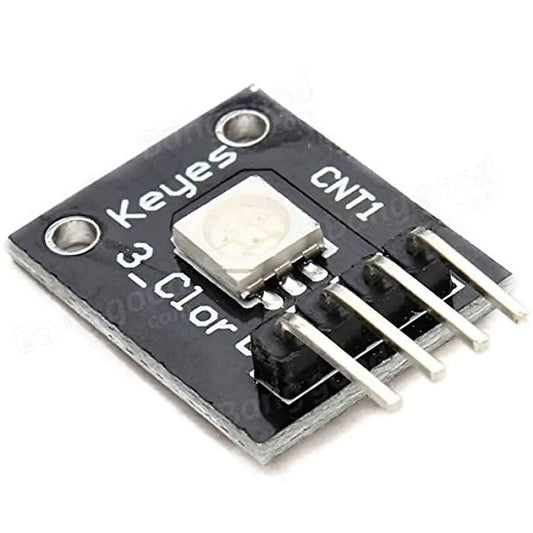

RGB Led Module for boards compatible with Arduino	19/-
WS2812 12 Bit RGB LED (round)	263/-
WS2812 16 Bit RGB LED Matrix	482/-

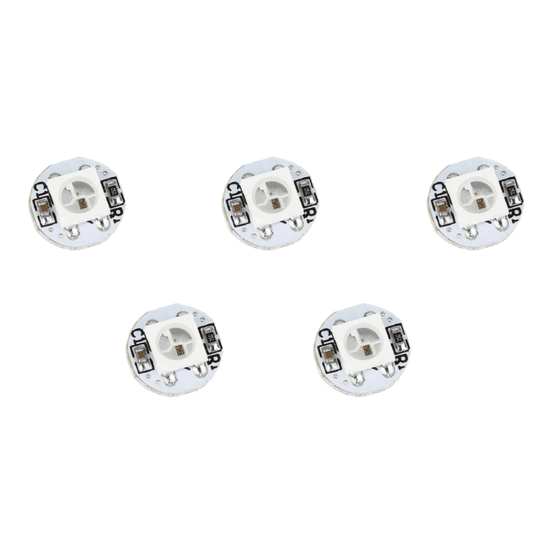

10 Bit WS2812 5050 RGB LED Driver (Pack of 5)	99/-

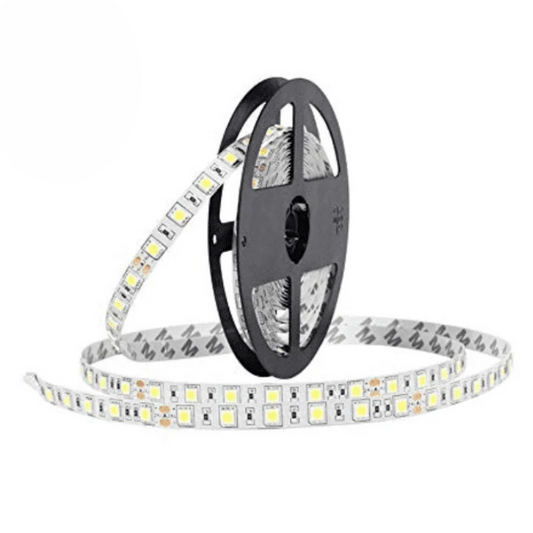

24V Warm White 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof	625/-
12V Warm White 5050 SMD LED Strip Flexible 5M/Roll Waterproof (5 Meter)	650/-
12V Warm White 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof	625/-
12V Cold White 5050 SMD LED Strip Flexible 5M/Roll Non-Waterproof (5 Meter)	588/-
12V Cold White 5050 SMD LED Strip Flexible 5M/Roll Waterproof (5 Meter)	659/-
24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof	655/-

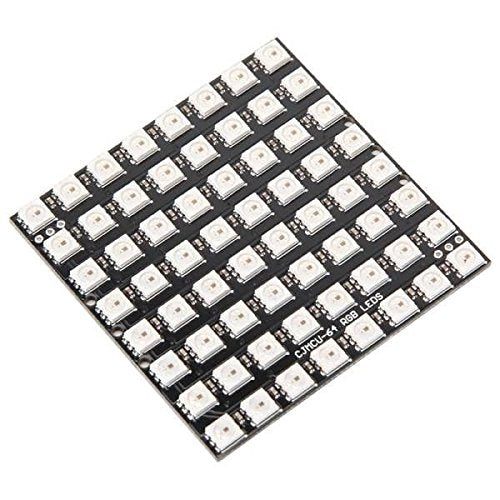

WS2812 64 Bit RGB LED Matrix	448/-

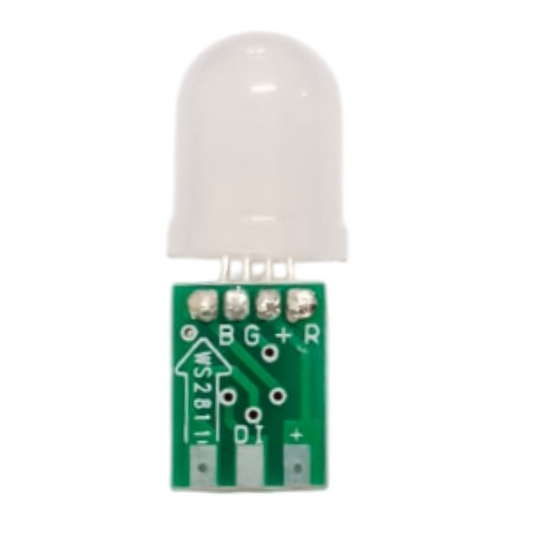

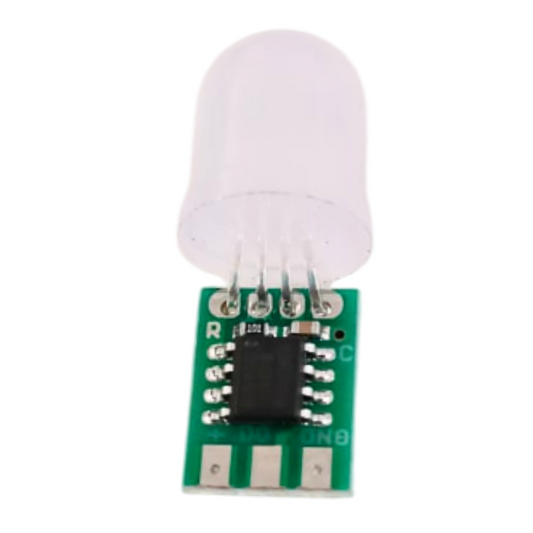

5V RGB led node module	75/-

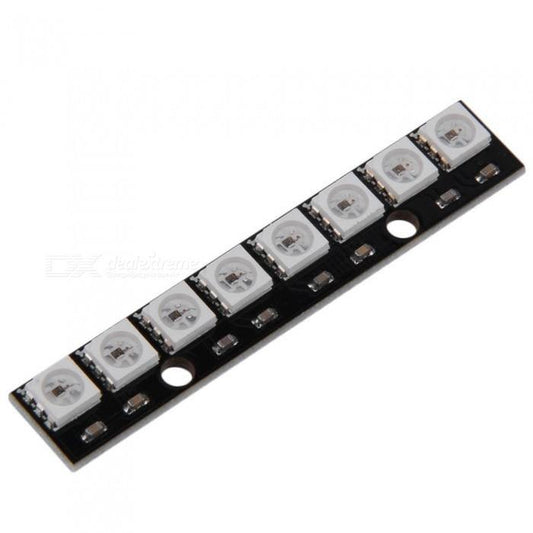

WS2812 8 Bit RGB LED (Straight)	300/-
10 Bit WS2812 5050 RGB LED Driver	2268/-
