Berg Strip

BUY BERG STRIP ONLINE IN INDIA



Berg Strip is a standard connector found on all types of circuit boards. Because of its stick-like structure, it is also known as Berg Stick.



The Berg Strip is very light and compact, making it simple to connect to a circuit board. One of the main advantages of the Berg Strip is that, unlike other connectors, a designer can customize the connector module to his liking. The Berg Strip can be easily cut into pieces with the required PINs and then arranged in a single row or row and column fashion. Because of this freedom, the Berg Strip has long been a favorite of circuit designers. These are pretty handy when it comes to extension.



They are built for dependability and speed of assembly, and very inexpensive connectors. Berg strips are used to transmit both power and data.

It is used in almost every circuit module, including GSM modules, GPS modules, Xbee modules, LCD modules, and circuit boards.



Berg strips are available in 2.54 mm berg strip Male connector, berg strip Female connector,40X2 pin berg strip Male connector, 40X2 pin Female connector, Right angle berg strip Male connector and Right angle berg strip Female connector. They come with a set number of pins. The designer then cuts only the necessary number of pins and connects them to the circuit board. It can also function as a wire-to-board connector; simply solder the wire to one of the connector pins and secure the other connector to the circuit board. When we solder wires to the pins on both sides of the pair, it can also function as a wire-to-wire connector. They are typically used as board-to-board connectors, with the male connector soldered at the circuit board's periphery and the female connector assembled wherever another board is to be connected.



Berg strip prices in INDIA

Type of Berg Strip

Price

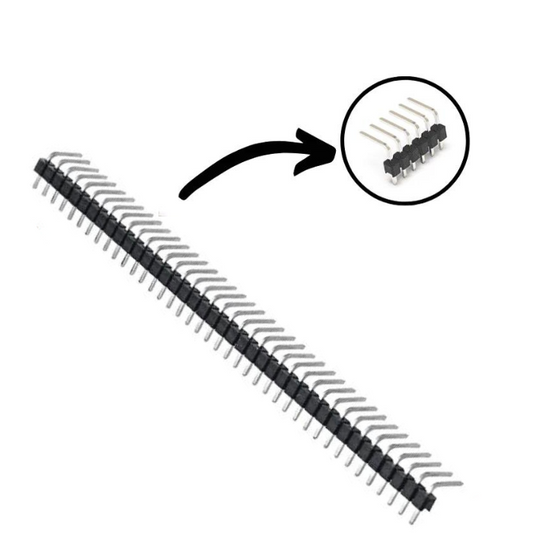

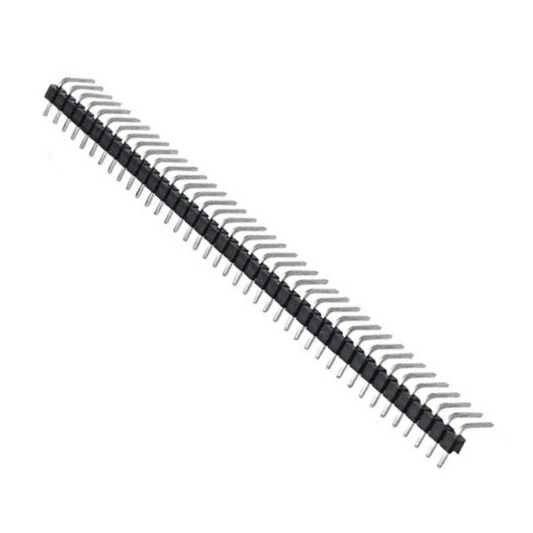

40x1 Male Berg (90 Degree)

Rs.8

40x2 Pin 2.54mm Pitch Male Berg Strip

Rs.8

40x2 Female Berg Strip

Rs.15

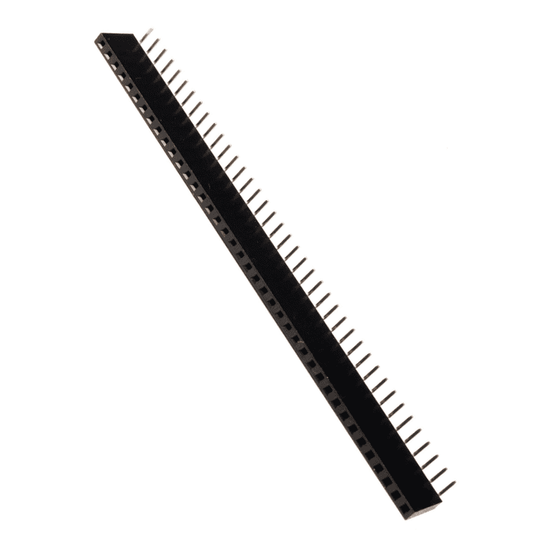

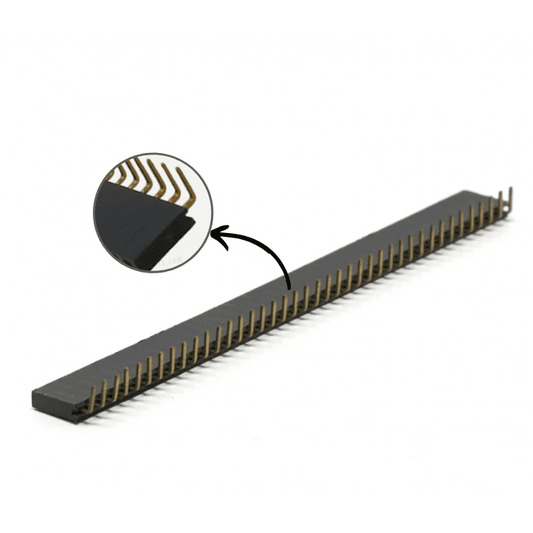

1x40 2.54mm Pitch Female Berg Strip Header (Right Angle)

Rs.16

40x1 Female Berg Strip

Rs.6

40x1 Pin 2.54mm Pitch Male Berg Strip

Rs.6

FAQ:

1.What is a berg strip?

  • Berg Strip is a standard connector found on all types of circuit boards. Because of its stick-like structure, it is also known as Berg Stick. One of the main advantages of the Berg Strip is that, unlike other connectors, a designer can customize the connector module to his liking



2.What are the applications of Berg strip?

  • The berg strip can be used for the following applications
    • The berg strip are  commonly used in GSM modules, GPS module
    • Used to connect PCB prototype and the breadboard
    • It can also be used to  connect Xbee modules, LCD modules and circuit boards



3.Where can I use the berg strip?

  • The Berg Strip is very light and compact, making it simple to connect to a circuit board. Berg strips are used to transmit both power and data, it is used in almost every type of circuit modules, including GSM , GPS, XBee and LCD modules and circuit boards.



4.What are the types of Berg strip available?

 5. What are the Header Pin uses?

  • The Pin Headers are mostly used in Electronic Embedded System projects, PCB circuit boards in electronics, connecting jumper wires etc. The Pin headers can be used to change the gender of Pins in Development boards. For instance if you have a Arduino Uno with female plug pins attached to it, Now you cannot use a female jumper wire with the Arduino Uno board. In this case we can use a male pin headers on the Arduino Uno and then connect the female pins to it.
