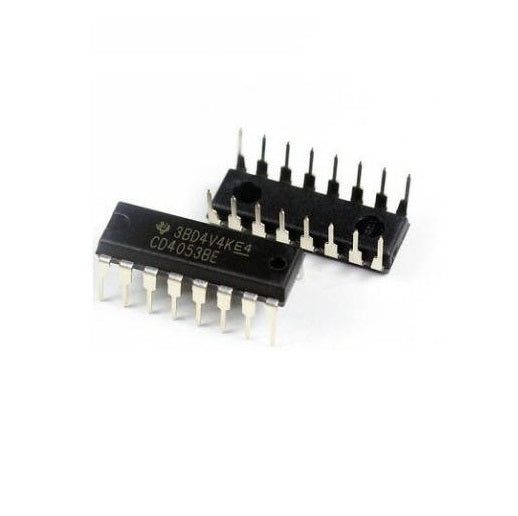

CD4053 - Triple 2-channel Multiplexer/Demultiplexer IC
CD4053 - Triple 2-channel Multiplexer/Demultiplexer IC
Couldn't load pickup availability
- Wide range of digital and analog signal levels: digital 3 – 15V, analog to 15Vp-p.
- Low “ON” resistance: 80Ω (typ.) over entire 15Vp-p signal-input range for VDD − VEE = 15V.
- High “OFF” resistance: channel leakage of ±10 pA (typ.) at VDD − VEE = 10V.
- Logic level conversion for digital addressing signals of 3 – 15V (VDD − VSS = 3 – 15V) to switch analog signals to 15 Vp-p (VDD − VEE = 15V).
- Matched switch characteristics: RON = 5Ω (typ.) for VDD − VEE = 15V.
- Very low quiescent power dissipation under all digital-control input and supply conditions: 1 μ W (typ.) at VDD − VSS = VDD − VEE = 10V.
- Binary address decoding on chip.
CD4053 - Triple 2-channel Multiplexer/Demultiplexer IC
The CD4053 IC analog multiplexers demultiplexers are digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3−15V. For example, if VDD = 5V, VSS = 0V and VEE = −5V, analog signals from −5V to +5V can be controlled by digital inputs of 0−5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD−VSS and VDD−VEE supply voltage ranges, independent of the logic state of the control signals. When a logical “1” is present at the inhibit input terminal all channels are “OFF”.
The CD4x Series CD4053 Integrated Circuits is a triple 2-channel multiplexer having three separate digital control inputs, A, B, and C, and an inhibit input. Each control input selects one of a pair of channels that are connected in a single-pole double-throw configuration.
Pinout:
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | Y1 | Y1 Switch Input/Output |
| 2 | Y0 | Y0 Switch Input/Output |
| 3 | Z1 | Z1 Switch Input/Output |
| 4 | Z | Input/Output Z |
| 5 | Z0 | Z0 Switch Input/Output |
| 6 | INH | Inhibit Input |
| 7 | VEE | Emitter supply |
| 8 | VSS | Source Supply |
| 9 | C | Digital Control Input C |
| 10 | B | Digital Control Input B |
| 11 | A | Digital Control Input A |
| 12 | X0 | X0 Switch Input/Output |
| 13 | X1 | X1 Switch Input/Outputs |
| 14 | X | Input/Output X |
| 15 | Y | Input/Output Y |
| 16 | VDD | Drain supply |
Applications:
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
Package Includes:
- 1x IC - CD4053
Specifications:
| Part number | CD4053BC |
| DC Supply Voltage (VDD) | −0.5VDC to +18VDC |
| Input Voltage (VIN) | −0.5VDC to VDD + 0.5VDC |
| Storage Temperature Range (TS) | −65°C to +150°C |
| Power Dissipation (PD) Dual-In-Line | 700 mW |
| Lead Temperature (TL) | 260°C |
