1. What is an extruder?

One of the most important components of a 3D printer is the extruder. It is the component of the 3D printer that is in charge of drawing in, melting, and pushing out the filament. It is commonly referred to as a "fancy hot glue gun." In some cases, it is used to deposit a bonding agent in order to solidify the powdered material.

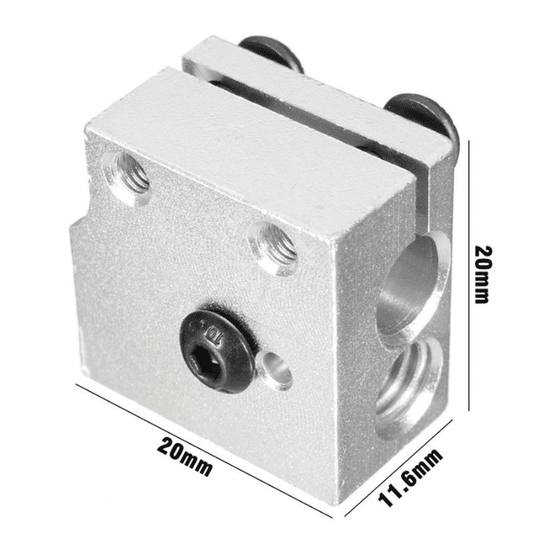

2.What is a Heat Block?

The heating block of a 3D printer is the section of the extruder where the nozzle meets the thermal barrier tube. The heater cartridge and thermocouple are also housed within the heating block.

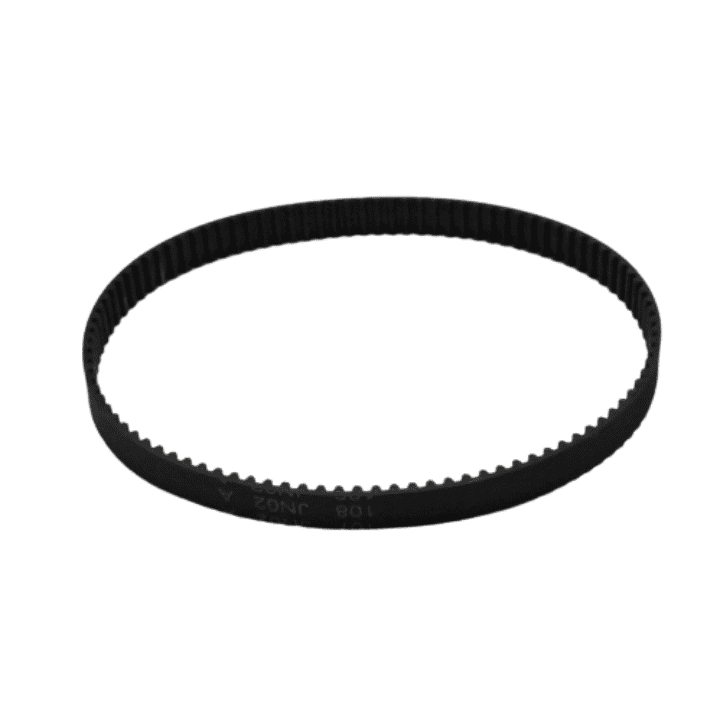

3.What is a Timing belts?

Timing belts are made of rubber and have hard teeth that can interlock with the pulley. Timing Belts have long been used to generate linear motion, timing synchronization, torque, speed conversion, and so on.

4.What is a Stepper Motor?

The print head in most 3D printers is moved by a specific type of motor. Stepper motors are so named because they rotate in discrete steps. This allows for precise control over how far the motor turns and how far the print head moves.

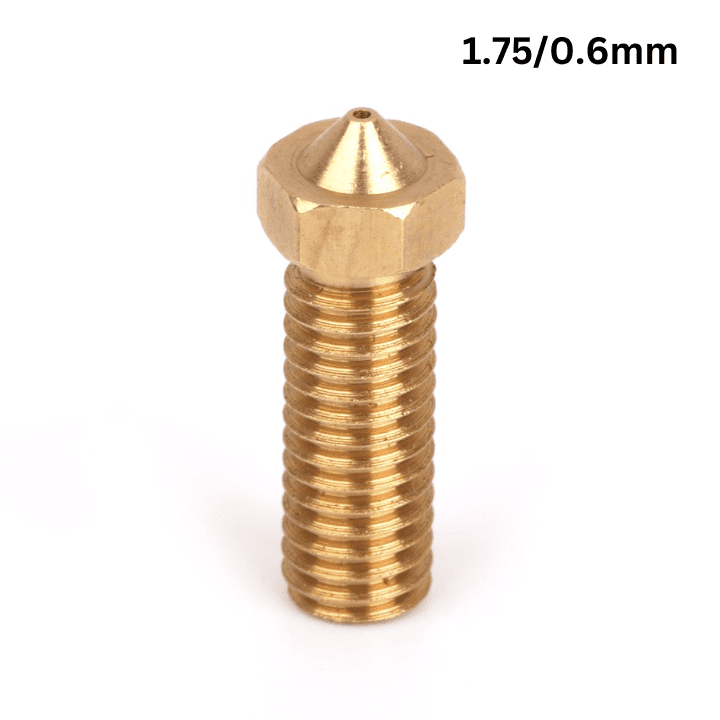

5.What is the use of a Nozzles in a 3D printer?

The 3D printer nozzle is the mechanical component that extrudes the filament. It transfers thermal energy from the heating cartridge and block to the filament, melting it.

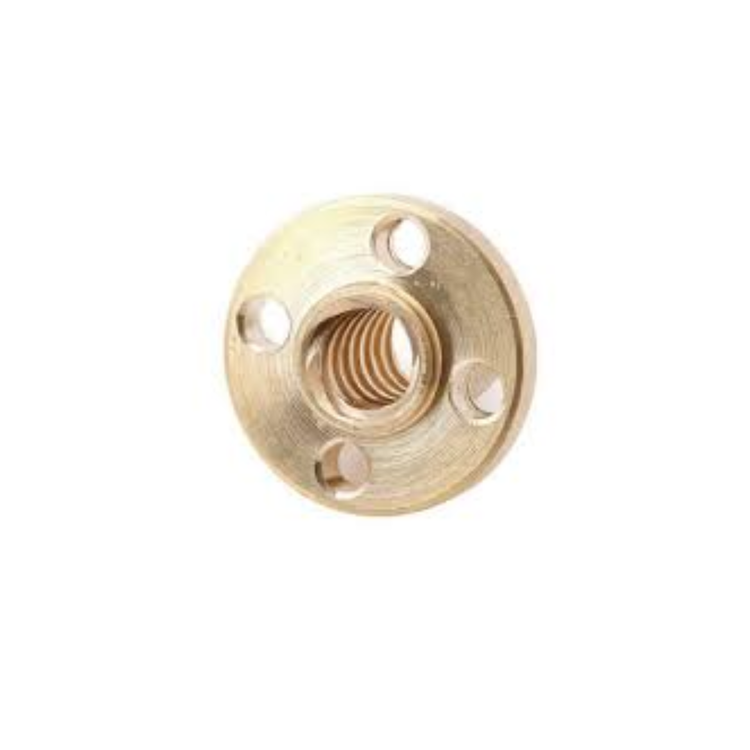

6.What is a lead screw?

A lead screw is a type of mechanical power transmission used in high-precision actuation machines. It is used to convert rotational motion into linear motion. A lead screw (or leadscrew) is also known as a power screw and a translation screw.

7. How much is a 3d printer cost?

3D printer prices in India range from ₹10,000 (basic models) to ₹2,00,000+ (professional machines). Price depends on build volume, print speed, layer resolution, and technology type (FDM, SLA, SLS). Entry-level FDM printers: ₹15,000–₹40,000. Warranty, customer support, and print quality vary by brand. Compare specifications and reviews to find the best value for your budget and project requirements

8. What types of mechanical accessories are available for 3D printers?

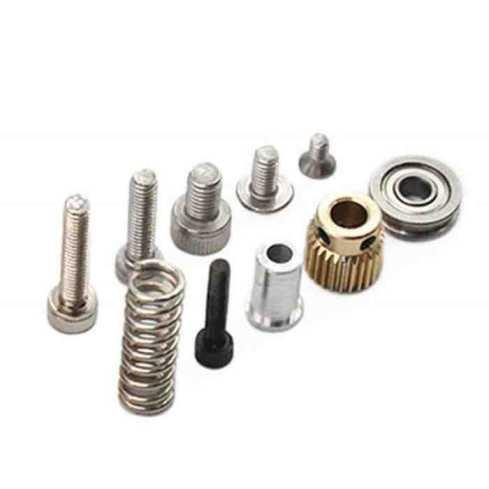

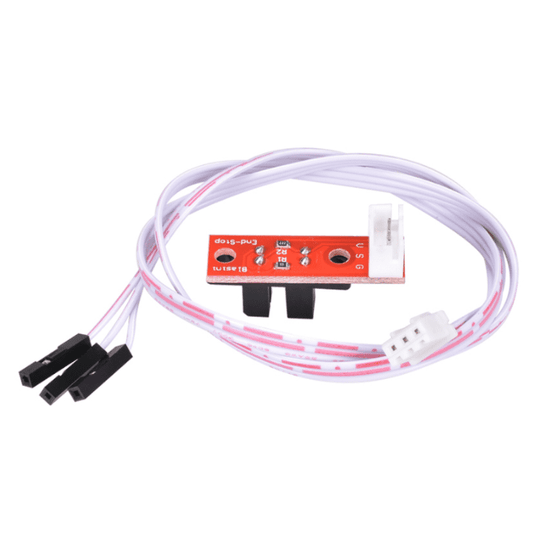

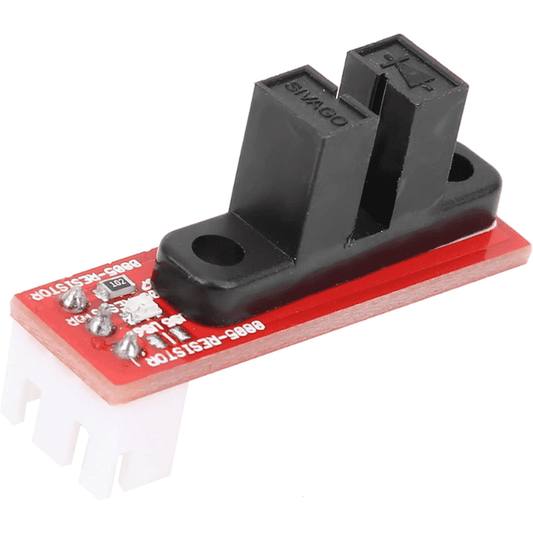

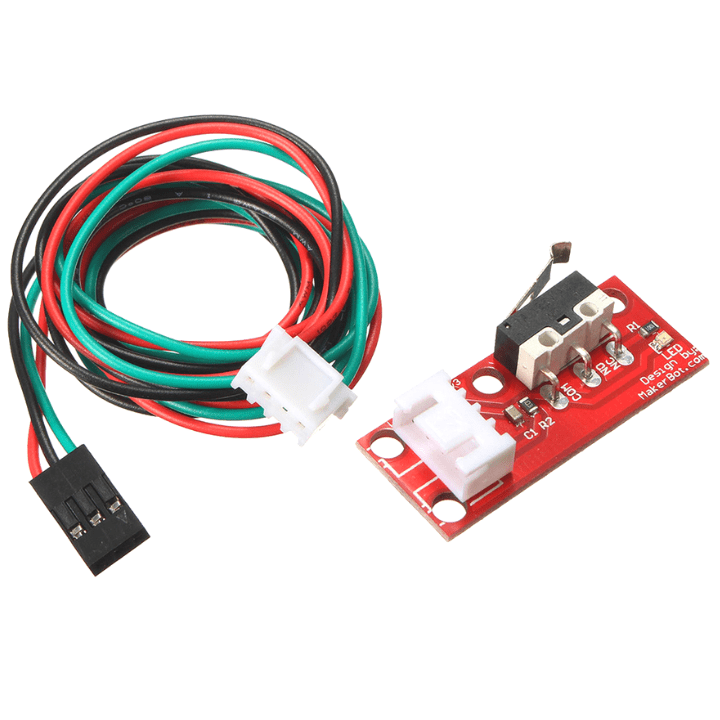

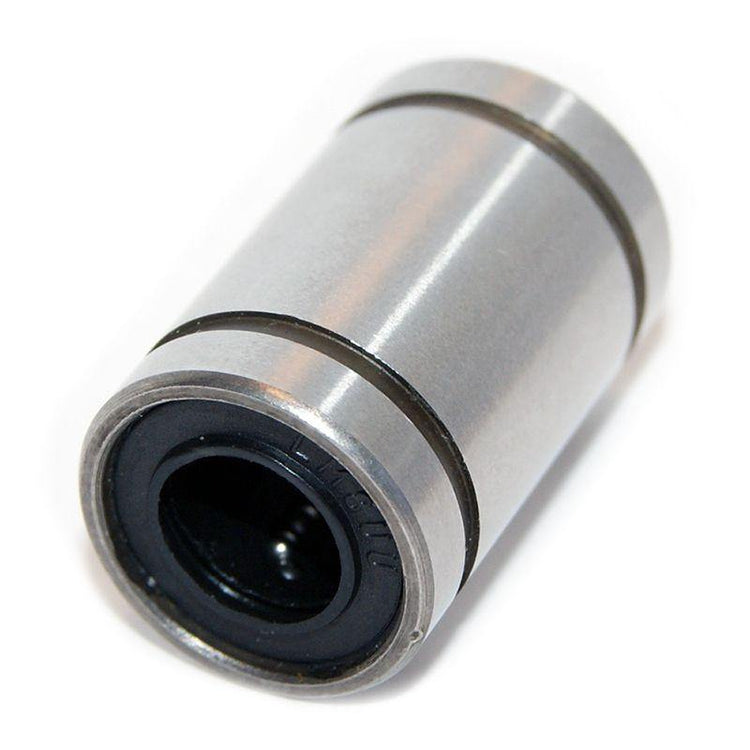

The range covers a variety of hardware components that enhance or repair the moving parts of a 3D printer. You’ll find items like smooth rods and linear bearings for guiding axes, belts and pulleys for timing and motion control, mounting brackets and T-nuts for frame assemblies, extruder gears and drive wheels, upgrade kits for hotend/hotbed mounts, and end‐stops or limit switches for axis detection. These accessories help strengthen the printer’s structure, improve precision, reduce wobble, replace worn parts and add upgrades for better prints.

9. Are these compatible with FDM 3D printers?

Yes, the mechanical accessories in this collection are designed specifically for FDM (Fused Deposition Modeling) 3D printers (sometimes called FFF) where filament is melted and deposited layer by layer. Because FDM printers rely on motion along X, Y and Z axes as well as extruder drive systems, accessories like rods, belts, pulleys, and mounts are directly applicable. As one source notes, FDM printers often use belts for X/Y movement and leadscrews for Z movement. So if your printer is an FDM type, these parts will fit right in—as long as you match the correct sizes (e.g., belt width, pulley bore, rod diameter).

10. Do these accessories come with installation instructions?

Yes, most accessories of this sort include installation guidance, either within the product package or as downloadable instructions from the vendor. The instructions typically walk you through removal of the old part, alignment of the new component, tensioning (in the case of belts), securing bearings or rods, and checking movement smoothness. Though the exact level of detail may vary between items, the brand aims to ensure that hobbyists and DIY builders can fit them safely and correctly.

Mechanical Accessories for 3D Printers

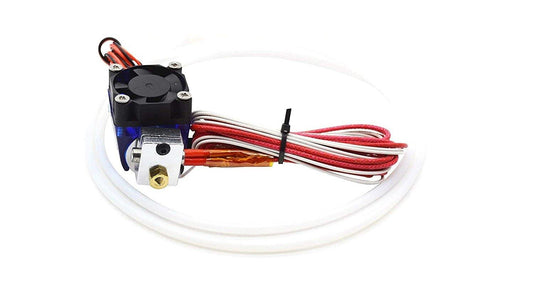

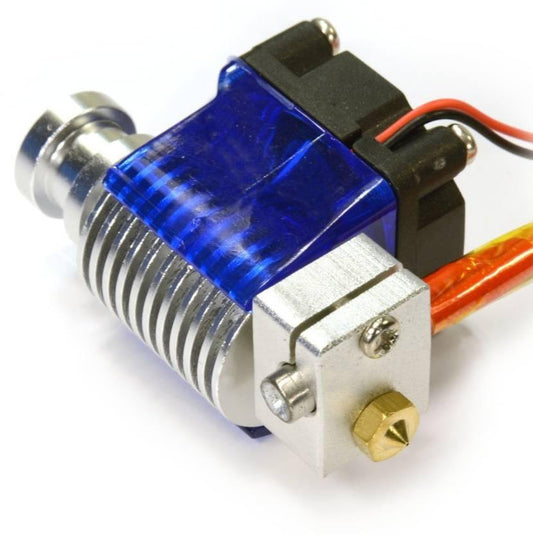

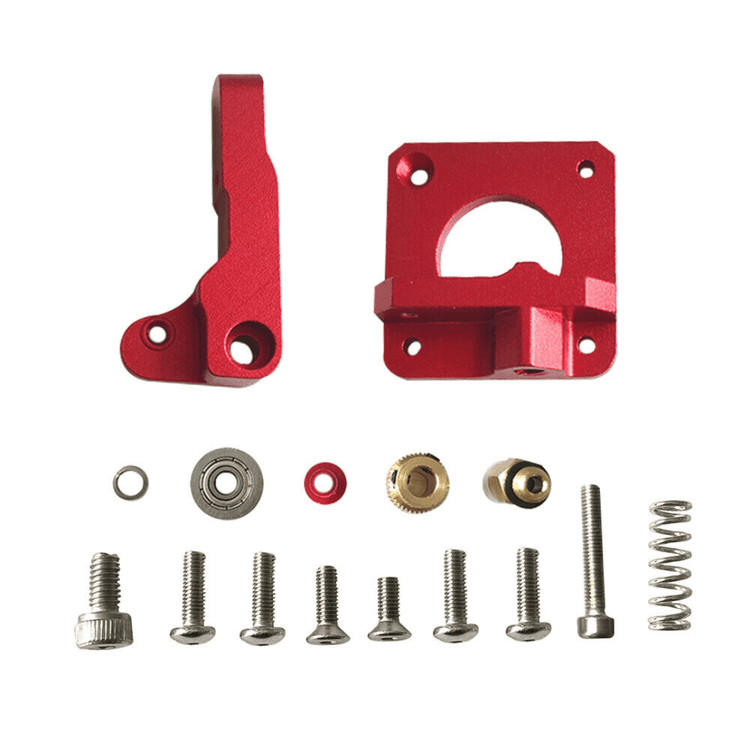

Installation Guide for Extruders & Heat Blocks

Disconnect power and cool down the hotend before beginning.

Remove the existing extruder assembly: unscrew the motor mounting, hotend heater block, thermistor, fan and wiring.

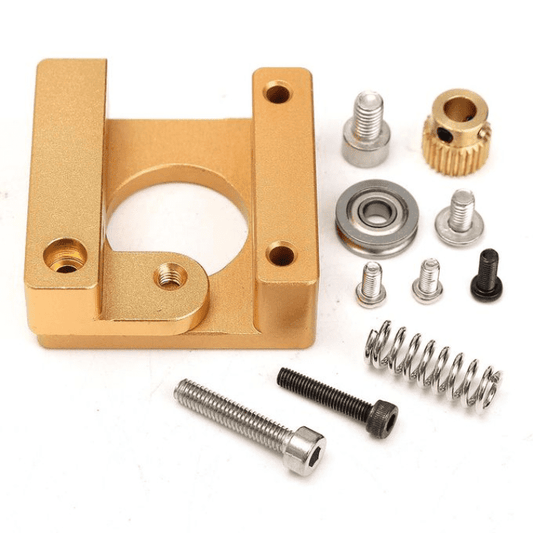

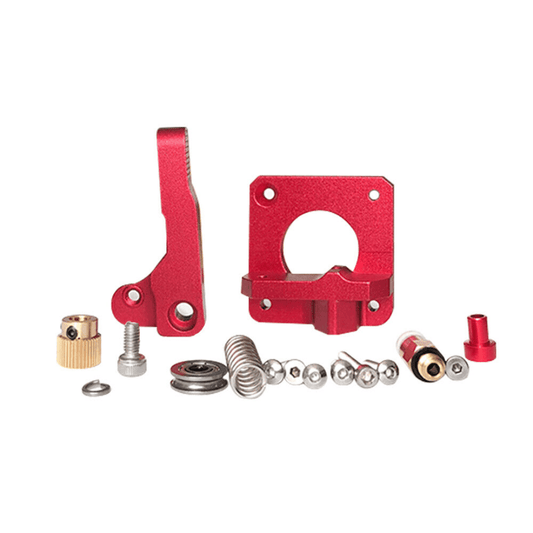

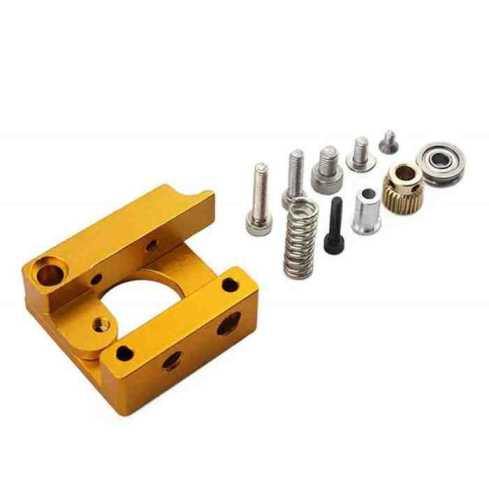

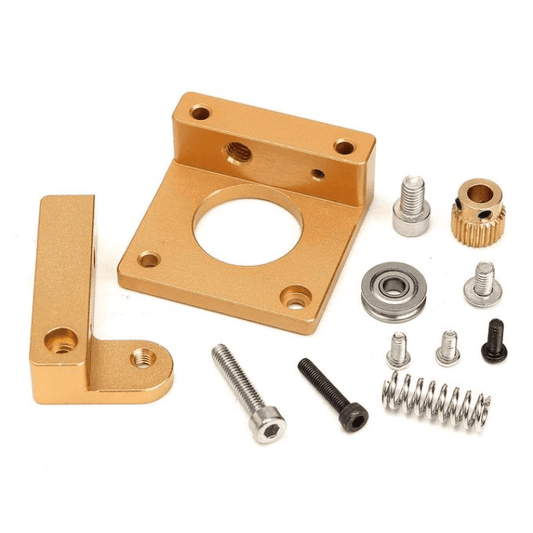

Install the new extruder drive mechanism (e.g., direct-drive or bowden): align the filament drive gear with the filament path so it feeds smoothly.

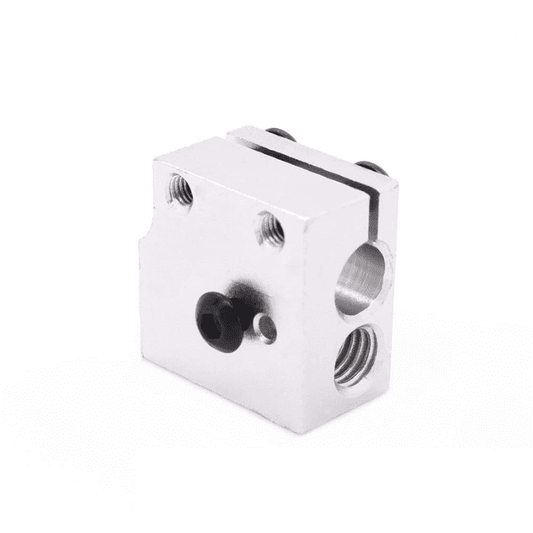

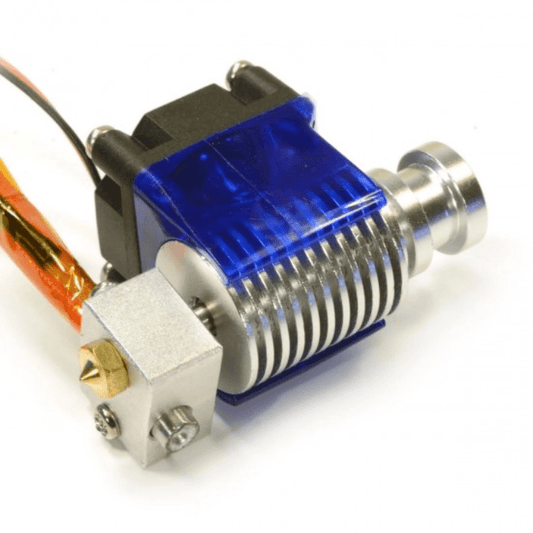

Mount the heat block: insert the heater cartridge and thermistor into the block, tighten the setscrews but avoid over-tightening metal parts which can crack.

Secure the nozzle, tighten to spec, then re-connect wiring (heater, thermistor, fan).

Calibrate the extruder: set the correct steps-per-mm, check filament flow, and verify the heat block reaches correct temperature.

Perform a test print and watch for consistent extrusion, no under-feeding or overheating.

Upgrades: Timing Belts & Pulleys for 3D Printers

Replace worn or loose belts with quality GT2 timing belt kits for the X/Y axes to improve print accuracy and reduce ringing.

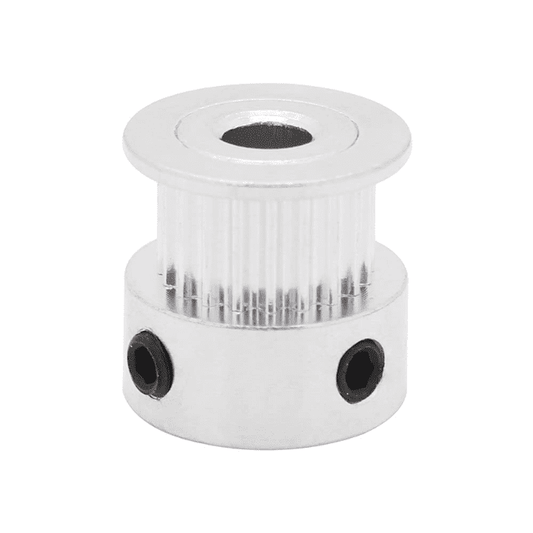

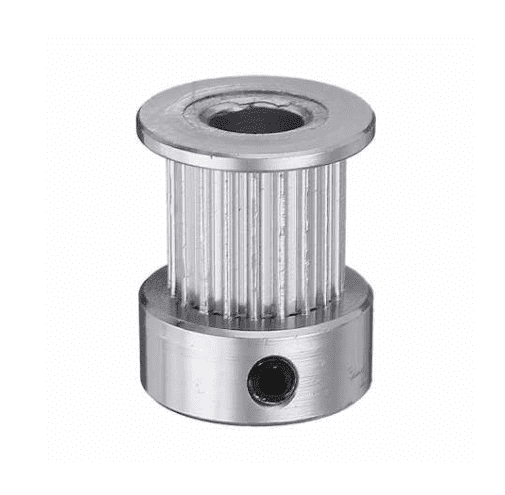

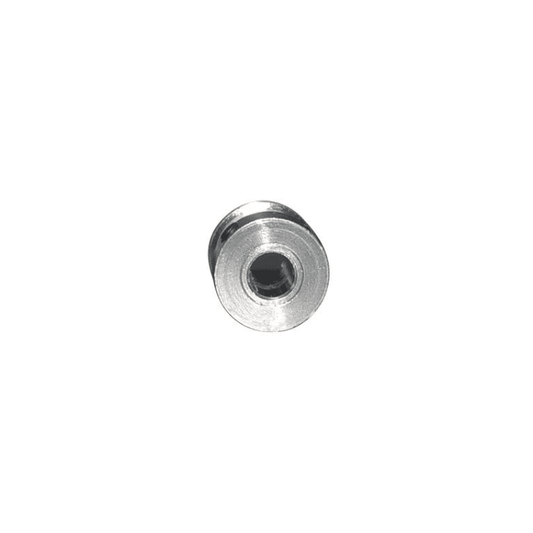

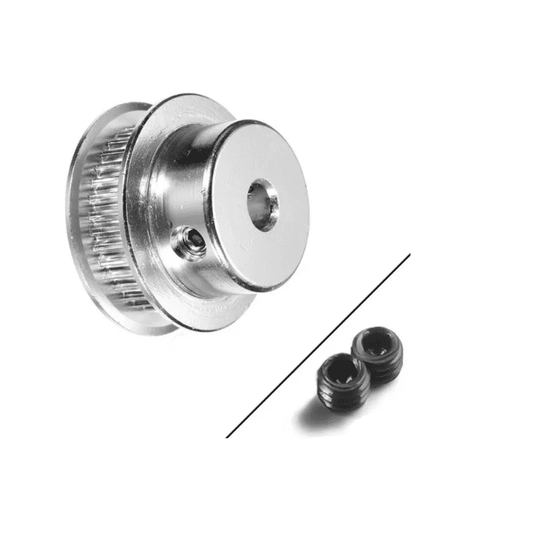

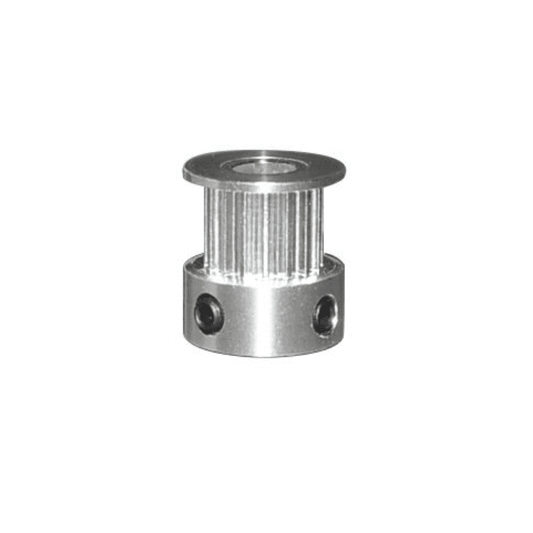

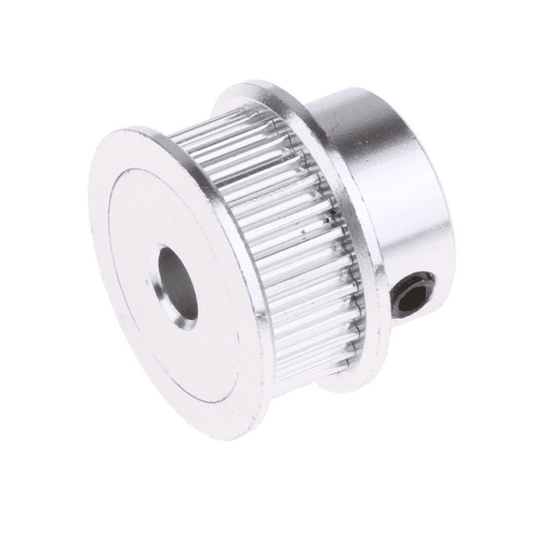

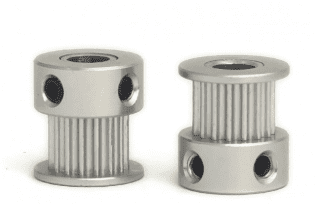

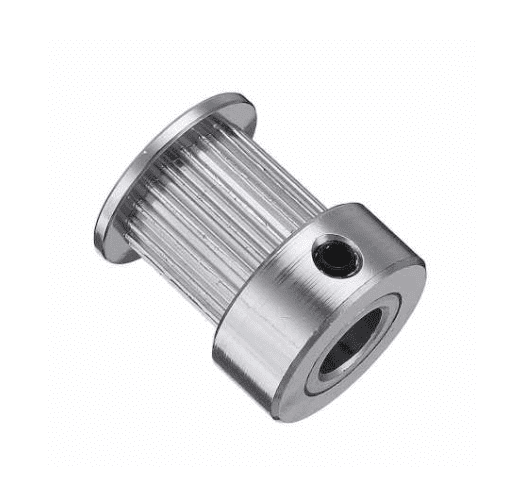

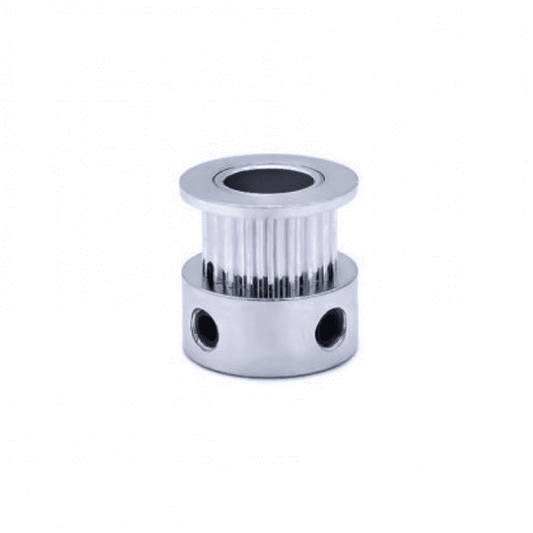

Choose pulleys (e.g., 20-teeth, 60-teeth) with correct bore size to match your motor shaft and provide proper belt engagement.

Upgrade to aluminium or steel pulley kits to improve durability and reduce backlash.

Tension the belt correctly: not too tight (causes excess wear) and not too loose (causes slack and print artefacts).

After installation, update the printer’s steps/mm settings and calibrate the motion to ensure prints remain true to size.

DIY 3D Printer Maintenance Tips

Regularly check belt tension and wear: if you see frayed edges or loose fit, replace the belt.

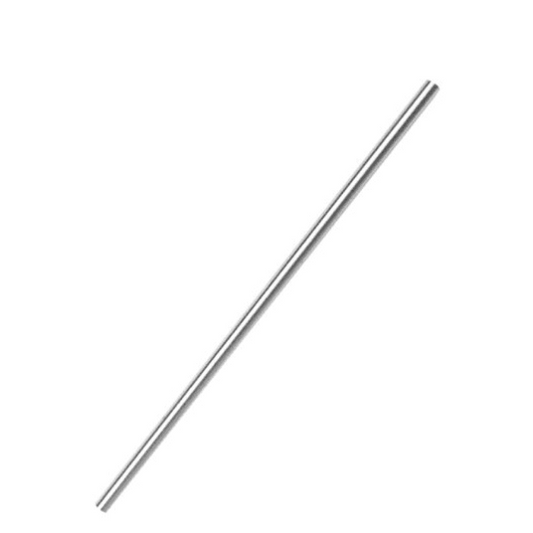

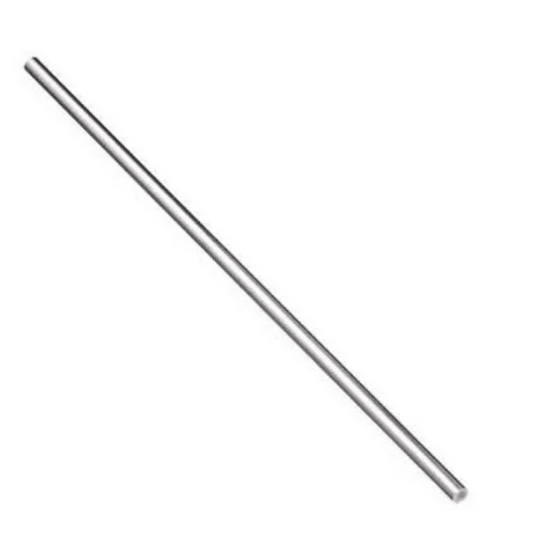

Lubricate smooth rods and linear rails: use a light machine oil or specialised lube—avoid over-lubrication which attracts dust.

Tighten set screws on pulleys, gears, and motor shafts—they can loosen over time due to vibrations.

Clean the heat block and nozzle regularly: any burnt filament or debris can affect printing quality.

Calibrate once a month: run a test print, measure dimensions, and adjust steps-per-mm if needed.

Keep electronics cool: ensure stepper drivers have proper heatsinks or cooling fans to avoid overheating.

Use correct replacement parts: match belt width (6 mm vs 10 mm), pulley tooth count, stepper motor rating to your printer specs.

Stepper Motors & Controller Comparison

Motion Output vs Size vs Torque

Motor Type / Size	Typical Use Case	Key Specs to Consider
NEMA17 (42 mm) Standard Motor	Hobby 3D printers, small CNC, typical robotics arms	Holding torque ~40–60 N·cm, 1.7–2.5 A rating
NEMA23 (56 mm) High-Torque Motor	Large-format printers, heavy gantries, industrial robots	Holding torque ~80–120 N·cm+, higher current

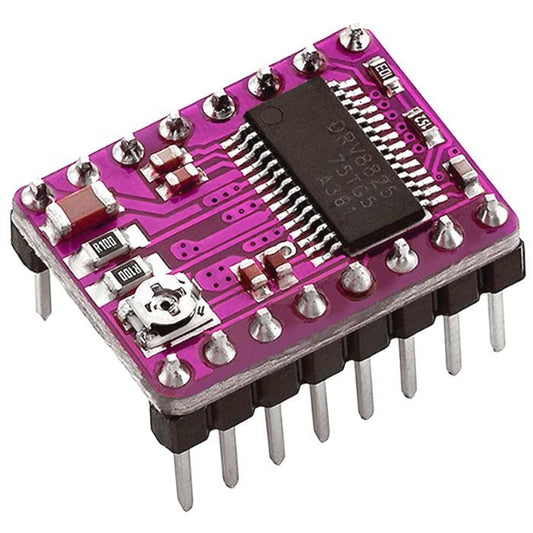

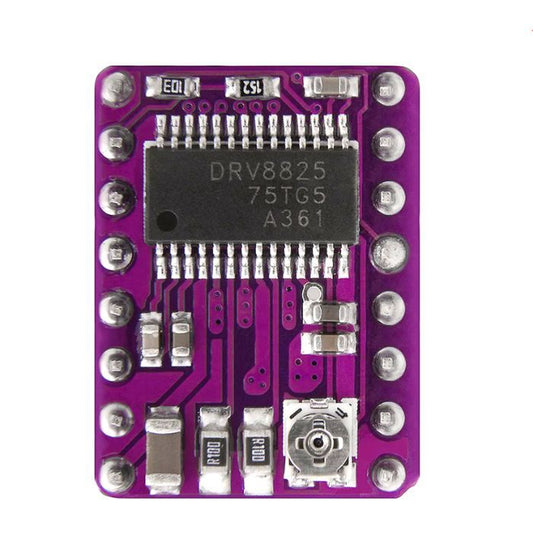

Microstepping Driver (e.g., DRV8825, A4988)	Smaller systems, budget builds, general motion control	Up to 2.5 A–3.5 A, supports 1/16–1/32 step modes
High-Current Drivers / Multi-Axis Controllers	Large-scale machines, automation racks, gantry systems	4–8 A+, advanced features: cooling, signals, multiple axes
