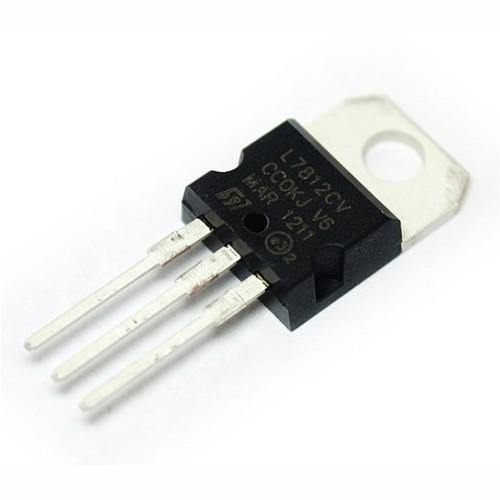

7812 Voltage Regulator IC

7812 Voltage Regulator IC

Regular price Rs. 45
Regular price Rs. 64 Sale price Rs. 45
Sale Sold out 30% off Best Price Guaranteed
You save Rs. 19 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • The operating output voltage is 12V
  • The max input voltage is 35V.
  • The max output current is 1.5A
  • The quiescent (standby) current of this IC is 5mA

7812 Voltage Regulator IC

The 7812 IC is a commonly used linear regulator.  Input voltage can range from 12 – 35VDC and it outputs a fixed 12V at over 1A of current and up to 2.2A of surge current. For basic operation, no external components are required. Just hook up the input voltage and ground of the 7812 voltage regulator and you have 5V available on the output.

If you are using it at a fair distance from the supply that is providing the input voltage, then a .33uF or larger input filter capacitor is recommended. The part ideally should be a low ESR part such as a Tantalum or Mylar capacitor, but small electrolytic caps generally work fine.

Pinout:

Pinout of 7812 Voltage Regulator IC

Applications:

  • Electronic Communications.
  • LEDs and Flashlights.
  • Load Switches.
  • Electrical Power Supplies.

Also check the LM317 Adjustable Voltage Regulator IC available on Robocraze. The LM317 provides a stable, regulated output voltage in the range of 1.2V to 37V and can be adjusted using external resistors. It has a maximum continuous output current of 1.5A, a typical dropout voltage of 1.5V, and operates over a wide range of input voltages (3V to 40V) and temperatures (-40°C to 125°C). The IC features built-in current limiting, thermal shutdown protection, and short-circuit protection.

Also check the 7806 Voltage Regulator IC available on the Robocraze website. It operates at an input voltage of 5V, with a maximum input voltage of 35V and a maximum output current of 1.5A. The standby current is 5mA.

Package Includes:

  • 7812 Voltage Regulator IC

Specifications:

Output voltage 12V
Max input voltage 35V
Max output current 1.5A
Quiescent (standby) current 5mA
Dimensions 5 x 4 x 3cms
Weight 2g
