BO Motors

Q: 1. What is a BO motor?

A BO (Battery Operated) motor is a small hobby-grade DC geared motor used in DIY robotics and small projects. It combines a compact DC motor with gears that reduce speed and increase output torque. BO motors are commonly used to drive robot wheels, tracks, arms, and other lightweight mechanisms.

Q: 2. How do I select the right BO motor?

Select a BO motor based on RPM, shaft type, voltage, torque, and mounting configuration. Straight and right-angle designs suit different chassis arrangements. Choose a lower RPM when controlled movement and torque are more important, and a higher RPM when the robot needs greater speed. Also check that the motor shaft and mounting holes match the wheels and chassis.

Q: 3. What is the difference between a single-shaft and dual-shaft BO motor?

A single-shaft BO motor has one output shaft for mounting a wheel, gear, or pulley. A dual-shaft BO motor has output shafts on both sides, allowing wheels or mechanisms to be mounted on both ends. Dual-shaft models are commonly used in robot cars where the motor is positioned between two wheels.

Q: 4. What RPM BO motor should I use for a robot car?

For a typical robot car, 60–100 RPM suits slow, controlled movement and robots that need more usable torque. 150–200 RPM is suitable for lightweight cars requiring moderate speed, while 300 RPM is better for faster, lightweight platforms. The final choice also depends on wheel diameter, robot weight, terrain, and required torque.

Q: 5. What are BO motors used for?

BO motors are commonly used in 2WD and 4WD robot cars, line-following robots, obstacle-avoiding robots, DIY trains, small conveyors, rotating mechanisms, and other hobby robotics projects. Their compact size, gearing, and low-voltage operation make them suitable for small mobile platforms and lightweight mechanisms.

BO Motors

Picking Bo Motors Motor Wheels Chassis that won’t slow your project down

Choosing the right RPM for a robot car affects its speed, torque, and overall driving performance. This collection brings together BO motors, motor wheels, and robot chassis for common DIY robotic car builds, with different motor-speed options to suit simple and faster projects. BO motors are available across practical RPM ranges, while compatible wheels and chassis make it easier to build a complete drive system. With options starting from around ₹50, compare motor RPM, wheel size, chassis dimensions, and price to choose components that match your robot car project.

BO Motors for Robot Cars & DIY Robotics

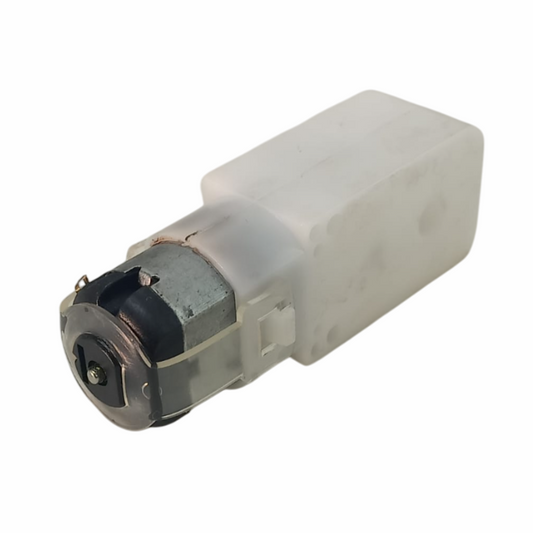

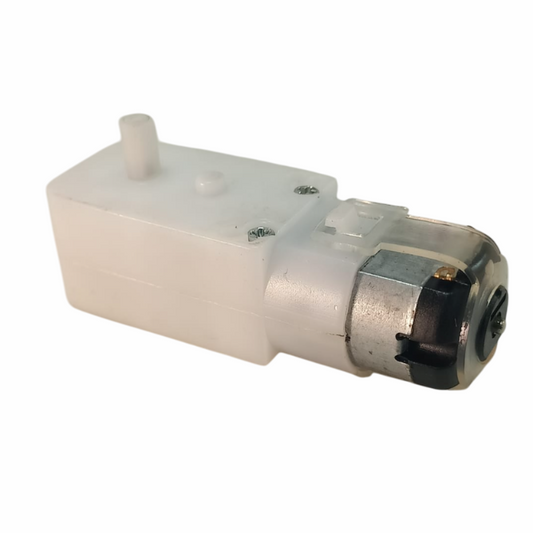

A BO motor, or Battery Operated motor, is a small DC geared motor commonly used in robot cars, educational robotics, and DIY automation projects. It combines a compact DC motor with a gear mechanism that reduces output speed and increases available torque.

BO motors are available in different RPM, shaft, voltage, and gearbox configurations. Choosing the right combination affects how quickly a robot moves, how much load it can carry, and which wheels and chassis it can use. For most robot-car projects, the key specifications to check are motor RPM, shaft type, operating voltage, torque, shaft diameter, and wheel compatibility.

Motor Selection Guide by Shaft Type & RPM

Single Shaft vs Dual Shaft BO Motors

The shaft configuration determines how the motor transfers rotation to the wheel or mechanism.

Single-shaft BO motors: Have one output shaft and are suitable when only one side of the motor needs to drive a wheel, gear, pulley, or other mechanism.
Dual-shaft BO motors: Have output shafts on both sides and are commonly used in robot cars where wheels or hubs need to be mounted on both ends.
For 2WD robot cars: Dual-shaft motors can simplify wheel mounting because each motor can drive a wheel while maintaining a balanced arrangement.
For custom mechanisms: Single-shaft motors can be useful when the motor is mounted directly to a wheel, pulley, gear, or rotating mechanism.

RPM Options and What They Suit

RPM (Rotations Per Minute) indicates how quickly the motor shaft rotates. For geared BO motors, lower RPM generally prioritises controlled movement and available torque, while higher RPM provides greater potential speed.

BO Motor RPM	Typical Use	Suitable Project
60 RPM	Slow, controlled movement	Robot bases, heavy or obstacle-oriented robots
100 RPM	Balanced speed and control	General-purpose 2WD/4WD robot cars
150 RPM	Moderate-speed movement	Lightweight robot cars and mobile mechanisms
200 RPM	Faster movement	Lightweight robotic platforms
300 RPM	High-speed movement	Fast robot cars, small wheels, spinning mechanisms

RPM alone does not determine how fast a robot will travel. Wheel diameter also matters. A larger wheel covers more distance per revolution, while a smaller wheel provides more controlled movement and can make packaging easier.

Torque Expectations for BO Motors

Gear reduction allows a BO motor to produce more output torque than the small DC motor would provide at the same speed without gearing. Lower-RPM geared motors generally provide more usable torque for slow movement, while higher-RPM models trade some torque for speed.

The required torque depends on the robot's total weight, wheel diameter, number of driven wheels, surface, slope, and acceleration. A lightweight robot on a smooth floor can use a faster motor, while a heavier robot or one operating on uneven surfaces needs greater torque and traction.

Avoid selecting a motor based only on RPM. If a robot struggles to start, stalls under load, or slows significantly on ramps, the motor may not provide enough torque for the application.

Wheel Compatibility with BO Motors

BO motor wheels should match the motor's shaft type, shaft diameter, hub design, and physical mounting arrangement. A wheel that does not fit the motor shaft securely can slip, wobble, or place additional stress on the gearbox.

For robot cars, consider wheel diameter along with RPM:

Small wheels: Better suited to compact robots and controlled movement.
Medium wheels: A practical choice for general-purpose robot cars.
Large wheels: Can increase ground clearance and distance travelled per revolution but require more motor torque.

Check that the wheel hub fits the BO motor shaft securely and that the wheel does not rub against the chassis during rotation.

Matching the BO Motor to a Motor Driver

A BO motor should normally be controlled through a suitable motor driver, rather than connecting it directly to an Arduino, Raspberry Pi, or other microcontroller GPIO pin. The driver handles the motor current and allows functions such as direction control and PWM speed control.

Motor Driver	Typical Use with BO Motors	Key Consideration
L298N	Basic 2-motor robot cars	Easy to use; check voltage and current requirements
TB6612FNG	Compact 2WD/robot platforms	Lower-loss alternative for suitable low-voltage motors
L293D	Small educational projects	Suitable only within its current and voltage limits
Higher-current H-bridge	Multiple or higher-load motors	Select based on the motor's actual current requirements

When choosing a driver, check the motor's operating voltage, continuous current, and stall current against the driver's ratings. The driver must be able to handle the motor's current demand, particularly during startup and when the motor is mechanically loaded.

Wiring & Mounting Tutorials

Wiring Basics

Connect the two motor terminals to the output terminals of the motor driver. The motor driver connects to the appropriate power supply and control pins on the microcontroller. Reversing the motor's two terminal connections reverses its rotation direction.

Do not power a BO motor directly from a microcontroller GPIO pin. Use a motor driver or suitable switching circuit designed to handle the motor current.

Mounting Tips

Use the motor's mounting holes and suitable screws to secure it to the chassis.
Keep the shaft clear of the chassis and ensure the wheel is properly aligned.
For dual-shaft models, ensure both wheels or hubs are securely fitted.
Check wheel clearance before powering the motor.
Keep motor wires away from moving wheels and gears.

Control via Microcontroller

An H-bridge motor driver can control BO motor direction and speed. A microcontroller such as Arduino can provide the driver's control signals, while PWM can be used to adjust motor speed. Ensure that the motor supply voltage and driver ratings match the selected BO motor.

DIY Projects Using BO Motors

BO motors are commonly used in:

2WD Robot Cars: Two geared motors drive the left and right wheels for forward, reverse, and turning control.
Line-Follower Robots: Motors provide controlled movement while sensors detect the line.
Obstacle-Avoiding Robots: A pair of BO motors drives the robot while sensors detect objects.
Mini Conveyor Mechanisms: The geared output provides controlled rotation for belts and rollers.
Rotating Displays: A BO motor can rotate lightweight platforms or display mechanisms at a controlled speed.

Price Chart of BO Motors in India

BO Motor	Price
60 RPM L-Shaped Single Shaft BO Gear Motor	₹199
Single Shaft L-Shaped 60 RPM BO Motor with Wheel – 4 sets	₹293
100 RPM BO Dual Shaft DC Motor – Straight	₹59
150 RPM Single Shaft BO Motor Wheel	₹63
300 RPM Straight Single Shaft	₹61
300 RPM BO Dual Shaft Motor – Straight	₹54
300 RPM Single Shaft Battery Operated Motor	₹72

Prices can vary by motor configuration, wheel inclusion, pack size, and product variant.

How to Choose a BO Motor

For a typical robot car, start with the required speed and load, then select the RPM, shaft type, and wheel size together. A 60–100 RPM motor suits slower, controlled robots, while 150–300 RPM options are more appropriate for lighter platforms where higher speed is important.

Next, verify the motor's voltage and torque requirements, make sure the wheel hub fits the shaft, and select a motor driver that can safely handle the motor's operating and stall current. Matching all four components—motor, driver, wheels, and chassis—helps create a reliable robot-car drive system.

Related Searches

Popular Searches

1. What is a BO motor?

A BO (Battery Operated) motor is a small hobby-grade DC geared motor used in DIY robotics and small projects. It combines a compact DC motor with gears that reduce speed and increase output torque. BO motors are commonly used to drive robot wheels, tracks, arms, and other lightweight mechanisms.

2. How do I select the right BO motor?

Select a BO motor based on RPM, shaft type, voltage, torque, and mounting configuration. Straight and right-angle designs suit different chassis arrangements. Choose a lower RPM when controlled movement and torque are more important, and a higher RPM when the robot needs greater speed. Also check that the motor shaft and mounting holes match the wheels and chassis.

3. What is the difference between a single-shaft and dual-shaft BO motor?

A single-shaft BO motor has one output shaft for mounting a wheel, gear, or pulley. A dual-shaft BO motor has output shafts on both sides, allowing wheels or mechanisms to be mounted on both ends. Dual-shaft models are commonly used in robot cars where the motor is positioned between two wheels.

4. What RPM BO motor should I use for a robot car?

For a typical robot car, 60–100 RPM suits slow, controlled movement and robots that need more usable torque. 150–200 RPM is suitable for lightweight cars requiring moderate speed, while 300 RPM is better for faster, lightweight platforms. The final choice also depends on wheel diameter, robot weight, terrain, and required torque.

5. What are BO motors used for?

BO motors are commonly used in 2WD and 4WD robot cars, line-following robots, obstacle-avoiding robots, DIY trains, small conveyors, rotating mechanisms, and other hobby robotics projects. Their compact size, gearing, and low-voltage operation make them suitable for small mobile platforms and lightweight mechanisms.

6. Can I use BO motors with Arduino or Raspberry Pi?

Yes. A BO motor can be controlled by an Arduino or Raspberry Pi through a suitable motor driver. Do not connect the motor directly to a microcontroller GPIO pin. Use a driver that matches the motor's operating voltage and current requirements, along with an appropriate external power supply.
