Top 5 Waveshare STEM Kits for Engineering Students

Benefits of Waveshare STEM Kits for Engineering Students

These DIY kits for students offer something that traditional classroom learning simply can't match: you have the satisfaction of seeing your ideas come to life. One of the biggest advantages is how they eliminate the headache of component hunting. Instead of spending hours figuring out which parts work together, you get everything you need in one complete package. This means you can spend more time building and less time troubleshooting compatibility issues.

The other good thing about Waveshare STEM kit is that it provides a progressive learning path. You start with basic projects that build your confidence, then gradually tackle more complex challenges. Each project teaches you something new while reinforcing what you've already learned. By the time you're done, you'll develop a set of skills that would be useful in real-world engineering projects.

Components and Supplies

Top 5 Waveshare STEM kits

By now, hopefully, you are convinced of the benefits that IoT kits for engineering students bring to your learning process. So, now let’s look at the top 5 Waveshare STEM kits that you can choose from.

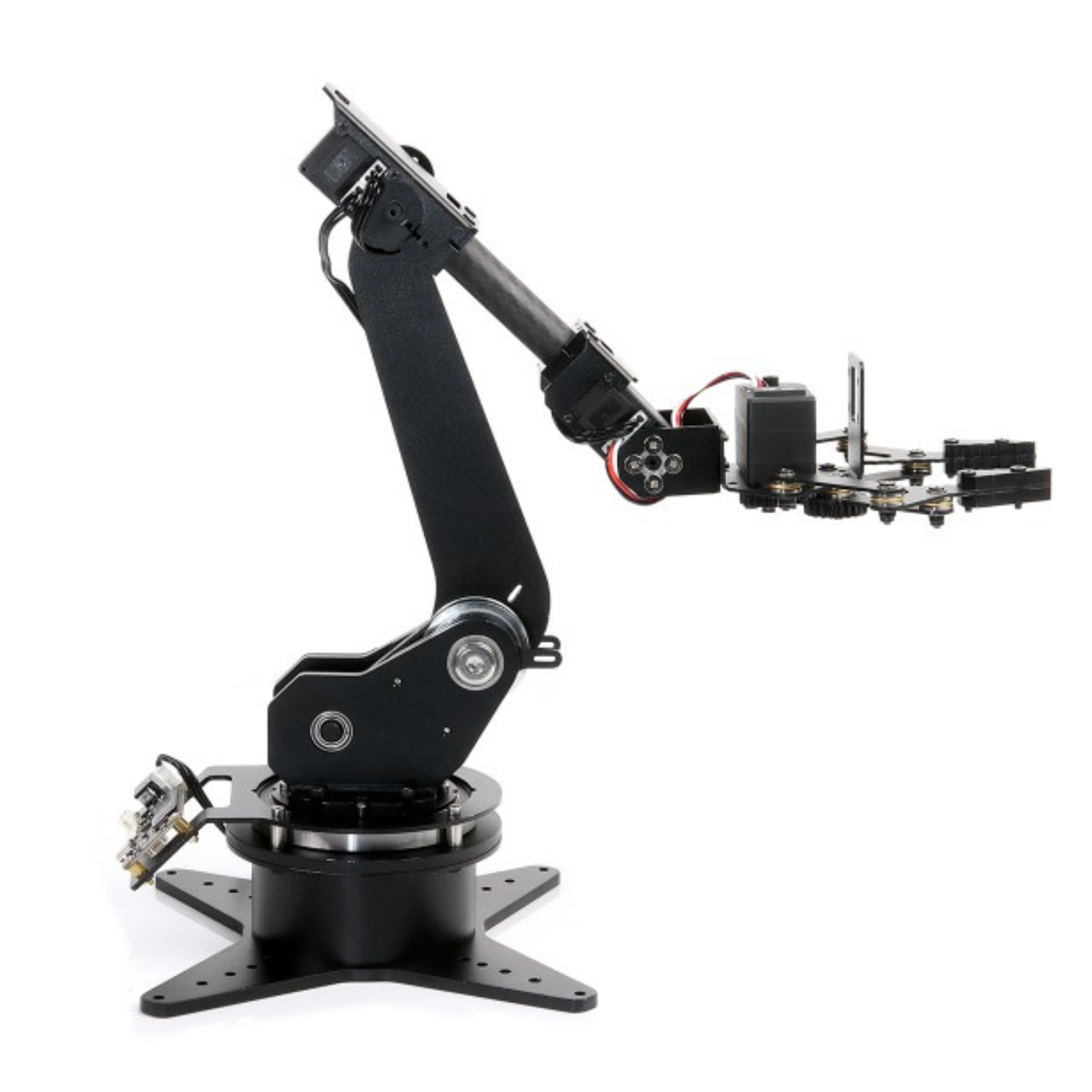

1. Waveshare Bluetooth/Wi-Fi 4-DOF Metal Robot Arm Kit (for Raspberry Pi)

Unboxing this 4-DOF Metal Robot Arm Kit feels a bit like opening a mini-industrial robot straight off a factory floor: cool-to-the-touch aluminium links, beefy metal-gear servos, and a tidy PCA9685 board waiting to talk to your Raspberry Pi. If you’ve never driven a robot arm before, this is the one that lets you go from a blinking-LED exercise to real pick-and-place in an afternoon.

Features

This robot arm kit has four independent joints—base rotation, shoulder, elbow, and a two-finger gripper— that gives you everything you need for classic pick-and-place or light assembly exercises.
The CNC-machined frame holds its alignment even after countless lab sessions, so you spend your time coding motions, not re-tightening screws.
It also has an on-board PCA9685 PWM board, which means one tidy I²C lead from the Pi can orchestrate every servo, keeping the wiring as clean as the code.
You can connect over Bluetooth for quick phone control or hop onto the Raspberry Pi’s Wi-Fi hotspot when you’re ready to integrate ROS or a web dashboard.

Key Specifications

Servos: 4 × MG996R (≈ 9 kg·cm @ 6 V)
Reach: ≈ 260 mm; vertical lift ≈ 200 mm
Payload: ≈ 150 g at full extension
Supply: 5 – 7 V DC, ≥ 3 A (separate rail from the Pi)
Comms: UART (Bluetooth), 2.4 GHz 802.11 b/g/n (via Pi)

2. WAVEGO 12-DOF Bionic Quadruped Robot Dog (ESP32)

Fire it up on your desk and the little guy WAVEGO 12-DOF Bionic Quadruped Robot Dog immediately starts trotting ears (okay, servos) perked. Behind the cute gaits lies a serious ESP32 controller, ready for MicroPython or ROS 2, plus an expansion bay that accepts a Raspberry Pi camera if you want to dabble in computer vision.

Features

This robot dog has twelve smart serial servos—three in each leg— that gives the robot convincingly lifelike walks, trots, and turns while keeping its balance.
The onboard ESP32 blends Wi-Fi, Bluetooth, and an IMU, so the dog can stream telemetry to your laptop even as it auto-corrects its posture.
A browser dashboard and companion phone app let you nudge gait parameters in real time and immediately see how a tiny phase shift changes the stroll.
The top plate has room for a Raspberry Pi and camera, turning the quadruped into a mobile testbed for face recognition or object-tracking experiments.

Key Specifications

Servo: 12 × LX-15D (15 kg·cm, 240° travel)
Size (standing): ~210 × 140 × 135 mm; Weight: ~1 kg (w/ battery)
Battery: 7.4 V Li-ion, 2500–3000 mAh (≈ 25 min active)
Max Speed: ≈ 0.35 m/s on level ground
Interfaces: UART, I²C, spare GPIO, camera CSI via Pi

3. UGV Rover – Open-Source 6-Wheel 4WD AI Chassis (Raspberry Pi 4B/5)

UGV Rover Open-Source 6-Wheel AI Chassis Kit

If your final-year project screams “outdoor SLAM,” this 4WD six-wheel rover AI chassis is a great canvas. Huge rubber tyres and a roomy aluminium deck mean you can bolt on a LiDAR, stereo cam, or even a small manipulator—and still have space left for a power bank and a Raspberry Pi 4 or Raspberry Pi 5.

Features

This robot car kit has six chunky rubber tires and a four-motor drivetrain that lets the rover crawl over grass, gravel, and workshop debris without slipping or stalling.
A powder-coated aluminium deck riddled with Maker slots and side rails makes it painless to bolt on LiDAR, stereo cameras, or even a light robotic arm.
Full CAD files, wiring diagrams, and ROS 2 packages live on GitHub, so you can customise the platform without first reverse-engineering it.
With roughly twenty kilograms of payload headroom, the chassis happily carries big battery packs and multiple sensors for all-day field tests.

Key Specifications

Motors: 4 × 12 V, 200 rpm metal-gear (30 kg·cm stall) + encoders
Chassis: ~460 × 320 × 180 mm; Ground clearance ~65 mm
Battery Bay: Fits up to 12 V 10 Ah Li-ion (not included)
Top Speed: ≈ 0.8 m/s; Turning radius ≤ 0.5 m (skid-steer)
Expansion: 2 × USB, UART, CAN, 5 V / 12 V rails

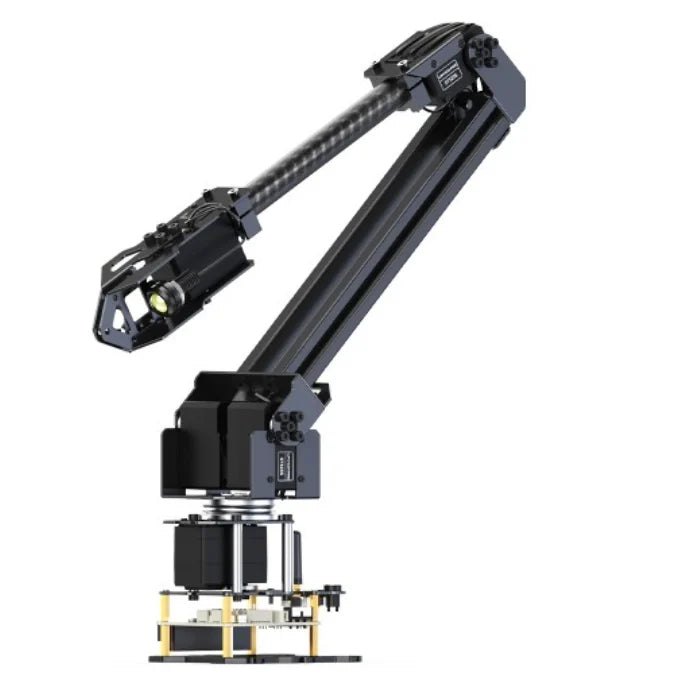

4. Waveshare RoArm-M1 5-DOF Robotic Arm Kit (ESP32)

Think of RoArm-M1 as the bigger, nimbler sibling to the 5-DOF RoArm Robotic kit. Five smart servos give you wrist articulation, and the ESP32 controller lets you record and playback moves over Wi-Fi—no PC tether required. Mount a Pi on top and you’re ready for AI-assisted pick-and-place.

Features

This robot arm kit has five closed-loop smart servos, including a nimble wrist joint, giving the arm the finesse to stack blocks, sort parts, or pour a drink.
A built-in Wi-Fi hotspot hosts an intuitive browser UI, letting you teach points or launch routines from any phone or laptop—no software installs required.
“Teaching mode” records every pose you guide the arm through, then replays the sequence precisely for effortless classroom demos.
A shoulder-mounted plate welcomes a Raspberry Pi or Jetson Nano, turning the arm into a compact vision-guided pick-and-place system.
Open firmware exposes UART, I²C, and spare GPIO pins, so adding custom grippers, LED indicators, or limit switches takes only a little soldering and code.

Key Specifications

Working Radius: ≈ 315 mm; Vertical reach ≈ 490 mm
Payload: up to 250 g (mid-reach)
Repeatability: ± 0.5 mm (factory servos)
Power: 7.4 V Li-ion or 6–8 V DC bench, ≥ 3 A
Connectivity: Wi-Fi 802.11 n, UART, I²C

5. Waveshare 6 × 4 Off-Road UGV Chassis with Extension Rails & ESP32

Imagine the Rover above, but with a slightly smaller footprint and clever suspension on every wheel. 6 × 4 Off-Road UGV Chassis with Extension Rails It’s my go-to platform when I need to prototype a rover that can clamber over garden stones and still carry a sensor mast or small arm.

Features

Each of the six wheels of this robot car kit rides on its own suspension arm, soaking up bumps so your IMU data stays clean while the rover clambers over rocks and roots.
A tough steel frame paired with dual aluminium rails offers endless mounting points for depth cameras, solar panels, or a small manipulator.
Four high-torque drive motors link to an ESP32 controller, letting you practise Wi-Fi joystick driving today and upgrade to ROS waypoint missions tomorrow.
A quick-swap battery tray accepts standard 3- or 4-cell Li-Po battery, making mid-field battery changes as fast as a pit stop.
The open, cable-friendly chassis invites tinkering, so rerouting wires, adding new boards, or strapping on extra payloads never feels like a wrestling match.

Key Specifications

Footprint: ≈ 330 × 250 mm; Deck height ~80 mm
Motors: 4 × 12 V, 220 rpm DC gear motors (hall encoder ready)
Load Limit: ≈ 8 kg static / 4 kg dynamic
Speed Range: 0–1.0 m/s via PWM
I/O Rails: Wi-Fi, UART, CAN, regulated 5 V & 12 V outputs

Conclusion

Waveshare STEM kits are fantastic tools for engineering students who want to bring their ideas to life. They make learning about complex topics like robotics, AI, and electronics simple and fun. By building a robot arm, a smart dog, or a self-driving car, you can gain practical skills that are incredibly valuable for a future career in technology. These STEM kits provide a perfect bridge between theory and practice, helping you become a more confident and capable engineer.

Excerpt

Top 5 Waveshare STEM Kits includes 4-DOF Metal Robot Arm Kit, WAVEGO 12-DOF Bionic Quadruped Robot Dog, UGV Rover 4WD AI Chassis, RoArm-M1 5-DOF Robotic Arm Kit.

Frequently Asked Questions

Do Waveshare kits support multiple programming languages?

Yes. Many Waveshare kits are designed for flexibility and support popular languages like Python and C/C++ . Some are even compatible with the Arduino programming environment. This allows you to work with languages you're already familiar with or are required to learn for your courses.

Can Waveshare STEM kits be integrated into classroom teaching?

Yes, definitely. Many Waveshare kits are specifically designed for educational settings and classroom use, with some even aligning with India's NEP 2020 policy. Authorized sellers often provide support for schools, including bulk purchasing options and curriculum resources to help teachers integrate the kits into their lessons.

What age group are Waveshare STEM kits suitable for?

Waveshare offers kits for a wide range of ages, from middle schoolers to university students and adult hobbyists. While simpler kits introduce basic electronics, the advanced robotics and AI kits are perfectly suited for high school and engineering students. It's best to check the specific kit's recommended age to find the right challenge level.

Where can I buy authentic Waveshare kits in India?

To ensure you get authentic products with a valid warranty, it’s best to purchase from official or authorized distributors in India. Reputable sellers include Robocraze, which is an official distributor, as well as Campus Component and Evelta . Checking their online stores is the best way to find the latest kits and pricing.
