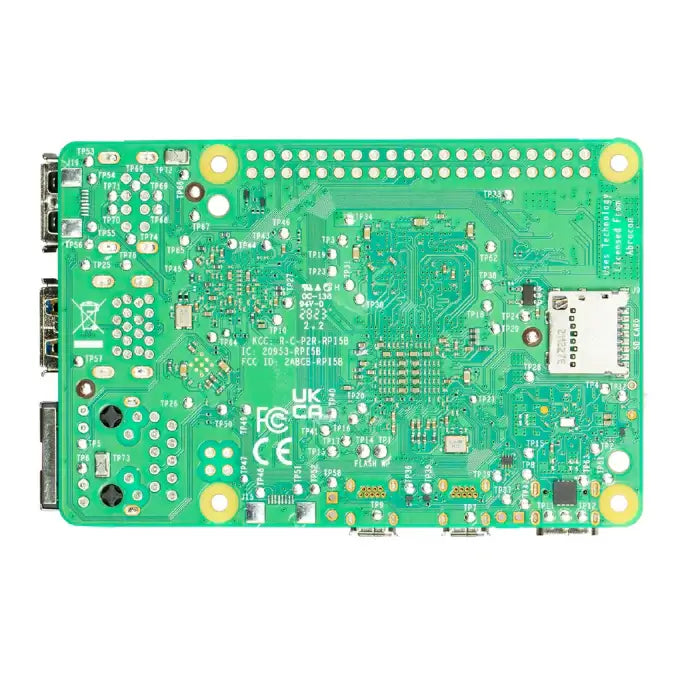

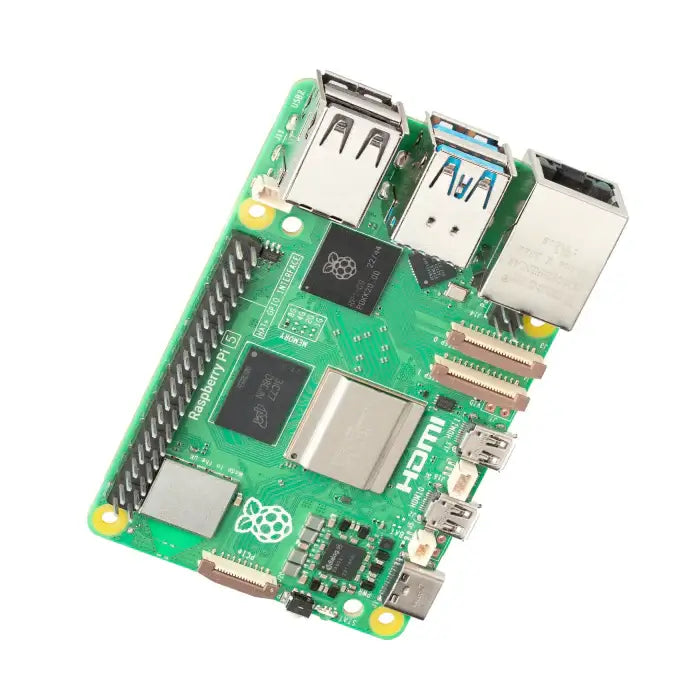

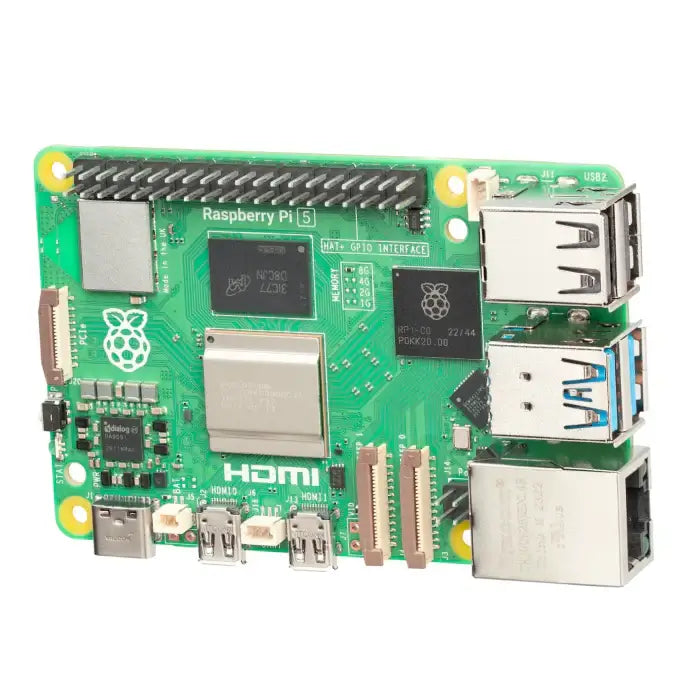

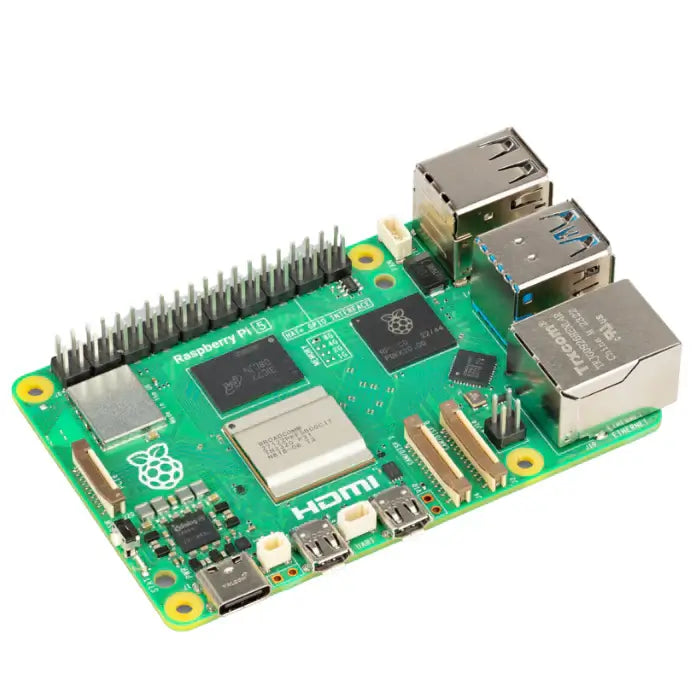

Official Raspberry Pi 5 Model 8GB RAM

Raspberry Pi 5 Model 8GB RAM

This official Latest Raspberry Pi 5 8GB is equipped with a very high 2.4 GHz quad-core 64-bit Arm Cortex A76 CPU which is over 2.5 times faster than the previous model Raspberry Pi 4, and is therefore the quickest response. It is also the first Raspberry Pi computer that was envisioned and developed in the silicon way, not the ordinary, and maybe because of that, it is equipped with more advanced technology and skills.

With the 800MHz VideoCore VII GPU, the Rasberry Pi 5 gains significantly enhanced graphics capability, besides supplying a dual 4Kp60 HDMI display output for a good visual experience. The 8GB RPi 5 Model, equipped with the new dual-band 802.11ac Wi-Fi and Bluetooth 5.0, and the blazing speed data transfer with the USB 3.0/2.0 ports, has come up to date.

Another option on the Raspberry 5 includes the Gigabit Ethernet one with PoE+ support, a feature that allows you to transfer data and power over an Ethernet cable. Making use of the 4-lane MIPI camera, and the display transceivers the image capturing and display can be achieved.

Don't miss out on the latest in Raspberry Pi technology.

To reduce the risk of overheating, get the official Raspberry Pi 5 Active Cooler

To protect your Pi board, check out the official Raspberry Pi Case for Pi 5

Check out the complete Raspberry Pi 5 8GB Kit for all your needs.

Features:

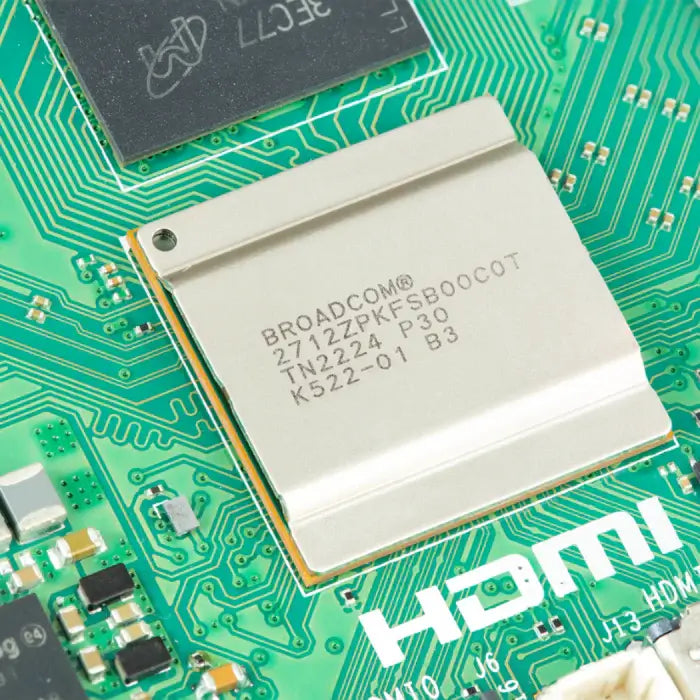

• RPi 5 has a powerful 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU.
• VideoCore VII GPU supports advanced graphics like OpenGL ES 3.1 and Vulkan 1.2.

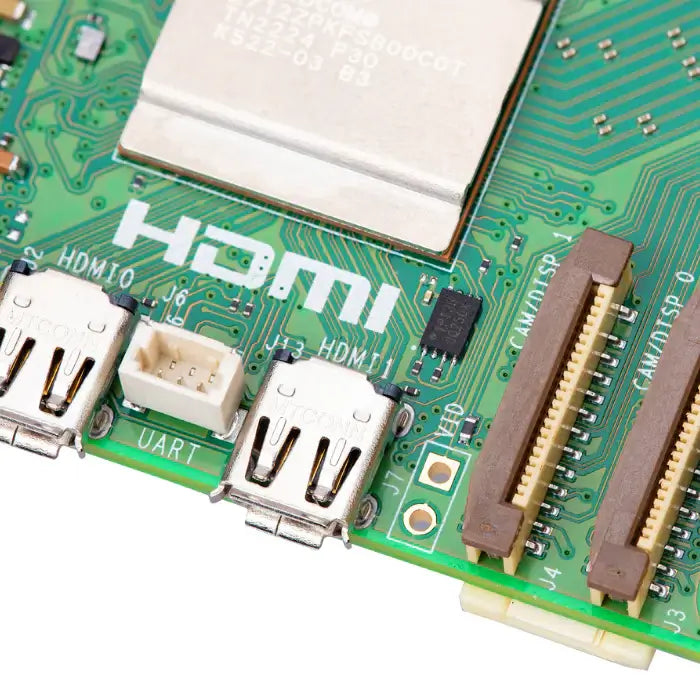

• Dual 4Kp60 HDMI display outputs to connect and display on two screens simultaneously.
• The 4Kp60 HEVC decoder allows for decoding HD movies at up to 60 FPS.

• Dual-band 802.11ac Wi-Fi offers fast wireless connectivity on both 2.4GHz and 5GHz bands.
• Bluetooth 5.0 / Bluetooth Low Energy (BLE) for wireless communication.
• The high-speed microSD card interface supports SDR104 mode.
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation.
• 2 × USB 2.0 ports.
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT, coming soon).
• 2 × 4-lane MIPI camera/display transceivers.
• PCIe 2.0 x1 interface for fast peripherals.
• Raspberry Pi standard 40-pin GPIO header.
• Real-time clock.
• Power button.

Check out the affordable and powerful – Raspberry Pi 5 4GB.

Ready for AI? Get the Official Raspberry Pi AI Kit Now!

Also check out our Raspberry Pi 5 collection page kits, cases, and accessories.

Raspberry Pi 5 8GB RAM Pin Diagram:

Important Details on Raspberry Pi 5 8GB

• The Raspberry Pi 5 computer has built-in dual-band 802.11ac WiFi to connect to both 2.4GHz and 5GHz networks.

• The Raspberry Pi model 5 supports SDXC (Secure Digital Extended Capacity) cards, which allow storage capacities of up to 2TB. This means you can easily use a 128GB microSD card.

• It supports dual 4Kp60 HDMI output with HDR (High Dynamic Range). This allows it to handle smooth 4K video playback on two monitors at the same time.

• It can run a variety of games, especially retro gaming emulation for classic consoles like PlayStation, SNES, and Game Boy.

• Raspberry Pi 5 is powered by a 2.4GHz Quad-Core Cortex-A76 processor which makes it 3× faster than Raspberry Pi 4.

Uses of Raspberry Pi 5

• Functions as an affordable and portable desktop replacement.
• Ideal for interactive kiosk devices with touchscreen support and 4K display compatibility.
• Great for startups and developers to create and test new product concepts.
• Manages and controls smart home or office devices like lights, speakers, and sensors.
• Transforms older TVs into media centers for streaming online content.
• Acts as a central storage server for sharing and backing up files.
• Supports robotics, automation, and other creative tech projects.
• Runs web servers, VPNs, and personal cloud storage solutions.
• Powers AI-based applications with its improved processing capabilities.
• A perfect tool for learning programming, Linux, and hardware development.

Package Includes:

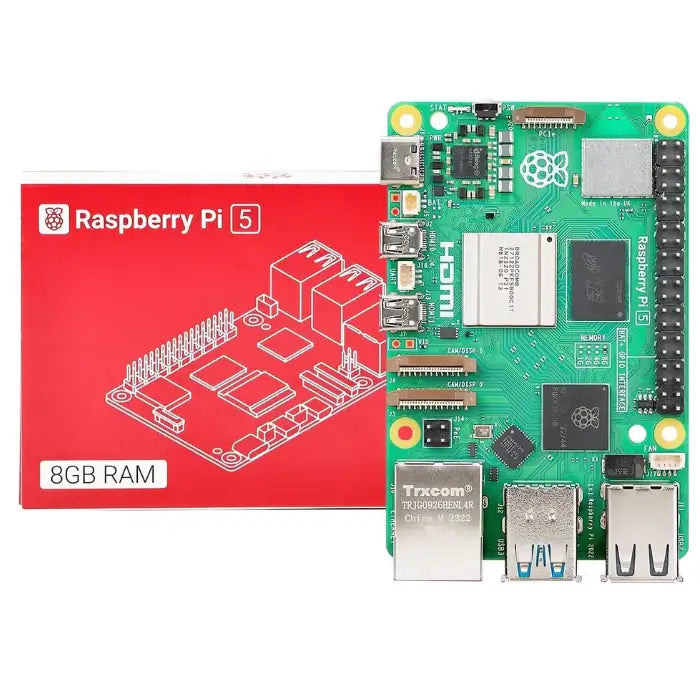

• 1 x Raspberry Pi 5 Model 8GB Ram

Specifications:

Comparison

Raspberry Pi 5 vs Raspberry Pi 4 Model B vs Raspberry Pi 3 Model B+

Specification	Raspberry Pi 5 (8GB)	Raspberry Pi 4 Model B (8GB)	Raspberry Pi 3 Model B+
Price (INR)	₹5129 VIEW	₹3599 VIEW	₹3649 VIEW
Processor	2.4GHz Quad-Core ARM Cortex-A76	1.5GHz Quad-Core ARM Cortex-A72	1.4GHz Quad-Core ARM Cortex-A53
RAM	8GB LPDDR4	8GB LPDDR4	1GB LPDDR2
Wi-Fi	Dual-band 802.11ac	Dual-band 802.11ac	Dual-band 802.11ac
Bluetooth	5.0	5.0	4.2
USB Ports	2× USB 3.0, 1× USB 2.0	2× USB 3.0, 2× USB 2.0	4× USB 2.0
Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet
Video Output	2× Micro HDMI (4Kp60)	2× Micro HDMI (4Kp60)	1× HDMI (1080p)
GPIO Pins	40	40	40
Storage	MicroSD (SDXC up to 2TB)	MicroSD (SDXC up to 2TB)	MicroSD (SDHC)
Power Supply	USB-C	USB-C	Micro USB
Dimensions	Similar to Pi 4	85.6mm × 56.5mm	85.6mm × 56.5mm
