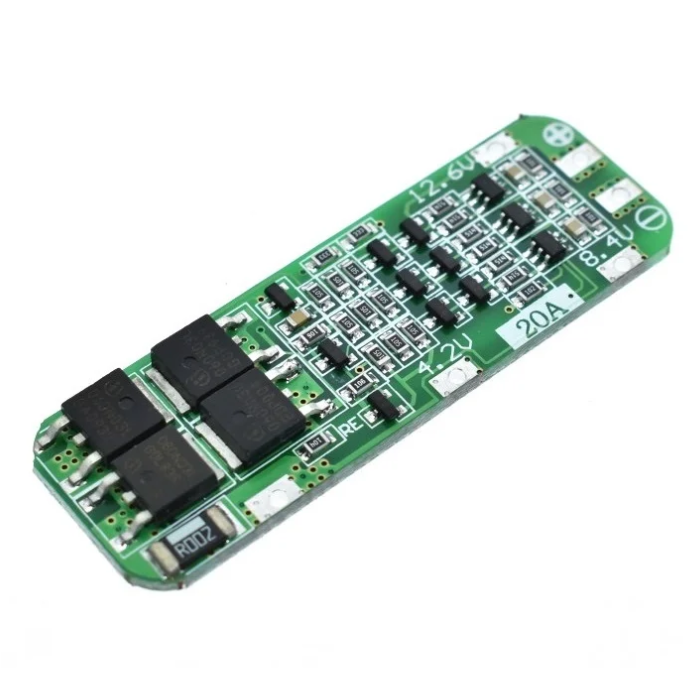

3 Series 20A 18650 Lithium Battery Protection Board
3 Series 20A 18650 Lithium Battery Protection Board
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Ultimate Protection: Protects against over-charge, over-discharge, over-current, short-circuit, and cell imbalance, ensuring battery safety and longevity.
- Versatile Use: Works with 3.6V and 3.7V lithium batteries like 18650, 26650, and polymer lithium, making it ideal for various projects.
- Powerful Performance: Handles continuous discharge and charge currents up to 20A, suitable for powering demanding applications like drills, sprayers, LED lights, and low-power inverters.
- Balanced Charging: Ensures optimal battery health with its integrated 10 low load resistance MOS tube and 100mA balanced current.
- Wide Compatibility: Accepts charging voltages from 16.8V to 18.1V, making it compatible with a wide range of battery setups.
- Compact and Easy to Install: Measures only 46 x 60 x 3.4 mm and can be easily mounted on the battery bundle or in tight spaces.
- Safe Operation: Follows recommended wiring for 0V to 16.8V, preventing short circuits and ensuring reliable, safe use.

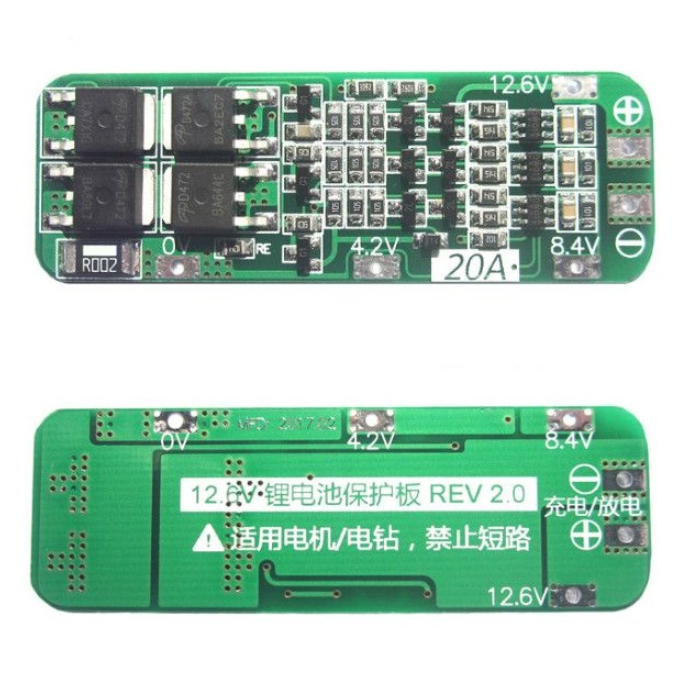

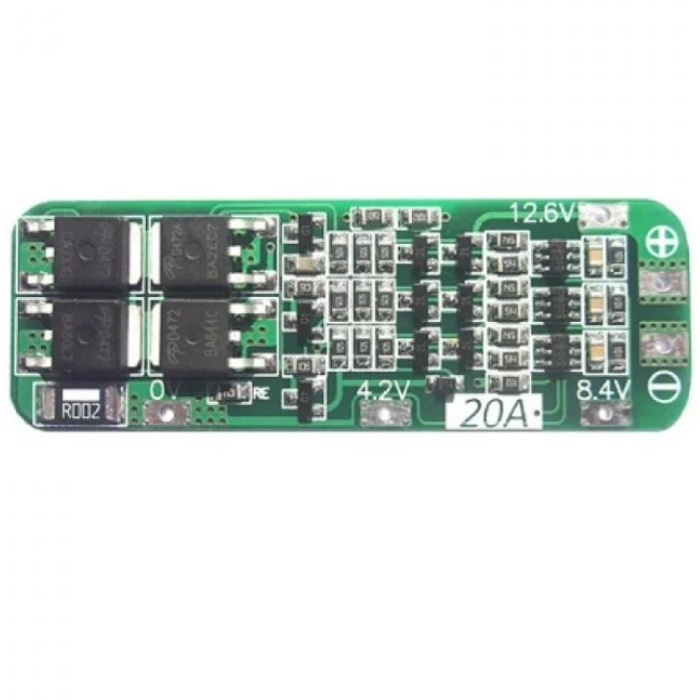

3 Series 20A 18650 Lithium Battery Protection Board
Lithium Battery Protection Board is your ideal choice for efficient and reliable battery management. This 3 Series 20A board comes with AUTO Recovery, ensuring uninterrupted power for your devices. It's designed for 3.6V, 3.7V lithium batteries, including popular types like 18650 and 26650, as well as polymer lithium batteries.
With a continuous discharge and charge current of 20A, this protection board is a powerhouse, perfect for drills, sprayers, LED lights, and low-power inverters. The integrated 10 low load resistance MOS tube ensures balanced charging with 100mA balanced current, optimizing battery performance.
The board operates smoothly in a wide voltage range, from 16.8V to 18.1V, accommodating different battery setups. Its compact design, measuring approximately 46 x 60 x 3.4 mm, allows easy installation on the battery bundle or in confined spaces. Safety is a priority with our Lithium Battery Protection Board.
Follow the recommended wiring for 0V to 16.8V, preventing short circuits and ensuring reliable, safe operation.
Note :
- The Successful start of the drill requires a three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 cannot start the drill!!).

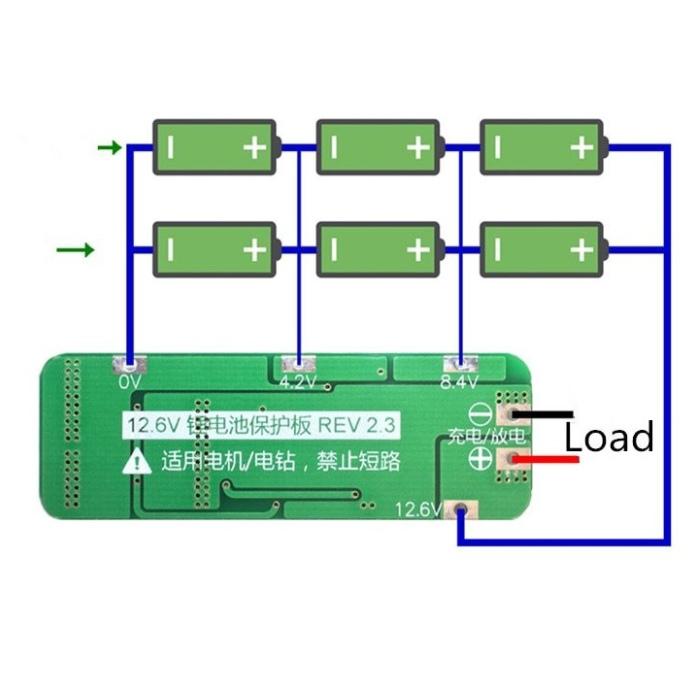

- Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
- When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above25V, capacity 10uF-100uF) to the motor’s positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
- 4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use it in series. The Discharge test, the voltage drop faster battery that group is a poor battery.
Features:
- 3S 11.1V 12.6V 20A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery).
- Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery).
- Continuous discharge current (upper limit): 20A (if the cooling environment is not good, please reduce the load current use).
- Continuous charge current (upper limit): 20A.
- Suitable for the drills with starting current below 80A, power 135W below.
Package Includes:
- 1 x 3 Series 20A 18650 Lithium Battery Protection Board
Specifications:
Model | 3 Series 20A |
Voltage Range | 11.1V, 12V, 12.6V |
Recovery Function | Yes (AUTO Recovery) |
Application | 3.6V, 3.7V lithium batteries (18650, 26650, polymer) |
Continuous Discharge Current | 20A |
Continuous Charge Current | 20A |
Balanced Current | 100mA |
MOS Tube | Integrated 10 low load resistance |
Charging Voltage Range | 16.8V to 18.1V |
Size | 46 x 60 x 3.4 mm |
Suitable For | Drills, sprayers, LED lights, low-power inverters |
Safety Features | Recommended wiring for 0V to 16.8V, anti-short circuit |
