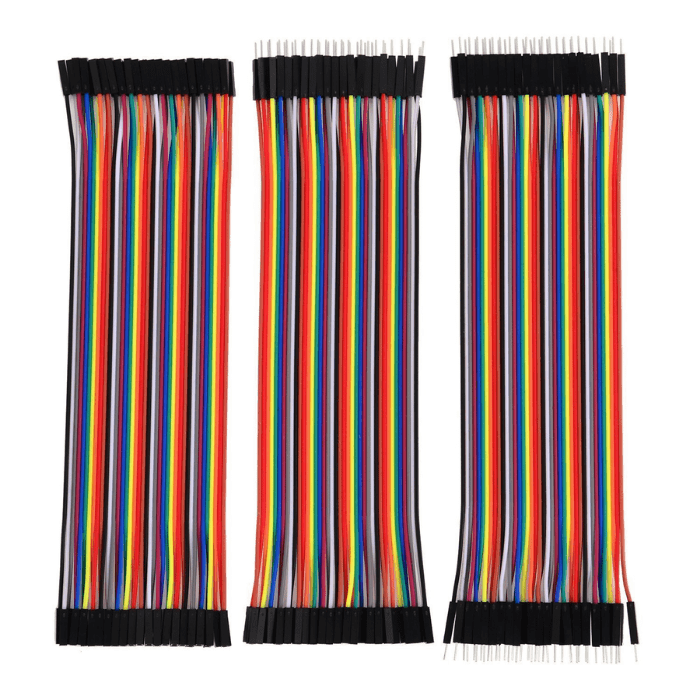

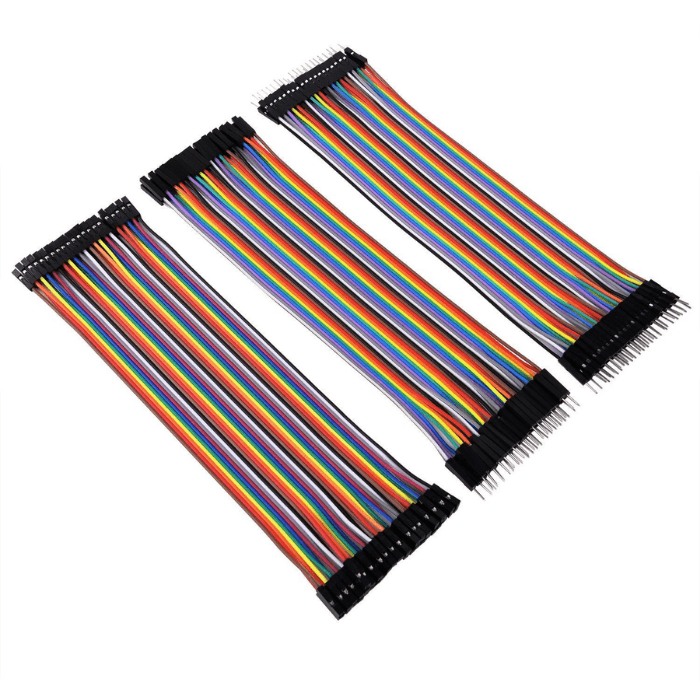

Jumper Wire Set - M2M, M2F, F2F (40 pcs each)

1. What is the purpose of jumper wire?

A jumper wire is an electric wire used for connecting remote electric circuits on printed circuit boards. It is possible to short-circuit and short-cut (jump) to the electric circuit by connecting a jumper wire to the circuit.

2. How many types of jumper wires are there?

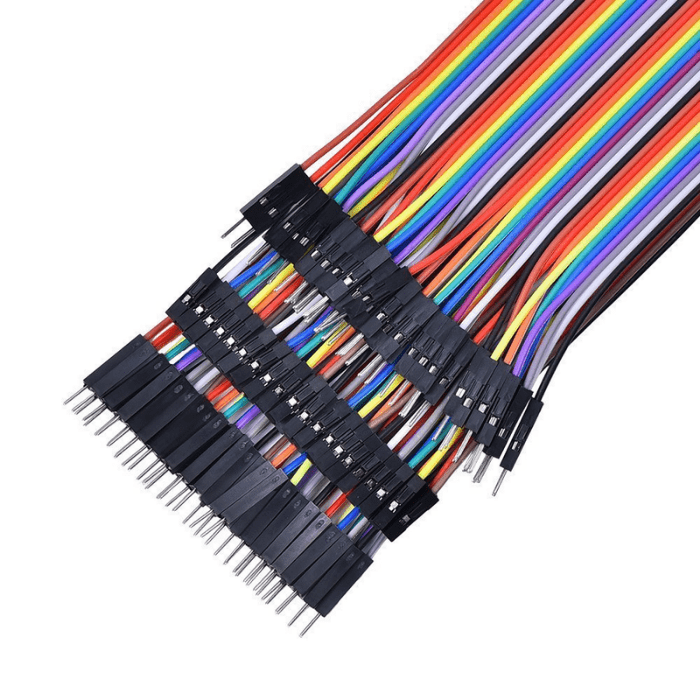

There are 3 different types of jumper wires, they are Male to Male, Male to Female, and Female to Female. Male ends have a protruding pin and can plug into things, whereas female ends do not and are used to plug things into

3. What is a Male -To- Male Jumper wire?

Jumper wire male to male, used in connecting female header pin of any development board (like Arduino) to other development board or breadboard.

4. What is jumper wires female to female?

Female to Female jumper wire is a highly useful connecting wire. It has female connectors on both ends and can be used to make quick connections between header pins, FRC pins, berg pins, and other components.

5. What is male to female wire?

A male connector is commonly referred to as a plug and has a solid pin for a center conductor. A female connector, also known as a jack, has a center conductor with a hole in it to accept the male pin.

6. What is a jumper wire?

A jumper wire is an electrical wire used to create temporary connections in circuits. It has connector pins or terminals for easy insertion and connection to components. Jumper wires are essential in electronics prototyping, allowing quick connections without soldering. They facilitate rapid assembly and modification of circuits, making design iterations efficient. Available in different lengths and colors, jumper wires organize and distinguish connections. They come in male-to-male, male-to-female, and female-to-female configurations to suit various needs. Overall, jumper wires are vital for electronics prototyping, providing a simple and versatile way to establish temporary connections between components.

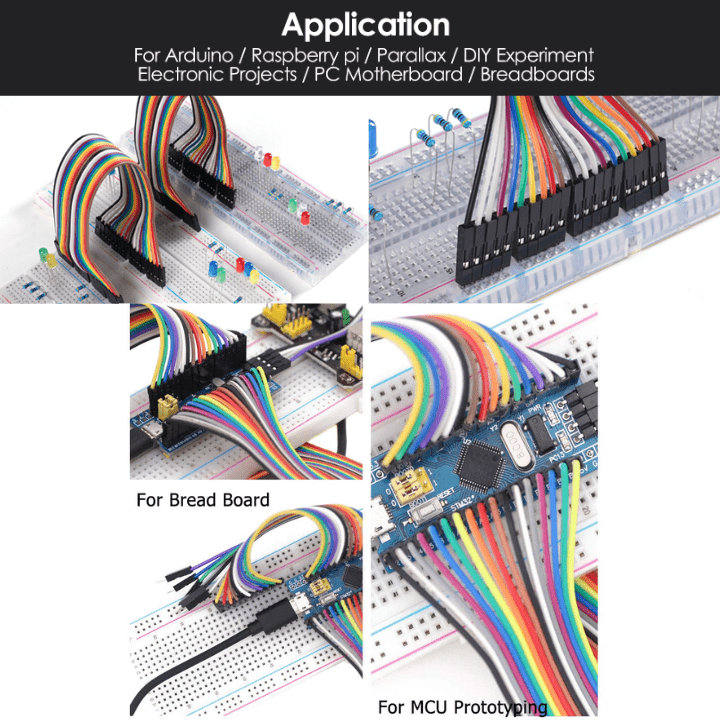

7. What is the use of jumper wires in Arduino?

• Jumper wires are crucial for creating and connecting electronic circuits with Arduino.
• They facilitate interconnection of components, sensor integration, and signal routing.

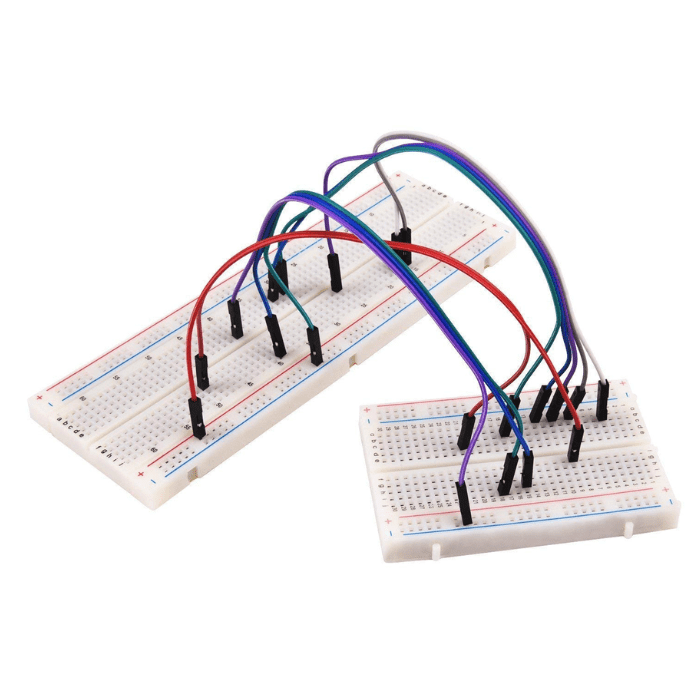

• Jumper wires are used to connect Arduino to breadboards for testing and prototyping.
• They allow quick modification and rearrangement of connections, aiding rapid development.
• Arduino shields can be connected using jumper wires to add specific functionalities.
• Jumper wires are valuable in educational settings for teaching electronics and coding concepts.

Overall, jumper wires make Arduino versatile and popular for a wide range of projects, including IoT applications.

8. Are jumper wires input or output?

Jumper wires establish connections in an electronic circuit without inherent input or output designations. Their function depends on how they are connected in the circuit:

1. **Input:** Connect sensors to receive external signals (e.g., temperature, light) and feed data to the circuit.

2. **Output:** Connect output pins to control external devices (e.g., LEDs, motors) and send data or signals from the circuit.

Jumper wires don't have built-in input/output roles. Their connections determine whether they route signals as inputs or outputs to different components in the electronic system.
