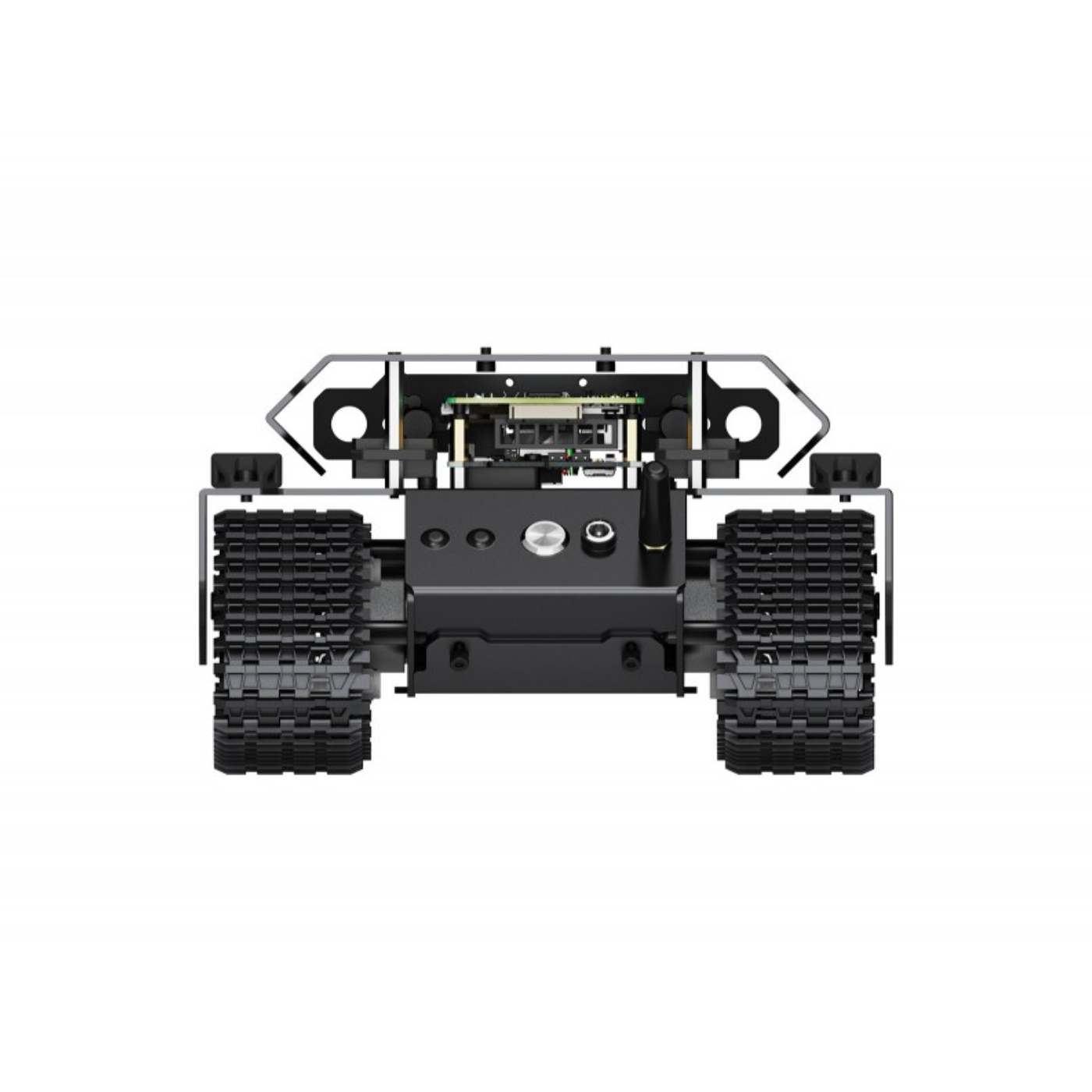

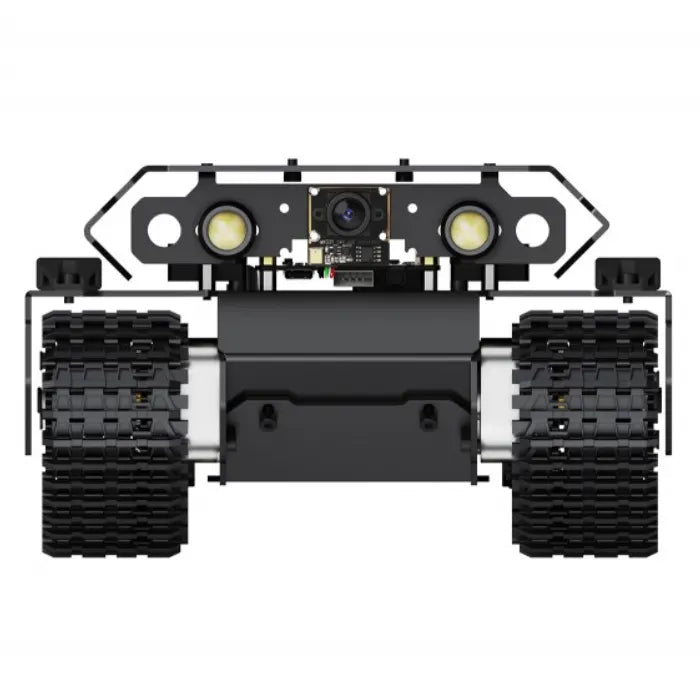

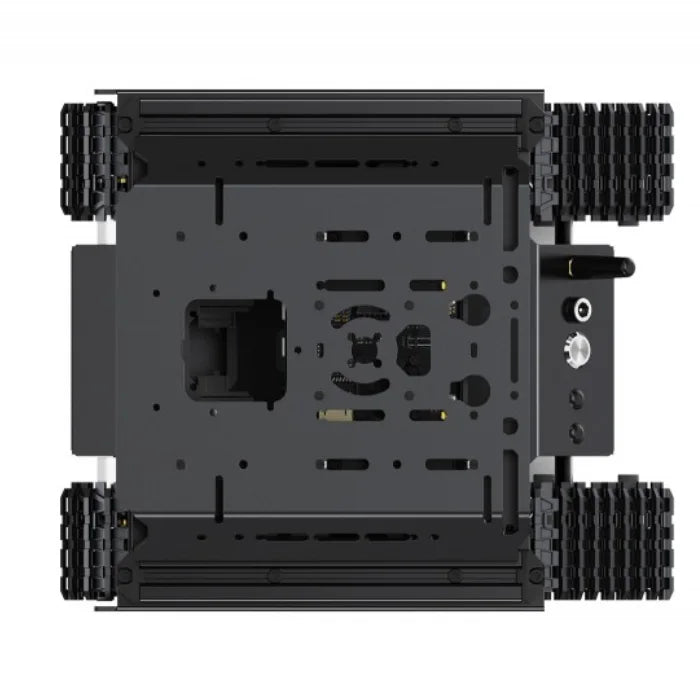

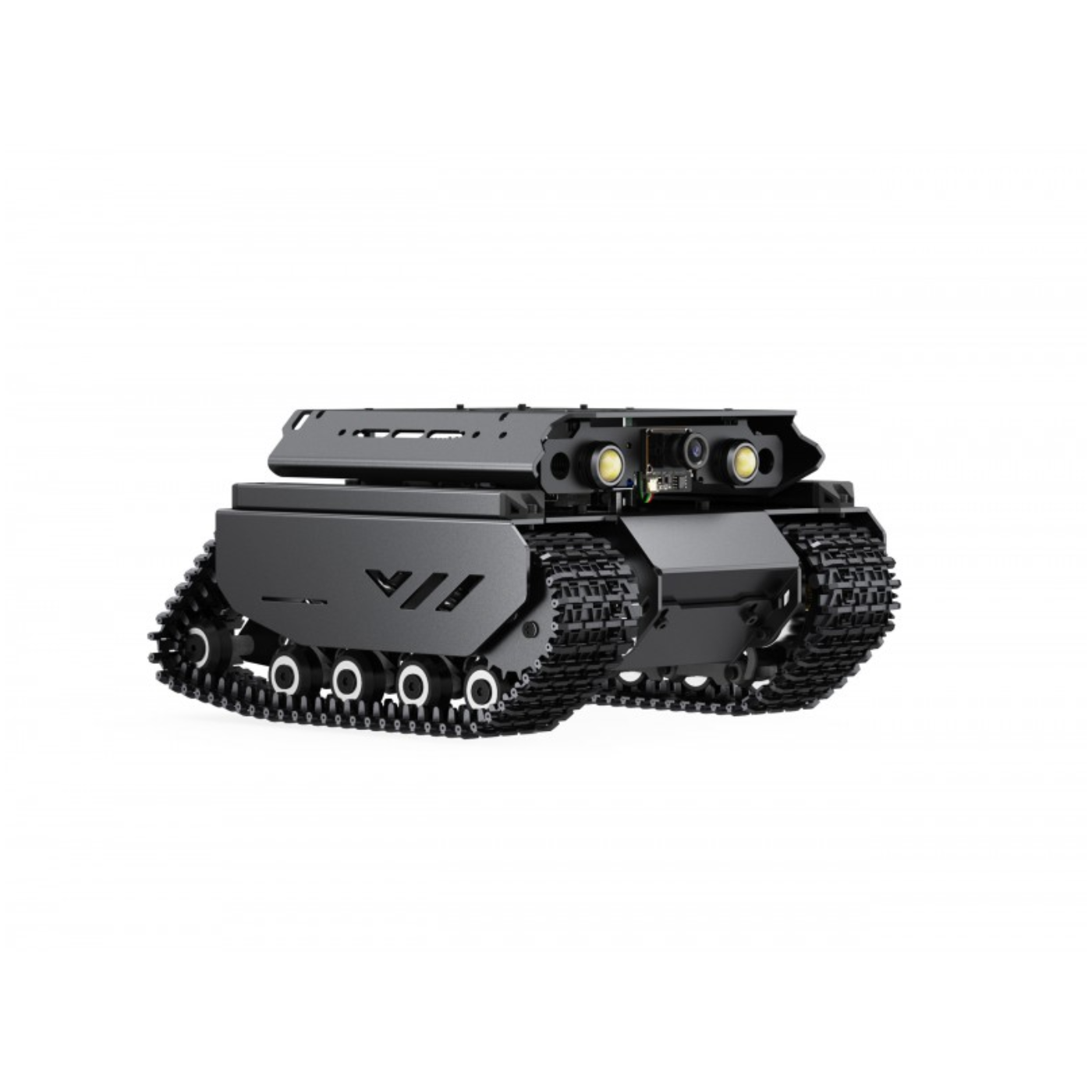

Waveshare UGV Beast Open-Source Off-Road AI Robot Chassis Kit with Raspberry Pi 4B 4GB - PI4B AI Kit

Rs. 40,499
Rs. 54,999
Rs. 40,499
Save Rs. 14,500
(-26%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 1 left in stock
SKU: TIFKT0167
Note: This Product Comes with Pi 4B 4GB Board, without Pan Tilt
  • Boosts Problem-Solving Skills – Encourages logical thinking and hands-on experimentation through AI and robotics projects.
  • Seamless AI Integration – Leverages OpenCV and MediaPipe for real-time image processing, object detection, and gesture recognition.
  • Real-Time Video Streaming – Provides ultra-low latency video transmission for smooth AI interaction and control.
  • Cross-Platform Compatibility – Works with PCs, tablets, and mobile devices, ensuring flexible operation from anywhere.Supports Autonomous
  • Navigation – Features vision-based line tracking and AI-powered automation for self-driving experiments.
  • Encourages Creativity & Innovation – Serves as a versatile platform for developing custom robotics applications and projects.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Robocraze Academy Limited Time Offer
Waveshare UGV Beast PI4B AI Kit – AI Robot Kits with Raspberry Pi 4B & off-road chassis. -DIY Car Kits -Robocraze
Waveshare UGV Beast Open-Source Off-Road AI Robot Chassis Kit with Raspberry Pi 4B 4GB - PI4B AI Kit
Rs. 54,999 Rs. 40,499

Waveshare UGV Beast Open-Source Off-Road AI Robot Chassis Kit with Raspberry Pi 4B 4GB - PI4B AI Kit

Rs. 54,999 Rs. 40,499

Waveshare UGV Beast Open-Source Off-Road AI Robot Chassis Kit  with Raspberry Pi 4B 4GB - PI4B AI Kit

The UGV Beast is a cutting-edge AI Robot Kit designed for exploration and innovation, offering extensive expansion possibilities. It’s the perfect DIY car kit for tech enthusiasts, makers, and beginners looking to dive into intelligent robotics and STEM education.

Powered by a high-performance Raspberry Pi AI computer, it efficiently handles complex tasks while encouraging creativity. Its dual-controller system integrates AI vision processing in the host controller with high-speed operations in the sub-controller, ensuring smooth and precise performance.

Built with a rugged robot car chassis, this STEM kit is ideal for robotics research, AI development, and advanced programming projects. Control it effortlessly through a browser-based Web Application with no software installation required. With real-time video streaming and AI-driven automation, the UGV Beast is an excellent platform for turning innovative ideas into reality.

Features:

Powered by Raspberry Pi

Compatible with Raspberry Pi 4B, delivering high-performance computing for expanded possibilities.

40PIN GPIO Expansion

Uses only the UART interface for communication, keeping the Raspberry Pi’s 40PIN header available for additional peripherals and functionality.

Versatile Audio Interaction

Equipped with an audio driver board, dual-track speakers, and an onboard microphone. Includes a 3.5mm audio jack for text-to-speech and media playback.

Wireless Gamepad Control

Comes with a wireless gamepad for more flexible operation. Connect the USB receiver to a PC for remote control via the Internet. Includes open-source demos for custom interaction methods.

18650 Lithium Battery Support

Features a high-efficiency onboard UPS module that supports simultaneous charging and discharging for uninterrupted operation.

Spacious Internal Design

Supports larger lithium battery packs with an XH2.54 interface as a replacement for the UPS module. Open-source drawings provide detailed dimensions for customization.

High-Speed Motors with Precision Control

Equipped with high-speed motors and high-frequency PID closed-loop speed control for fast response without overloading the host controller.

Package Includes:

  • 1x UGV Beast PI4B AI Kit
  • 1x Accessories pack
  • 1x 12.6V 1A power adaptor
  • 1x Wireless gamepad
  • 1x Green/red/blue plastic balls
  • 1x Phone holder+1/4 screw
  • 1x Yellow tape

Specification:

Specification Details
Model UGV Beast PI4B AI Kit
Dimensions 232 × 197 × 122 mm
Weight 2034 ±5 g
Chassis Height 26 mm
Host Controller Raspberry Pi 4B (4GB RAM)
Host System Support Debian Bookworm
ROS2 Version ROS2-HUMBLE-LTS
Camera FOV 160°
Power Supply 3S UPS Module
Battery Support 18650 lithium battery × 3 (NOT included)

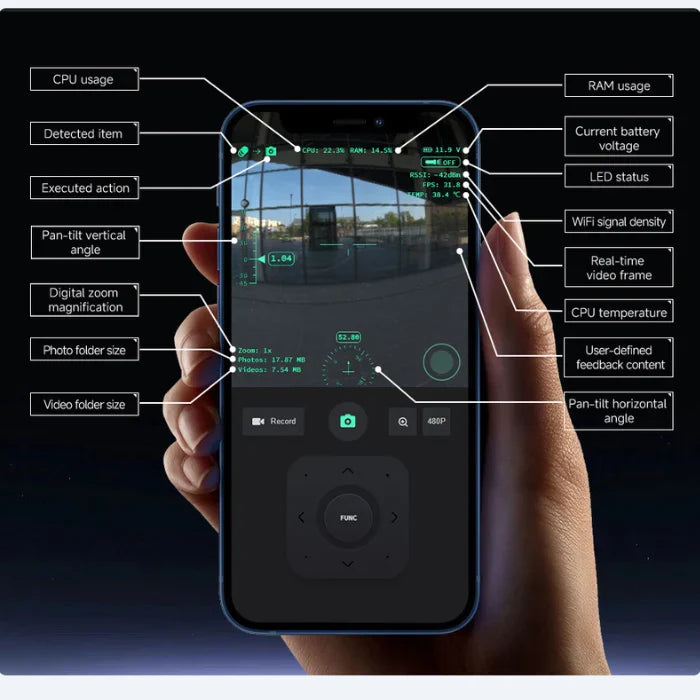

Control Methods Web application / Jupyter Lab interactive programming
Max Speed (Default) 0.35 m/s
Number of Driving Wheels 2
Suspension Material Stainless steel
Track Width 40 mm
Minimum Turning Radius 0M (In-situ rotation)
