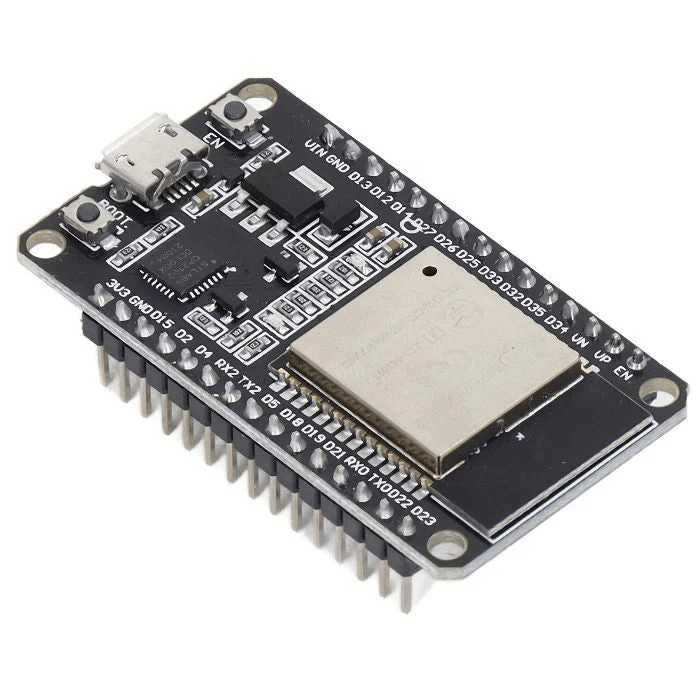

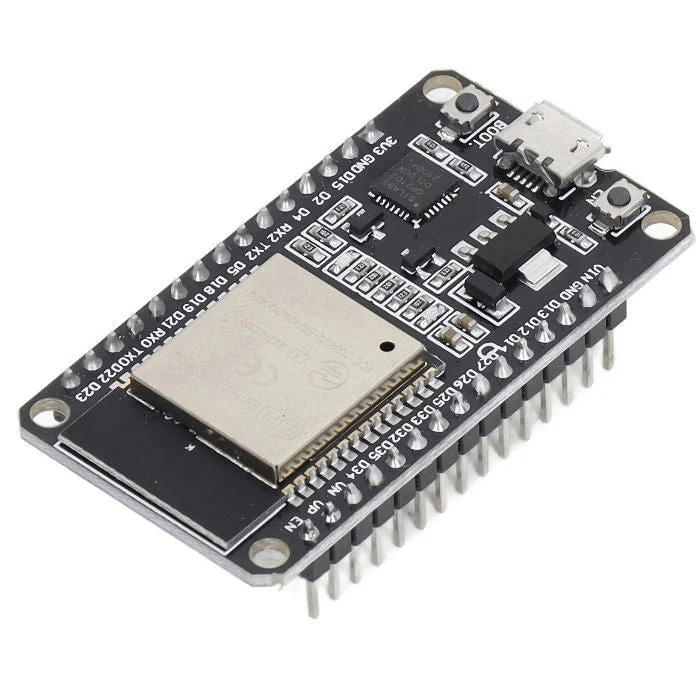

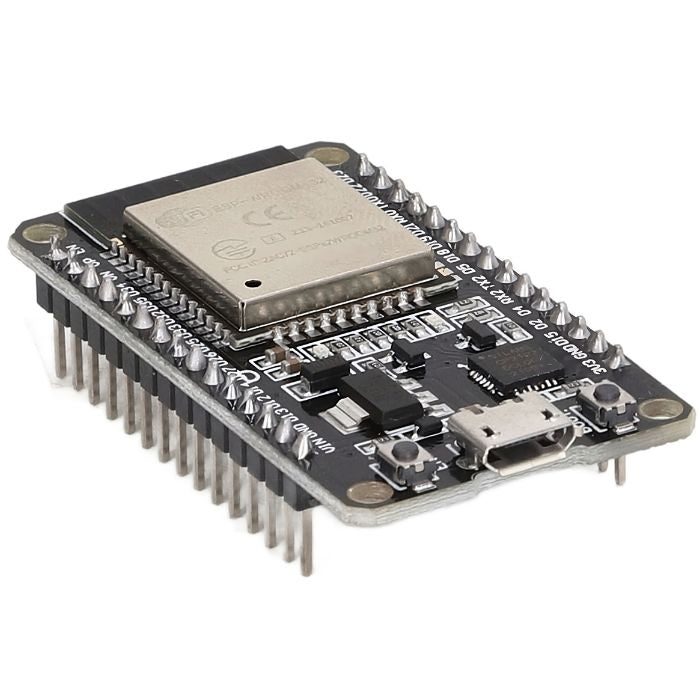

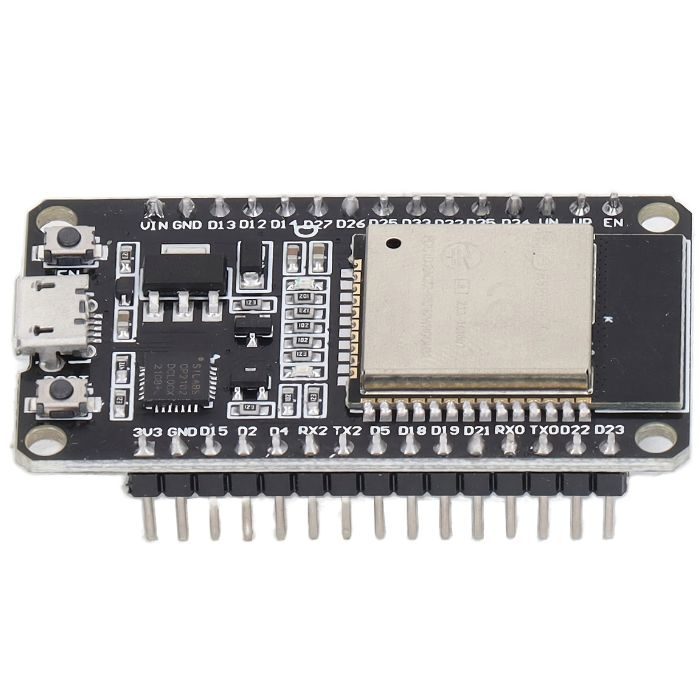

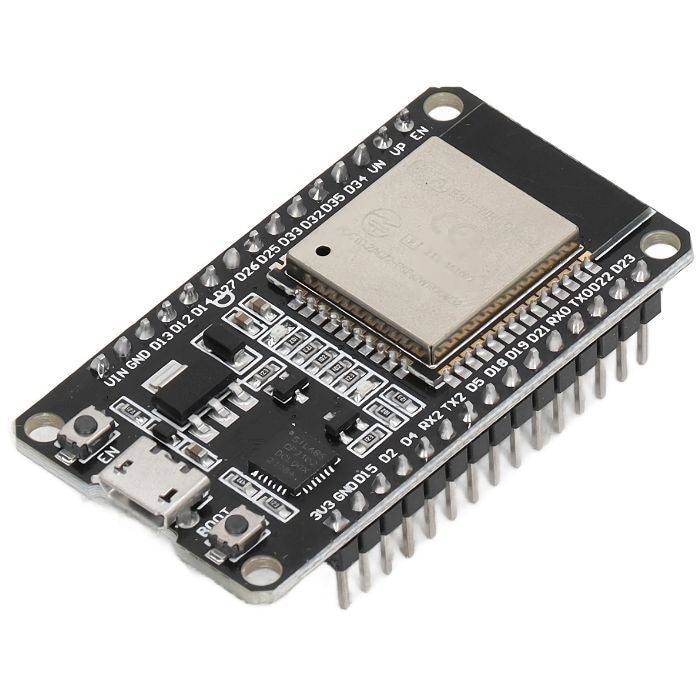

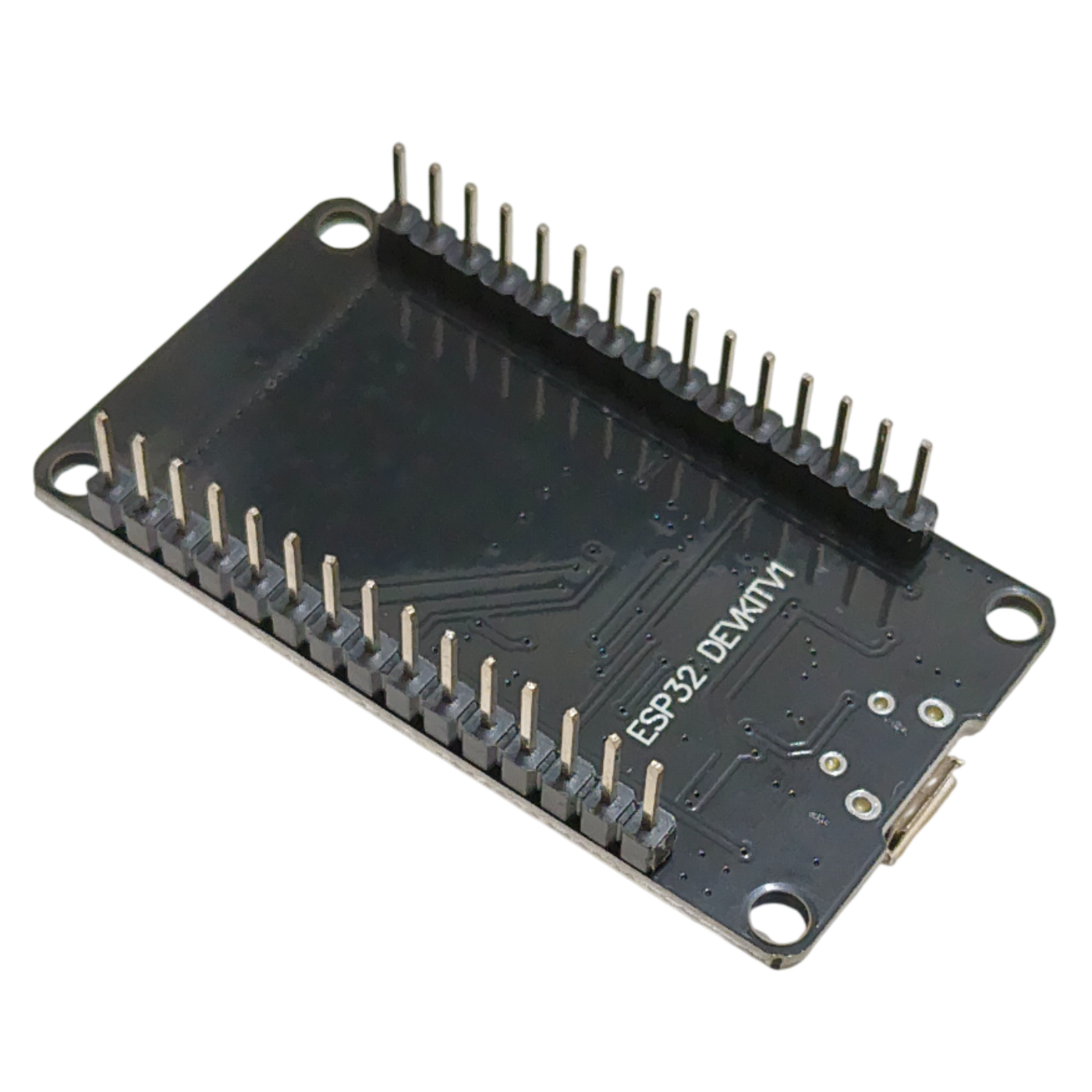

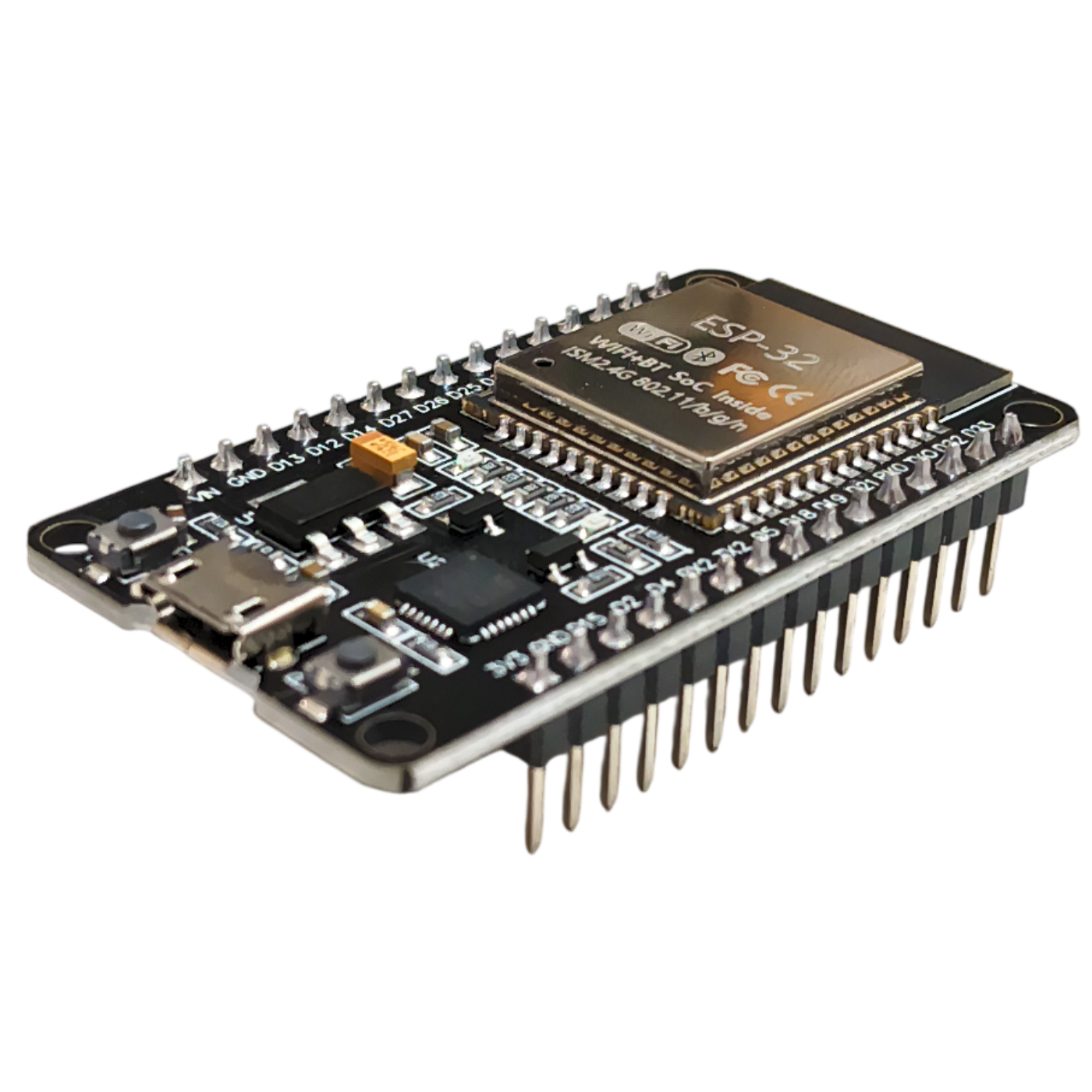

ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)

ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
  • ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
  • ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
  • ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)
  • ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)

ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)

Regular price
Rs. 435
Sale price
Rs. 435
Regular price
Rs. 497
You save Rs. 62
12% off
You save Rs. 62
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • Small volume, easily embedded to other products
  • It comes with both Wifi and Bluetooth
  • Strong function with support LWIP Protocol
  • Supporting three modes :  AP, STA, and AP+STA
  • Supporting Lua program, easily to develop
  • Includes CP2102 USB-UART bridge

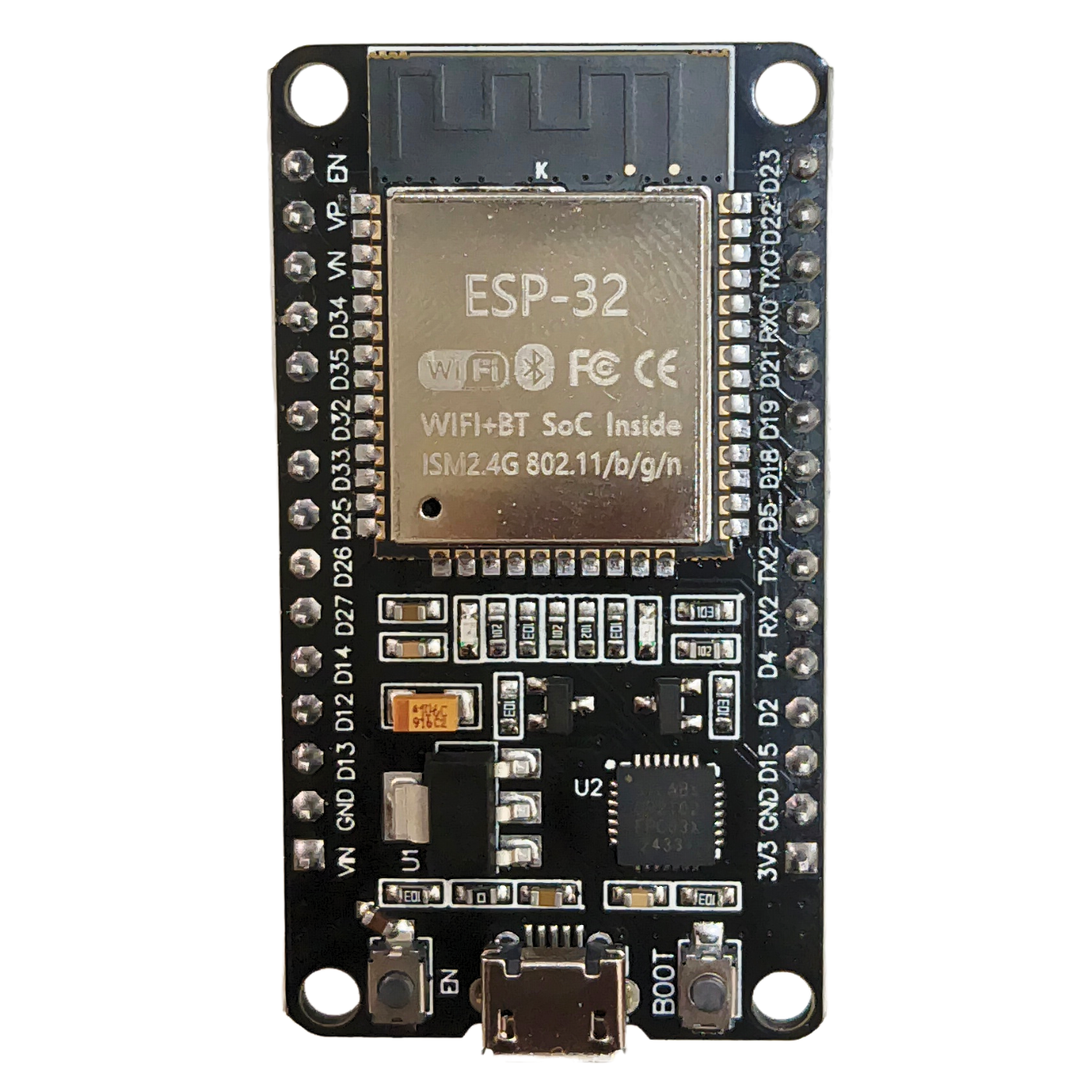

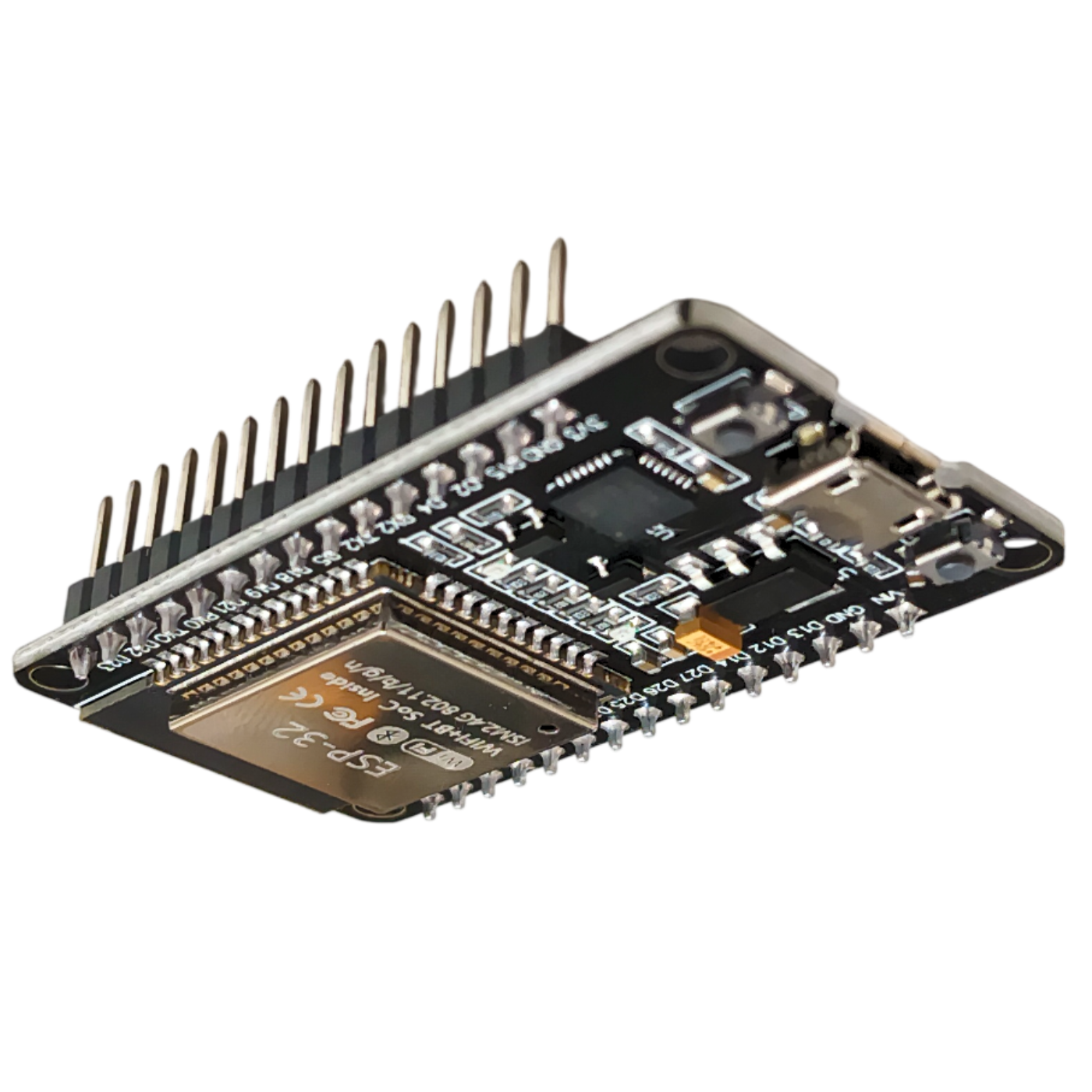

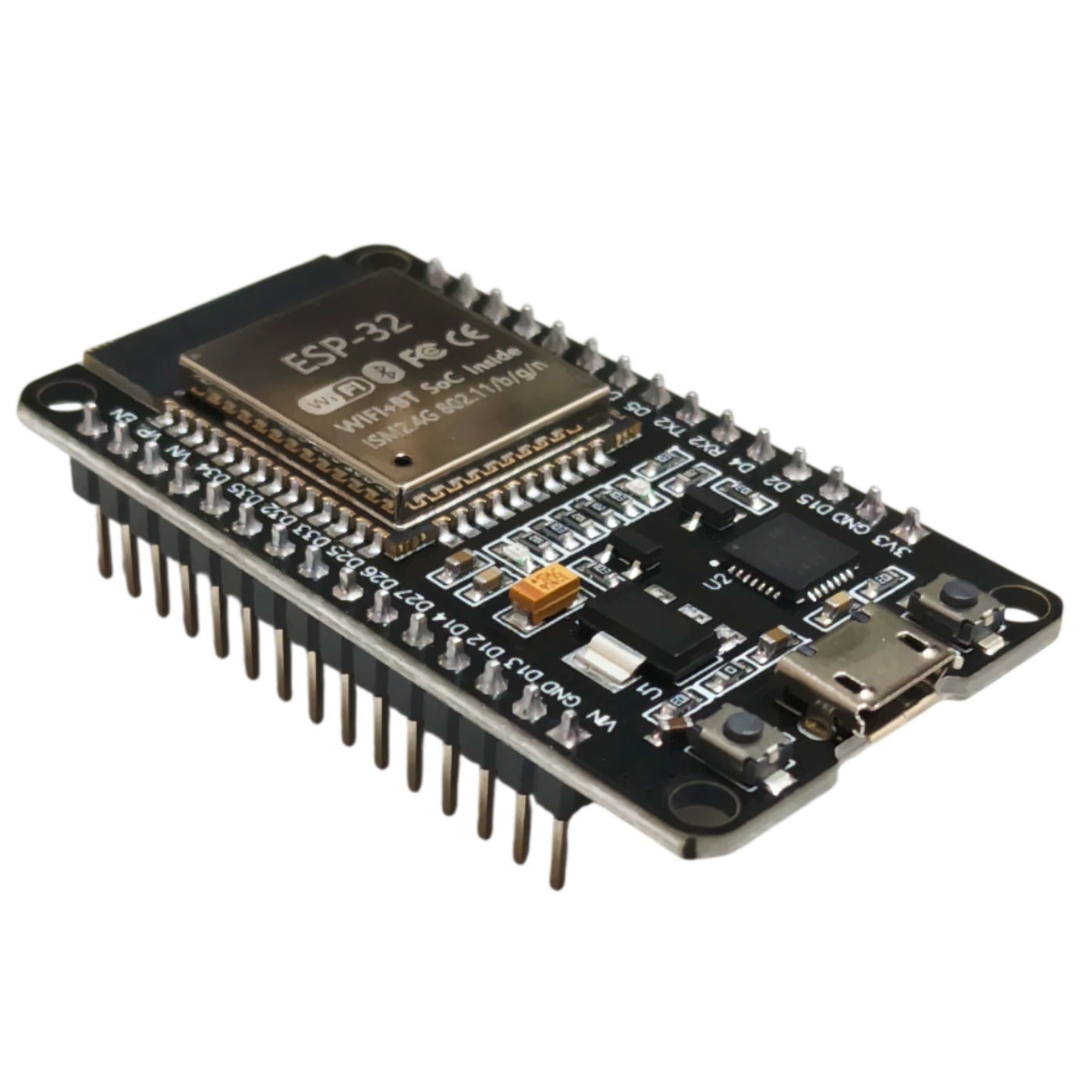

ESP32 (CP2102 Driver, 30 Pin) WiFi + Bluetooth NodeMCU-32 Development Board)

This is ESP WROOM 32 MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

At the core of the node mcu module is the ESP32S chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MHz.

The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32S integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C.

Using Bluetooth, users can connect to their phone or broadcast low-energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery-powered applications, the ESP32 chip uses less than 5µA.

In addition, this module can support data rates of up to 150 Mbps and 22 dBm output power at the PA in order to allow for the widest physical range.

Comparison Amica Node MCU Vs. Lolin Node MCU Vs. Node MCU Wroom32

Specification Amica NodeMCU Lolin NodeMCU NodeMCU Wroom32
Microcontroller ESP-8266 32-bit ESP-8266 32-bit ESP-WROOM-32
processor Xtensa single core 32 bit L106 Xtensa single core 32 bit L106 Tensillica Xtensa LX6 microprocessor with 2 cores
NodeMCU Size 49mm x 26mm 58mm x 32mm 49mm x 25 mm
Pin Spacing 0.9" (22.86mm) 1.1" (27.94mm) 0.9" (22.86mm)
Clock Speed 80 MHz 80 MHz 160 MHz
USB to Serial CP2102 CH340G CP2102
USB Connector Micro USB Micro USB Micro USB
Operating Voltage 2.5 V to 3.6 V 2.5 V to 3.6 V 2.5 V to 3.6 V
Input Voltage 4.5V-10V 4.5V-10V 4.5V-15V
Flash Memory 4 MB 4 MB 4MB
SRAM 64KB 64KB 520KB
ROM - - 448KB
Digital I/O Pins 11 11 16
Analog In Pins 1 1 16
ADC Range 0-3.3V 0-3.3V 0-3.3V
UART 1 1 2
SPI 1 1 1
I2C 1 1 1
CAN - - 2
WiFi Built-In 802.11 b/g/n 802.11 b/g/n 802.11 b/g/n
Bluetooth Built-in - - Bluetooth 4.2
Inbuilt sensor No inbuilt sensor No inbuilt sensor Inbuilt hall sensor, temperature sensor

Application:

  • IoT applications
  • Home automation
  • Mesh network
  • Video streaming of the camera
  • Industrial wireless control

Package Includes:

  • 1 x ESP32 Node MCU Development Board with Wifi and Bluetooth (CP2102 Driver, 30 PIN)

Specifications:

Processor

Two Low-Power Xtensa 32-bit LX6 Microprocessors

Operating voltage (v)

3.0V – 3.6V

Operating current (mA)

80

Clock Frequency (MHz)

80 ~ 240

Flash memory (MB)

4

Data Rate (Mbps)

150

SRAM Memory (KB)

520

Dimension(LxWxH)

28 x 50 x 14 mm

Weight

15gm

Frequently Asked Questions

1. Can ESP32 run Wi-Fi and Bluetooth at the same time?

  • There's a special option called "Software controls WiFi/ Bluetooth coexistence" in the menuconfig menu that's used to control the ESP32's Bluetooth and Wi-Fi coexistence using software, balancing the coexistence requirement for controlling the RF module by both the Wi-Fi and Bluetooth modules.

2. Is ESP32 and NodeMCU the same?

  • This ESP32 evolutionary board may appear to be very similar to Nodemcu, but the specifications are completely different when compared to Nodemcu.

3. Is ESP32 better than ESP8266?

  • Yes. ESP32 provides you with a faster processor and good memory size, which allows considerable larger projects to be designed on only one SOC with reliable and hi-tech security.

4. What is the ESP WROOM 32 MCU Module?

  • The ESP WROOM 32 MCU Module is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. The ESP32S chip, which is designed to be scalable and adaptive, is at the heart of this module. The clock frequency is adjustable from 80 MHz to 240 MHz, and two CPU cores can be individually controlled or powered.

5. Can NodeMCU act as a web server?

  • The Station (STA) mode of the NodeMCU allows it to connect to an existing wi-fi network and act as an HTTP server with an IP address assigned by that network. NodeMCU gets IP from the Wi-Fi router to which it is connected. With this IP address, it can act as an HTTP server to which any wi-fi device can connect.

6. When comparing the Arduino Uno and the NodeMCU, which development board is better?

  • The NodeMCU is better than Arduino Uno because it has built-in WIFI, you can connect NodeMCU to the internet with less effort than connecting UNO to the internet, and the best part is that NodeMCU is Arduino compatible, so you can do everything that UNO can do. We can also program NodeMCU in 'C' using the Arduino IDE. directly

7. Is the ESP32 NODE MCU Development board better than Arduino?

  • In terms of connectivity, most Arduino boards, including the Arduino Zero, don't come with built-in Wi-Fi or Bluetooth. On the other hand, the Esp32 has Wi-Fi and Bluetooth capabilities onboard. This makes the Esp32 Node MCU more suitable for IoT projects
