NodeMCU ESP8266 (AMICA-CP2102 driver)

NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
  • NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
  • NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
  • NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze
  • NodeMCU ESP8266 (AMICA-CP2102 driver)-Robocraze

NodeMCU ESP8266 (AMICA-CP2102 driver)

Regular price
Rs. 339
Sale price
Rs. 339
Regular price
Rs. 499
You save Rs. 160
32% off
You save Rs. 160
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • The AMICA NodeMCU ESP8266 Module has an operating voltage of 3.3V
  • AMICA NodeMCU is a great WiFi chip, that can be used in several wireless applications.
  • Interactive and programmable, Arduino-like hardware io
  • Micro USB slot on the board can be directly connected to the computer or other USB host devices
  • It is an ideal solution for adding internet connectivity to any embedded project
  • It has got CP2102 USB to serial converter making it easy to use
  • It is generally programmed using the lua language

NodeMCU ESP8266 (AMICA-CP2102 driver)

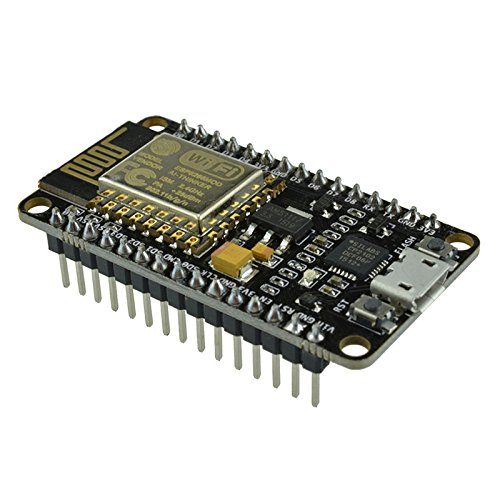

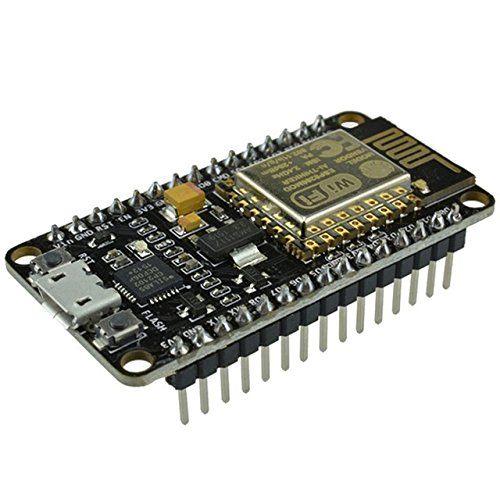

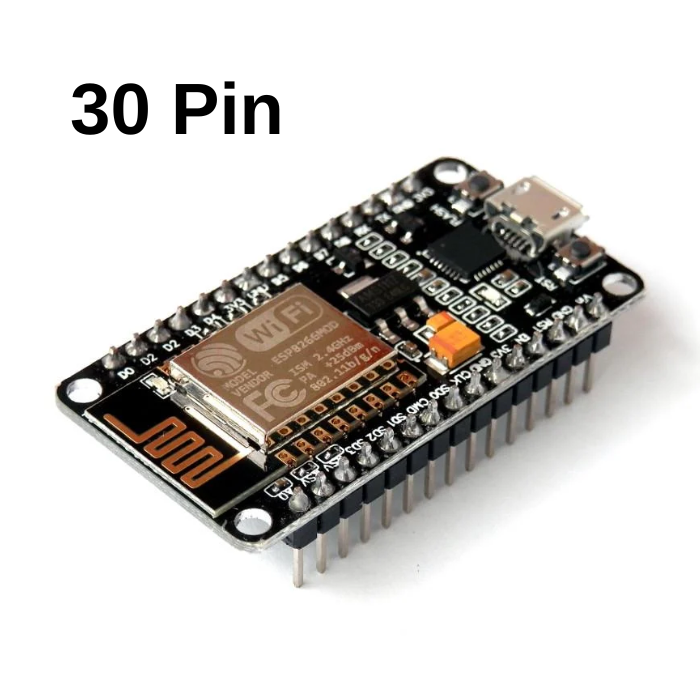

The Amica Node MCU development board is based on ESP8266 and is integrated with an onboard CP2102 USB-TTL converter. The Node MCU is an open-source firmware and development platform that helps you to prototype your IOT projects and bring them to life. The Amica Node MCU board is equipped with an onboard voltage regulator and 10 GPIO pins which help you power up your development board in the fastest way possible.

The board is based on the highly popular ESP8266 WiFi Module chip with the ESP-12 SMD footprint. This WiFi development board already embeds in its board all the necessary components for the ESP8266 (ESP-12E) to program and upload code. It has a built-in USB to serial chip upload codes, a 3.3V regulator, and a logic level converter circuit so you can immediately upload codes and connect your circuits. This board contains the ESP-12E chip with a 4MB flash memory so no worries about your long project codes!

The ESP8266 NodeMCU with cp2102 development board - a true plug-and-play solution for inexpensive projects using WiFi. The module arrives pre-flashed with NodeMCU firmware so just install your USB driver. The NodeMCU is an open-source project and you can find all the design files and so on from their GitHub page. This microcontroller board can easily be programmed using the Arduino IDE programming software.

Explore the wide range of ESP Modules & Development Board

Pinouts:

NodeMCU ESP8266 (AMICA-CP2102 driver) pin configuration
Pin Diagram of AMICA Node MCU ESP8266

Comparison:

Specification Amica NodeMCU Lolin NodeMCU NodeMCU Wroom32
Microcontroller ESP-8266 32-bit ESP-8266 32-bit ESP-WROOM-32
processor Xtensa single core 32 bit L106 Xtensa single core 32 bit L106 Tensillica Xtensa LX6 microprocessor with 2 cores
NodeMCU Size 49mm x 26mm 58mm x 32mm 49mm x 25 mm
Pin Spacing 0.9" (22.86mm) 1.1" (27.94mm) 0.9" (22.86mm)
Clock Speed 80 MHz 80 MHz 160 MHz
USB to Serial CP2102 CH340G CP2102
USB Connector Micro USB Micro USB Micro USB
Operating Voltage 2.5 V to 3.6 V 2.5 V to 3.6 V 2.5 V to 3.6 V
Input Voltage 4.5V-10V 4.5V-10V 4.5V-15V
Flash Memory 4 MB 4 MB 4MB
SRAM 64KB 64KB 520KB
ROM - - 448KB
Digital I/O Pins 11 11 16
Analog In Pins 1 1 16
ADC Range 0-3.3V 0-3.3V 0-3.3V
UART 1 1 2
SPI 1 1 1
I2C 1 1 1
CAN - - 2
WiFi Built-In 802.11 b/g/n 802.11 b/g/n 802.11 b/g/n
Bluetooth Built-in - - Bluetooth 4.2
Inbuilt sensor No inbuilt sensor No inbuilt sensor Inbuilt hall sensor, temperature sensor

Applications:

With AMICA Node MCU we can Control Devices Using a Phone and NodeMCU like your appliances using Android Phone over WiFi. Few generic applications would be in

  • Internet Smoked Alarm
  • VR Tracker
  • Octopod
  • Serial Port Monitor
  • ESP Lamp
  • Incubator Controller
  • IoT home automation
  • Security Alarms

Don’t forget to check out our latest blog on Node MCU. Click Here

 Package Includes:

  • 1 x NodeMCU ESP8266 (AMICA-CP2102 driver)

 Specifications:

Serial/USB Chip

CP2102

Operating Voltage 3.3V
Output Power(dBm)

19.5 @802.11b Mode

Flash Memory(Mb)

4

Support

SDIO 1.1/2.0, SPI, UART

Dimensions (mm)

49 x 24 x 13

Weight (gm)

8

    1. How do I install NodeMCU ESP8266 drivers in Arduino IDE?

    • Start Arduino IDE
    • Open Boards Manager from Tools > Board menu and find esp8266 platform.
    • Select the version you need from a drop-down box.
    • Click the install button.
    • Don't forget to select your ESP8266 board from Tools > Board menu after installation.

    2. What is NodeMCU Amica?

    • The Amica Node MCU development board is based on ESP8266 and is integrated with an onboard CP2102 USB-TTL converter. The Node MCU is an open-source firmware and development platform that helps you to prototype your IOT projects and bring them to life. The Amica Node MCU board is equipped with an onboard voltage regulator and 10 GPIO pins which help you power up your development board in the fastest way possible.

    3. What are the uses of NodeMCU Amica?

    • With the AMICA Node MCU, we can Control Devices Using a Phone and NodeMCU like your appliances using Android Phones over WiFi. Few generic applications would be in Internet Smoked Alarm, VR, Tracker, Octopod, Serial Port Monitor, ESP Lamp, Incubator, Controller, IoT home automation, and Security Alarms

    4. How do I know if my NodeMCU is working?

    • Clear the serial monitor's output and change the baud rate to 74880. Then, press the reset button on the Nodemcu V3 board.

    5. What is ESP8266 NodeMCU?

    • NodeMCU is a low-cost open-source IoT platform. It initially included firmware that runs on the ESP8266 Wi-Fi SoC from Espressif Systems and hardware that was based on the ESP-12 module. Later, support for the ESP32 32-bit MCU was added.
