Explore Different Relays for DIY Builds

Choosing the right relay starts with two key specifications: channel count and coil voltage. Single-channel relays suit simple switching tasks, while 2-channel, 4-channel, and 8-channel relay modules control multiple loads independently. Match the relay coil voltage to your controller or power supply, commonly 5V or 12V. For Arduino, Raspberry Pi, and other low-voltage controllers, optocoupler isolation can provide an added layer of electrical separation between the control circuit and switched load.

Relays

A relay is an electrically operated switch used to control a load from a separate control circuit. Relay modules are commonly used with Arduino, Raspberry Pi, automation systems, robotics, and IoT projects. Choosing the right relay requires checking coil voltage, channel count, contact rating, trigger logic, and isolation.

How Does a Relay Work?

A relay uses a coil to operate mechanical contacts. When the coil receives the required control signal, it creates a magnetic field that moves an internal armature and changes the contact state. Removing the control signal allows the armature to return to its original position.

Relay modules allow a low-power controller to switch a separate load circuit. Depending on the module, onboard driver circuitry and optocouplers may also be included for easier microcontroller integration.

Relay Specifications — What to Compare

The most important specifications depend on how the relay will be controlled and what it will switch.

Coil voltage: Common options include 5V, 12V, and 24V. Match the coil voltage to the relay's required supply.
Number of channels: Single-channel modules control one load, while 2, 4, 8, or 16-channel boards control multiple loads.
Contact current rating: Check the maximum current and voltage supported by the relay contacts.
Contact configuration: SPDT and DPDT configurations support different switching arrangements.
Trigger logic: Check whether the module is active-high or active-low.
Isolation: Optocoupler-isolated modules provide electrical separation between control and relay circuits where supported.

Specifications Chart

Module Type	Control Voltage	Channels	Max Load Current	Common Use

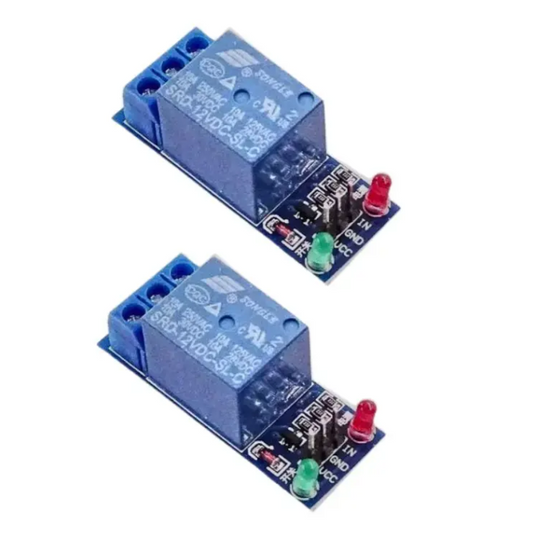

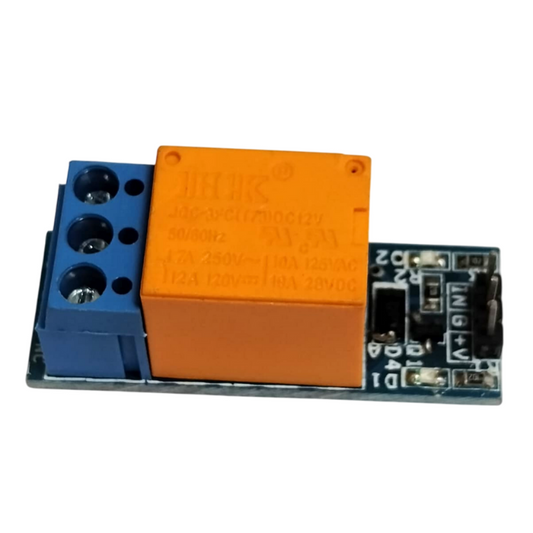

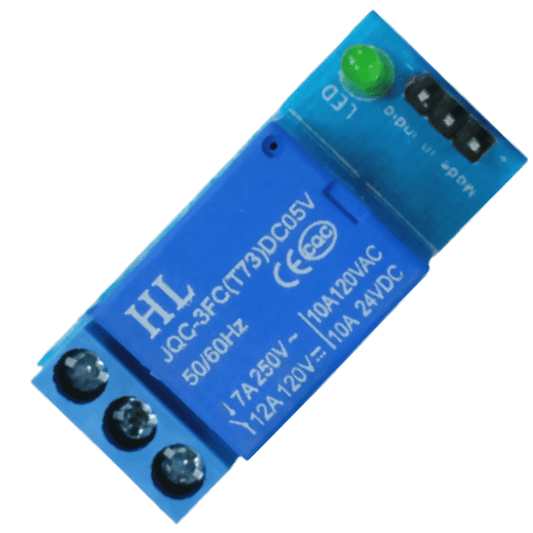

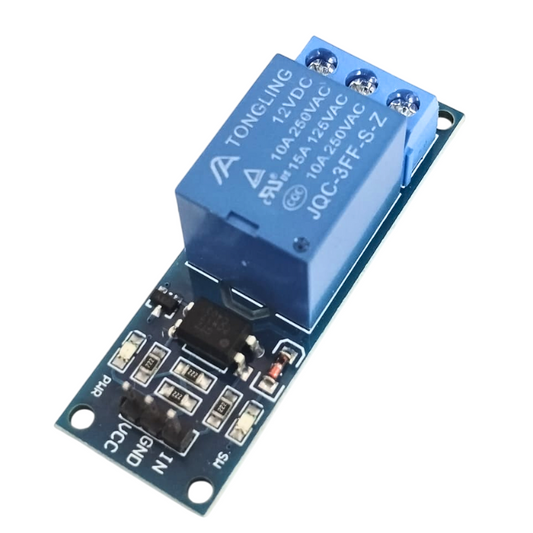

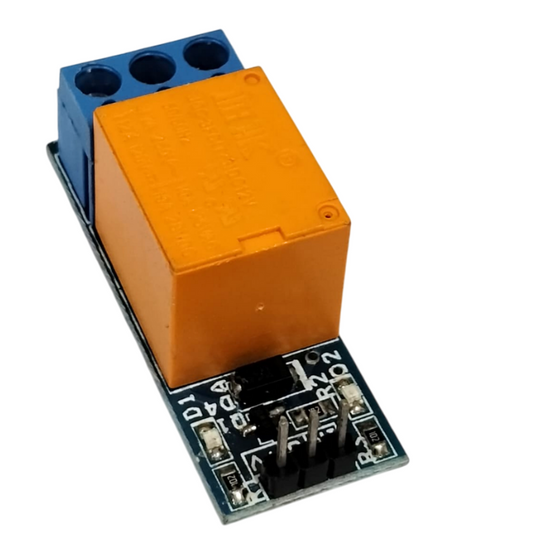

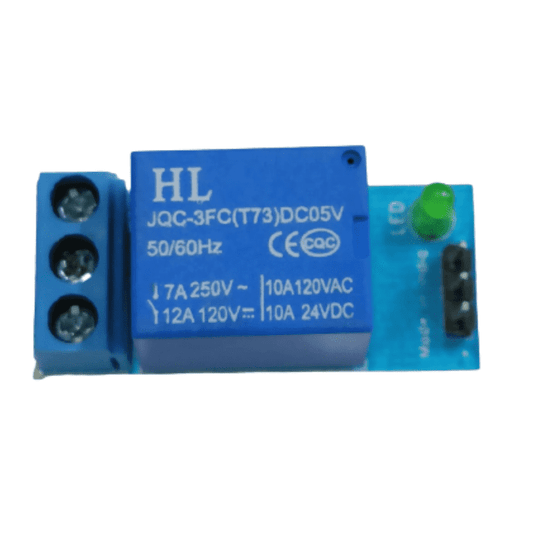

Single-Channel 5V Relay Module	5V DC	1	10A @ 250V AC or 30V DC	Light or motor control

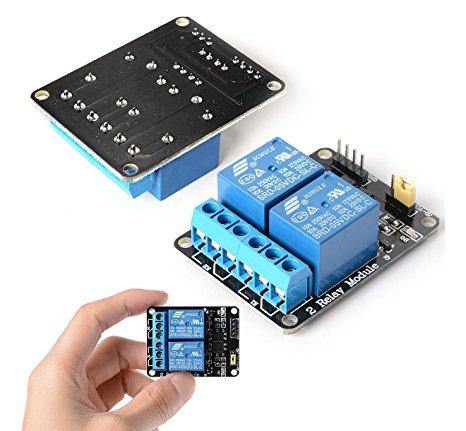

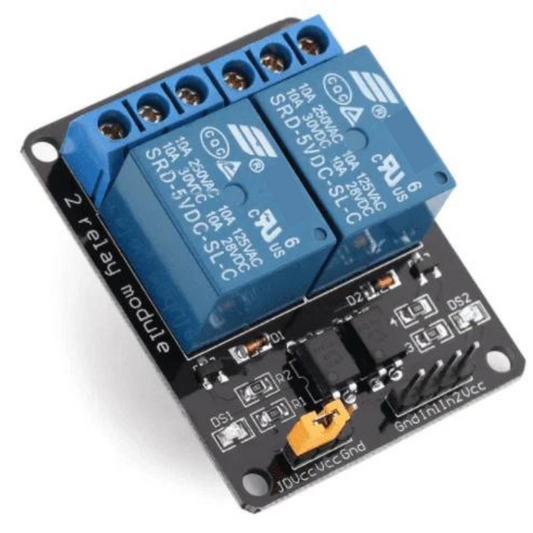

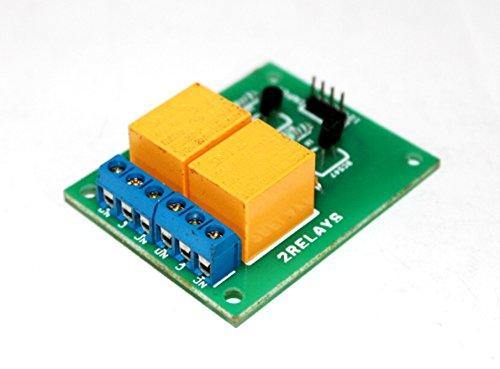

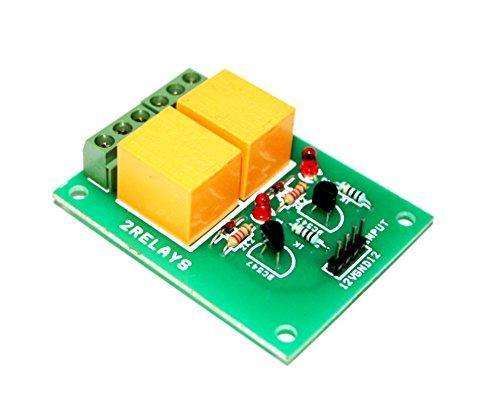

2-Channel 12V Relay Module	12V DC	2	10A each	Dual load control, robotics

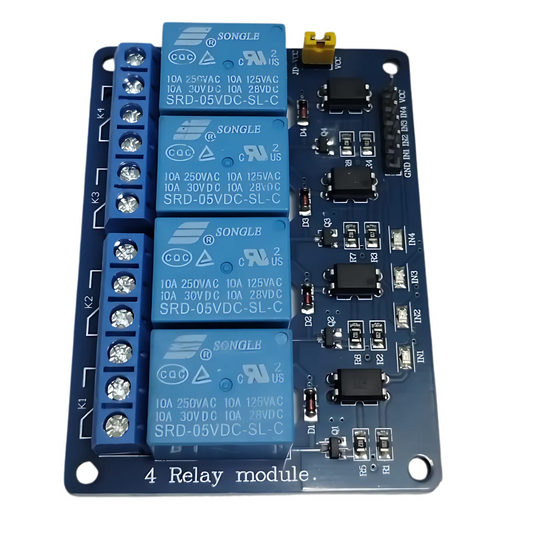

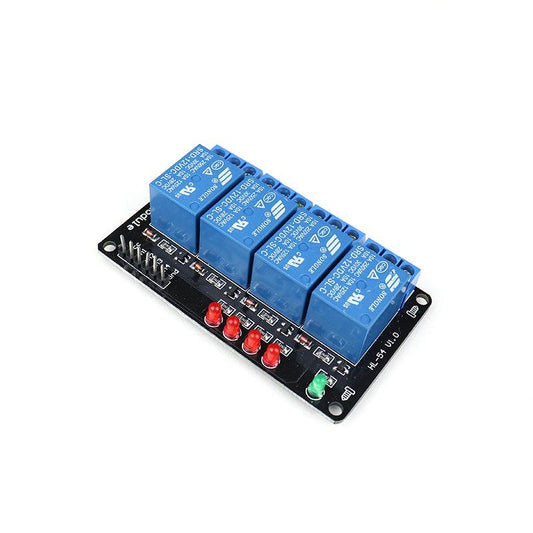

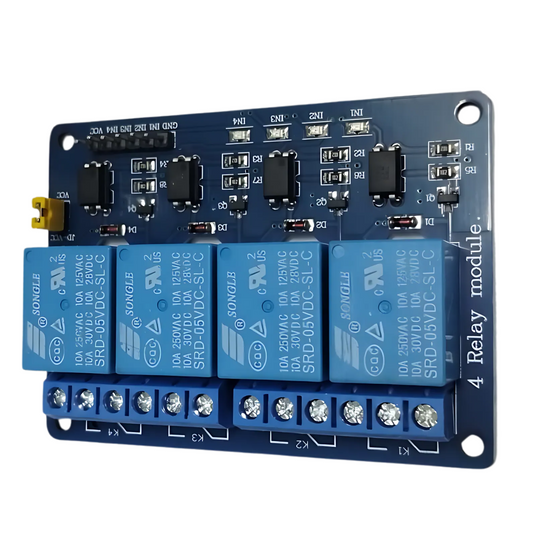

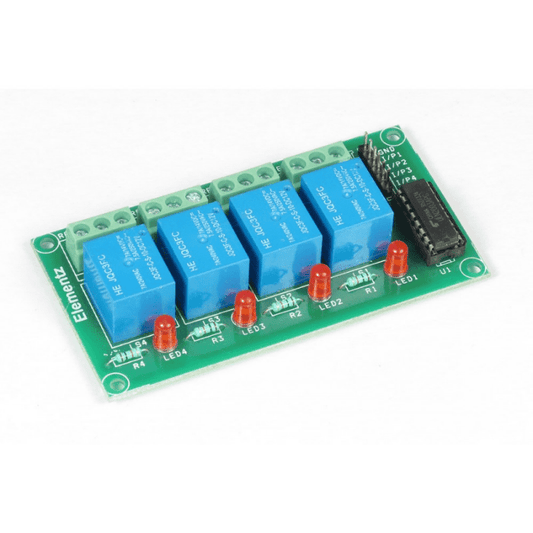

4-Channel 5V Opto-Isolated Module	5V DC	4	10A each	Multiple-load automation
Solid State Relay, AC Type	3–32V DC control	1	40A+ @ 250V AC	Higher-load switching

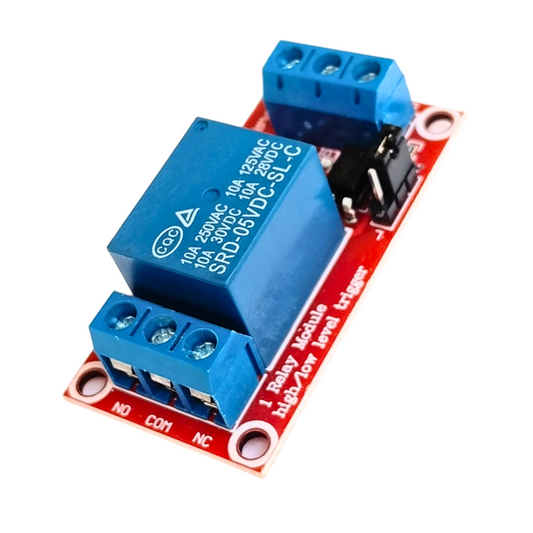

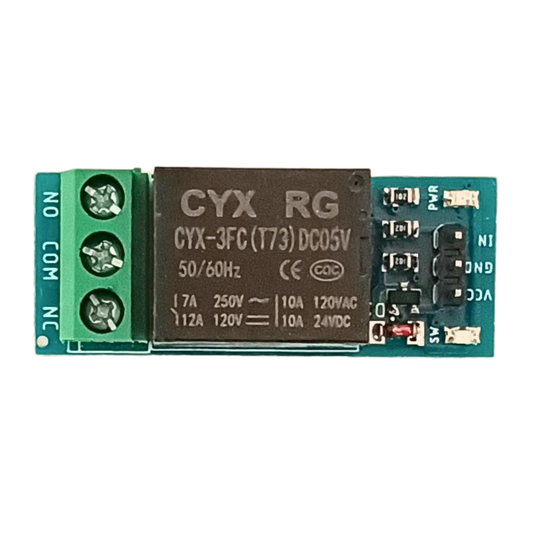

Active-High vs Active-Low Relay Triggering

Active-high and active-low triggering is one of the most common points of confusion when connecting a relay module to Arduino, Raspberry Pi, or another controller.

An active-high relay turns ON when the control input receives a HIGH signal. An active-low relay turns ON when the input is pulled LOW.

For example:

Trigger Type	Relay ON Condition
Active-high	GPIO = HIGH
Active-low	GPIO = LOW

If an active-low relay is connected and the code assumes active-high operation, the relay may appear to work in reverse. The load may also switch ON during startup if the controller's GPIO state changes before the program initializes it.

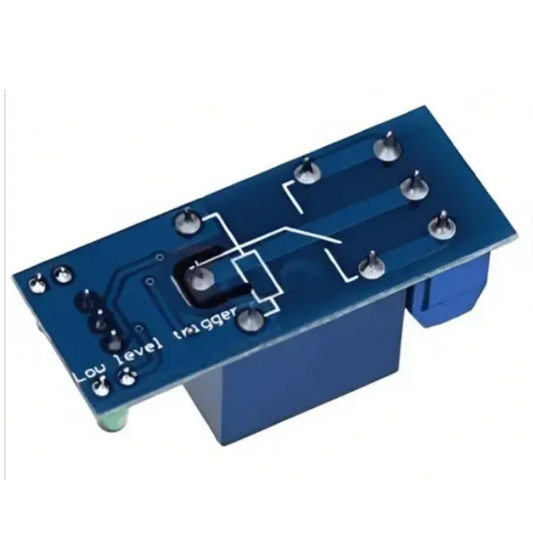

Always check the module's documentation or input labels before writing the control code. Terms such as LOW level trigger, HIGH level trigger, IN, VCC, and GND can indicate how the module expects its control signal.

Applications of Relay Modules

Relay modules are useful when a controller needs to switch a separate electrical load.

Home automation: Control lights, fans, pumps, and other appliances.
Robotics: Switch solenoids, actuators, and other loads through suitable relay circuits.
IoT: Allow a sensor or microcontroller to trigger a connected device.
Automation: Control multiple loads using multi-channel relay boards.
Motor systems: Switch suitable motor circuits when the relay's electrical ratings are appropriate.

The relay's contact rating must always be checked against the actual load.

Mechanical Relays vs Solid-State Relays

Feature	Mechanical Relay (EMR)	Solid-State Relay (SSR)
Moving Parts	Yes	No
Switching Speed	Slower	Faster
Wear	Contacts wear with use	No mechanical contacts
Noise	Audible switching click	Silent
Arcing	Possible with suitable loads	No mechanical contact arcing
Typical Use	General-purpose switching	Fast or frequent switching

Mechanical relays are suitable for many general switching applications and can handle different load types depending on their ratings. Solid-state relays use semiconductor switching instead of physical contacts and are useful where silent or frequent switching is required.

Safety Tips for Relay Switching

Disconnect power before wiring the load side, especially for mains AC.
Use relay contacts and cables rated for the actual load.
Keep mains connections insulated and enclosed.
Maintain appropriate clearance between high-voltage and low-voltage wiring.
Use suitable protection for inductive loads such as motors and solenoids.
Do not assume a relay's maximum current rating applies equally to every load type.
SSRs can generate heat under load and may require appropriate thermal management.

Relay Modules Prices in India

The following prices are from the supplied Robocraze website data:

Item	Price

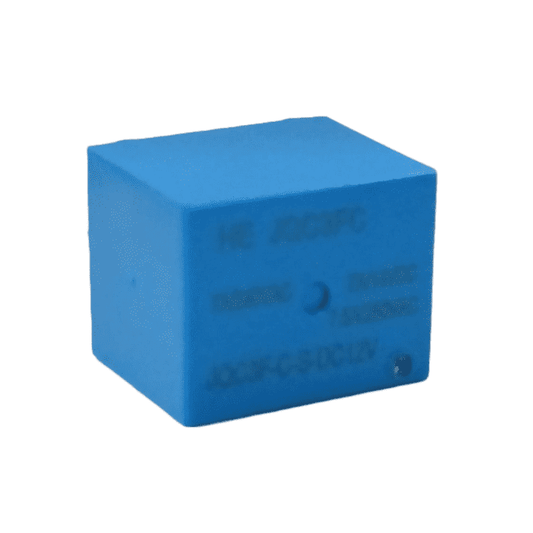

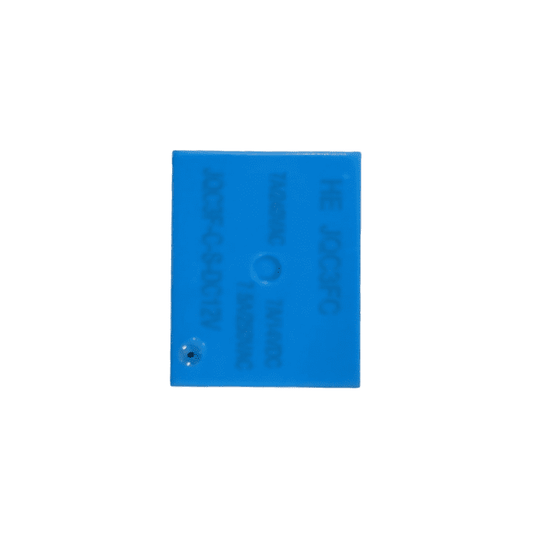

12V Relay Cube	Rs. 12
6V Relay Cube	Rs. 14
5V Relay Cube	Rs. 17

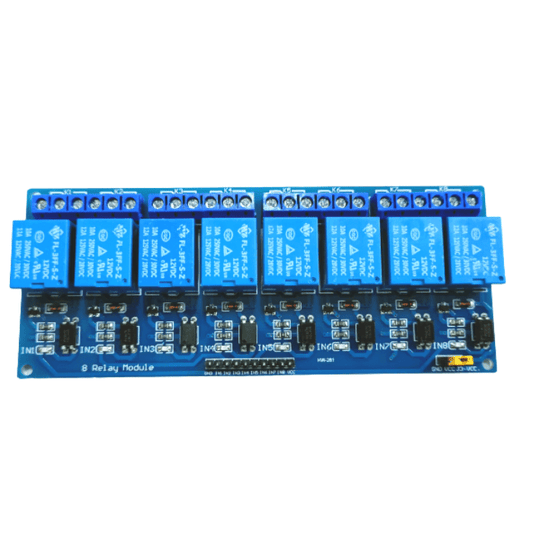

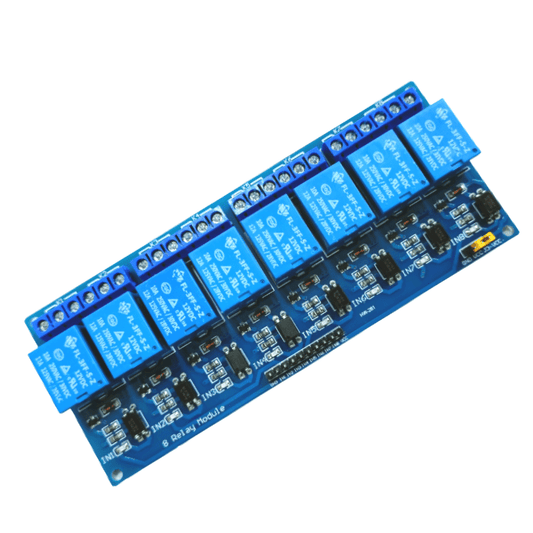

12V 8-Channel Relay Board	Rs. 310

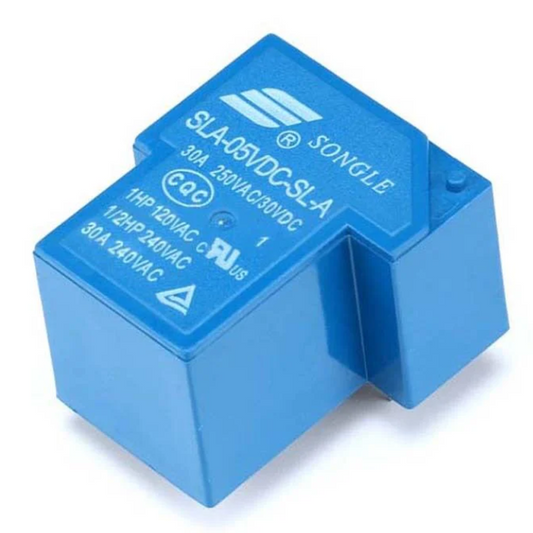

5V 30A 1-Channel Relay Module	Rs. 181
5V 1-Channel SSR Module	Rs. 146
5V 8-Channel SSR Module	Rs. 958
16-Channel 12V Relay Module Board	Rs. 593

Prices are based on the supplied Robocraze website data and may change with product updates or availability.

Explore other categories

5V Relays | 12V Relays | Solid State Relays

Popular Searches

1. What are the types of relays?

Common relay types include electromagnetic or mechanical relays, solid-state relays, reed relays, thermal relays, magnetic latching relays, and hybrid relays. Selection depends on switching speed, load rating, operating environment, lifespan, and the application.

2. What ways can I use relays in a robotics project?

Relays can switch lights, motors, solenoids, actuators, pumps, and other suitable loads from a controller. They are useful for automation because a microcontroller can trigger the relay electronically instead of requiring a manual switch.

3. What is a bad relay?

A bad relay may have damaged contacts, a failed coil, broken mechanical parts, or damaged internal semiconductor components in an SSR. Incorrect voltage, excessive load, repeated arcing, and physical damage can cause relay failure.

4. What is a relay switch? Is it the same as a relay?

“Relay switch” generally refers to the same device as a relay. A relay is an electrically controlled switch that allows a low-power control signal to switch a separate electrical load.

5. Where can I buy relays online?

Relays and relay modules are available from electronics suppliers and online component stores. Availability varies by relay type, coil voltage, channel count, contact rating, and manufacturer. Check the product specifications before purchasing.

6. Where can I buy relays at a shop near me?

Standard electromagnetic relays are commonly available from electronics and component shops. Specialized options such as solid-state, reed, or magnetic latching relays may have more limited local availability. Check specifications carefully before purchasing.

7. What is the cost of relays in India?

Relay prices in India vary based on the relay type, coil voltage, contact rating, number of channels, manufacturer, and additional features such as optocoupling or protection circuitry. Compare specifications as well as price before choosing a relay.

8. Can relay modules be used with Arduino or Raspberry Pi?

Yes. Relay modules can be controlled by Arduino, Raspberry Pi, and other development boards when their input and power requirements are compatible. The controller provides the control signal while the relay switches the connected load.

9. How many channels do these relay modules have?

Relay modules are available in different channel configurations, including 1-channel, 2-channel, 4-channel, 8-channel, and 16-channel versions. The channel count indicates how many independent relay outputs the module can control.

10. Are these relays suitable for AC appliances?

Many relays can switch AC loads such as lights, fans, and other appliances when their contact voltage and current ratings are suitable. Mains wiring requires proper insulation, enclosure, clearances, and electrical safety precautions.

11. Do the modules include protection circuits for safe operation?

Protection features vary by module. Some relay boards include optocouplers, flyback diodes, snubber circuits, driver components, or separate power connections. Check the individual product specifications to confirm which protection features are provided.

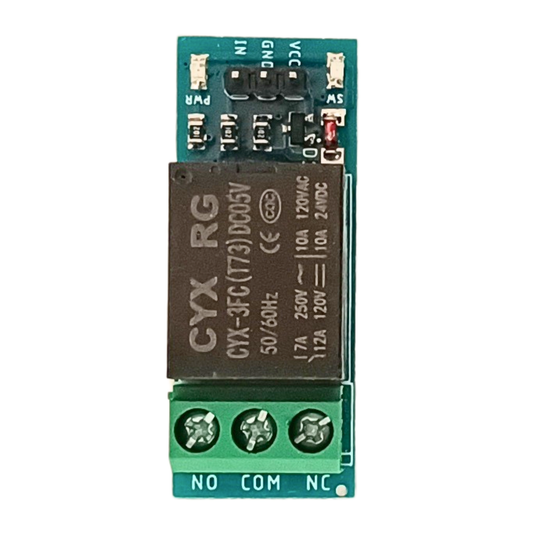

12. What does active low mean on a relay board?

An active-low relay turns ON when its control input is pulled LOW rather than HIGH. For example, a GPIO output set to LOW may activate the relay. Check the module's trigger specification before writing the control code.

13. Can Arduino drive a relay module directly?

Arduino can control a compatible relay module through a digital output pin, but the module should have suitable driver circuitry and input requirements. A bare relay coil should not be connected directly to an Arduino GPIO because the pin cannot safely supply the required coil current.
