- High Power Management: Dual MOSFET parallel active output handles 15A, 400W at room temperature.
- Versatile Voltage Input: Wide voltage input, supports PWM, and works within DC 5V - 36V range.
- Flexible Trigger Source: Digital high-low trigger source (DC3.3V - 20V) connects to microcontrollers, PLC interfaces, and DC power.
- Robust Output Capacity: DC 5V - 36V, continuous current 15A, and power up to 400W, making it ideal for various applications.
- Temperature Resilient: Works in temperatures ranging from -40 to 85℃.
- Compact and Efficient: Sized at 34mm X 17mm X 12mm, but highly recommend adding heat sinks for high-current operations.

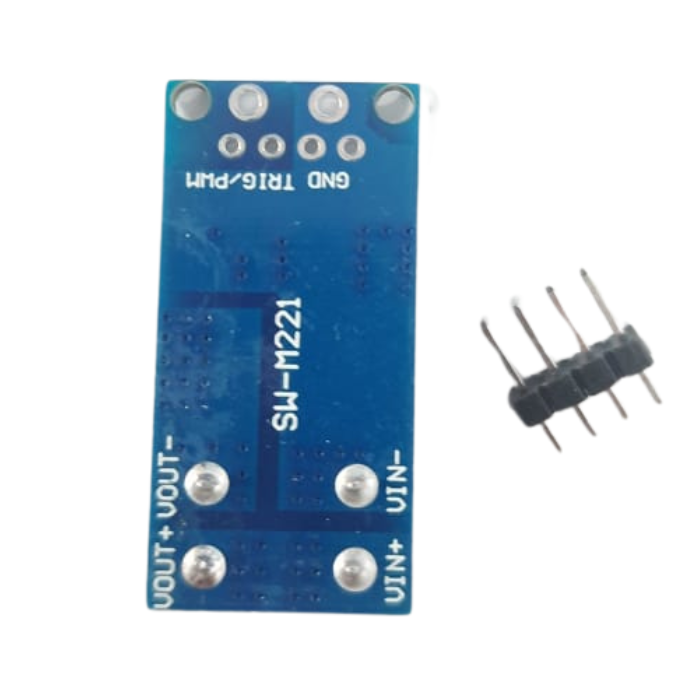

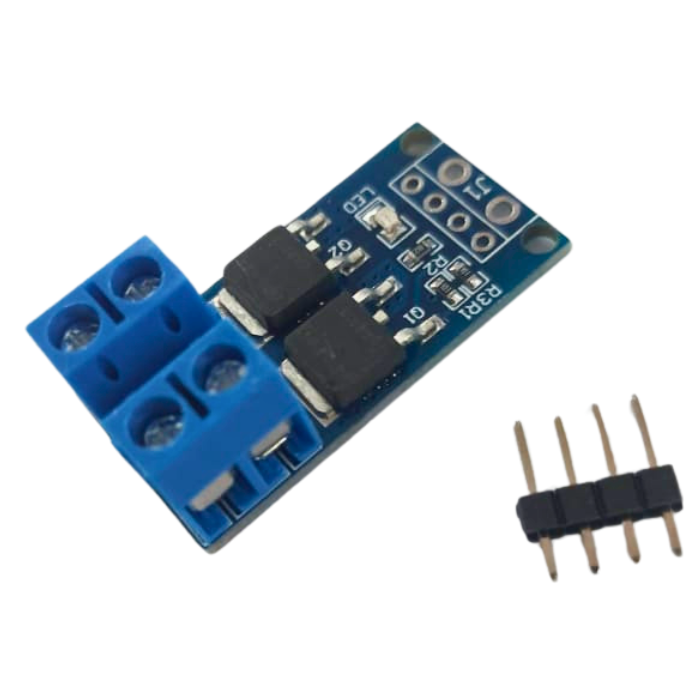

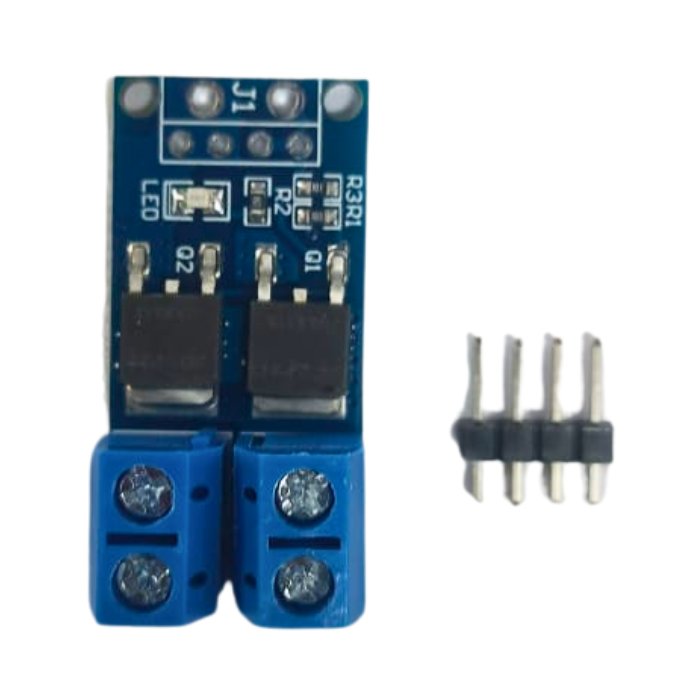

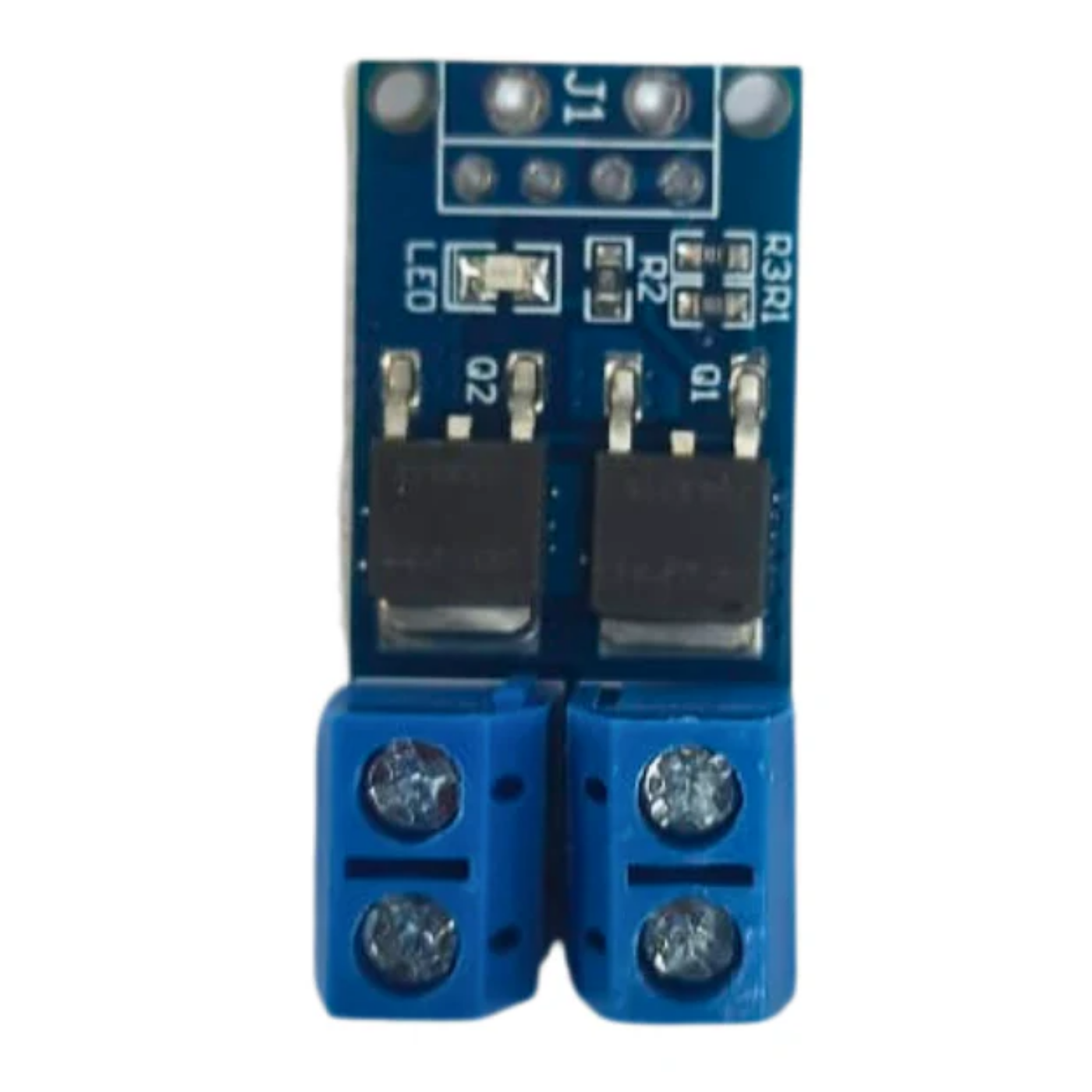

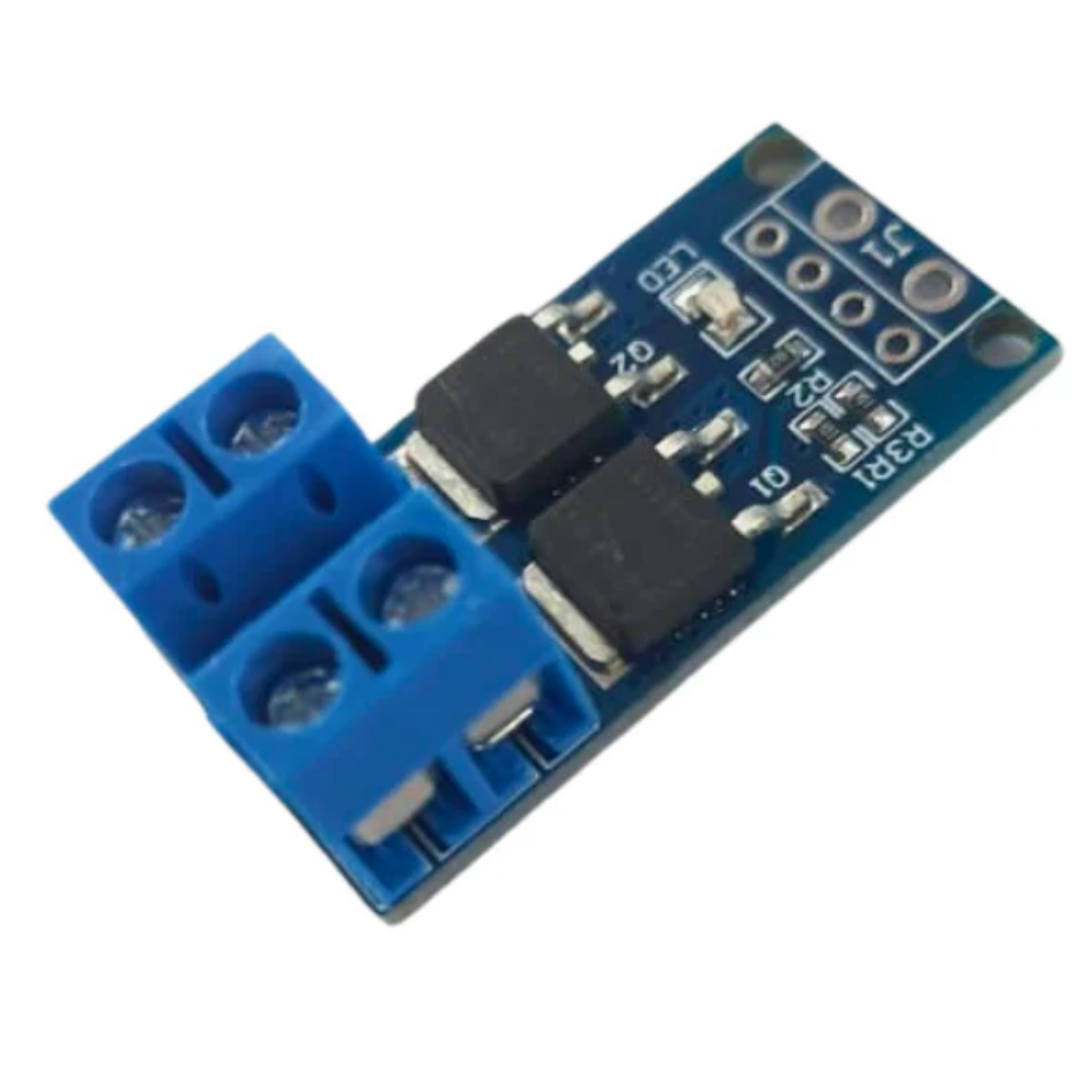

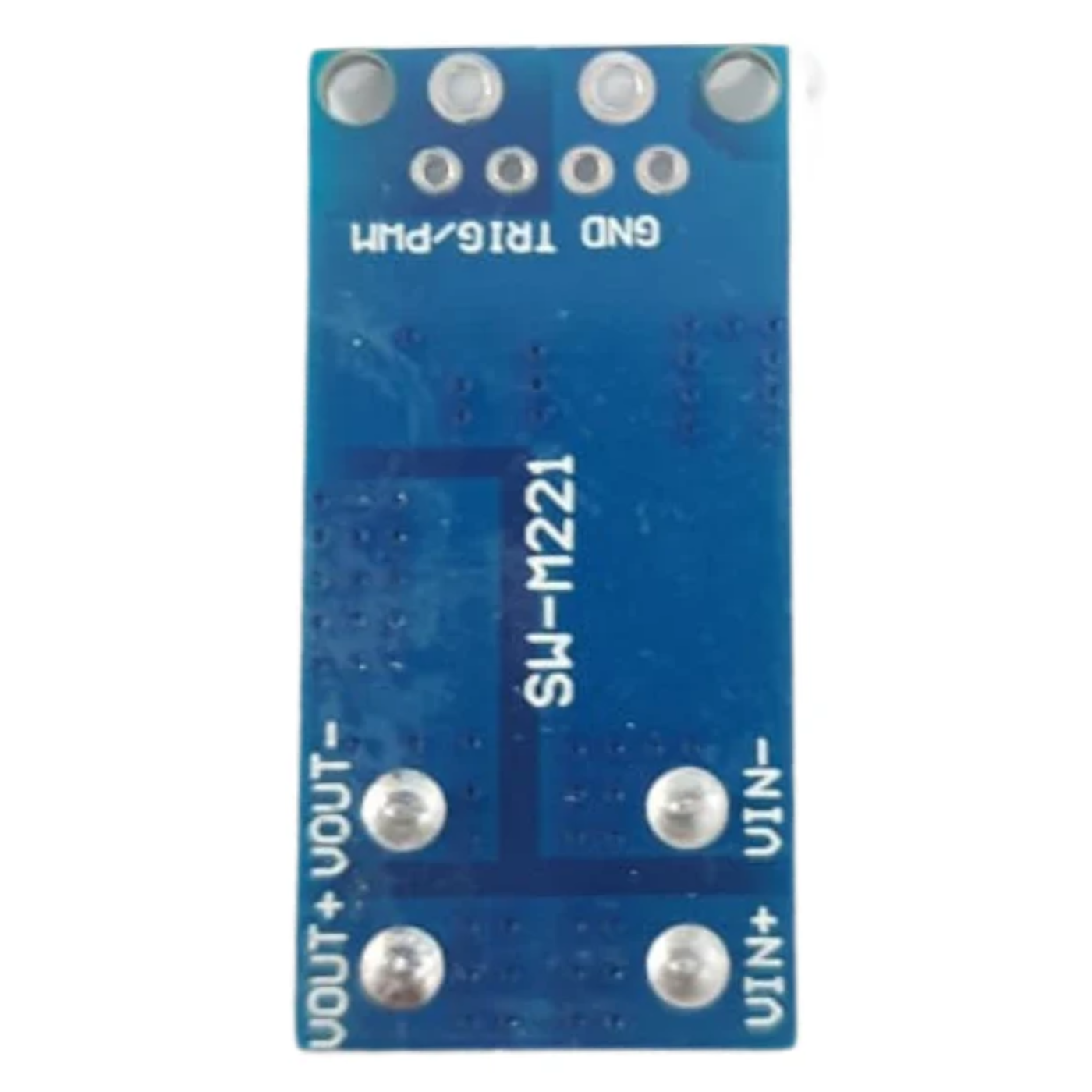

15A 400W Mosfet Trigger Switch Driver
This Dual Large Power Mosfet is the ultimate solution for high-power applications. This compact device manages 15A, 400W power at room temperature with its dual MOSFET parallel active output.
With a wide voltage input supporting PWM and a flexible trigger source, this Mosfet adapts to various setups, connecting seamlessly to microcontrollers, PLC interfaces, and DC power sources. The robust output capacity of DC 5V - 36V, continuous current 15A, and power up to 400W makes it versatile for applications like high-power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, and solenoid valves.
Its temperature resilience (-40 to 85?) ensures reliable performance in diverse conditions. Compact in size at 34mm X 17mm X 12mm, it's designed for efficiency, but for high-current operations.
Features:
- The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
- Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
Applications:
- High-power equipment,
- motors,
- light bulbs,
- LED lights,
- DC motors, micro-pumps,
- solenoid valves, motor speed control, lamp brightness
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino IRF520 MOSFET Driver Module for Boards compatible
BTS7960B 43A H-Bridge Motor Driver
Dual Monster Moto Shield VNH3ASP30 DC Motor Drive
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 15A 400W Mosfet Trigger Switch Driver
Specifications:
| Power Management | Dual MOSFET parallel active output |
| Current Handling | 15A |
| Power Handling | 400W at room temperature |
| Voltage Input | DC 5V - 36V |
| Trigger Source | Digital high-low (DC3.3V - 20V) |
| Output Capacity | DC 5V - 36V, continuous current 15A, power up to 400W |
| Working Temperature | -40 to 85? |
1. What is the power handling capacity of the 15A 400W Mosfet Trigger Switch Driver?
The Mosfet can handle 15A current and 400W power at room temperature, making it suitable for various high-power applications.
2. Can it be used with microcontrollers and PLC interfaces?
Yes, the trigger source supports digital high-low (DC3.3V - 20V), connecting seamlessly to microcontrollers, PLC interfaces, and DC power sources.
3. What is the voltage input range supported by the Mosfet?
The Mosfet has a versatile voltage input range of DC 5V - 36V, providing flexibility for different setups and applications.
4. Is additional cooling recommended for high-current operations?
Yes, for high-current operations, it's highly recommended to add heat sinks to ensure efficient and reliable performance.
5. Can it handle PWM signals, and what is the supported frequency?
Yes, the Mosfet can handle PWM signals, and it supports a signal frequency range of 0–20KHZ, providing precise control in different scenarios.
