5V 1 Channel SSR Module
5V 1 Channel SSR Module
Low stock: 2 left
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 1-Channel Solid-State Relay
- Rated output load: 100V ~ 240V AC (50Hz/ 60Hz) 2A per channel
- Rated input voltage: 5V
- Triggered at Low level
- Separate LEDs showing the status of each Solid-State Relay

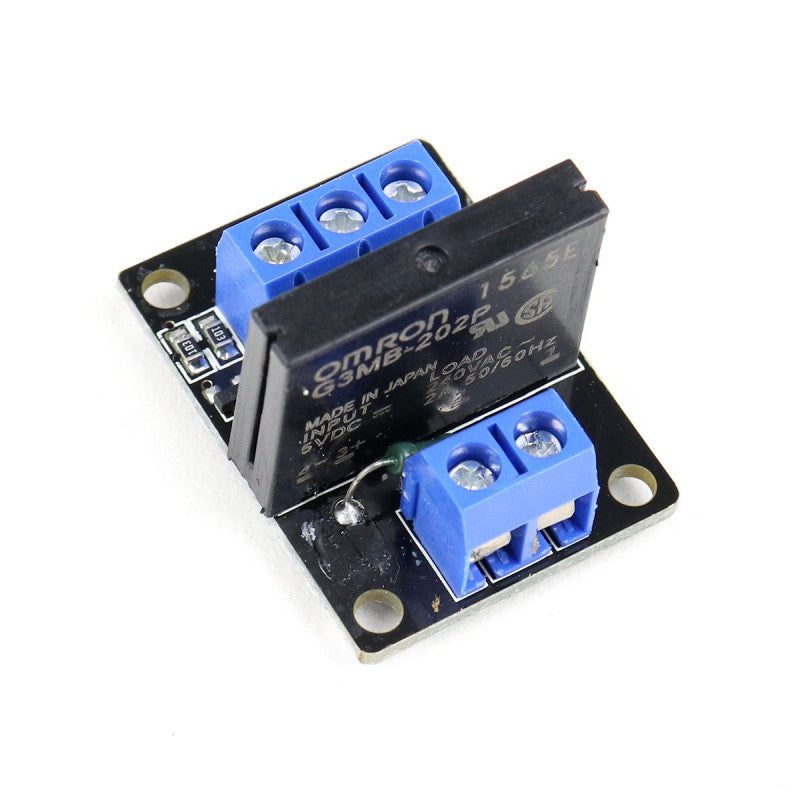

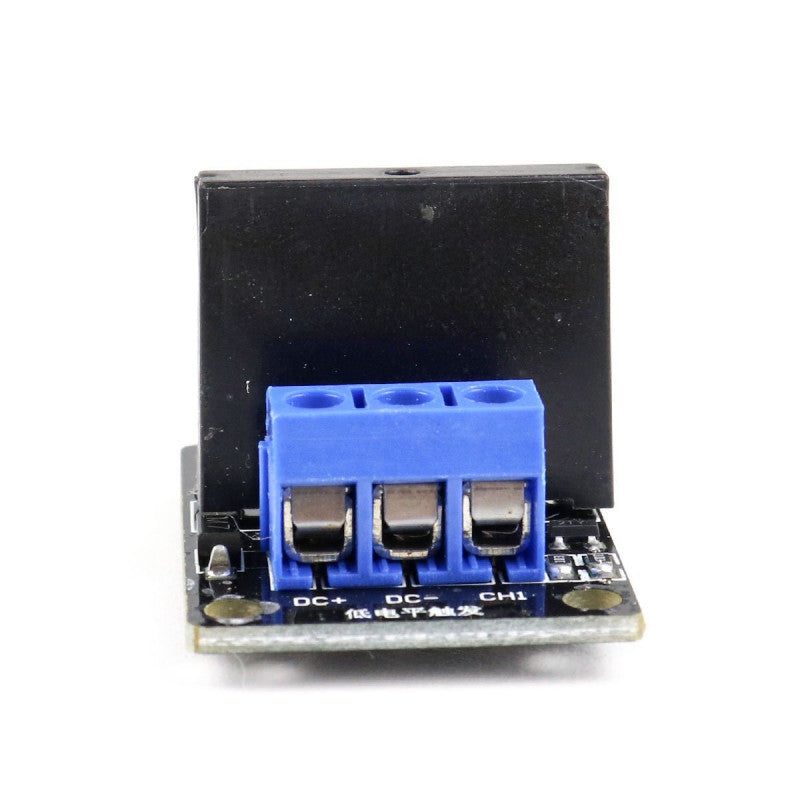

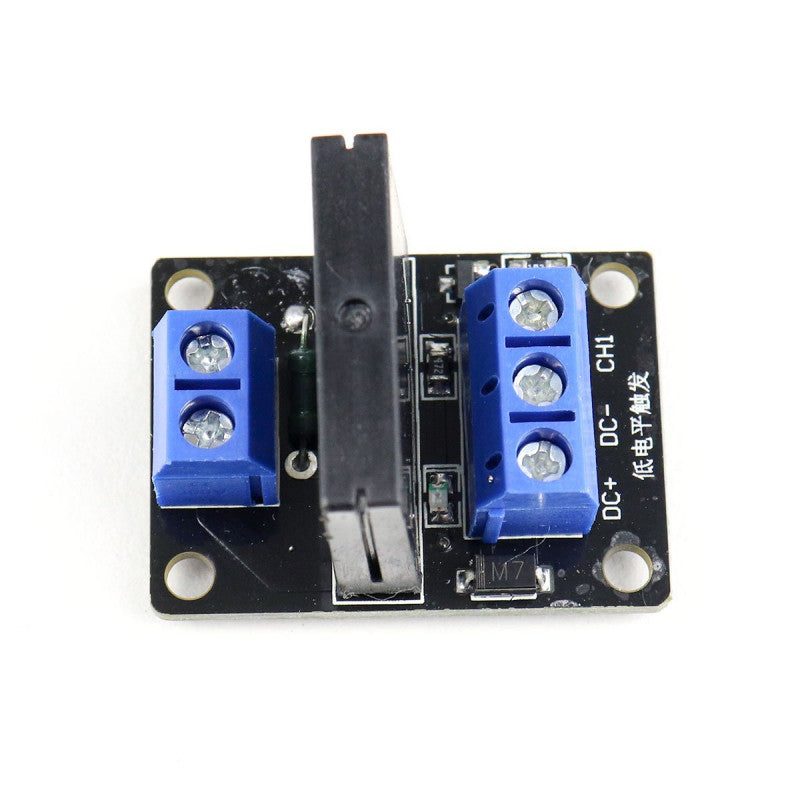

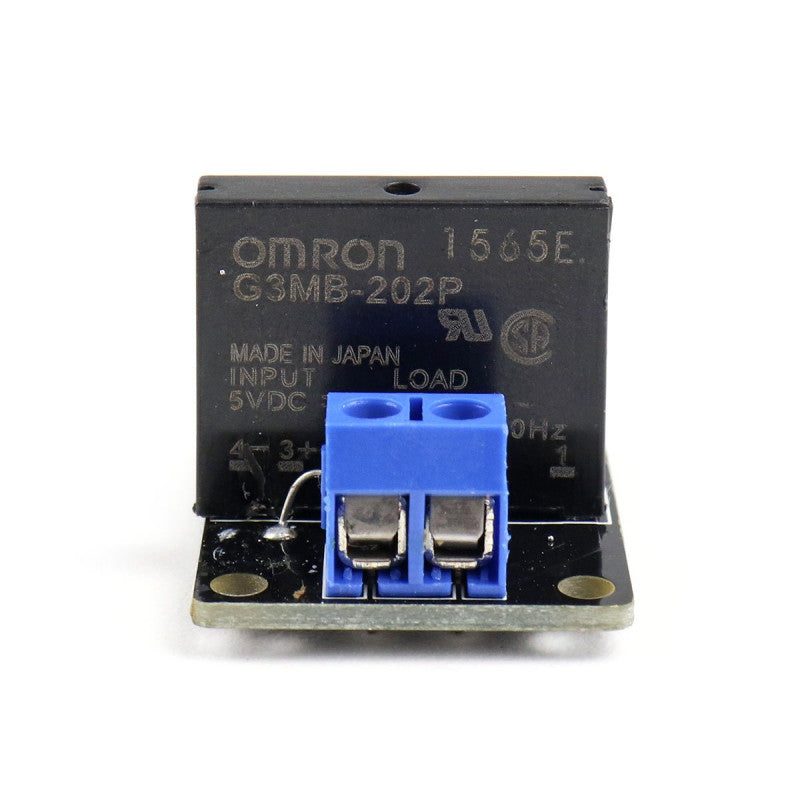

5V 1 Channel SSR Module
5V 1-Channel Solid-State Relay is somewhat similar to that of a mechanical relay & the difference is that there is no moving contact in a Solid-State Relay. Here we make use of a Phototrriac coupler to turn it ON and OFF. It finds its application in AC circuits as a TRIAC has got only limited applications in DC.
Solid-state relays do have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.
Package Includes:
- 1 x1 Channel Solid State Relay
Specifications
| Rated output load | 100V ~ 240V AC |
| Rated input voltage | 5V |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
