FOTEK 24V-380V 40Amp DA Solid State Relay Module

FOTEK 24V-380V 40Amp DA Solid State Relay Module

Regular price Rs. 277
Regular price Rs. 649 Sale price Rs. 277
Sale Sold out 57% off Best Price Guaranteed
You save Rs. 372
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • 40A Solid State Relay for PID Temperature Controller. Long service life and high reliability.
  • Highly reliable, compact size designed to offer users maximum simplicity. Fast switching.
  • Reduced electromagnetic interference.
  • On voltage: ≤1.5V AC One-off Time: ≤10ms Off leakage Current: ≤2mA

FOTEK 24V-380V 40Amp DA Solid State Relay Module

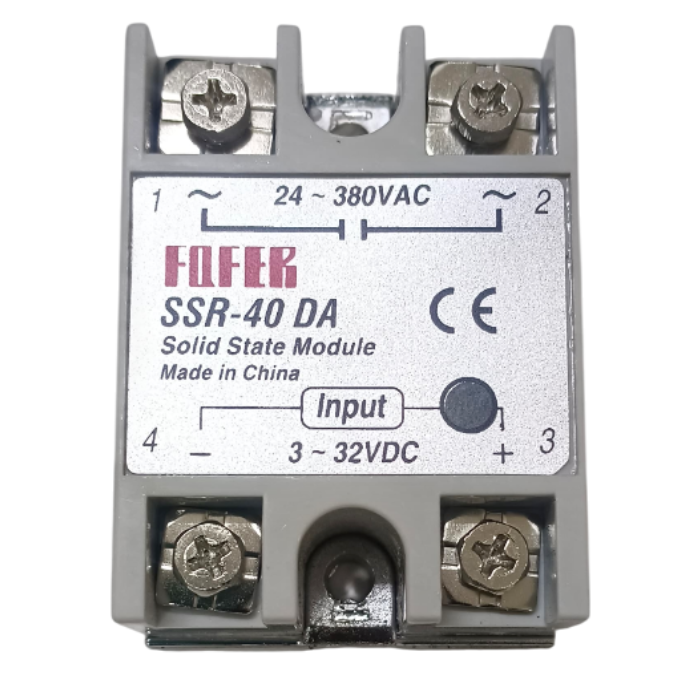

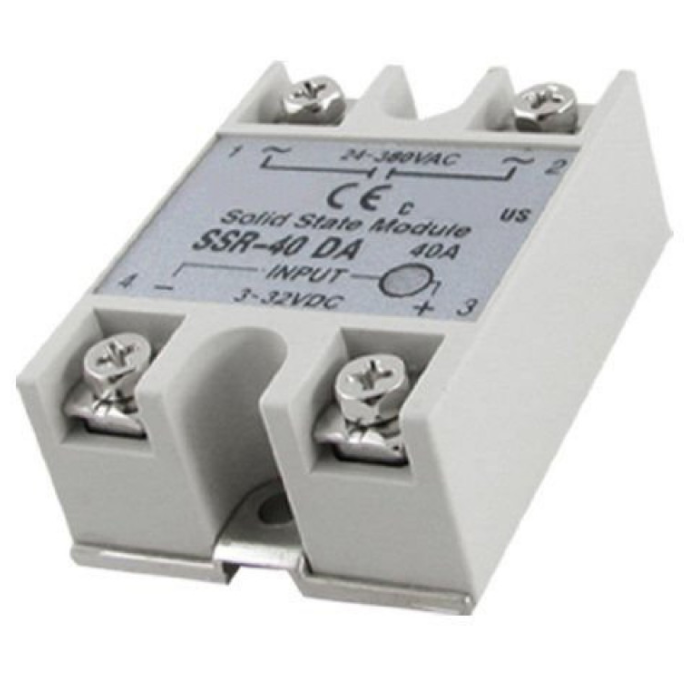

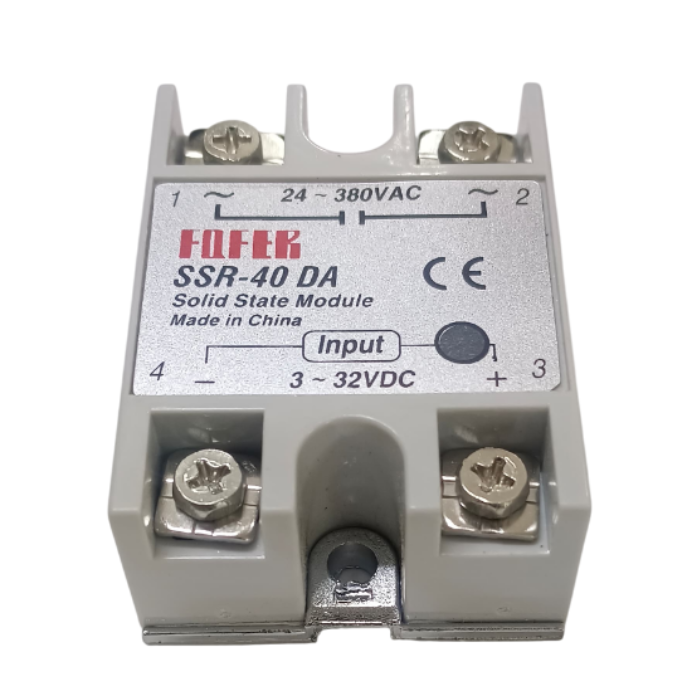

This is SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A. A solid-state relay (SSR) allows you to control high-current AC loads from lower-voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays.

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross-trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Also, read our blog on Applications of Relay explaining 8 major applications, what is it, how does it works, its construction, and different types of relays.

Package Include:

  • 1 x FOTEK 24V-380V 40 DA Solid State Relay Module

Specifications

Brand  Fotek
DC-AC Loading current 40A
Loading voltage 24 - 380V
AC Control voltage 3 - 32V DC
Dimensions  5 x 4 x 3cms
Weight  50 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is solid-state relay module?

  • Solid State Relays are semiconductor equivalents of the electromechanical relay and can be used to control electrical loads without the use of moving parts.

2. What is the difference between SSR and relay?

  • Solid-state relay, commonly known as SSR, is a type of relay found everywhere in the world. The main difference between solid-state and general relays is that solid-state relays (SSR) do not have movable contacts.

3. What is the function of solid-state relay SSR?

  • Solid-state relays (SSRs) serve the same functions as electromechanical relays but are non-moving non-contact devices that can switch voltages to several hundred Vac for hundreds of thousands of cycles and beyond which makes them useful for switching heating elements, motors, and transformers

4. Why do solid-state relays fail?

  • If the input current exceeds the rated making current of the SSR due to the high inrush current of loads such as motors and lamps, SSR output elements are damaged. Consider switching to a higher-capacity SSR.

5. How do I test a solid-state relay?

  • Connect a load and power supply, and check the voltage of the load terminals with the input ON and OFF. With the SSR turned off, the output voltage will be close to the load power supply voltage. When the SSR is turned on, the voltage drops to around 1V.
