7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load -Electronic Modules -Relays -5V Relays -Robocraze

7Semi BEST PRICE GUARANTEED

7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module

Name: 7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load
Brand: Robocraze
SKU: TIFCC0397
Price: 399 INR
Availability: OutOfStock

7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load

Rs 399/-

- 15%

Rs 399/-

~~Rs 469/-~~

Save Rs 70/-

🪙

RC REWARDS Earn 3 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCC0397

7Semi Single Channel I2C Relay Module for controlling high-power electrical devices through a simple I2C interface.
Uses only two I2C wires to switch connected devices ON and OFF from a microcontroller.
Supports 3.3V and 5V operation, making it suitable for Arduino, ESP32, Raspberry Pi, and other development boards.
Features Qwiic/STEMMA QT connectors for quick, solder-free plug-and-play connections.
Provides standard header pins for flexible custom wiring and integration.
Suitable for smart home automation, pump control, lighting, DIY electronics, and electrical switching projects.
Supports switching loads up to 230V AC and 10A, making it useful for a wide range of electrical applications.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load

~~Rs 469/-~~ Rs 399/-

Quantity:

7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load

~~Rs 469/-~~ Rs 399/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load

The 7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module is a convenient solution for controlling high-power electrical devices from a microcontroller using a simple I2C interface. With just two I2C wires, you can switch lights, pumps, appliances, and other electrical equipment ON or OFF without requiring a large number of GPIO pins.

The module supports 3.3V and 5V operation, making it compatible with popular development platforms such as Arduino, ESP32, Raspberry Pi, and other microcontroller boards. Its Qwiic and STEMMA QT connectors allow quick plug-and-play connections without soldering, while the standard header pins provide additional flexibility for custom wiring.

With a single SPDT relay supporting up to 230V AC and 10A loads, this I2C relay module is well suited for home automation, industrial control, DIY electronics, pump switching, lighting control, and embedded automation projects.

Features:

MCU-Friendly I2C Control: Compatible with Arduino, ESP32, Raspberry Pi, STM32, and RP2040; uses SDA and SCL.
Flexible Connectivity: 5V input, 3.3V/200 mA auxiliary output, customizable I2C addressing, Qwiic/STEMMA QT support.

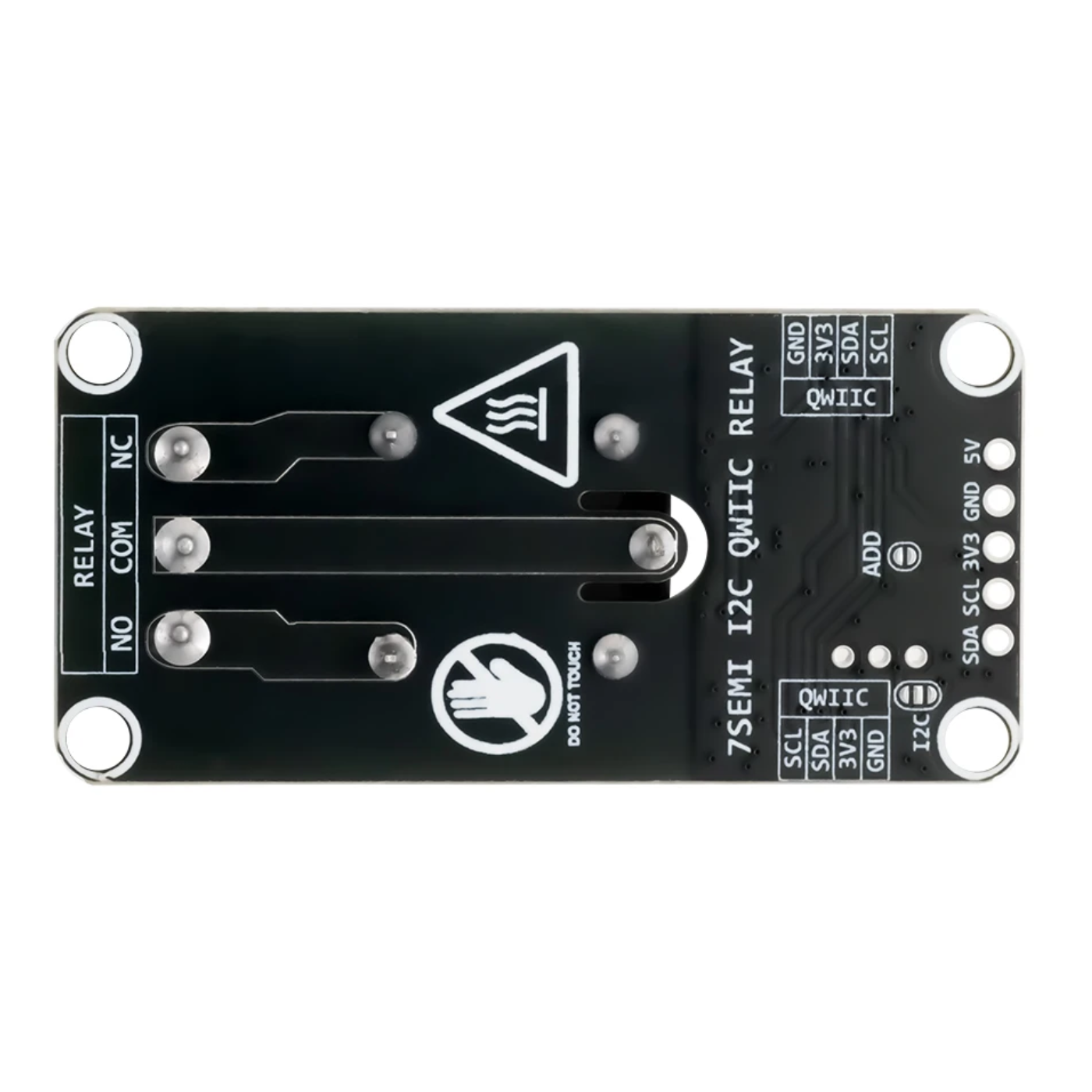

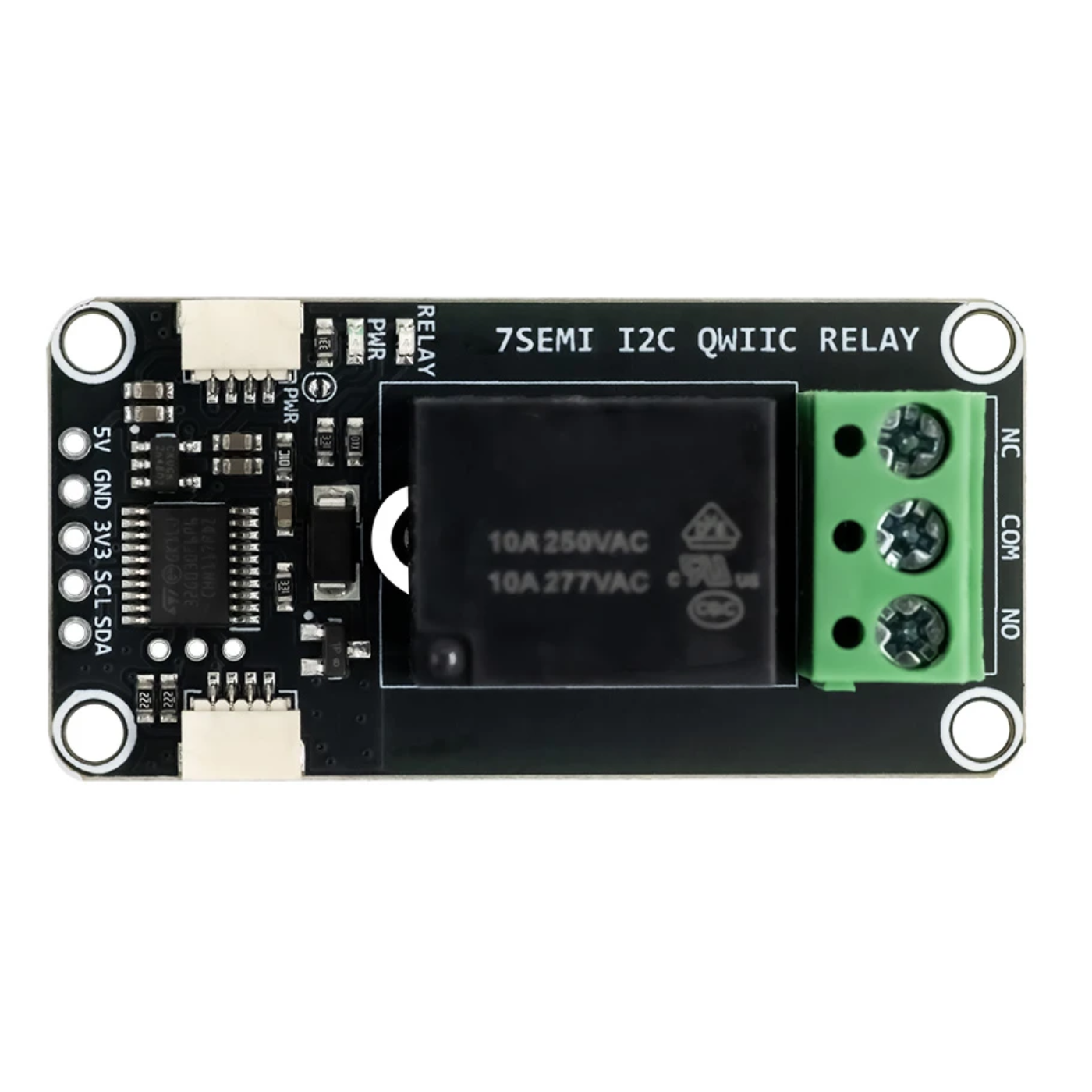

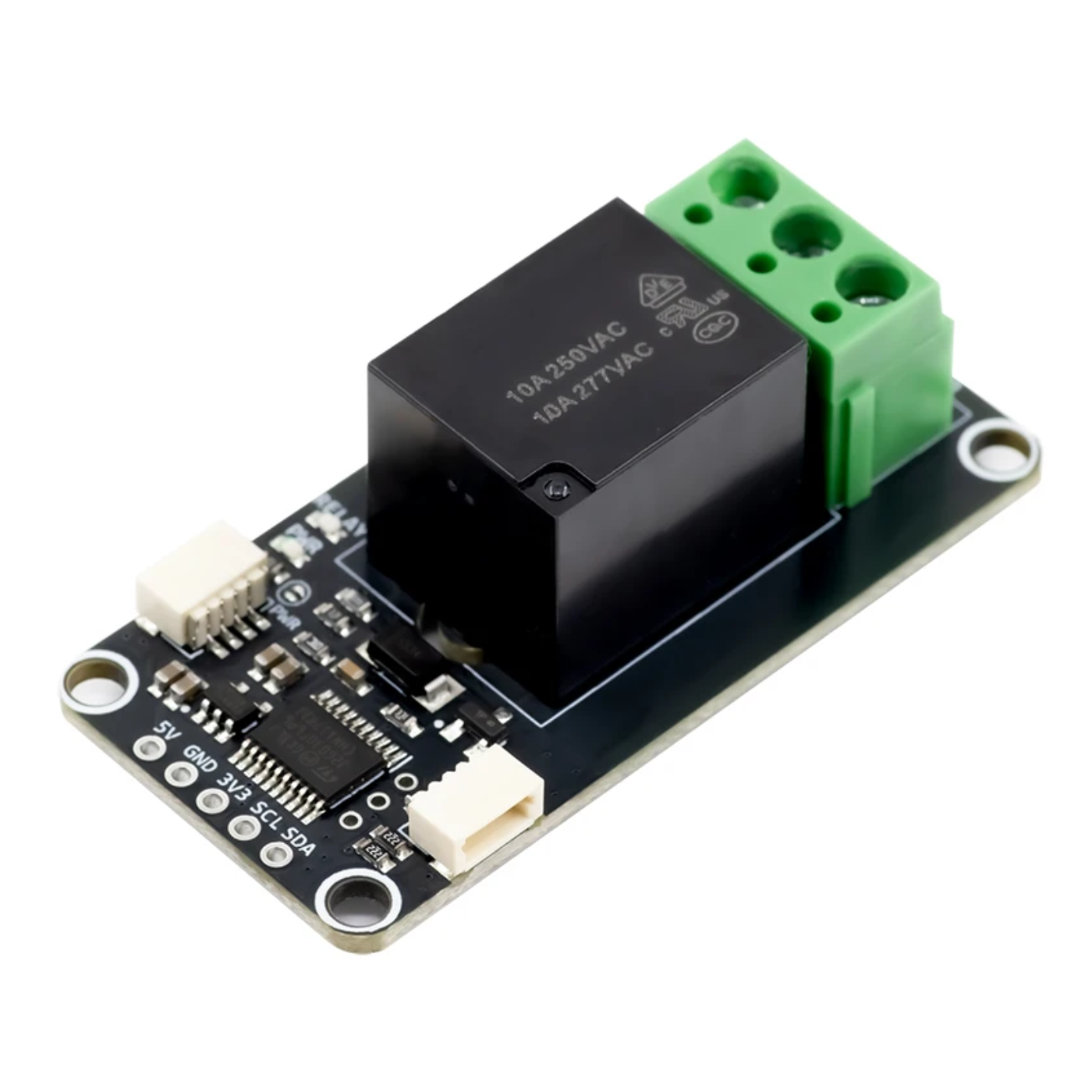

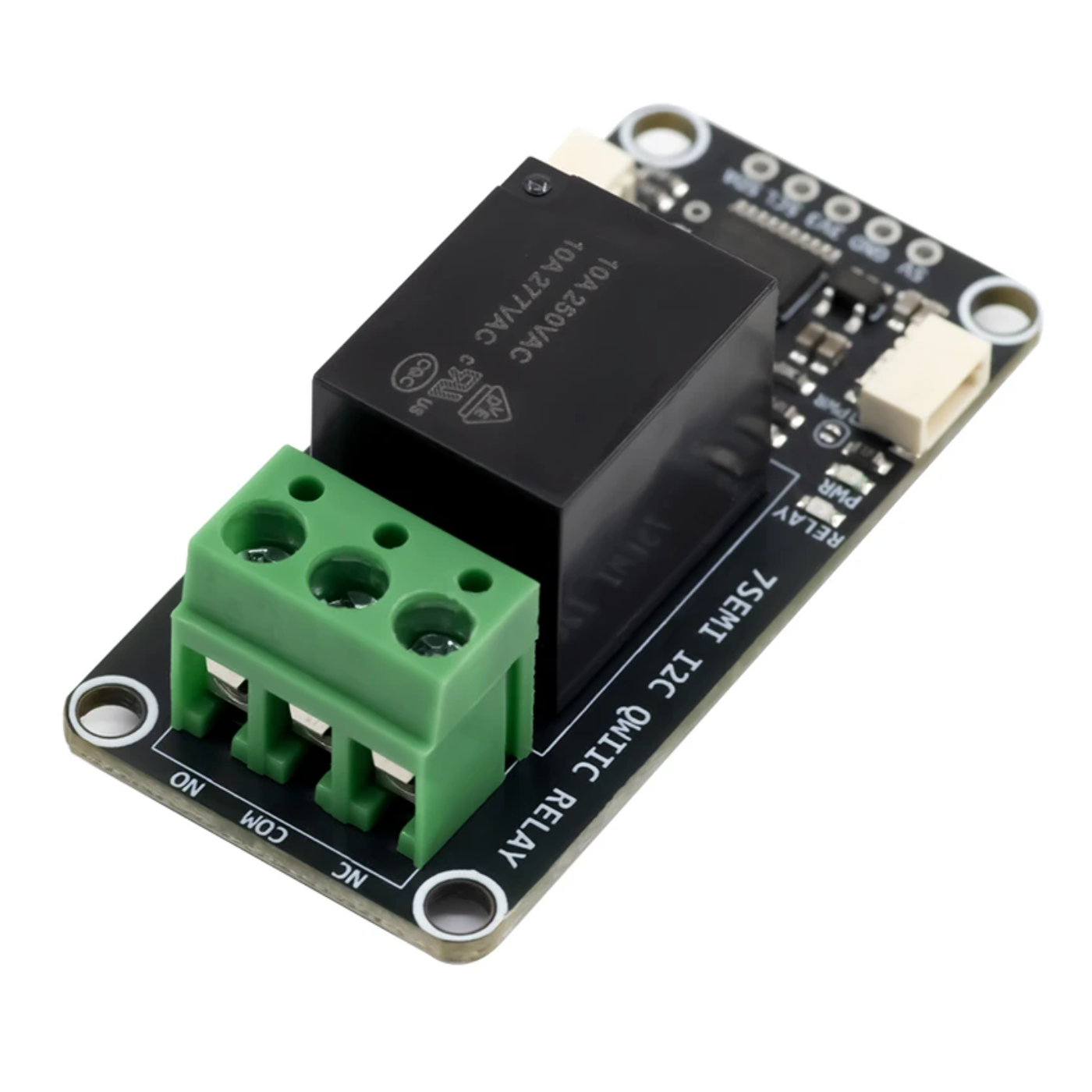

10A SPDT Switching: Features four mounting holes, NO, COM, and NC terminals, status LEDs, and a small 53 × 26 mm design.

Pinout Diagram:

Specifications

Package Includes:

1 x 7Semi SPDT Single Channel I2C Qwiic 5V DC Input Relay Module 230V AC 10A Load

Specifications:

Specification	Details
Category of Product	Single Channel SPDT Relay Module
Supply Voltage Required	5V DC for SPDT Relay; 3.3V DC for I2C Communication
Communication Interface	I2C
Relay Contact Rating	10A
Indication Method	LED for Relay Switching & Power-On Status

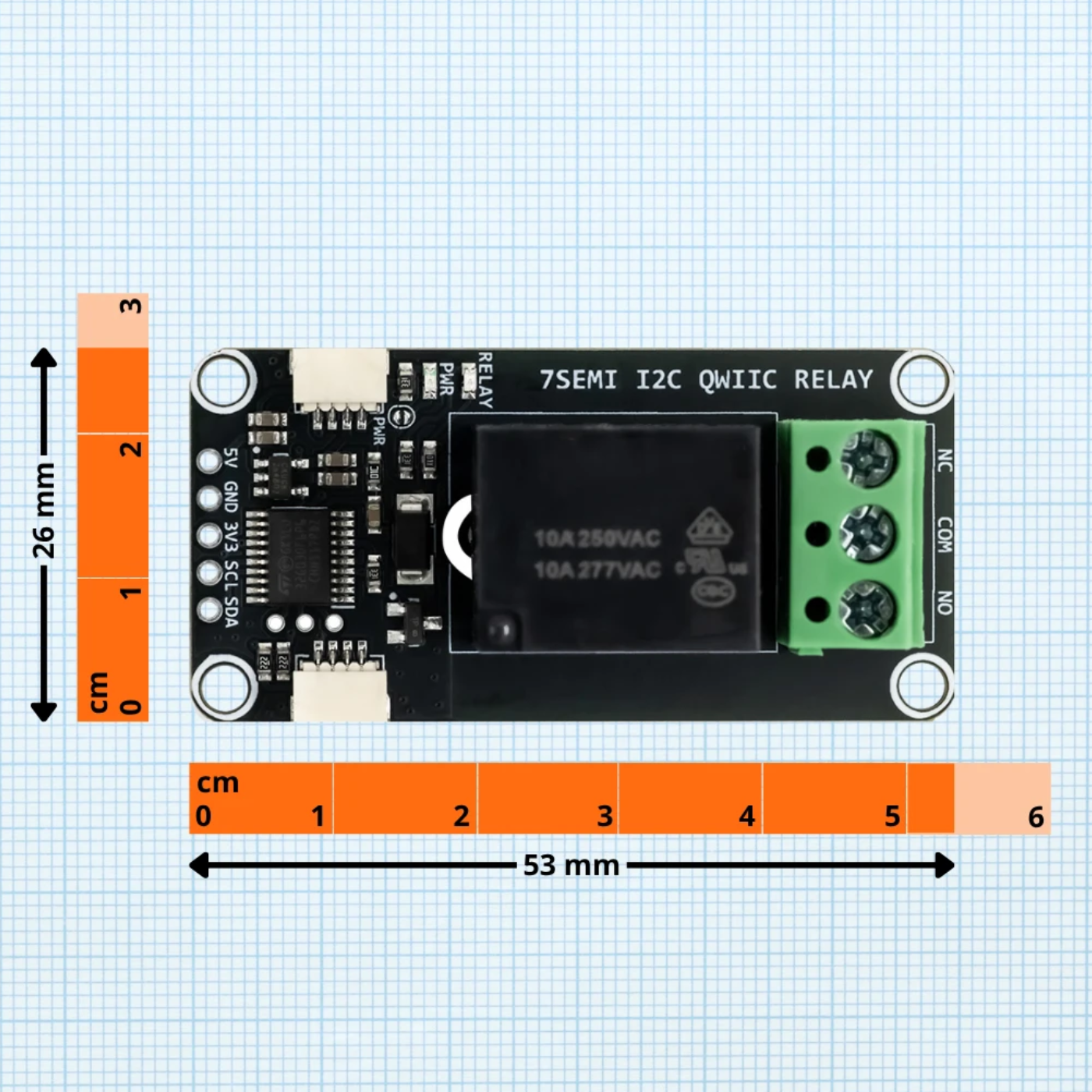

Dimensions	53mm × 26mm × 19.23mm
Operating Temperature	-40°C to +70°C
