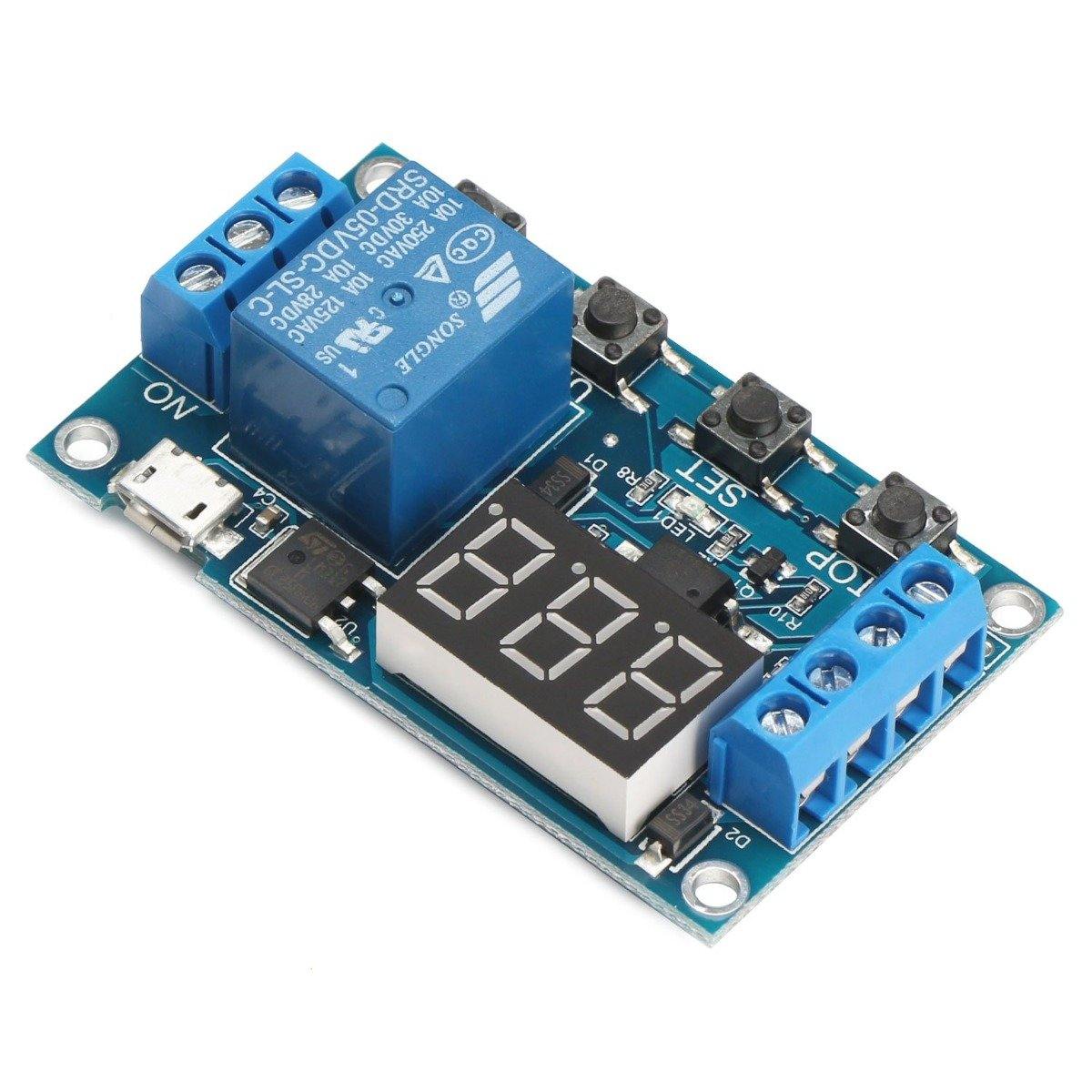

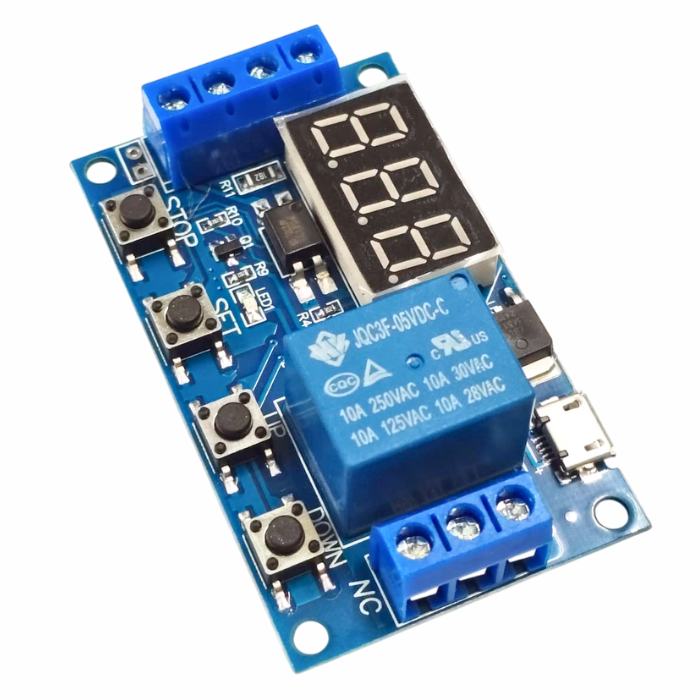

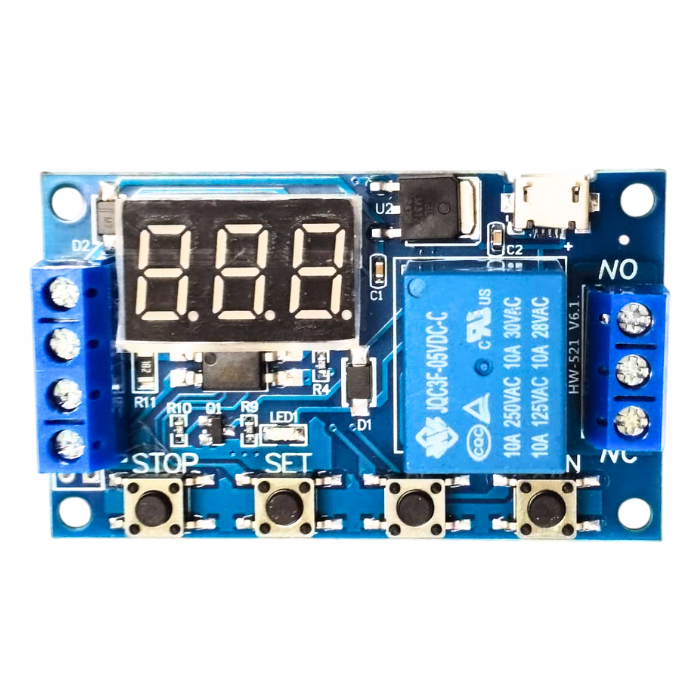

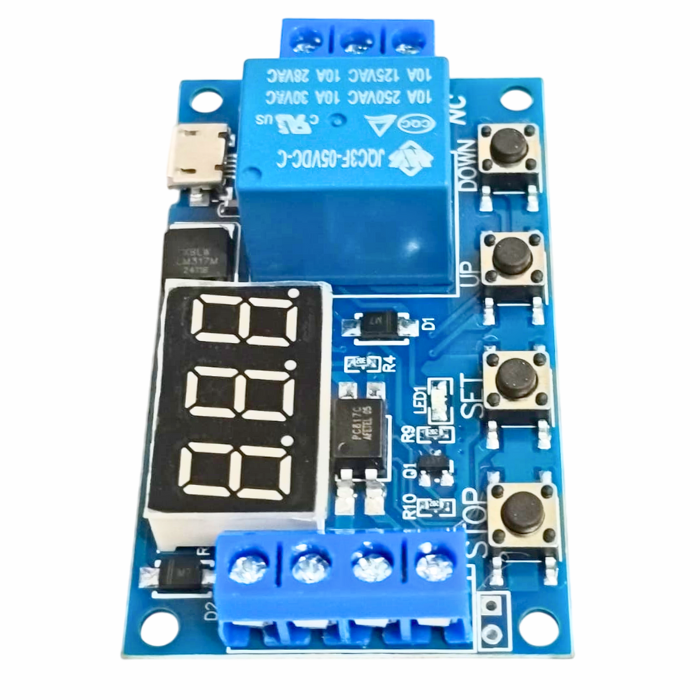

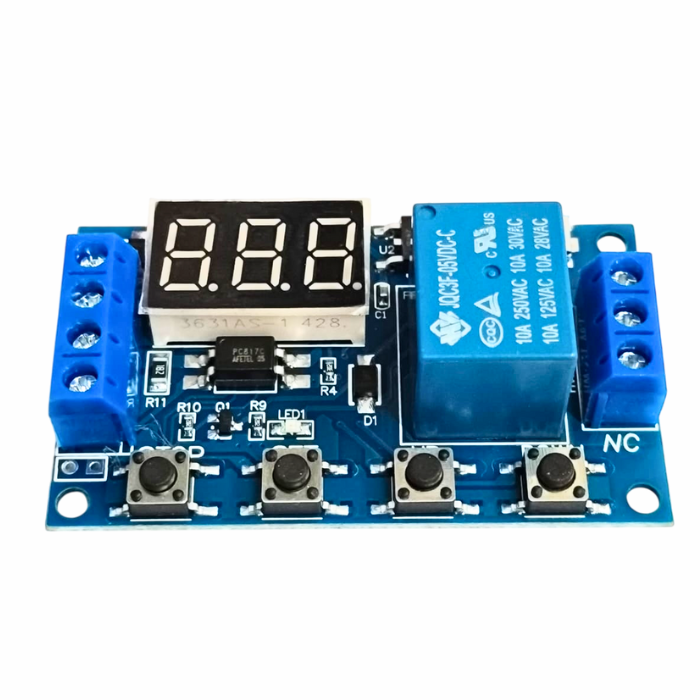

DC 6V To 30V One Way Relay Module

DC 6V To 30V One Way Relay Module

Low stock: 6 left

Regular price Rs. 179
Regular price Rs. 249 Sale price Rs. 179
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 70 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • Adding sleeping mode, when the mode is enabled, if there is no operation within 5 minutes, the display will be turned off automatically, press any button will wake it up
  • You can set different parameters of op, cl, lop, which are independent to each other and are stored separately
  • All the parameter settings will be stored automatically when power is off.
  • Optocoupler Isolation: improve the anti-interference ability, after the parameter setting, it will be in memory forever.

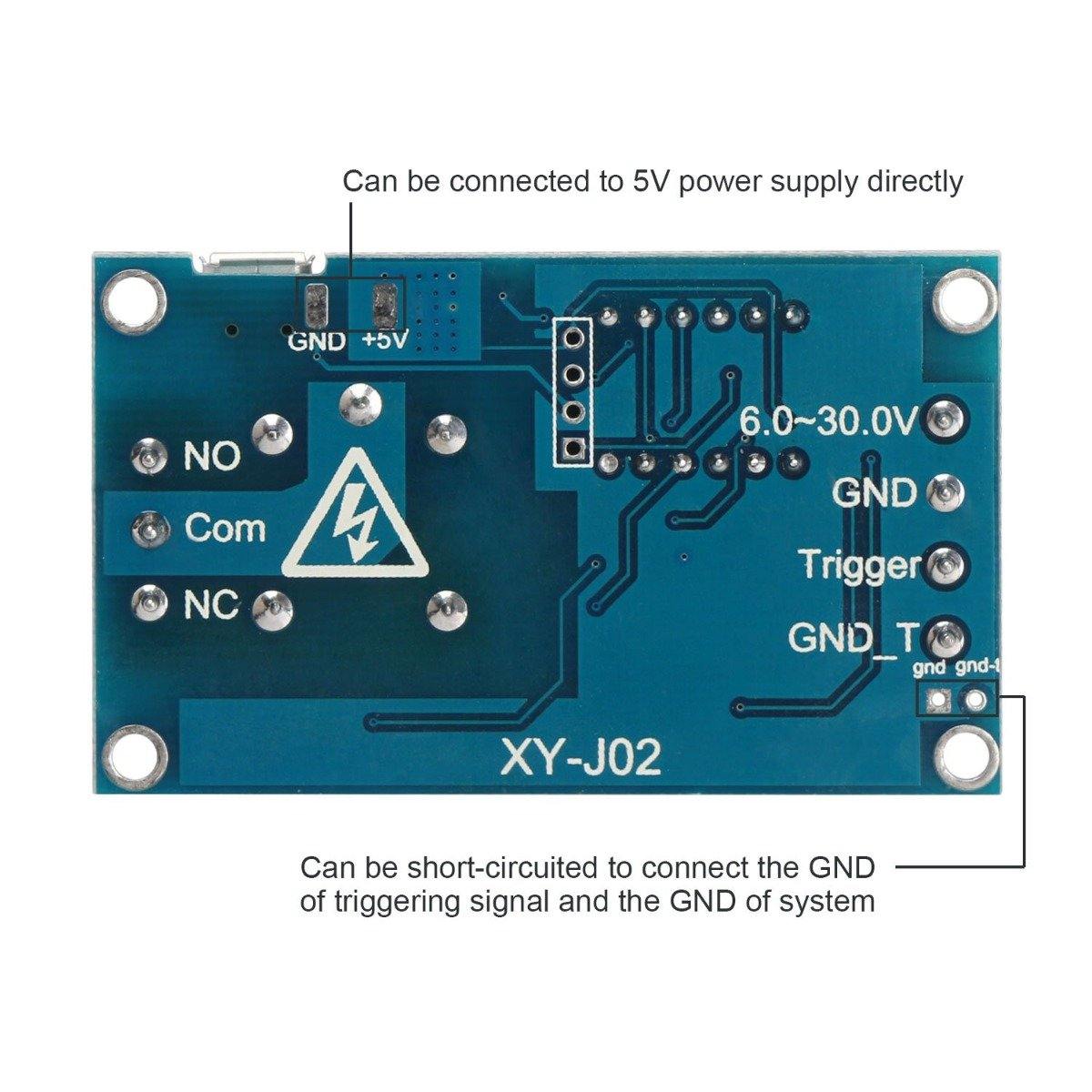

  • Wide voltage power supply (6 ~ 30V), supports micro USB 5.0V power supply, easy to use.
  • The interface is clear, simple, powerful and easy to understand, can meet almost all your needs.

DC 6V To 30V One Way Relay Module

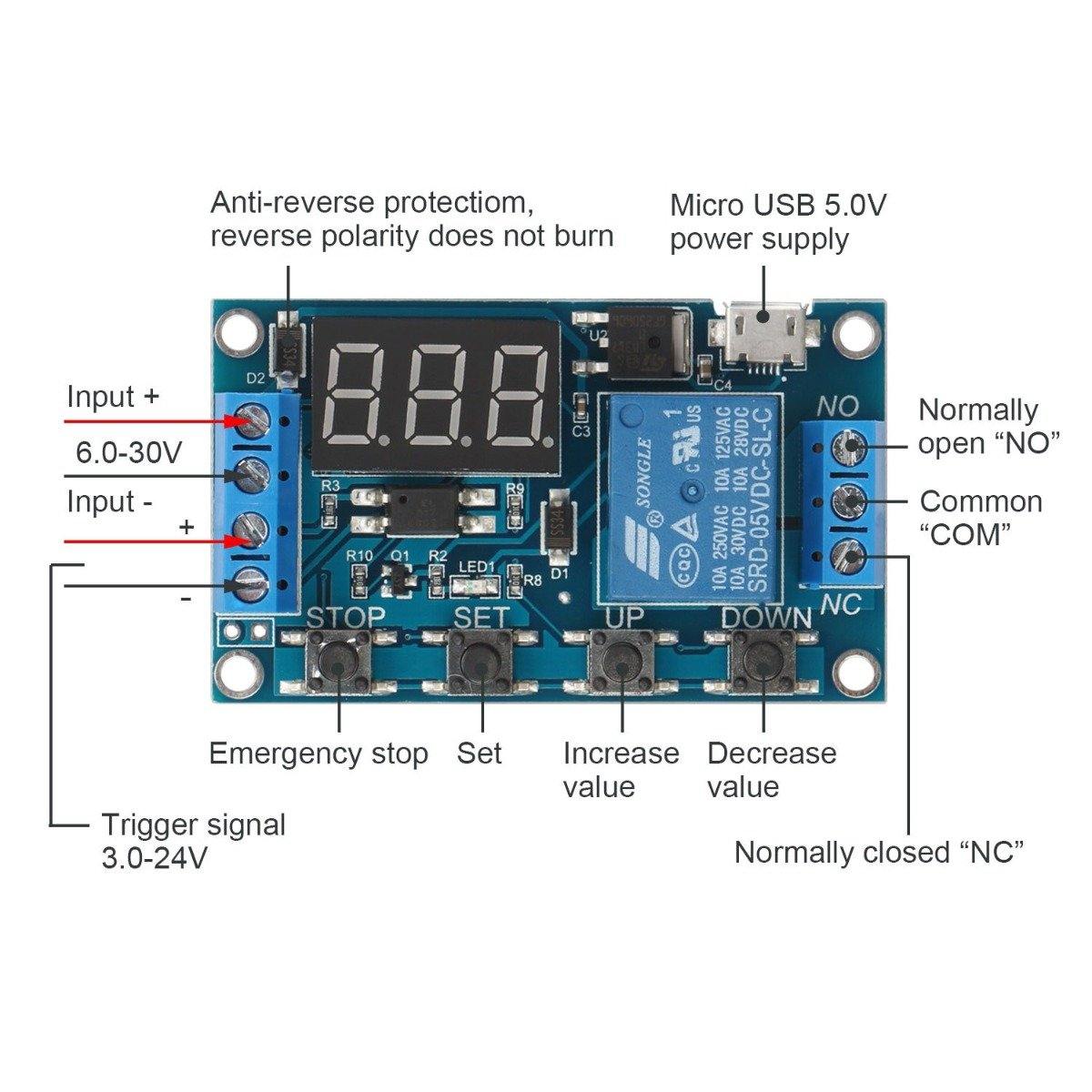

Wide voltage power supply (6 - 30v), supports micro usb 5.0v power supply, easy to use. With emergency stop function (“stop” button) and reverse polarity protection which can avoid burning by reverse connection.

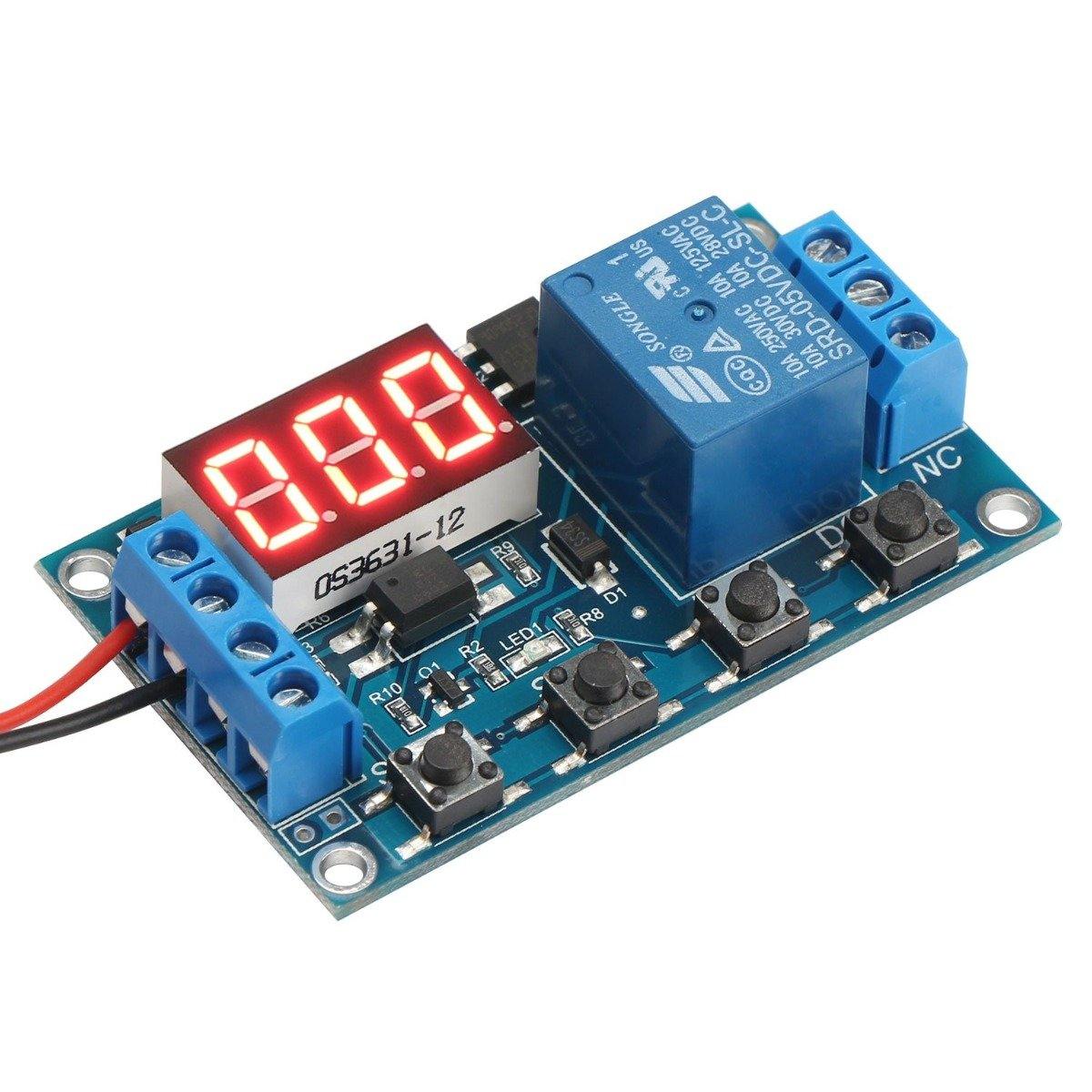

It is 6-30V 1-Channel Delay Power Relay Module with Onboard Adjustable Timing Cycle Switches with Digital LED display It is mostly used in Home Automation Delay Timer Control Switch Module Timer Controller. The Module operates at Operating voltage range of 6-30V, also it supports micro USB 5.0V power supply. Output capability: Can control the device within DC 30V 5A or AC 220V 5A. It can be applied to many fields as there is a wide range of application.

Operation Mode:

P1: Trigger signal, the relay is on “OP” time, and then disconnect; Within the “OP” time, proceed as follows:

P1.1: the signal is triggered again, invalid

P1.2: the signal is triggered again, re-clocking

P1.3: Signal has triggered again, the relay is disconnected, stop the clock;

P-2: Trigger signal, after the “CL” time is off, the “OP” time is on. When the timing is completed, the replay will be disconnected;

P3.1: Trigger signal, after the “OP” time is on, the “CL” time is off, then cycle the above actions. If trigger signal within the loop, the relay will be disconnected and stop the clock. The number of cycles ( “LOP “) can be set.

P3.2: No need to trigger the signal after powering up, the “OP” time is on, the “CL” time is off, then cycle the above actions; The number of cycles ( “LOP “) can be set.

P-4: Signal holding function. If the signal is triggered, timing is cleared, the relay remains on; when the signal disappears, the relay will be off when the “OP” time is over; if another signal is triggered during timing, timing will be cleared.

How to choose the time interval:

parameter Introduction: OP power over time, turn off time CL, LOP cycle times (1-999 times, “—” is unlimited cycle)

  1. In the selection of parameter set interface mode, and press the STOP button to select the time.

(1)xxx. if the decimal point is in some place, the time interval is s-1 999 s

(2)xx. x is the decimal place is ten, the time interval is 0.1 s 99.9 s-

(3)x. x. x is the decimal point are all on, the time interval is 1 min-999 min

How to set the parameter:

First, make sure relay operation mode

According to the operating relay mode, the main interface (power module will flash current operating mode; standard mode P1.1, then come into the main interface); long press SET key two seconds and then choose and enter selection interface mode; by pressing UP, DOWN key to choose the mode setting  (P1.1 ~ P4)

After selecting the mode, press short SET to set the corresponding parameter, then the parameter you want to set will flash (OP power in time; CL power off time; LOP cycle times, “—” is unlimited cycle ); by UP, DOWN to set the parameter value, support long press (increase or decrease quickly) and press slightly (increase or decrease of 1 unit); after setting the parameter value by short press the STOP key to choosing decimal place; choose the time interval (corresponding time interval is 0.1 s-999 min); Short press SET to set the current mode next parameter, the process is the same as above

After the setting mode parameter, press and hold the SET button then hold the current configuration mode will flash, then go back to the main interface; define success parameter main interface: when the relay does not work, it will show “000” (no decimal point); the operating state relay, the screen has a decimal point



Mode Select Interface:

press and hold the SET key to enter; after setting, long-press the SET button back on the main interface

Activate Relay Mode:

NO: PO in power over time, the relay can be connected

OFF: relay is not allowed to connect, when in the off state

in short main interface press the STOP key to achieve turn ON and OFF, the current state will flash; then back to the main interface

(this function is a function of a sudden stop, 1 key to turn off the relay)

Sleep Mode:

C-P Sleep mode: within 5 minutes, no operation; nixie tube will close auto display, and a function program well

Note:

  1. Press and hold the STOP button for 2 seconds can achieve change from C-P to O-d; Current state will flash and then return to the main interface
  2. The relay contact is passive and electricity production; 1 channel has the control function on / off

Package Includes:

  • 1 x One Way Relay Module

Specifications:

Operating Voltage 5 – 36V
Operating Current 50mA
Maximum Operating Current 30 A
Power 400W
Dimensions (mm) 60 x 34 x 21
Weight (gm) 18





Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is a 6-30V 1-Channel Power Relay Module used for?

  • Home automation delay timer control switch module timer controllers are the main applications for Power Relay Module with Onboard Adjustable Timing Cycle Switches.

2. How to set the parameter in a DC 6V To 30V One Way Relay Module?

  • To set the parameter in a DC 6V To 30V One Way Relay Module follow the steps below.
    1. First make sure relay operation mode
    2. According to the operating relay mode, the main interface (power module will flash current operating mode; standard mode P1.1, then come into main interface); long press SET key two seconds and then loosen enter selection interface mode; by pressing UP, DOWN key to choose the mode setting (P1.1 ~ P4).
    3. After selecting the mode, press short SET to set the corresponding parameter, then the parameter you want to set will flash (OP power in time; CL power off time; LOP cycle times, "---" is unlimited cycle ); by UP, DOWN to set the parameter value, support long press (increase or decrease quickly) and press slightly (increase or decrease of 1 unit); after setting the parameter value by short press the STOP key to choose decimal place; choose the time interval (corresponding time interval is 0.1 s-999 min); Short press SET to set the current mode next parameter, the process is the same as above
    4. After the setting mode parameter, press and hold the SET button then hold the current configuration mode will flash, then go back to the main interface; define success parameter main interface: when the relay does not work, it will show "000" (no decimal point); the operating state relay, the screen has a decimal point
    5. Mode Select Interface: press and hold the SET key to enter; after setting, long press the SET button back on main interface
