5V 30A 1-Channel Relay Module

5V 30A 1-Channel Relay Module

Regular price Rs. 162
Regular price Rs. 199 Sale price Rs. 162
Sale Sold out 19% off Best Price Guaranteed
You save Rs. 37
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Optical coupling isolation, driving ability is strong, stable performance; Trigger current is 5mA
  • The module can be set high level or low-level trigger by the jumper
  • Rated current of the interface is 16A
  • DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal.
  • High and low-level trigger mode selection. Jumper and L pin connection, IN pin, is low-level trigger Jumper and H pin connection, IN pin, is the high-level trigger.

5V 30A 1-Channel Relay Module

The 5V 30A 1-Channel Relay Module is a 1-channel relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V.

The relay module uses an authentic quality mechanical relay and the industry's top quality subminiature two-way isolation optical coupling which gives you the strong anti-interference ability, and stable performance.

The user can choose the relay control level, can be a high level off, also can be low level and off. The Single-channel 5V 30A Relay Module Power Failure Relay contains a limited flow resistance, can directly use the power supply is negative control, you can also use the MCU I/O control.

The relay module equips a power indicator light (red), 1 road relay status indicator light (blue).With this relay, you can easily control electrical appliances, lights, etc.

Also, read our blog on the Working of the Relay Module detailing how does relay module works, its construction, relay contact types, and types of relays.

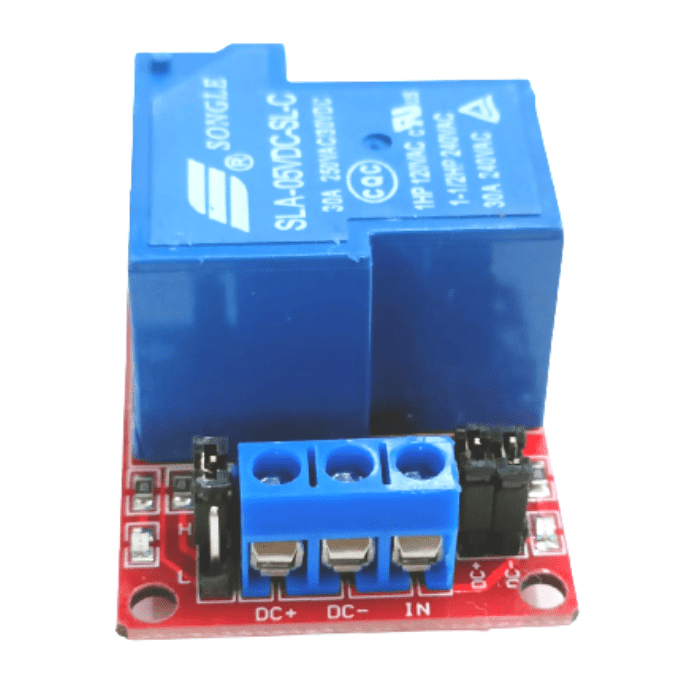

Pinouts:

  • DC+: DC power supply positive pole
  • DC-: DC power supply negative pole
  • IN: signal triggering pin
  • JD+: relay control voltage positive
  • JD-: relay control voltage negative

APPLICATIONS:

  • Home automation
  • Robotics Control
  • Control doors and windows via the windows system

Package Includes :

  • 1 x 5V 30A 1-Channel Relay Module

Specifications:

Trigger Voltage (VDC)

5

Trigger Current (mA)

20

Switching Voltage (VAC)

250@30A

Switching Voltage (VDC)

30@30A

Dimensions

50x33x24mm

Weight 20g
