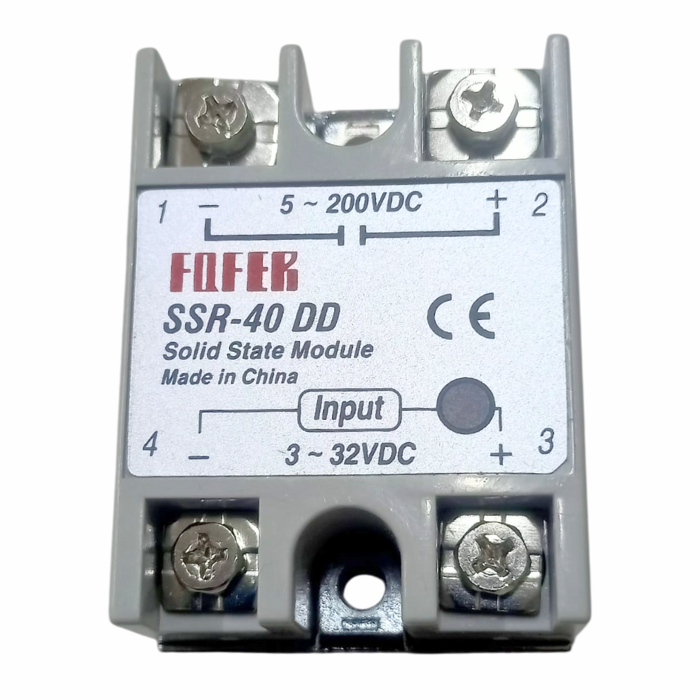

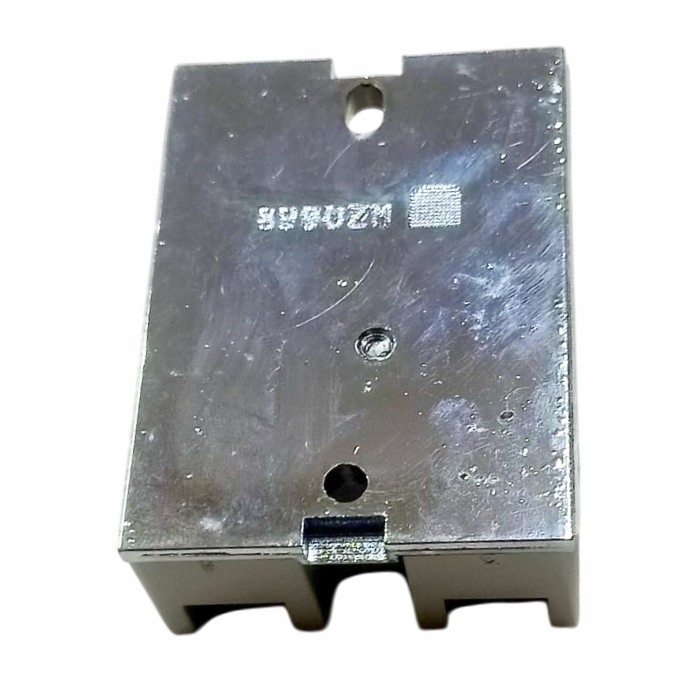

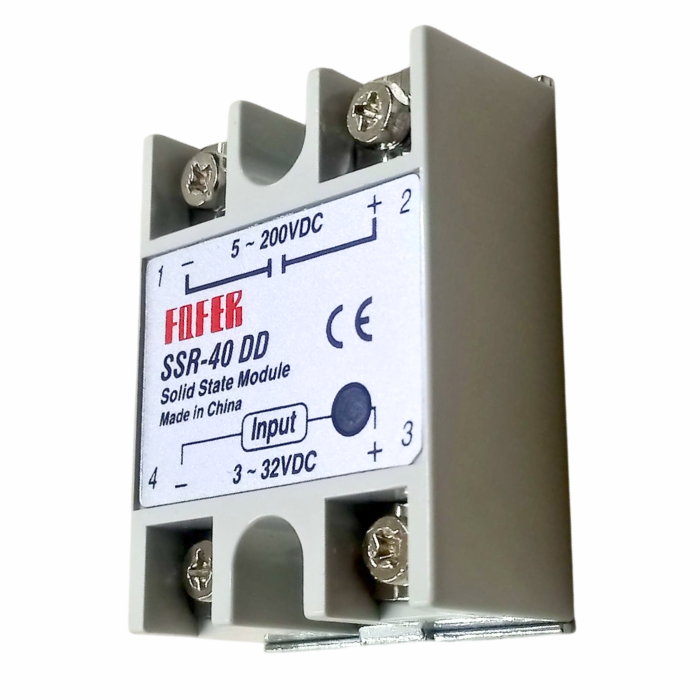

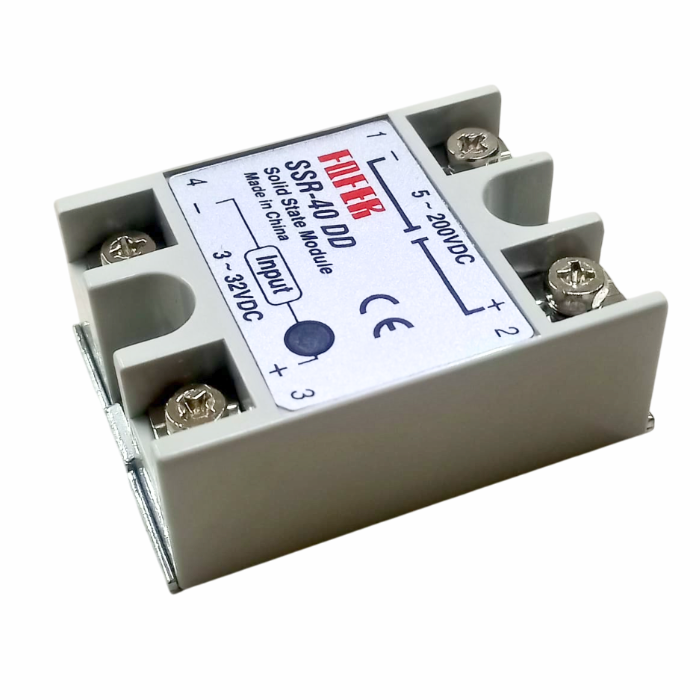

SSR-40DD DC 3-32V Input to DC 5-200V Solid state relay

SSR-40DD DC 3-32V Input to DC 5-200V Solid state relay

Out of stock

Regular price Rs. 294
Regular price Rs. 499 Sale price Rs. 294
Sale Sold out 41% off Best Price Guaranteed
You save Rs. 205 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • It has an input voltage of 3-32V DC.
  • It has an output voltage of 5-60V DC.
  • It has an output current of 40A.
  • Long service life and high reliability.
  • Reduced electromagnetic interference.
  • Highly reliable, compact size designed to offer users maximum simplicity.
Trust Badge 1 Trust Badge 2 Trust Badge 3

SSR-40DD DC 3-32V Input to DC 5-200V Solid state relay

This is DC To DC SSR-40DD 40A Solid State Relay Module offers an input of 3V-32V DC with an output voltage of 5V -200VDC at an output current of 40A. A solid-state relay (SSR) is simply an IC that functions as a mechanical relay. The only difference between this SSR with the mechanical relay is that there is no moving contact in a Solid-State Relay. This SSR allows us to control high-voltage AC loads from lower voltage DC control circuitry. This is achieved by using infrared light as the ‘contact,’. In short, a solid-state relay is just an IR LED and a photometric enclosed into a little box. Thus we make use of the Phototriac coupler to turn it ON and OFF.

Solid-state relays offer numerous advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, as there are no moving contacts, solid-state relays switched much faster and for much longer periods without wearing out.

Each one of these relays is designed with four screw terminals for use with ring or fork connectors. And enclosed in a plastic cover that slides over the top of the relay to protect the terminals. This Solid State Relay module features long service life and high reliability with reduced electromagnetic interference. Moreover, its compact size design offers users maximum simplicity.

Also, read our blog on What is Relay in Electrical explaining what is it, how does it works, its construction, different types of relays, and applications.

Features:

  • Input Voltage: 3-32V DC
  • Output Voltage: 5-200V DC
  • Load Current: 40A
  • Control Type: DC to DC
  • Switching Speed: High switching speed with no noise or sparks
  • Durability: No mechanical parts, leading to high reliability and long life
  • Resistance: Resistant to vibration and moisture
  • Size: Compact size for easy integration into various systems
  • Heat Dissipation: Requires proper heat dissipation to ensure longevity

Applications:

  • Industrial Automation: Used in controlling machinery and equipment in automated production lines.
  • Temperature Control Systems: Ideal for switching heating elements in temperature control systems.
  • DC Motor Control: Suitable for controlling DC motors in various applications, including robotics and conveyor systems.
  • Lighting Control: Can be used to control lighting systems, including stage lighting and traffic lights.
  • Pumps and Valves: Used in controlling DC pumps and solenoid valves in fluid handling systems.
  • Home Automation: Useful in home automation projects for controlling various DC-powered devices.
  • Signal Isolation: Provides electrical isolation between control and load circuits, enhancing safety and reliability.

Package Includes:

  • 1 x SSR-40DD DC 3-32V Input to DC 5-200V Solid state relay

Specifications:

Model SSR-40 DD
Control mode DC-DC
Input voltage 3-32V DC
Output voltage 5-200V DC
Output current 40A
On voltage ≤1v
One-off time ≤10ms
Off leakage current ≤2ma
Environment temperature -30 to +75
Dimensions 60 x 43 x 23mm
Weight 10g

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is the primary use of the SSR-40DD Solid State Relay?

  • This relay is used to control high voltage DC loads using a low voltage DC control signal. It is ideal for applications such as controlling DC heaters, DC motors, and DC pumps.

2. What are the input and output voltage ranges for this relay?

  • The input voltage range is 3-32V DC, and the output voltage range is 5-200V DC.

3. What is the maximum current rating of the SSR-40DD?

  • The relay can handle a maximum current of 40A.

4. What are the advantages of using a solid state relay over a mechanical relay?

  • Solid state relays offer several advantages, including high switching speed, no noise, long life, and resistance to shock and vibration.

5. Can this relay be used in industrial automation applications?

  • Yes, the SSR-40DD is suitable for various industrial automation and control applications, including temperature controllers and machinery control systems
