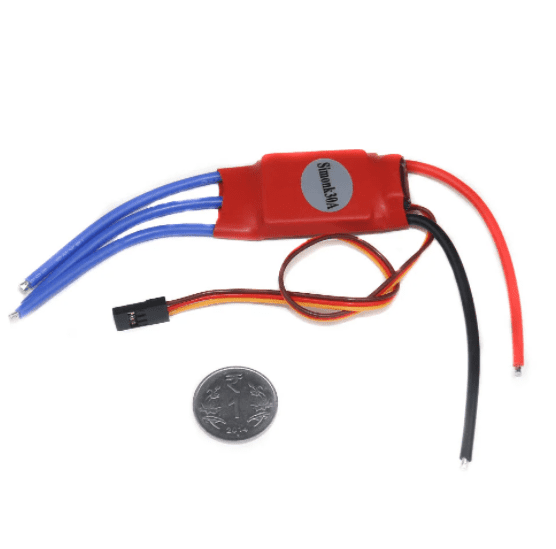

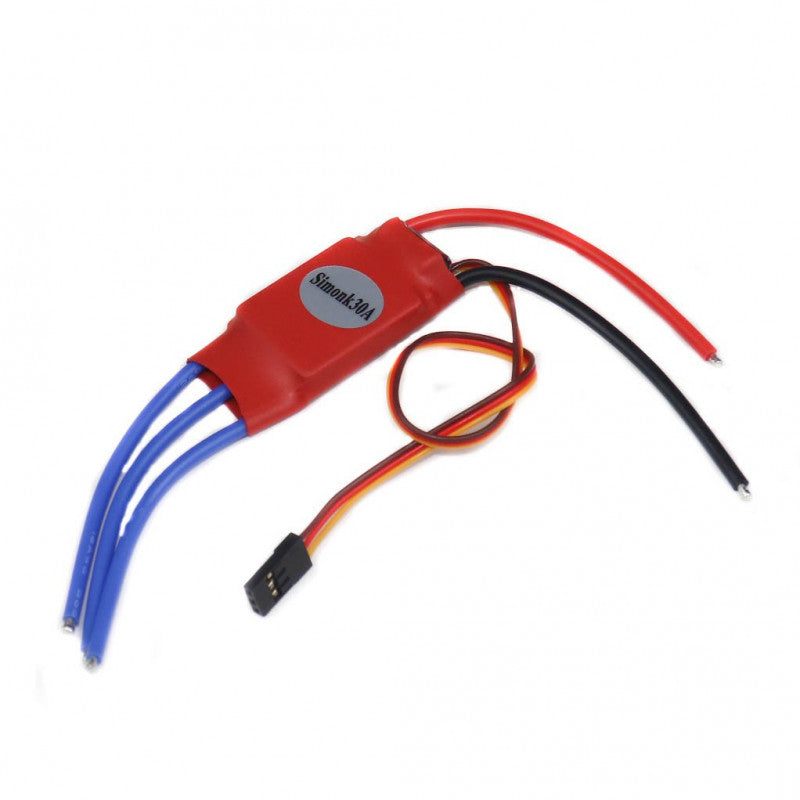

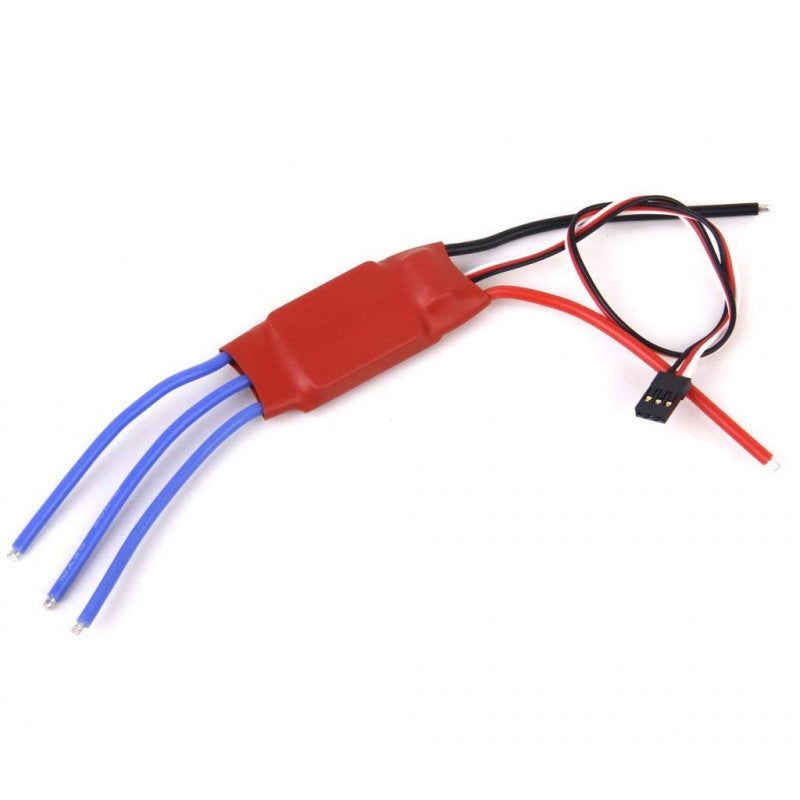

Simonk Red ESC 30A without Connector for Quadcopter
The Simonk 30A ESC is an Electronic Speed Controller (ESC) that is used to drive brushless DC motors and is capable of supplying current up to 30A. The 30A Simonk controller is made for quadcopters and multicopters to provide faster and better motor speed control.
This 30A ESC features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery to power those are not needed. These electronic speed controllers are best used with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.
Warning: When we connect the BLDC ESC directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.
Explore our complete range of Drone Parts!
Also Check out the best collection of ESC for Drones.
Connections:
- Power: Red - 7.4V to 14.8V
Black - GND
- Servo: Yellow - Throttle Input
Red - 5V, 2Amp Out
Brown - GND
- BLDC Motor: 3 Blue Wires - BLDC ESC Connections
SAFE POWER FUNCTION OF THE SIMONK 30A ESC MOTORS
- High-quality MOSFETs for BLDC motor drive.
- The throttle calibration function of the Simonk ESC motor helps you to adapt to different remote throttle travel differences and improve your throttle response smoothly.
- It provides low voltage protection as well as reverse polarity protection.
- It provides protection on the 5v lines.
- High-performance heat sink for better thermal management.
Application:
- Quadcopters.
- Multirotor drones.
- RC Planes.
