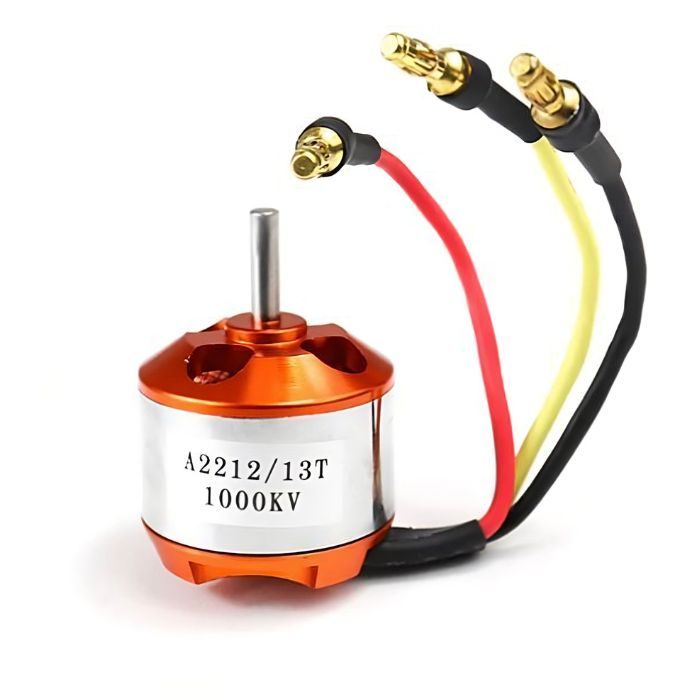

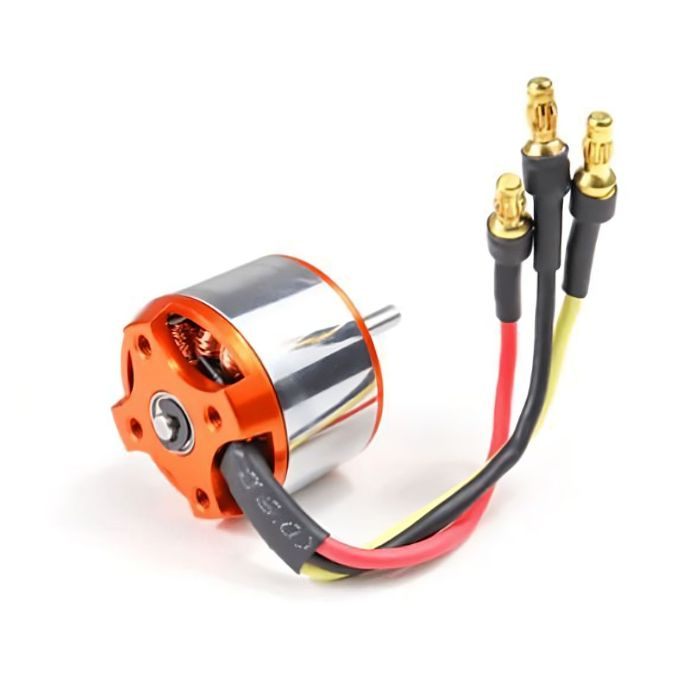

A2212 1000KV BLDC Motor for RC Drones and Quadcopters
A2212 1000KV BLDC Motor for RC Drones and Quadcopters
Out of stock
Regular price
Rs. 359
Regular price
Rs. 599
Sale price
Rs. 359
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This 1000Kv A2212 BLDC motor is built with high-end magnets, a high pole count, and a custom motor mount.
- This BLDC motor is designed purely for multi-rotor applications.
- This Brushless DC motor has an in-built aluminum mount for quick and easy installation on your quadcopter frame.
- Compatible with LiPo batteries and can consume between 4 – 10A
A2212 1000KV BLDC Motor for RC Drones and Quadcopters
This A2212 1000KV Brushless Motor for Drones designed for quadcopters and multi-rotors. It has exceptional performance, superpower, and efficiency. These motors are ideal for medium-sized quadcopters with propellers ranging from 8 to 10 inches in diameter. Build powerful and efficient quadcopters with this.
This BLDC Motor comes with an integrated prop adaptor for use with a variety of prop styles, including a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also includes an aluminum mount for quick and simple installation on your quadcopter frame. The 1000Kv Brushless Quadcopter Motors kit includes mounting bolts, prop adapters, and power leads.
About BLDC Motor:
Brushless DC motors also known as electronically commutated motors, are available (ECMs, EC motors). Primary efficiency is a critical feature of brushless motors. Because the rotor is the sole magnet bearer and does not require any power.
That is, there are no connections, no commutator, and no brushes. Instead, the motor makes use of control circuitry. Brushless DC motors use controllers, rotary encoders, or a Hall sensor to detect where the rotor is at any given time.
Features:
- The steel construction can resist the demands of competition.
- They are appropriate for a variety of Quadcopter and Hexacopter Frames due to their lightweight construction.
- Small size.
- Provides excellent performance and value.
- For the optimum RC experience, use a smooth throttle response.
Applications:
- Drones
- Quadcopters
- Multirotors
- RC Airplanes
- UAV

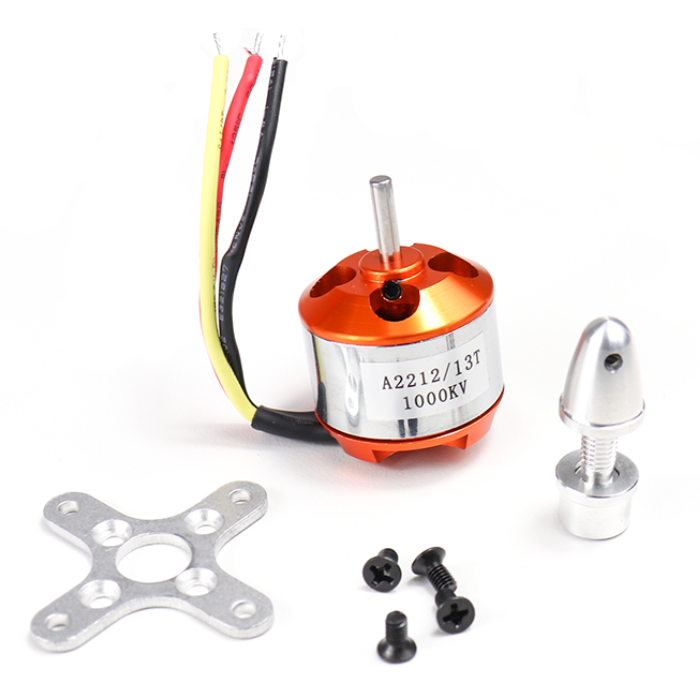

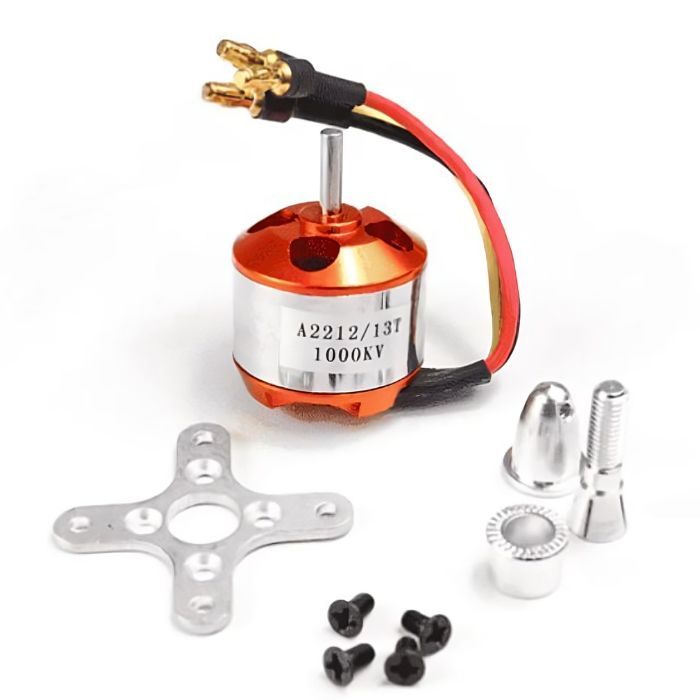

Package Includes:
-
1 x A2212 1000Kv BLDC Brushless Motor
-
1 x Adapter for the shaft
-
1 x Mounting Adapter set
Specifications:
|
Model |
A2212 |
|
Motor KV (RPM/V) |
1000 |
|
Compatible LiPO Batteries |
2S ~ 3S |
|
Shaft Diameter (mm) |
3.17 |
|
Max. Efficiency Current (A) |
4 ~ 10 |
|
Maximum Power (W) |
150 |
|
No-Load Current (mA) |
500 |
|
Internal Resistance(mΩ) |
90 |
|
Maximum Efficiency |
80% |
|
Poles |
14 |
|
Length (mm) |
27.5 |
|
Width (mm) |
27 |
|
Weight (gm) |
64 |
|
Model |
XT60 |
|
Bullet connector |
3.5mm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
A2212 2450KV BLDC Motor for RC Drones and Quadcopters
Regular price
Rs. 380
Regular price
Rs. 725
Sale price
Rs. 380
Unit price
per
Incl. GST (No Hidden Charges)
Sale
A2212 1400KV BLDC Brushless Motor
Regular price
Rs. 361
Regular price
Rs. 519
Sale price
Rs. 361
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter
Regular price
Rs. 363
Regular price
Rs. 599
Sale price
Rs. 363
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a 1000Kv BLDC motor?
The motor is a BLDC brushless outrunner motor. Designed exclusively for quadcopters and multirotors, High performance and stunning efficiency are provided. These brushless BLDC motors are ideal for medium-sized quadcopters with propellers between 8 and 10 inches in diameter.
2. How much weight can a 1000kV BLDC motor lift?
The BLDC motor can lift approximately up to 900 grams.
3. Why are only BLDC used in drones?
Brushless DC motors that are lightweight and SWaP-optimized are frequently chosen for drone flight. Brushless DC motors (BLDC motors) use a non-contact solution, such as an optical encoder, to switch the fields at the correct time, allowing the motor to rotate continuously in the same direction. Because of the lack of friction, BLDC motors require less maintenance and have a longer lifespan. They are more efficient than brushed motors and have a higher torque to weight ratio.
4. Why is brushless better?
Because there are no brushes rubbing against anything, no energy is lost due to friction. Brushless motors are therefore more energy efficient than brushed motors and can run on batteries for up to 50% longer. Because there are no mechanical limitations imposed by brushes, this energy efficiency translates into more powerful drills.
5. How do BLDC motors differ from brushed motors?
BLDC motors differ from brushed motors primarily in their construction. BLDC motors don't have brushes and commutators, leading to smoother operation, higher efficiency, and longer lifespan compared to brushed motors.
