A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter
A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This A2212 2200Kv BLDC has built with high-end magnets, a high pole count, and a custom motor mount
- The 2200Kv brushless DC motor is designed purely for multi-rotor applications.
- This BLDC has an in-built aluminium mount for quick and easy installation on your quadcopter frame.
- It was designed from the ground up specifically for multi-rotor applications.

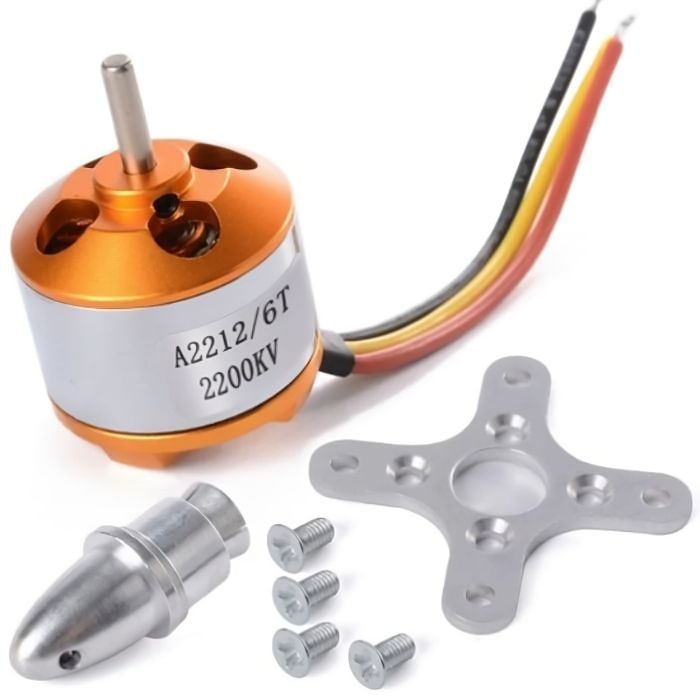

A2212 2200KV Brushless Outrunner Motor Aircraft Quadcopter Helicopter
The A2212 2200Kv BLDC motor is a brushless outrunner motor specifically made for quadcopters and multi-rotors. It provides high performance, superpower, and brilliant efficiency. These brushless DC motors are perfect for medium-sized quadcopters with 8-inch to 10-inch propellers. These 2200KV brushless DC motors can be used to build powerful and efficient quadcopters. They come with mounting bolts, prop adapters, and power leads.
If you want to Build a Quadcopter for your own you can do it too. For that you need
| S.no | Component |
| 1 | Drone frames |
| 2 | Flight Controller (FC) |
| 3 | ESC or Electronic Speed Control |
| 4 | RC transmitter & receiver |
| 5 | Power Distribution Board |
| 6 | Propellers |
| 7 | Battery and charger |
About BLDC Motor:
BLDC Motor (Brushless direct current electric motors), also known as electronically commutated motors, are available (ECMs, EC motors). Primary efficiency is a critical feature of BLDC motors. Because the rotor is the sole magnet bearer and does not require any power. That is, there are no connections, no commutator, and no brushes. Instead, the motor makes use of control circuitry. BLDC motors use controllers, rotary encoders, or a Hall sensor to detect where the rotor is at any given time.
Outrunner:
The field magnet is a rotating drum rotor that revolves around the stator. This style is preferred for applications that require high torque but do not require high rpm. These are the motors found on photography multirotors, such as high-powered drones. Brushless DC motors(BLDC) look different depending on who makes them, but they are typically short and stout. Brushless multirotor propellers are almost always mounted directly to the motor shafts.
Pros: BLDC motor or Brushless DC motors are extremely powerful and provide excellent torque without the use of gears. They also have a long lifespan if properly maintained. Brushless motors can operate for much longer periods of time without suffering heat damage than coreless motors (the heat may temporarily reduce the performance of brushless motors, to a degree, but once they cool down, their performance should revert to normal.)
Browse the exclusive collection for Drone Propellers.
Features:
- KV Rating: 2200KV, indicating the motor’s RPM per volt applied.
- Voltage: Suitable for 2-3S Li-Poly batteries.
- Dimensions: Approximately 27.7mm x 27mm.
- Output Shaft Diameter: 3.17mm.
- Weight: About 50 grams.
- Material: Made of durable metal.
- Efficiency: High efficiency and strong anti-interference ability.
- Heat Dissipation: Equipped with an independent heat sink for better heat dissipation.
- Safety Features: Safe power-on function and throttle stroke adjustment.
Applications:
- Drones
- Quadcopters
- Multirotor's
- RC Airplanes
- UAV
Package Includes:
-
1 x A2212 2200Kv BLDC Brushless Motor
-
1x adapter for shaft
-
1 x Mounting Adapter set
Specifications:
| Motor | BLDC Brushless Motor |
| Model | A2212 |
| Kv | 2200 |
| Stator diameter | 22mm |
| Stator length | 13mm |
| Stator arms | 12mm |
| Magnet Poles | 12 |
| Rotor Diameter | 28mm |
| Shaft Diameter | 3.17mm |
| Weight | 50 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
A2212 1000KV BLDC Motor for RC Drones and Quadcopters
A2212 1400KV BLDC Brushless Motor
A2212 2450KV BLDC Motor for RC Drones and Quadcopters
Found a better price?
Let us know!
We'll try to match the price for you
1. What is A2212?
- The 2212 (BLDC) Brushless DC Motor is a high-speed brushless motor designed specifically for quadcopters, drones, and toy planes. The motor is an OUTRUNNER, which means that the outside case rotates while the inside remains stationary. Because of its low cost, it is one of the most popular models on the market. It's ideal for small drones and planes.
2. What is 2200KV BLDC motor?
- The A2212 2200Kv BLDC motor is an outrunner motor designed specifically for quadcopters and multirotors. It offers exceptional performance, superpower, and brilliant efficiency. These brushless DC motors are ideal for medium-sized quadcopters with propellers ranging from 8 to 10 inches in length. This 2200KV brushless DC motor is suitable for building powerful and efficient quadcopters. They include mounting bolts, prop adapters, and power cords.
3. What is 6T in BLDC motor?
- The 6T (BLDC) Brushless DC Motor is a popular high-speed brushless motor designed specifically for RC enthusiasts. The motor is an outrunner, which means that the outside case rotates while the inside remains stationary. Because of its low cost, it is one of the most popular models on the market. It's ideal for small drones and planes.
4. Why are BLDC motors used?
- BLDC Motors are used because they are widely used in a variety of applications due to their high efficiency and excellent controllability. In comparison to other motor types, the BLDC motor saves energy.
5. Which motor is best for RC plane?
- If you choose a motor with a higher kV and a smaller propeller, the thrust will be faster, and your plane will fly faster. We recommend a motor kV between 850kv and 1500kv for your first plane.
