A2212 1400KV BLDC Brushless Motor

a2212 1400kv BLDC Motor
a2212 1400kv BLDC Motor
a2212 1400kv BLDC Motor
  • a2212 1400kv BLDC Motor
  • a2212 1400kv BLDC Motor
  • a2212 1400kv BLDC Motor

A2212 1400KV BLDC Brushless Motor

Regular price
Rs. 385
Sale price
Rs. 385
Regular price
Rs. 469
You save Rs. 84
18% off
You save Rs. 84
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This A2212 1400KV BLDC motor has built with high-end magnets, a high pole count and a custom motor mount
  • This 1400KV brushless DC motor is designed purely for multi-rotor applications.
  • This BLDC motor has an in-built aluminium mount for quick and easy installation on your quadcopter frame.
  • Compatible with LiPo batteries and can consume between 4 – 12A

A2212 1400KV BLDC Brushless Motor

This A2212 1400KV BLDC ( Brushless DC )Motor is a brushless motor designed for quadcopters and multirotors. It has exceptional performance, superpower, and efficiency. These motors are ideal for medium-sized quadcopters with propellers ranging from 8 to 10 inches in diameter. Build powerful and efficient quadcopters with this.

If you want to Build a Quadcopter for your own you can do it too. For that you need

 S.no Component
1 Drone frames
2 Flight Controller (FC)
3 ESC or Electronic Speed Control
4 RC transmitter & receiver
5  Power Distribution Board
6 Propellers
7 Battery and charger



This 1400KV BLDC Motor comes with an integrated prop adaptor for use with a variety of prop styles, including a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also includes an aluminum mount for quick and simple installation on your quadcopter frame. The kit includes mounting bolts, prop adapters, and power leads.

About BLDC Motor:

BLDC Motor (Brushless direct current electric motors), also known as electronically commutated motors, are available (ECMs, EC motors). Primary efficiency is a critical feature of BLDC motors. Because the rotor is the sole magnet bearer and does not require any power. That is, there are no connections, no commutator, and no brushes. Instead, the motor makes use of control circuitry. BLDC motors use controllers, rotary encoders, or a Hall sensor to detect where the rotor is at any given time.

Features of a 1400KV BLDC Motor:

  • The steel construction can resist the demands of competition.
  • They are appropriate for a variety of Quadcopter and Hexacopter Frames due to their lightweight construction.
  • Small size.
  • Provides excellent performance and value.
  • For the optimum RC experience, use a smooth throttle response.

Applications:

  • Drones
  • Quadcopters
  • Multirotors
  • RC Airplanes
  • UAV

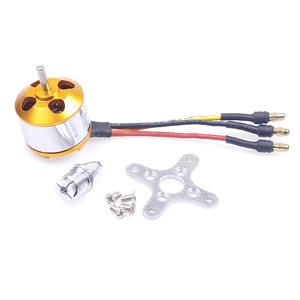

Package Includes

  • 1x brushless motor
  • 1x adapter for shaft
  • 1x mount

Specifications:

Motor BLDC Brushless Motor
Model  A2212
Kv 1400
Stator diameter 22mm
Stator length 13mm
Stator arms 12mm
Magnet Poles  12
Rotor Diameter 28mm
Shaft Diameter  3.17mm
Weight 50 grams

Frequently Asked Questions

1. What is a 1400KV BLDC motor?

  • A2212 1400KV BLDC Brushless DC Motor for Drone is a brushless motor specifically made for quadcopters and multirotor. It is a 1400kV motor. It provides high performance, super power, and brilliant efficiency.

2. Why BLDC motors are used in drones?

  • These BLDC motors produce a higher thrust to facilitate the best rotation speeds and controlled power for drones in a highly efficient manner.

3. Can I run a BLDC motor without ESC?

  • No, you can't. A brushless DC motor is very similar to a three-phase AC induction motor. You need to use a brushless DC motor controller (ESC) designed to generate the rotating field.

4. Why is brushless better?

  • Because there are no brushes rubbing against anything, no energy is lost due to friction. Brushless motors are therefore more energy efficient than brushed motors and can run on batteries for up to 50% longer. Because there are no mechanical limitations imposed by brushes, this energy efficiency translates into more powerful drills.
