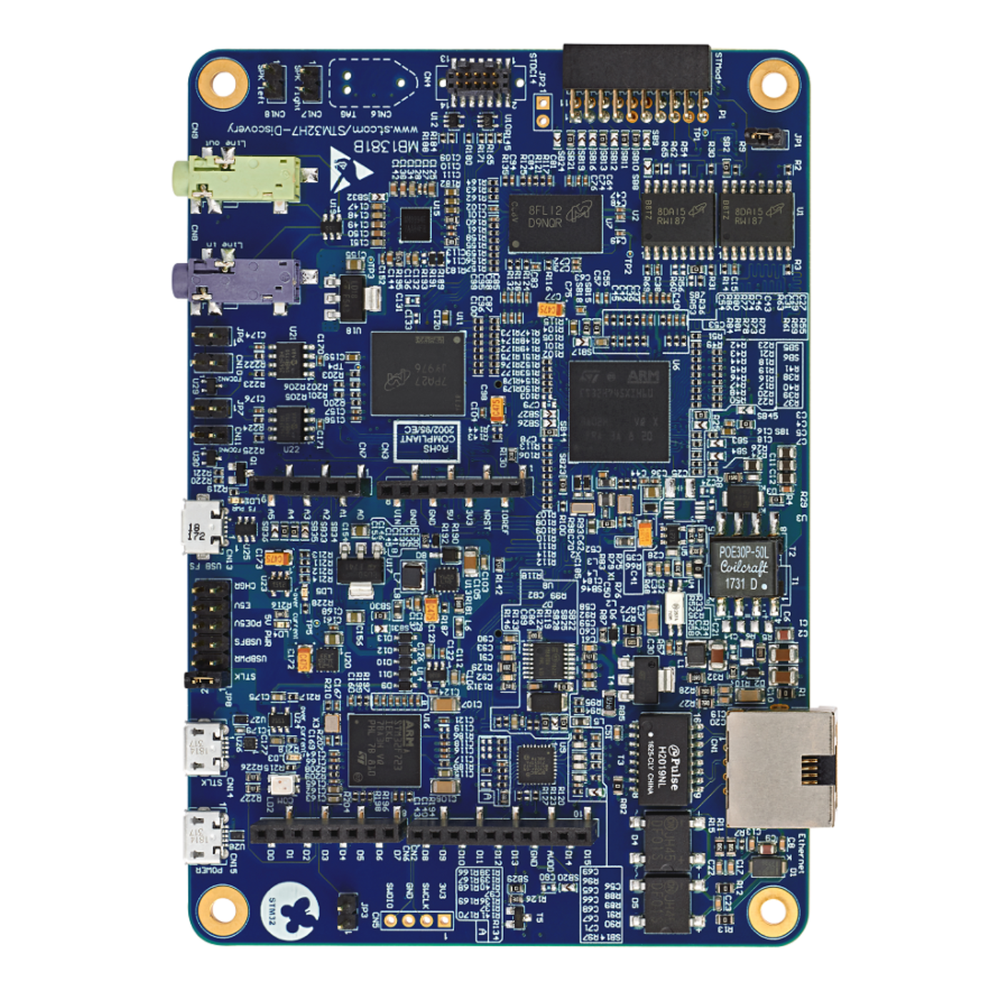

STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U

Name: STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U, ARM Cortex-M4 and Cortex-M7 32-bit MCUs
Brand: Robocraze
SKU: TIFC00456
Price: 23984 INR
Availability: OutOfStock

STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U, ARM Cortex-M4 and Cortex-M7 32-bit MCUs

Rs 23,984/-

- 14%

Rs 23,984/-

~~Rs 27,899/-~~

Save Rs 3,915/-

🪙

RC REWARDS Earn 239 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFC00456

Powered by the STM32H745XIH6U dual-core microcontroller featuring ARM Cortex-M7 and Cortex-M4 32-bit cores.
Designed for embedded systems development, prototyping, and evaluating STM32 microcontroller applications.
Supports a wide range of peripherals, including USB OTG FS, 10/100 Mbps Ethernet, eMMC, USART, and SAI audio.
Features an RGB LCD with capacitive multi-touch, SDRAM, Quad-SPI flash memory, and a digital MEMS microphone.
Includes ARDUINO® Uno V3 connectors for connecting compatible expansion shields and daughterboards.
Integrated STLINK-V3E debugger and programmer with a USB Virtual COM port for convenient development and debugging.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U, ARM Cortex-M4 and Cortex-M7 32-bit MCUs

~~Rs 27,899/-~~ Rs 23,984/-

Quantity:

STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U, ARM Cortex-M4 and Cortex-M7 32-bit MCUs

~~Rs 27,899/-~~ Rs 23,984/-

Description
Specifications
Additional Resources
Shipping & Return

Description

STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U, ARM Cortex-M4 and Cortex-M7 32-bit MCUs

The STM32H745I-DISCO Discovery Kit Board is a versatile development platform designed for engineers, embedded developers, and electronics enthusiasts working with advanced microcontroller applications. Powered by the STM32H745XIH6U dual-core microcontroller, it combines ARM Cortex-M7 and Cortex-M4 32-bit cores to support complex embedded systems development and prototyping.

This STM32 discovery board offers a comprehensive set of hardware features, including USB OTG FS, 10/100 Mbps Ethernet, eMMC, USART, stereo audio connectivity, a digital MEMS microphone, SDRAM, and Quad-SPI flash memory. Its RGB LCD with a capacitive multi-touch panel makes it suitable for developing interactive user interfaces and evaluating display-based applications. The ARDUINO® Uno V3-compatible connectors allow easy integration of expansion shields and daughterboards for additional functionality.

With the built-in STLINK-V3E debugger and programmer, along with a USB Virtual COM port bridge, developers can simplify firmware programming, testing, and debugging. Whether you're building embedded prototypes, exploring dual-core processing, or evaluating STM32 peripherals before moving to a final product, the STM32H745I-DISCO evaluation board provides a practical foundation for application development.

Features:

4.3-inch RGB interface LCD with touch panel connector
Ethernet compliant with IEEE 802.3-2002 and POE.
SAI audio CODEC, arduino® Uno V3 extension connections
One ST-MEMS digital microphone, one user, and a reset push button.
2 × 512Mbit quad-SPI NOR flash memory and 128Mbit SDRAM, 4GB on-board eMMC.
Fan-out daughterboard, two FDCANs.
5V can be given via Arduino™, external connectors, RJ45 (POE), USB chargers, and USB power.
On-board STLINK-V3E debugger/programmer supports USB re-enumeration.
Stereo headset jack with analog microphone input.
Arm® Cortex® 10-pin 1.27mm pitch debug connector with STDC14 footprint.

Specifications

Pacakge Includes:

1 x STM32H745I-DISCO Discovery Kit Board with STM32H745XIH6U

Specifications:

Silicon Manufacturer	STMicroelectronics
Silicon Family Name	STM32
Core Sub-Architecture	Cortex-M4, Cortex-M7
Kit Contents	Discovery Kit STM32H745XIH6U
SVHC	No SVHC (25-Jun-2025)
No. of Bits	32-bit
Core Architecture	ARM
Silicon Core Number	STM32H745XIH6U
