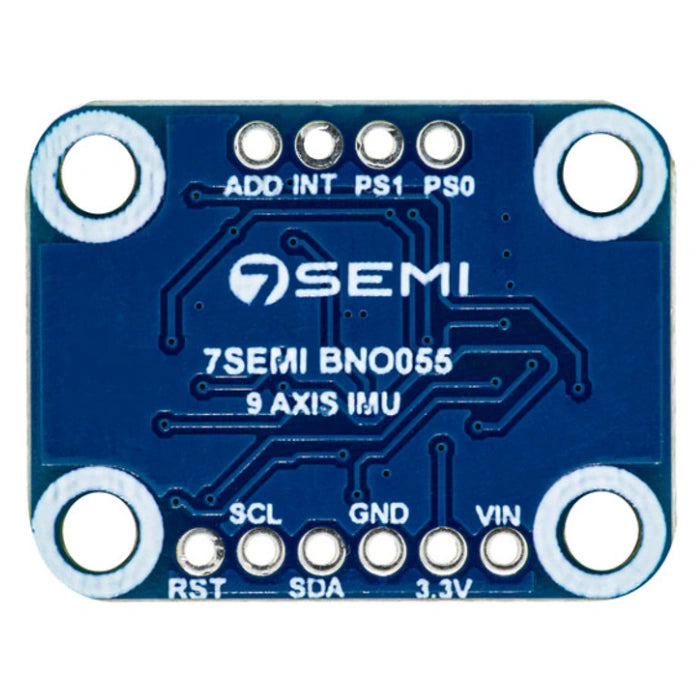

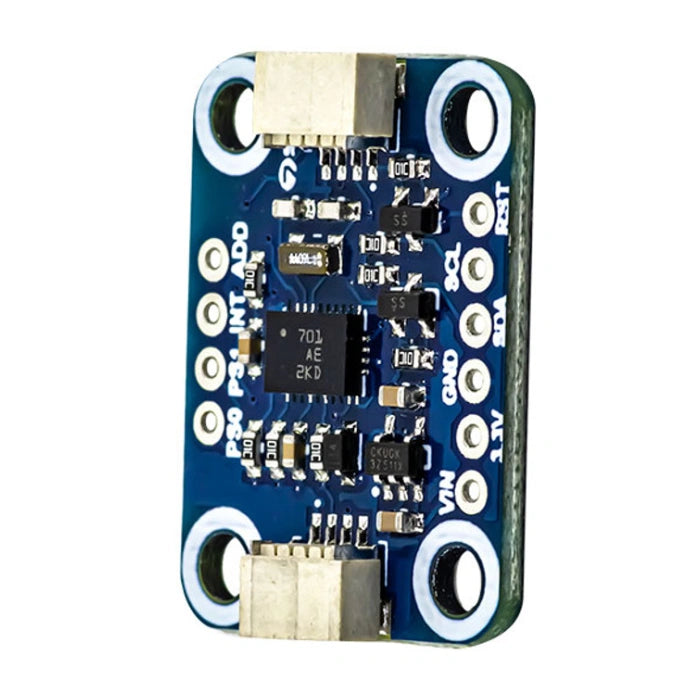

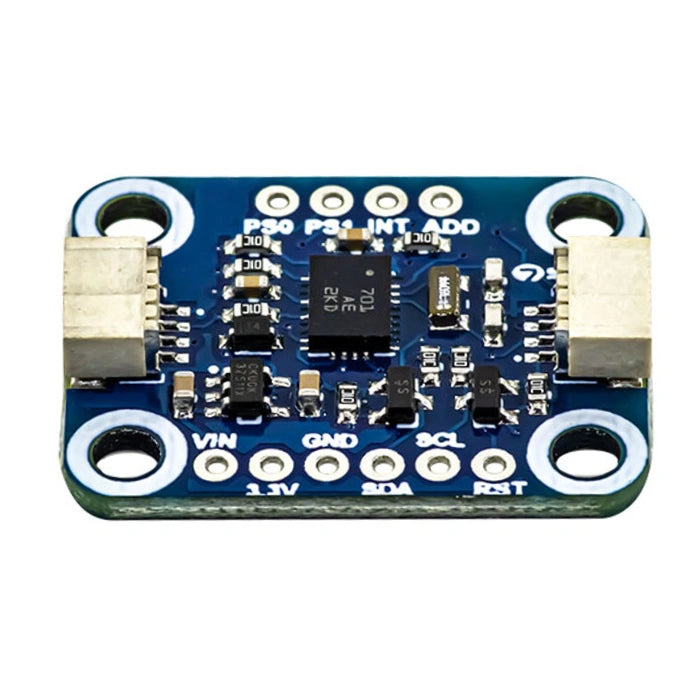

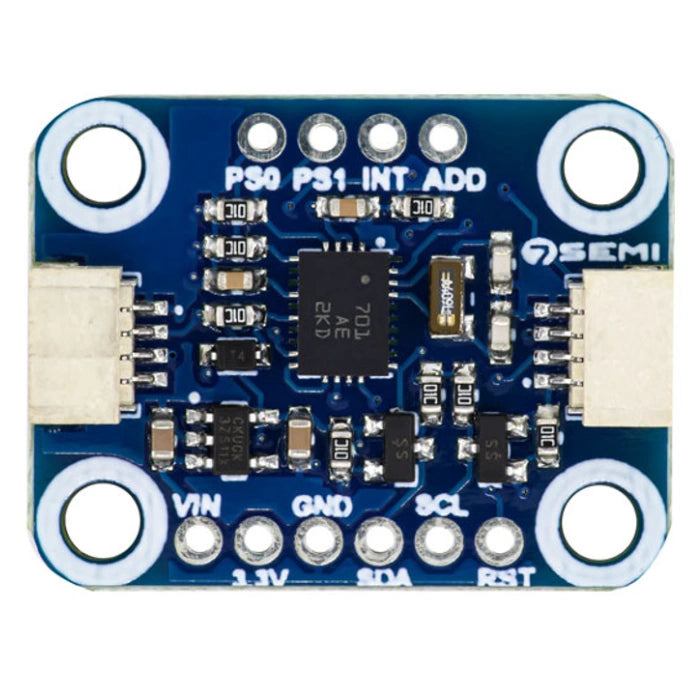

BNO055 9-DOF Absolute Orientation Sensor Breakout with I2C Qwiic - 7Semi
BNO055 9-DOF Absolute Orientation Sensor Breakout with I2C Qwiic - 7Semi
Out of stock
Regular price
Rs. 1,234
Regular price
Rs. 1,624
Sale price
Rs. 1234
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, people are actively viewing.
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Integrates accelerometer, gyroscope, and magnetometer
- Advanced sensor fusion algorithm for accurate 9-DOF orientation data
- I2C Qwiic interface for easy plug-and-play integration
- Operating voltage: 3.3V to 5.0V
- Low power consumption for energy-efficient designs
- Compact and easy to embed in robotics, drones, IoT, and AR/VR applications
- Real-time measurement of acceleration, angular rate, and magnetic field strength
BNO055 9-DOF Absolute Orientation Sensor Breakout with I2C Qwiic - 7Semi
Unlock the future of orientation sensing with the 7Semi BNO055 9-DOF Absolute Orientation Sensor Breakout with I2C Qwiic. Powered by Bosch's BNO055 Intelligent Sensor, this breakout seamlessly integrates an accelerometer, gyroscope, and magnetometer to deliver highly accurate, fused orientation data.
Built for ultimate precision and stability, the BNO055 features an advanced sensor fusion algorithm, offering real-time acceleration, angular rate, and magnetic field strength measurements. Thanks to its smart design, it offloads complex fusion computations from your microcontroller, ensuring smooth and efficient operation.
With an operating voltage range of 3.3V to 5.0V and a low-power consumption profile, this compact module is perfect for robotics, drone navigation, AR/VR applications, and IoT devices. The integrated I2C Qwiic interface ensures effortless connectivity and easy expansion.
Elevate your project’s performance with the 7Semi BNO055 Breakout — the intelligent, reliable solution for demanding orientation sensing needs.
7Semi BNO055 9-DOF Orientation Sensor Breakout I2C Connections to Arduino Circuit Diagram
Features:
-
Absolute Orientation (Euler Vector, 100Hz): Provides three-axis orientation data over a full 360° sphere.
-
Absolute Orientation (Quaternion, 100Hz): Outputs four-point quaternion data for high-accuracy manipulation.
-
Angular Velocity Vector (100Hz): Measures rotational speed across three axes (rad/s).
-
Acceleration Vector (100Hz): Captures combined gravity and motion-based acceleration across three axes (m/s²).
-
Magnetic Field Strength Vector (20Hz): Measures three-axis magnetic field strength (micro-Tesla, µT).
-
Linear Acceleration Vector (100Hz): Detects true linear acceleration excluding gravity effects (m/s²).
-
Gravity Vector (100Hz): Measures only gravitational acceleration across three axes (m/s²).
-
Built-in Accelerometer, Gyroscope, and Magnetometer: Offers complete 9-axis sensor data.
-
Ambient Temperature Sensing (1Hz): Monitors environmental temperature in °C.
-
Compact Design: Dimensions of just 21mm x 27mm x 4mm.
- I2C Interface: Supports 0x28 (default) or 0x29 I2C addresses for flexible connectivity.
Package Includes:
- 1 x 7Semi BNO055 9-DOF Absolute Orientation Sensor Breakout with I2C Qwiic
Specifications:
| Specification | Details |
|---|---|
| Operating Voltage | 2.4V to 16V |
| Interface | I2C |
| Temperature Range | -40°C to +85°C |
| Orientation | 9 Axis |
| Sensing Axis | X, Y, Z |
| Sensitivity | 1 LSB/mg |
| Acceleration Ranges | ±2g, ±4g, ±8g, ±16g |
| Weight | 3gm |
| Dimensions (LxWxH) | 2.7 x 2 x 0.5 cm |
| Mounting Hole Size | 3.0mm |
