Wheel Encoder Kit for DC Motor Speed Measurement - Buy Online in India

Wheel Encoder Kit for DC Motor Speed Measurement

Rs 587/-
- 22%
Rs 587/-
Rs 749/-
Save Rs 162/-
🪙
RC REWARDS Earn 5 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFKT0379
  • Designed for accurate DC motor speed measurement and rotational feedback.
  • Operates on a 4.5V–5.5V DC supply.
  • Provides reliable TTL output signals for easy microcontroller interfacing.
  • Low power consumption of 20mA at 5V.
  • Features a 24mm encoder code disk with a 4mm D-shaped mounting hole.
  • Supports up to 100kHz maximum PWM frequency.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Wheel Encoder Kit for DC Motor Speed Measurement
Wheel Encoder Kit for DC Motor Speed Measurement
Rs 749/- Rs 587/-
Wheel Encoder Kit for DC Motor Speed Measurement
Wheel Encoder Kit for DC Motor Speed Measurement
Wheel Encoder Kit for DC Motor Speed Measurement

Wheel Encoder Kit for DC Motor Speed Measurement

Rs 749/- Rs 587/-
Description

Wheel Encoder Kit for DC Motor Speed Measurement

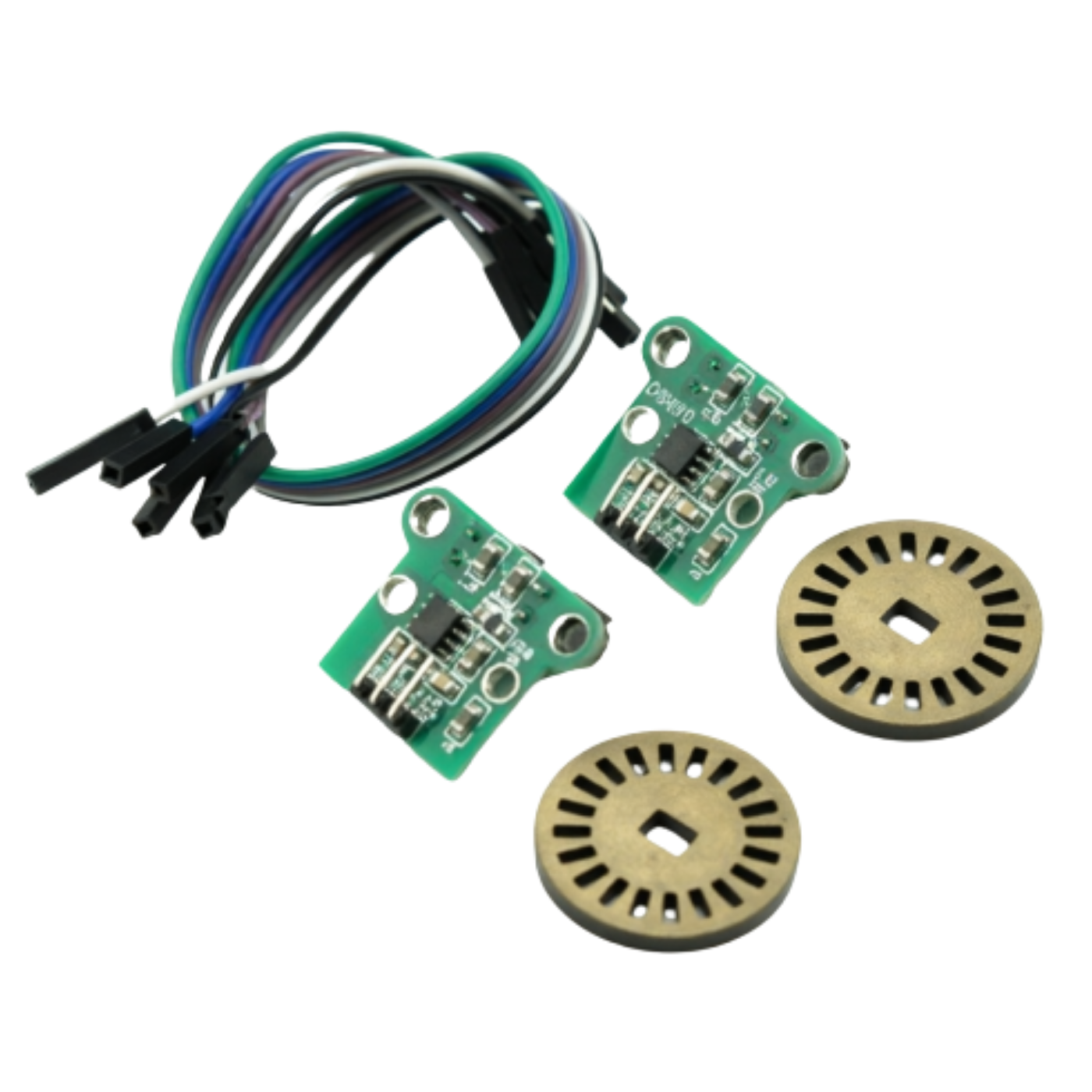

The Wheel Encoder Kit for DC Motor Speed Measurement is a compact and reliable solution for monitoring the speed and rotation of DC motors in robotics and automation applications. Operating within a 4.5V to 5.5V supply range, the encoder delivers stable TTL output signals that can be easily connected to Arduino, ESP32, Raspberry Pi, and other microcontroller boards. It consumes only 20mA at 5V, making it suitable for low-power embedded systems.

The kit includes a 24mm code disk with a 4mm D-shaped mounting hole for secure motor shaft installation and supports a maximum PWM frequency of 100kHz, ensuring accurate pulse detection even at high motor speeds. Whether you're building a robot, measuring wheel rotation, or implementing motor feedback control, this DC motor wheel encoder kit provides dependable performance for precise speed sensing.

Features:

  • Operating voltage: 4.5 - 5.5 volts
  • TTL outputs
  • 20mA usage at 5 volts
  • Code disk diameter is 24mm.
  • D-shape hole diameter: 4mm
  • The maximum PWM frequency is 100kHz.
Specifications

Package Includes:

  • 1 x Wheel Encoder Kit for DC Motor Speed Measurement

Specifications:

Specification Value
Product Type Wheel Encoder Kit
Operating Voltage 4.5V – 5.5V DC
Output Type TTL Digital Output
Current Consumption 20mA @ 5V
Code Disk Diameter 24mm
Shaft Mounting Hole 4mm D-Shaped
Maximum PWM Frequency 100kHz
