DIY Drone Assembly Guide

Follow these simple steps to assemble your first quadcopter or UAV:

Frame Setup: Attach the drone arms securely to the frame using screws and spacers. Ensure symmetry for balanced flight.

Mount the Motors: Install motors on each arm using the correct screw size. Match the CW and CCW motors as per propeller direction.

Connect ESCs (Electronic Speed Controllers): Solder the ESC wires to the motors and connect signal wires to the flight controller.

Attach the Flight Controller: Mount it at the center of the frame using rubber dampeners to reduce vibration. Connect ESC, receiver, and power input.

Propeller Installation: Add propellers matching rotation direction (CW/CCW). Tighten carefully to avoid motor strain.

Power & Battery Connection: Connect the LiPo battery via a power distribution board (PDB) or ESC power cables. Always double-check polarity.

Calibration & Test Flight: Use software like Betaflight or Mission Planner to calibrate sensors, ESCs, and radio transmitter before your first takeoff.

💡 Tip: Always remove propellers during setup and calibration for safety.

Drone Model Compatibility Chart

Drone Type	Frame Size (mm)	Propeller Size	Motor Type (KV)	Battery Type	Typical Use
Mini Drone (Toy / FPV)	90 – 150 mm	2″ – 3″	1102 – 1404 KV	1S–2S LiPo	Indoor / beginner training
Racing Drone	180 – 250 mm	5″ – 6″	2205 – 2306 KV	3S–4S LiPo	FPV racing / freestyle
Photography Drone	330 – 450 mm	9″ – 10″	2806 – 3510 KV	4S–6S LiPo	Aerial photography, videography
Heavy-Lift Drone	450 – 550 mm	11″ – 13″	3510 – 4108 KV	6S–8S LiPo	Payload transport, mapping
Agricultural Drone	550+ mm	14″+	4108 – 5010 KV	8S–12S LiPo	Spraying, surveying, industrial use

Related Categories

Propellers – Choose the right size and material for your drone build.

Batteries – Find LiPo batteries for extended flight times.

Controllers & Transmitters – Connect and pilot your drone with precision.

Drone Motors – Match motor KV ratings with your frame and prop size for balanced performance.

Drone Frames – Browse lightweight and durable frames for any drone size.

DIY Drones & Kits – All-in-one starter and advanced kits to build and fly your own drone:

Best Drone Parts Store in India

Robocraze is your one-stop shop for everything drones and UAV components, with competitive prices for mini drone parts and a broad assortment of top-quality components to enhance your drone experience.

Our range includes cutting-edge FPV racing drone kit, DIY drone kit, flight control boards, mighty power distribution boards, and robust landing equipment kits. We provide top-quality LiPo batteries, receivers and transmitters, FPV cameras, and gimbals for an immersive flight experience.

Drone Parts List

All parts of drone include:

Quadcopter frame: This is a structure (frame) in which all the other diy drone parts fit in. The drone frame acts as a skeleton in which different components are placed in such a manner that they uniformly distribute the Drone’s center of gravity.

Motors: Motors are essential drone accessories for the propeller’s rotation. The drone motor enhances a thrust force for propelling the DIY Drone. Still, the number of motors should be the same as the number of propellers.

Electronic Speed Controller (ESC): Electronic Speed Controller is an electronic control board that varies the motor’s speed. It also acts as a dynamic brake.

Flight Control/Board: The drone flight board makes a log of the takeoff place just in case the need arises for the DIY Drone to go back to its takeoff location without being guided. This is known as ‘return to home’ feature.

Propellers: Drone Propellers are clove like blades structured to create a difference in air pressure. When in motion, they cut through the air creating difference in pressure between the top and bottom of the rotors.

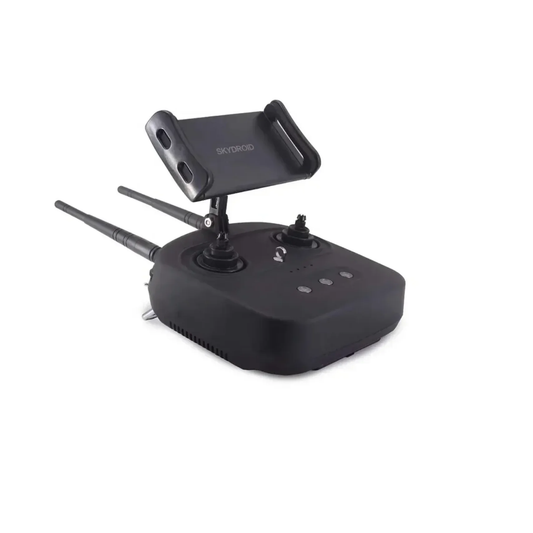

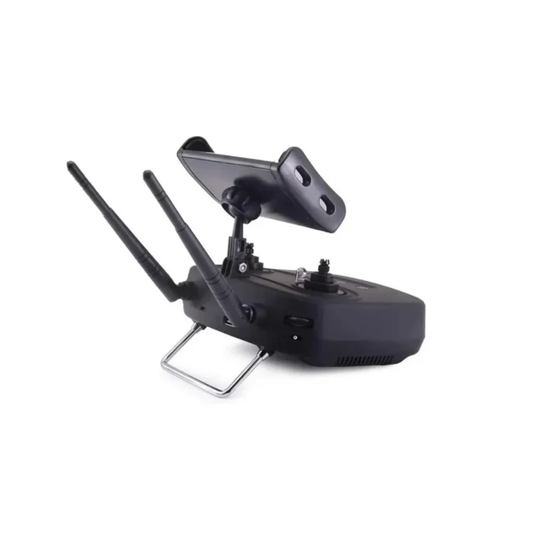

Radio Transmitter: It is a channeled transmitter and a communicator to the DIY Drone. Each channel has specific frequency capable of steering the DIY Drone in a certain motion. DIY Drone is requiring at least 4 channels for effective operation.

Battery, Electronics, and Power Distribution Cables: The drone battery acts as the power source to the DIY Drone. It supplies energy in all the electronics in the framework through the power distribution cables.

Camera: For video footage, cameras are attached to the DIY Drones. Cameras with the capability of shooting and storing or sending videos.

Landing gear: The drone landing gear is a structure meant for safely landing the DIY Drone. There are two major types of landing gear. One is fixed landing gear, and the other is retractable landing gear.

Related Searches

Passive Buzzer Module 3.3V-5V DC

Filamet is really good

Really good filament with no moisture and printed perfectly

The module is working fine i wished you guys had a soldered one and i think you missed the anntena for this module so make sure to provide one with this module

Delivery and quality

Delivery in one day excellent
Product quality is good

Good Product

Good product and fast courier services. It was good experience ordering from Robocraze

Parts of Drone	Starting From
Drone Frames	Rs. 224
LiPo Batteries	Rs. 1269
Drone Motors, ESC & Propellers	Rs. 131
Flight Controllers	Rs. 1,399
