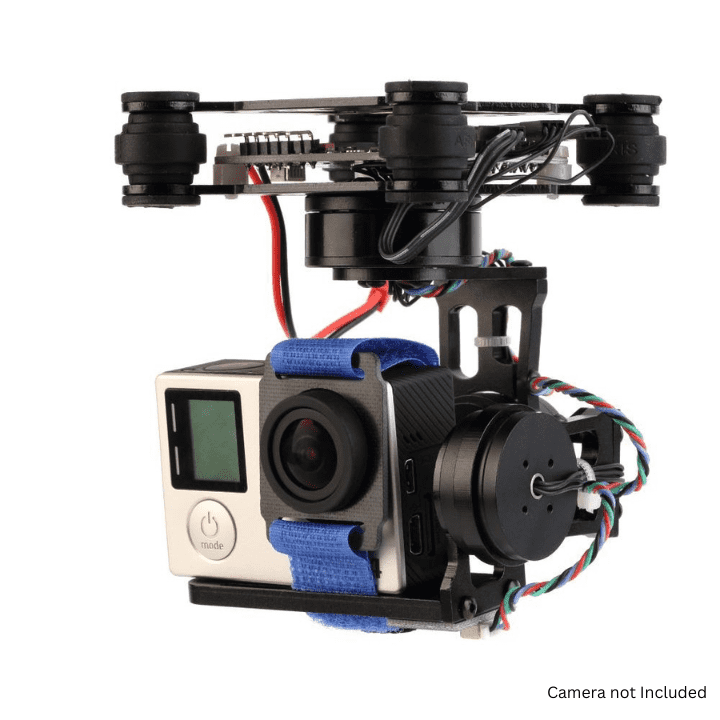

3 Axis FPV Camera Brushless Gimbal with Control Board

3 Axis FPV Camera Brushless Gimbal with Control Board

Out of stock

Regular price Rs. 6,909
Regular price Rs. 8,729 Sale price Rs. 6,909
Sale Sold out 21% off Best Price Guaranteed
You save Rs. 1,820 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 400/- OFF RC400

When you shop for ₹ 10000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Onboard gyroscope and accelerometer (MPU6050), dual gyroscope for more action
  • Infrared LED interface, it is more convenient to take pictures remotely
  • Futaba S-Bus, supports bus receiver: Spektrum satellite port
  • Up to 7-channel PWM/Sum-PPM input/output
  • Each axis can be connected to support the analog joystick, which can be used by the SLR handheld gimbal
  • With additional I2C port (I2C#2), an external 6050 can be used to replace the on-board sensor and 3 aux ports.
  • Supply voltage: 6 – 18 V or 2 – 4S
  • Motor drive current: maximum 2A per motor per phase
Trust Badge 1 Trust Badge 2 Trust Badge 3

3 Axis FPV Camera Brushless Gimbal with Control Board

Using the STM32F103RC at 72 MHz processor, the processing speed is 10 times faster than the 8, the response is faster and more sensitive.
On-board Bluetooth can be installed, and PID parameter adjustment can be performed through the mobile phone, which is much more convenient for outdoor parameter adjustment.

Key Features:

  • Shock Resistance: Coming with rubber ball for better shock resistance. it is easy for you to control.
  • Power Choosing: It is RTF version. Recommended power supply is 12V(3s battery), and battery is not included.
  • Compatible With: It is compatible for 3 / 3+ / 4 camera.
  • Aluminium-alloy Structure: With CNC machined aluminium-alloy structure, it is light relatively. Brushless motor drives gimbal directly.
  • High Performance: Being equipped with motor is good to heat dissipation. Excellent stability, high technology and superb craftsmanship.

How to install 3 Axis FPV Camera Gimbal:

  1. Remove damping ball, open the top mounting plate
  2. The mounting plate with a screw lock in the lower part of the aircraft
  3. Install vibration ball
  4. Install cameras, compact cameras with tape state

Application:

  •  GOPRO3/GOPRO4 and series compatible cameras

Package Includes:

  • 1 x FPV 3 Axis Brushless CNC Metal Gimbal With Controller
  • 1 x Camera fix Strap
  • 1 x JST plug / XH-2.54 Plug
  • 1 x 5pin cable connector
  • 1 x Screw set

Specifications:

Driver board STORM32BGC
Firmware version o323bgc-release-v070
Hardware version V130
Working voltage  3-4S (11.1-16.8V)
Working current 350mA
Joystick control angle PITCH: -25 degrees + 25 degrees / ROLL: -25 degrees + 25 degrees / YAW: -90 degrees + 90 degrees.
Switch Control Mode Lock/Follow
Size 80*80*100mm(L*W*H)
Weight 180g
Scope of application GOPRO series compatible cameras
Power Connectors  JST and HX
