- Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range: 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"

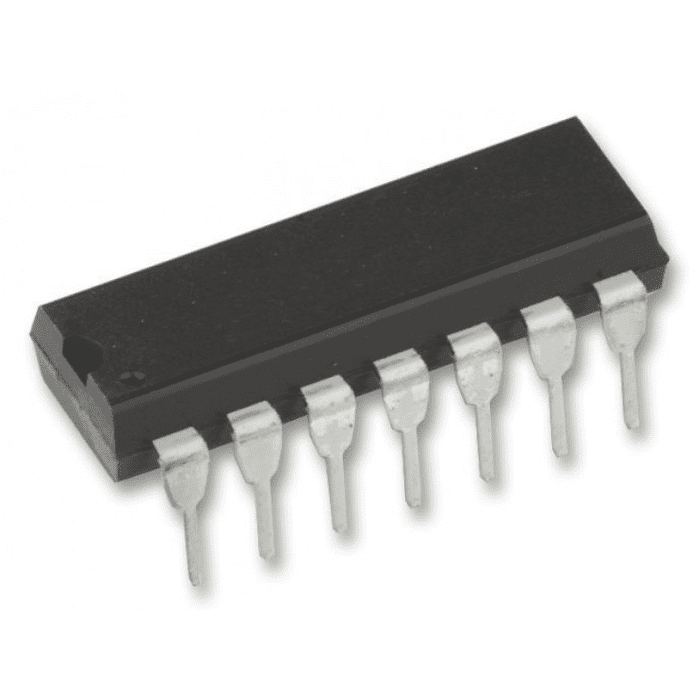

Dual 4 Input AND Gate IC - CD4082
CD4082 belongs to the CD4XXX IC series. This CD4082 is designed as a monolithic Dual 4 Input AND Gate designed by implementing the complementary MOS technology, integrated with P and N-type enhancement mode transistors. The CD4082 IC operates at a wide range of working voltage and a wide range of working conditions. And directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it quite easy to function with other TTL devices and microcontrollers.
The CD4x Series CD4082 offers features such as ESD barring and high noise immunity. Each output is protected against static damage by using clamping diodes. CD4081 Operates at a supply voltage of range between 3V to 15V. This IC is designed for operation over the full military temperature range of 0°C to 70°C. The IC CD4082 comes as smaller in size and offers much faster speed which makes it highly reliable in every kind of device. CD4082 IC can be soldered directly to the circuit board or easily mounted on a 14-pin IC base.
The CD4082 is manufactured in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).
The AND gate is designed as a basic digital logic gate that implements logical conjunction. An AND gate operates on logical multiplication rules. If all the inputs to the AND gate are HIGH, then the output will be high. If none or not all inputs to the AND gate are HIGH, results in LOW output.
check out : Dual 4 Input NAND Gate IC - CD4012
Pinout:
Application:
- Measurement of frequency
- Enable gate and Inhibit gate
Package Includes:
Selected qty of IC - CD4082
Specifications:
| Part number | CD4082B |
| Technology Family | CD4000 |
| VCC (Min) (V) | 3 |
| VCC (Max) (V) | 18 |
| Channels (#) | 2 |
| Inputs per channel | 4 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Standard Speed (tpd > 50ns) |
| Data rate (Max) (Mbps) | 8 |
| IOL (Max) (mA) | 6.8 |
| IOH (Max) (mA) | -6.8 |
| Package size: mm2:W x L (PKG) | 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) |
| Operating temperature range (C) | -55 to 125 |
| Package Group | PDIP|14 |
