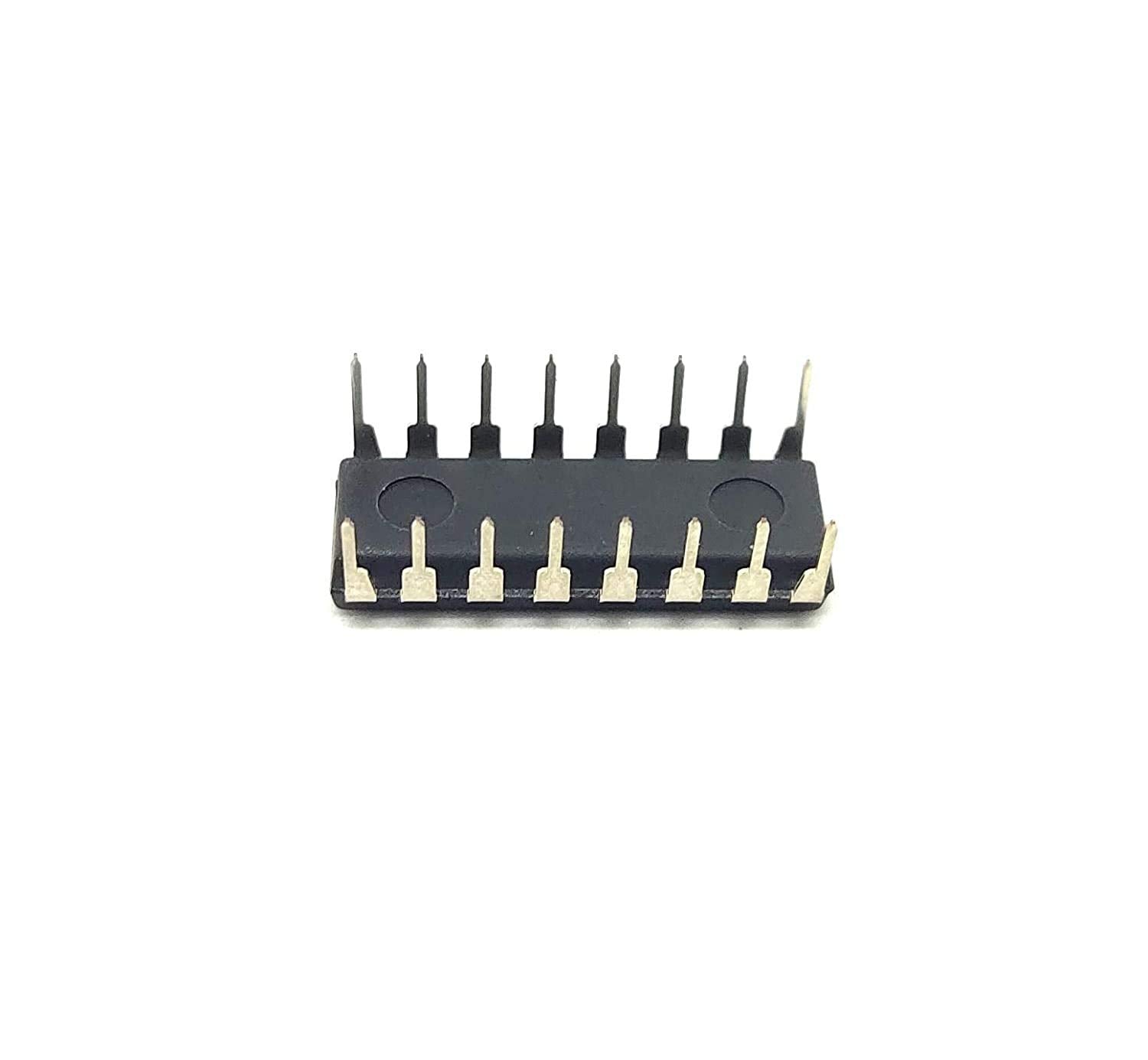

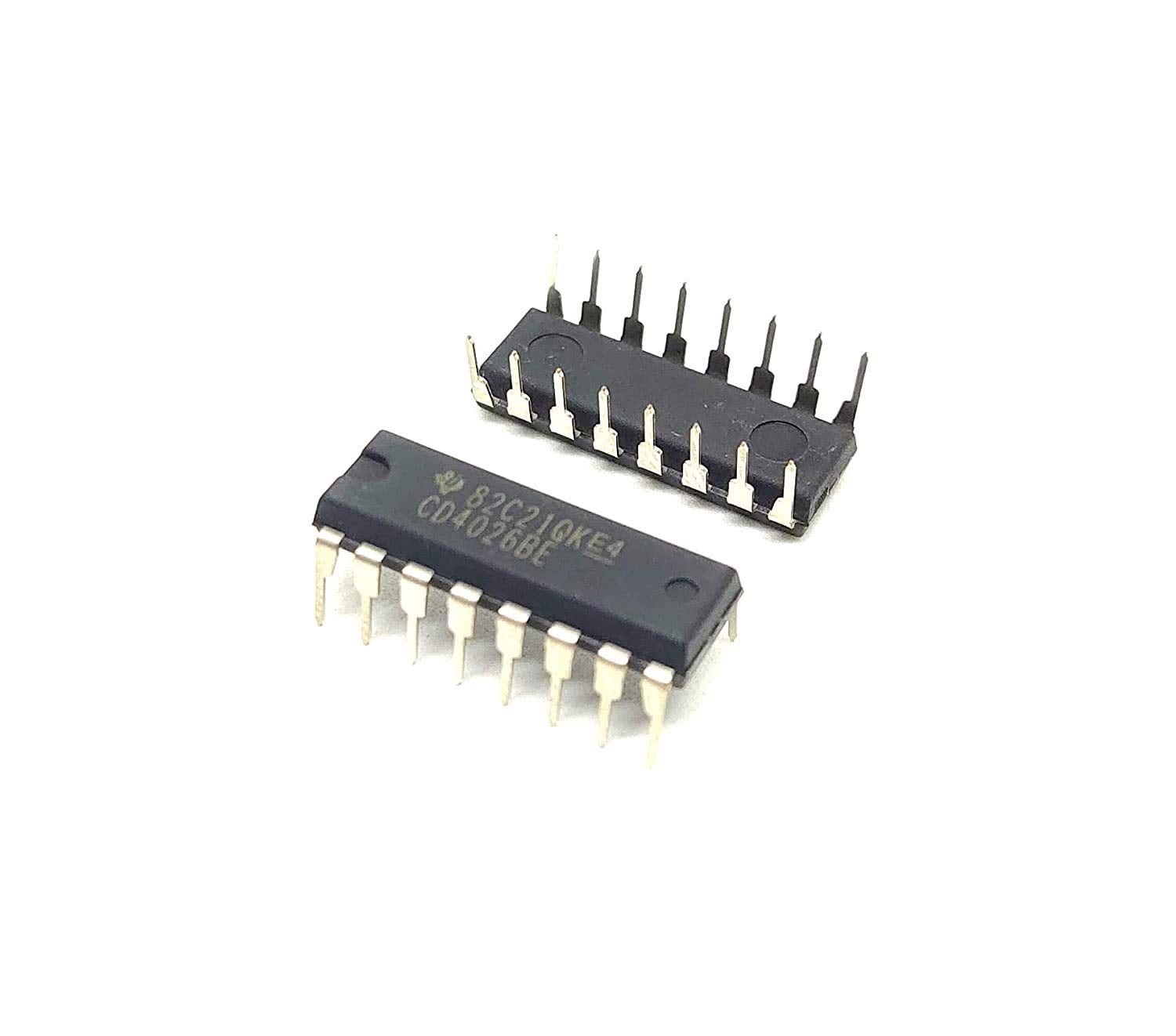

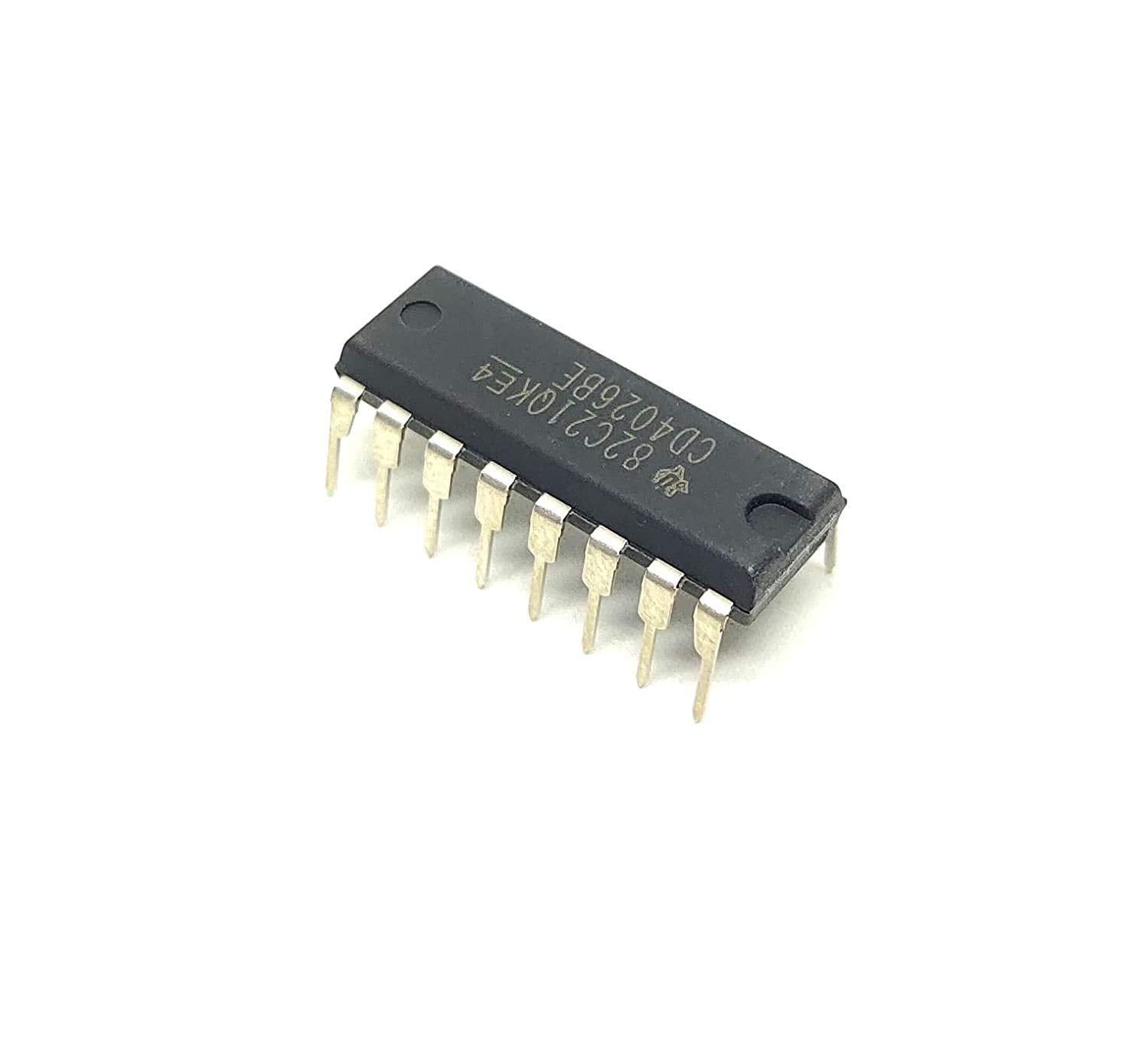

Decade Counter/Divider IC - CD4026

Decade Counter/Divider IC - CD4026

Regular price Rs. 33
Regular price Rs. 39 Sale price Rs. 33
Sale Sold out 15% off Best Price Guaranteed
You save Rs. 6 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • Counter and 7-segment decoding in one package
  • Easily interfaced with 7-segment display types
  • Fully static counter operation: DC to 6 MHz (typ.) at VDD = 10 V
  • Ideal for low-power displays
  • Display enable output (CD4026B)
  • "Ripple blanking" and lamp test (CD4033B)
  • 100% tested for quiescent current at 20 V
  • Standardized, symmetrical output characteristics
  • 5-V, 10-V, and 15-V parametric ratings
  • Schmitt-triggered clock inputs
  • Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices"

Decade Counter/Divider IC - CD4026

The CD4x Series CD4026 consists of a 5-stage Johnson decade counter and an output decoder that converts the Johnson code to a 7-segment decoded output for driving one stage in a numerical display.

These devices are particularly advantageous in display applications where low power dissipation and /or low package count are important.

Inputs common to both types are CLOCK, RESET, & CLOCK INHIBIT; common outputs are CARRY OUT and the seven decoded outputs (a, b, c, d, e, f, g). Additional inputs and outputs for the CD4026 include DISPLAY ENABLE input and DISPLAY ENABLE and UNGATED "C-SEGMENT" outputs.

A high RESET signal clears the decade counter to its zero counts. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT signal is high. The CLOCK INHIBIT signal can be used as a negative-edge clock if the clock line is held high. Antilock gating is provided on the JOHNSON counter, thus assuring proper counting sequence. The CARRY-OUT (Cout) signal completes one cycle every ten CLOCK INPUT cycles and is used to clock the succeeding decade directly in a multi-decade counting chain. The seven decoded outputs (a, b, c, d, e, f, g) illuminate the proper segments in a seven-segment display device used for representing the decimal numbers 0 to 9. The CD4026  outputs go high only when the DISPLAY ENABLE IN is high.

The CD4026 series type is supplied in 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

check out : CD4033 - 5-Stage Johnson Decade counter IC

Pinout:

Pinout of CD4026 Decade IC

Applications:

  • Decade counting 7-segment decimal display
  • Frequency division 7-segment decimal displays
  • Clocks, watches, timers (e.g. ÷60, ÷60, ÷ 12 counter/display)
  • Counter/display driver for meter applications

Package Includes:

Selected qty of IC - CD4026

Specifications:

Part number CD4026B
Technology Family CD4000
VCC (Min) (V) 3
VCC (Max) (V) 18
Bits (#) 7
Voltage (Nom) (V) 5, 10, 15
F @ nom voltage (Max) (MHz) 8
ICC @ nom voltage (Max) (mA) 0.03
tpd @ nom Voltage (Max) (ns) 250
IOL (Max) (mA) 1.5
IOH (Max) (mA) -1.5
Function Counter
Type Decade
Rating See Data Sheet
Operating temperature range (C) -55 to 125
Package Group PDIP|16

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1.What is CD4026?

  • CD4026 is a Johnson counter integrated circuit that is commonly used in digital displays. It has a five-stage Johnson decade counter and a decoder that converts the Johnson code to a seven-segment decoded output. Simply put, it will convert the input into a numeric display that can be viewed on a 7 segment display or with LED.

2.What is the input voltage of CD4026?

  • The CD4026 has a supply voltage range of 5V to 20V, which is much higher than any other modern logic family. It has a buffered output that improves transfer characteristics by providing a very high gain. All inputs are protected against static discharge by diodes connected to VDD and VSS.
