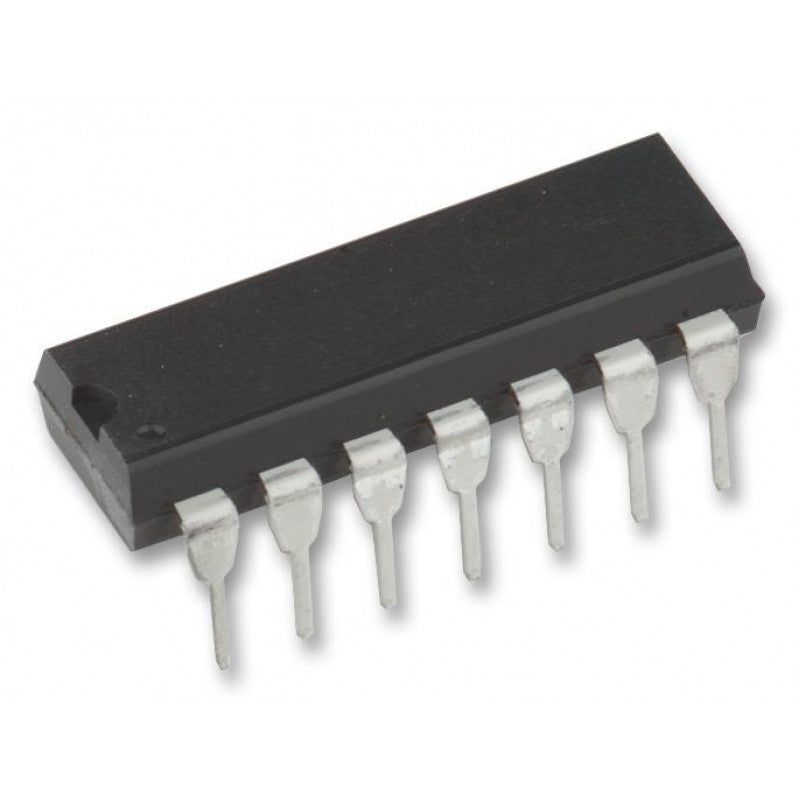

CD4016 - Quad Bilateral Switch IC

CD4016 - Quad Bilateral Switch IC

Regular price Rs. 21
Regular price Rs. 24 Sale price Rs. 21
Sale Sold out 13% off Best Price Guaranteed
You save Rs. 3
Incl. GST (No Hidden Charges)
Size
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Wide supply voltage range: 3V to 15V
  • Wide range of digital and analog switching: ±7.5 VPEAK
  • “ON” resistance for 15V operation: 400Ω (typ.)
  • Matched “ON” resistance over 15V signal input: ∆RON = 10Ω (typ.)
  • High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD−VSS = 10V, RL = 10 kΩ
  • Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD − VSS = 10V TA = 25°C
  • Extremely high control input impedance: 1012Ω (typ.)
  • Low crosstalk between switches: −50 dB (typ.) @ fIS = 0.9 MHz, RL = 1 kΩ
  • Frequency response, switch “ON”: 40 MHz (typ.)

CD4016 - Quad Bilateral Switch IC

The CD4x Series CD4016 is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066B.

The CD4016 is a CMOS IC with four analog switches, which can be controlled individually using a control pin. The signal can flow in either direction between the two pins of each switch.

Each switch has an enable pin (A) and two input/output pins (X and Y). When the enable pin is set to HIGH, current can flow between X and Y in either direction. However, when enable is LOW, no current can flow between the pins. Just like a switch.

Pinout:

Pinout of CD4016 IC

Pin Name Pin # Type Description
VDD 14 Power Supply Voltage (+3 to +15V)
GND 7 Power Ground (0V)
A1-A4 5,6,12,13 Input Enable pins for the four bilateral switches
X1-X4 1,3,9,11 Input/Output Pin X for each switch
Y1-Y4 2,4,8,10 Input/Output Pin Y for each switch

Package Includes:

Selected qty of IC - CD4016

Specifications:

VDD Supply Voltage −0.5V to +18V
VIN Input Voltage −0.5V to VDD + 0.5V
TS Storage Temperature Range  −65°C to + 150°C
Power Dissipation (PD): Dual-In-Line 700 mW
Lead Temperature 260°C

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1.What is the use of CD4016?

  • The CD4016 is a CMOS integrated circuit (IC) with four bilateral switches, also known as analogue switches. These switches connect and disconnect analogue signals in a circuit. The CD4016 is suitable for a wide range of applications, including audio and video signal routing, data acquisition, instrumentation, communications, and power management.

2.How To Use The 4016 IC?

  • To begin, connect the VDD pin (pin 14) to the positive supply terminal and the GND pin (pin 7) to the negative supply terminal. You can use a power supply voltage ranging from 3V to 15V. However, some versions of the 4016 chip can handle up to 20V. For exact values, consult your datasheet. The CD4016 integrated circuit has four bilateral switches that can be controlled by setting a pin HIGH or LOW. Because they are bidirectional, you can select which pin (Y or X) to use for input and output.
