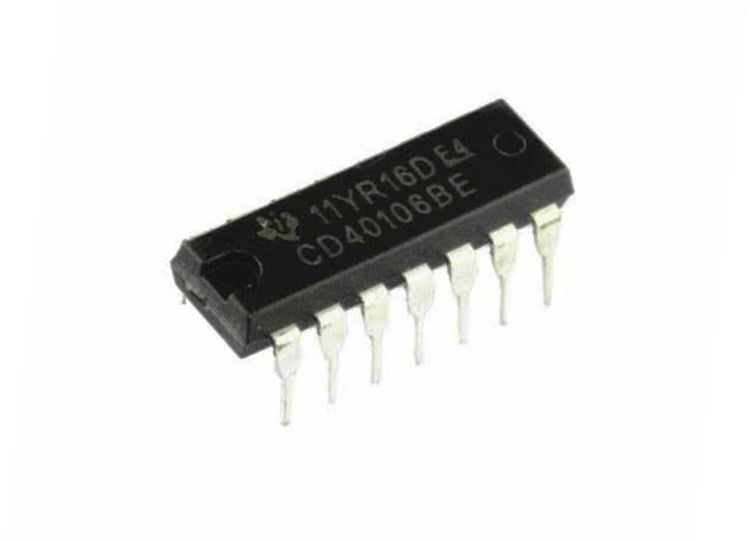

CD40106 - Hex Schmitt Trigger Inverter IC
CD40106 - Hex Schmitt Trigger Inverter IC
Couldn't load pickup availability

Free shipping on Orders Above Rs 499/-
Fast Delivery

Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards

Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This IC has a high output current of -1mA
- This IC has a low output current of 1mA
- Quiescent Current: 40 nA
- Propagation Delay Time: 280 ns
- Operating Temperature Range: -55 C to + 125 C
- Available in 14-pin PDIP, GDIP, PDSO packages
CD40106 - Hex Schmitt Trigger Inverter IC
The CD40106 IC consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH).
A Schmitt trigger input means that the threshold voltage for going from a HIGH to a LOW input is different from the threshold for going from LOW to HIGH.

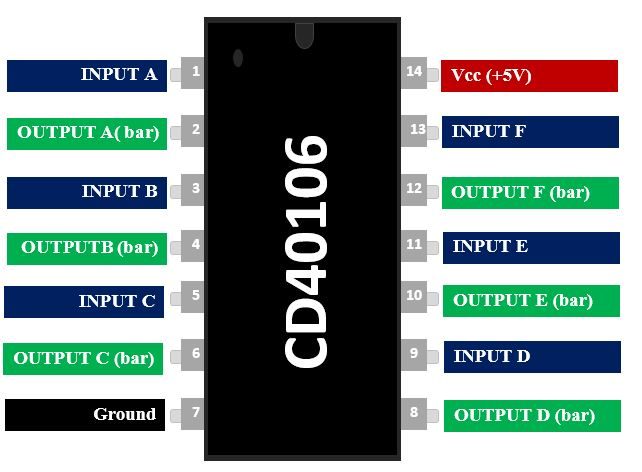

CD40106 Pinout Configuration:
Pin Number |
Pin Name |
Description |
1,3,5,11,13,15 |
Schmitt Input Pins |
Input pins of the Schmitt trigger |
2,4,6,10,12,14 |
Schmitt Inverted Output Pins |
Output pins of the Schmitt trigger |
7 |
Ground |
Connected to the ground of the system |
14 |
Vcc (+5V) |
Resets all outputs as low. Must be held high for normal operation |
Applications of CD40106:
- Noise removing circuits
- Debouncing circuits
- Hysteresis controller
- Dead band filter
Package Includes:
- 1 x IC - CD40106
Specifications:
Schmitt Trigger | Hex Inverter |
Operating Voltage | 5V |
Low-Level Hysteresis voltage | 0.3V |
High-Level Hysteresis voltage | 3.5V |
