CD4011 - Quad 2-Input NAND Gate IC

CD4011 - Quad 2-Input NAND Gate IC

Rs. 19
Rs. 24 Rs. 19
Sale Sold out 21% off
Incl. GST (No Hidden Charges)
Size
Submit your Bulk Enquiry Here
Currently, 17 people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 9 Hours and 9 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Provides the system designer with direct implementation of the NAND function
  • Operating Voltage Range: 3.0 to 18 V
  • Buffered inputs and Outputs
  • Max input current 1µA at 18V over full Military Temperature Range
  • Low Power TTL compatible

CD4011 - Quad 2-Input NAND Gate IC

The CD4011 is a quad package 2-Input NAND gate IC(Integrated Circuits). That is, it has four NAND gates inside a single package and each gate has two input lines and one output line. All the inputs and outputs are buffered and this improves transfer characteristics by providing a very high gain.

The CD4011 IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5. All four gates share the same power rail but can operate independently.

Pinout:

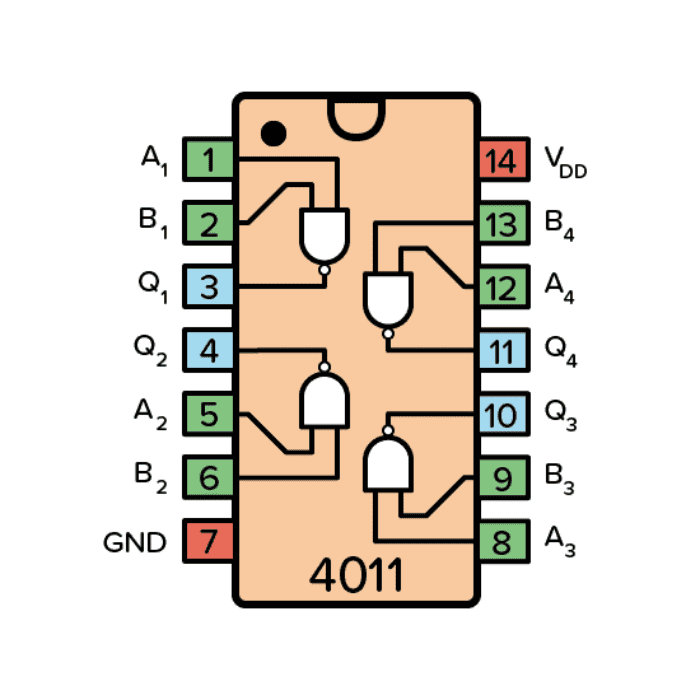

Pinout Of CD4011 IC

PACKAGE INCLUDES:

Selected qty of IC - CD4011

Specifications:

Operating Voltage 5V
Low-Level Output Current 1.5mA
Propagation Delay Time 60ns
Operating Temperature Range - 55 C to + 125 C
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

ADDITIONAL RESOURCES

1.What is the function of CD4011?

  • CD4011 is a 2-input 4 NAND gate IC that is widely used in electronic circuits. The logic NAND function is performed by CD4011. When used as a logic inverter, the NAND gates in this chip can be reconfigured to become NOT gates. So, if necessary, we can make SN54LS00 a four NOT gate chip.

2.What voltage does CD4011 supply?

  • The CD4011 has a recommended operating voltage range of 3V to 18V, and the typical output voltage high level (VOH) at a 5V supply voltage and a 10kΩ load is 4.5V. The typical output voltage low level (VOL) is 0.1V.
